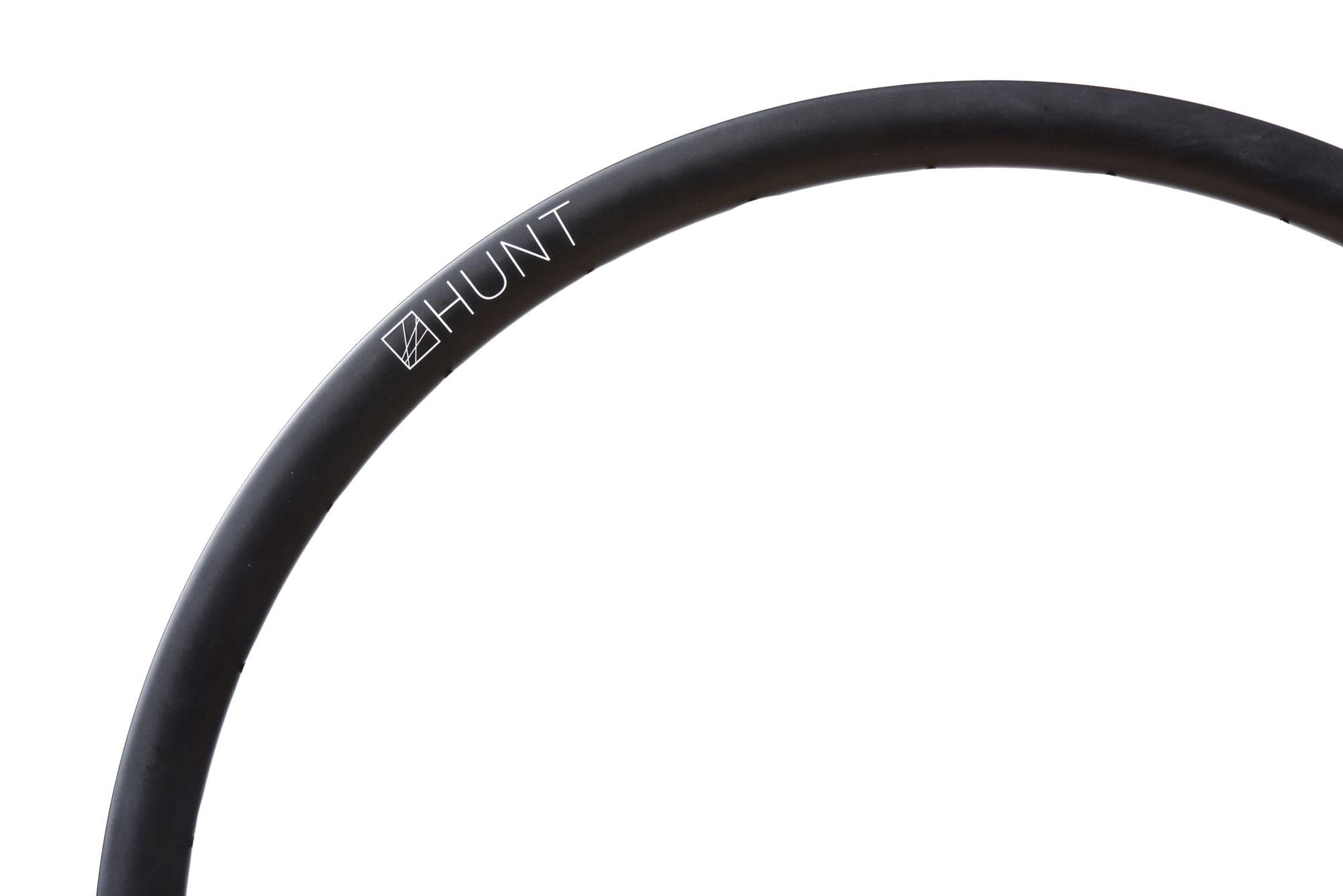

HUNT 30 Carbon All-Road Disc Rim

FIT WIDE TYRES, GO RIDE WHERE YOU WANT, ENJOY THE FREEDOM AND AERODYNAMICS OF THESE SERIOUSLY LIGHTWEIGHT CARBON RIMS

£399
Limited Stock.
Dispatched same day if ordered by 10am kEST. Delivery time is 2-6 days*
Finance options available at checkout.

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

Fit wide tyres, go ride where you want, enjoy the freedom and aerodynamics of these seriously lightweight carbon rims

30 DEEP | 27 WIDE Ext | 20 Wide Int | 404G

Disc-specific high-performance rim technology that will deliver you to the finish every time. A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The seriously wide aero-rounded profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim brake-rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on its primary roles of supporting the tyre and spoke forces. The 30 Carbon All-Road Disc specific rim's smooth rounded disc-specific sidewall also looks stunning of course. The rim dimensions are seriously wide at 27mm (20mm internal) which creates a great tyre profile with wider 23-50mm tyres, giving excellent grip and lower rolling resistance.

V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blend in the carbon pre-preg which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

Detailed Specifications

Rim

  • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless rim tape offered separately.

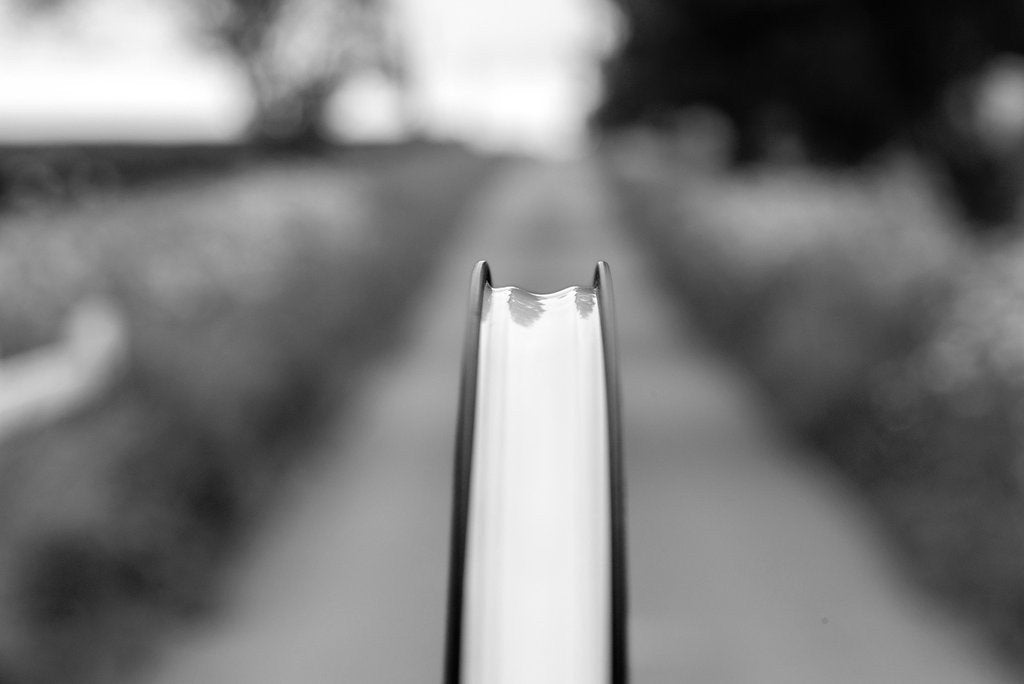

  • Disc-specific tubeless-ready profile
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes

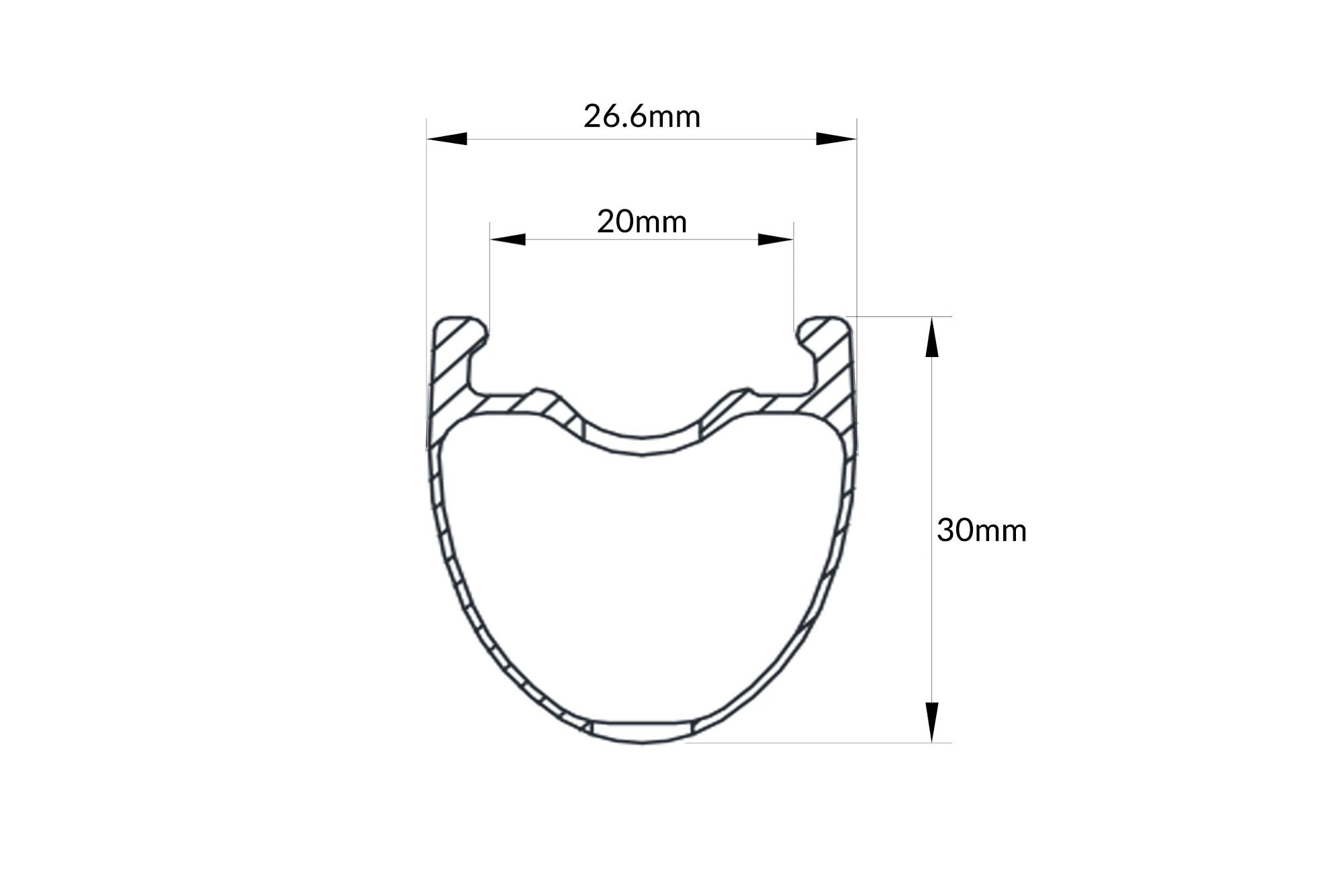

  • 27mm outer and 20mm inner width ideal for 23-50mm tyre widths
  • 30mm depth
  • Matt black base finished with matt white contrasting graphics.
  • Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres. Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100psi is more than enough for any rider on road. Please do not exceed the maximum pressure stated on your tyre. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
  • ERD 578.7mm
  • Lacing:

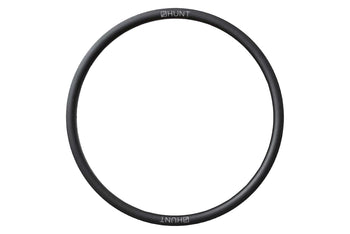

    • Front - Cross 2

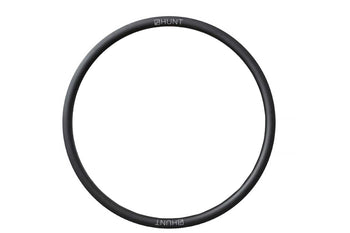

    • Rear - Cross 2
  • Recommended Spoke Tension:
    • Front - 115-130 kgf
    • Rear - 110-125 kgf
