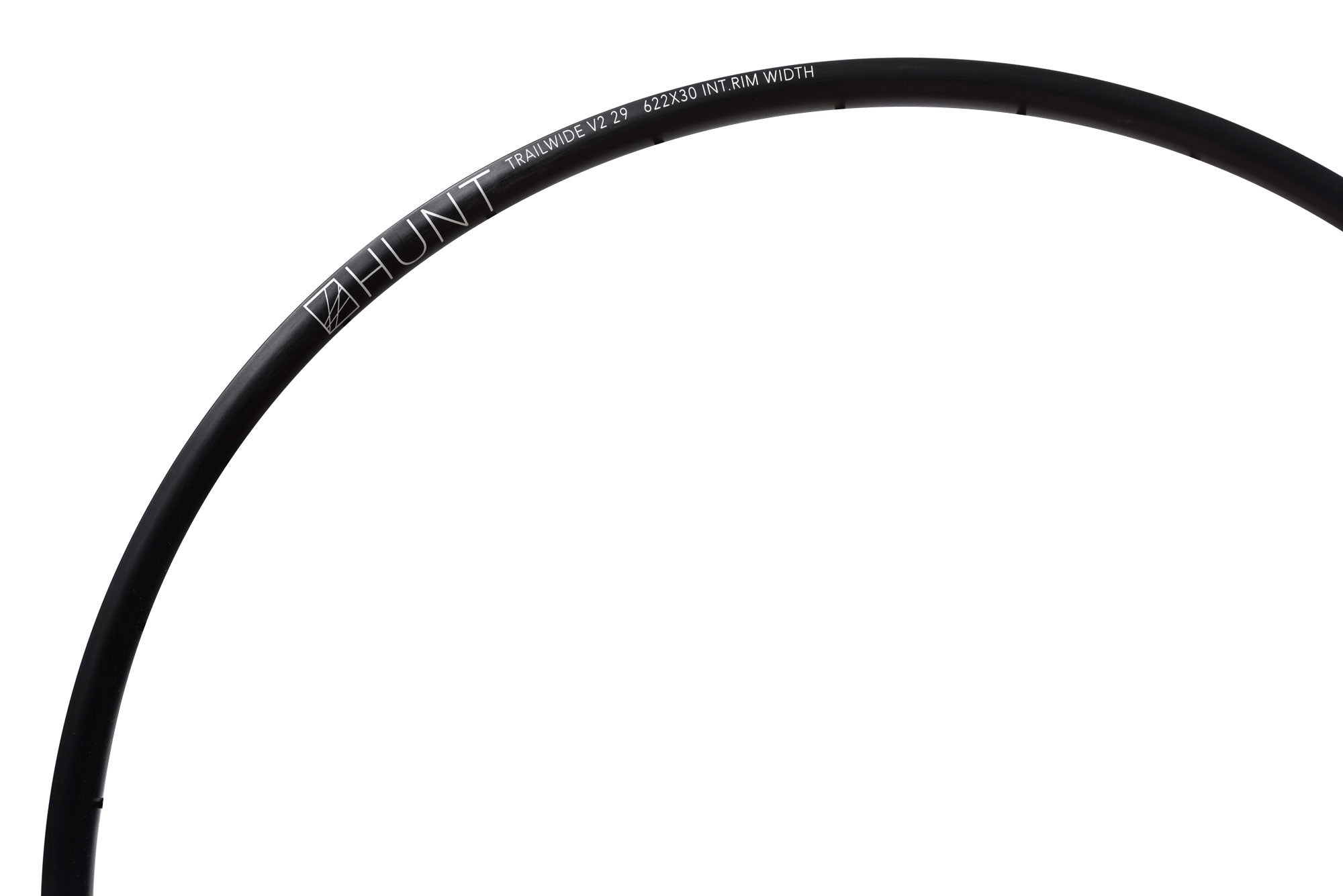

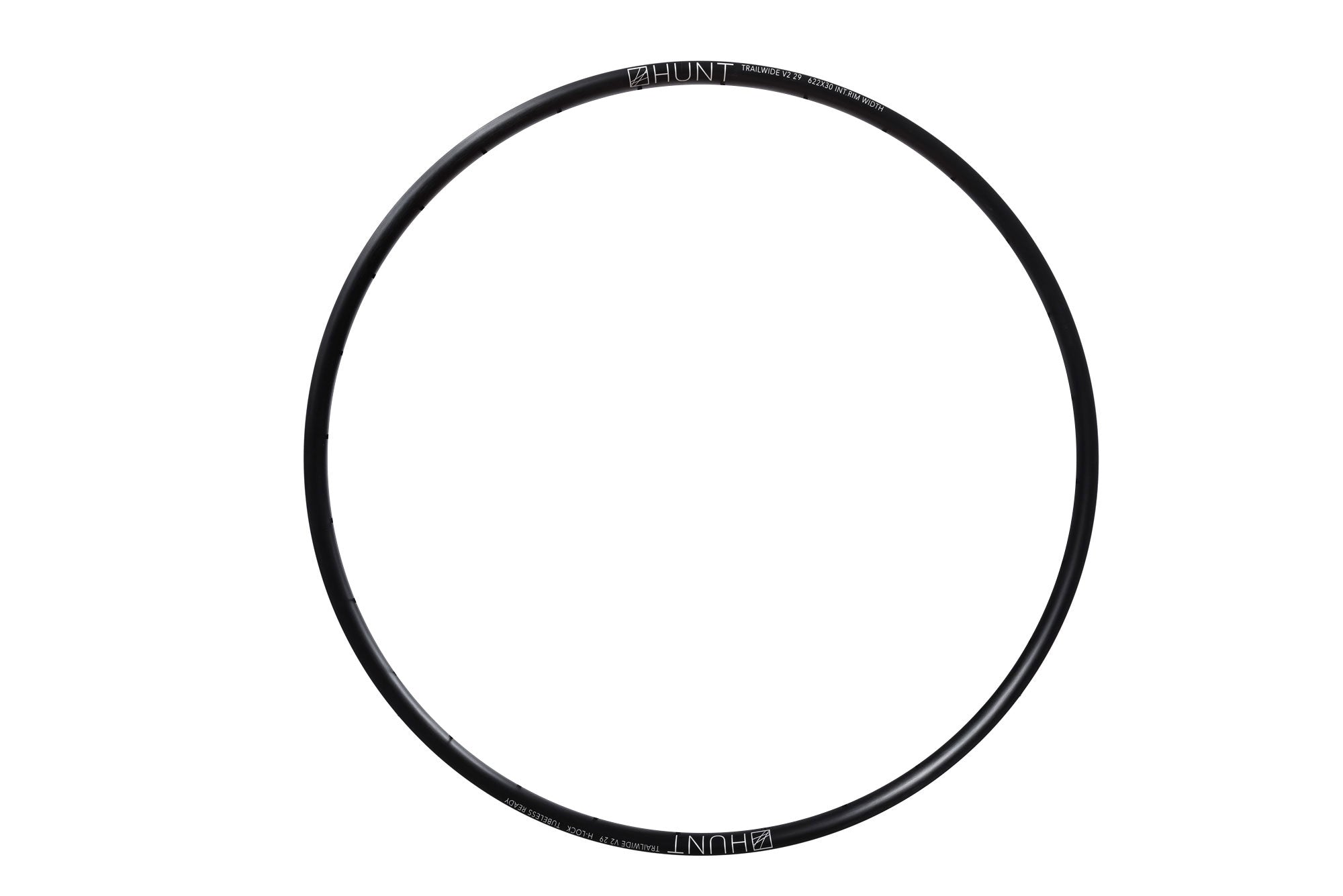

Hunt Trail Wide V2 MTB Rim
THE ALL-NEW TRAIL WIDE IS YOUR GO-TO WHEELSET NO MATTER THE CONDITIONS. OPTIMISED TO STILL TAKE THE A-LINES ON THE DESCENTS AND NOT HOLD YOU BACK ON THE CLIMBS.
27.5/29" | 30mm Wide Int.
The Trail Wide V2 rim includes details which are high on the durability factor to make sure you finish every ride or stage. The 6069-T6 (490 MPa, +69% tensile strength vs 6061-T6) welded rim sticks, with the wider-is-better mantra with an internal 30mm rim width. Optimized for 2.35"-2.6" tyres, the Trail Wide V2 rim provides support to the tyre during hard cornering or hucking off that step-down you've been eying off for a few months!
Detailed Specifications
Rim
- Tubeless-ready – designed to work excellently with tubeless tyres. Tubeless rim tape offered separately.
- 6069 T6 (490 MPa, + 69% Ultimate Tensile Strength over 6061-T6) welded construction
- H-lock bead-seat up-kicks for easy and secure tubeless installation
- 30mm internal width ideal for 2.35"-2.6" tyre widths, but also work very well with 2.3"-2.8"
- Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
- Maximum tyre pressure for this rim: up to 2.5" do not exceed 40psi. 2.6 - 2.8" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tyre.
- ERD:
- Front 29" - 600.55mm
- Rear 29" - 600.55mm
- Front 27.5" - 562.55mm
- Rear 27.5" - 562.55mm
- Lacing:
- Front - Cross 3
- Rear - Cross 3
- Recommended Spoke Tension:
- Front Wheel：105~120kgf
- Rear Wheel：105~120kgf
- Weight:
- 29": 520g
- 27.5": 485g
