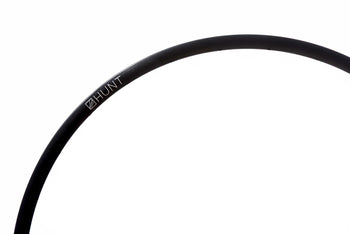

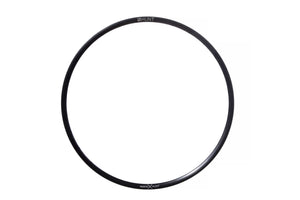

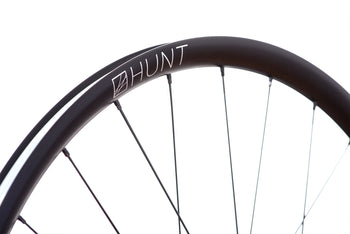

MASON x HUNT 650B Adventure Sport Disc Rim
MASON x HUNT 650B Adventure Sport Disc Rim
MASON x HUNT 650B Adventure Sport Disc Rim

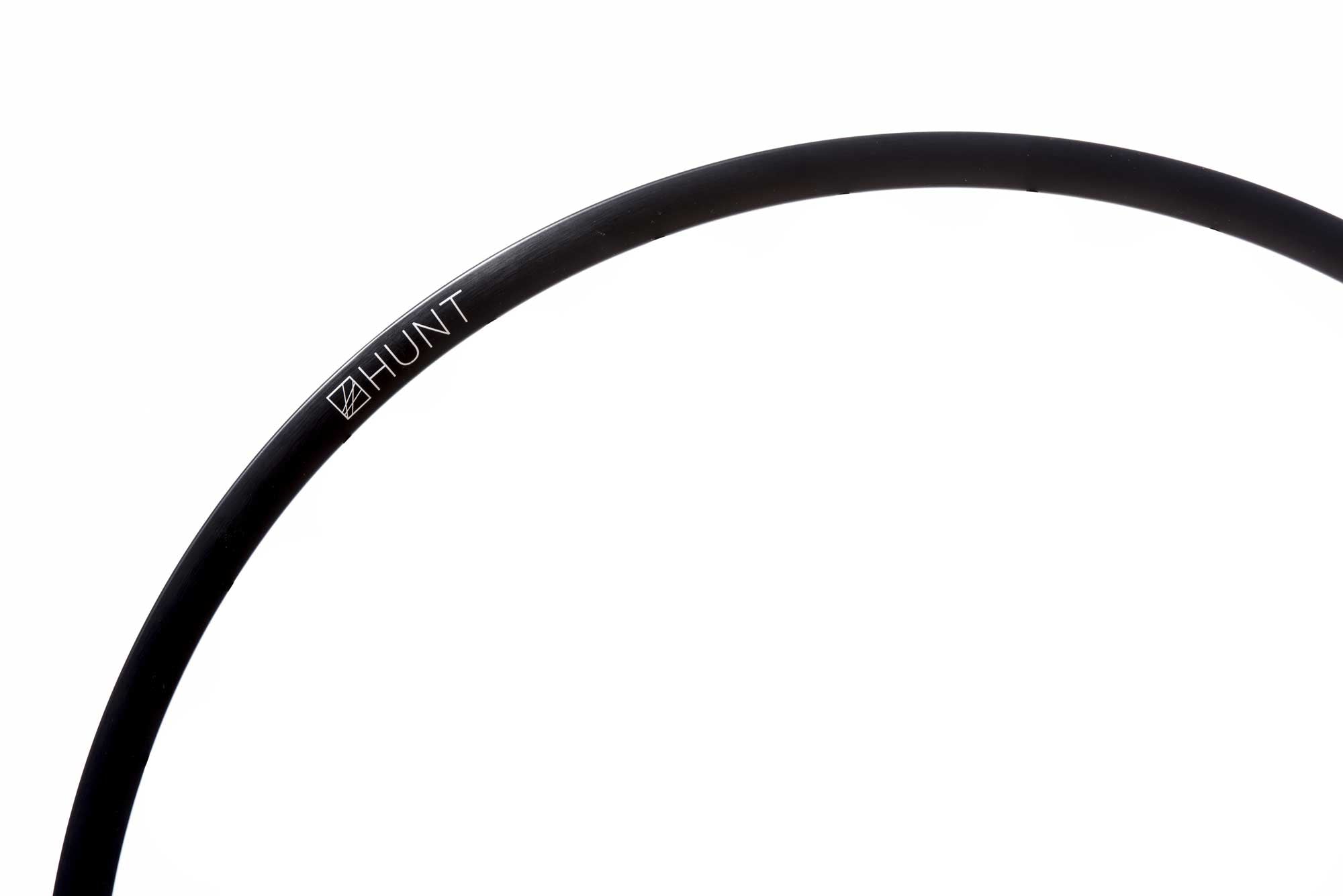

<h1>Rims</h1><i>A strong and lightweight 6066-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface. The extra wide rim at 29mm (25mm internal) which creates a great tyre profile with wider 28-54mm tyres, giving excellent grip and lower rolling resistance.</i>

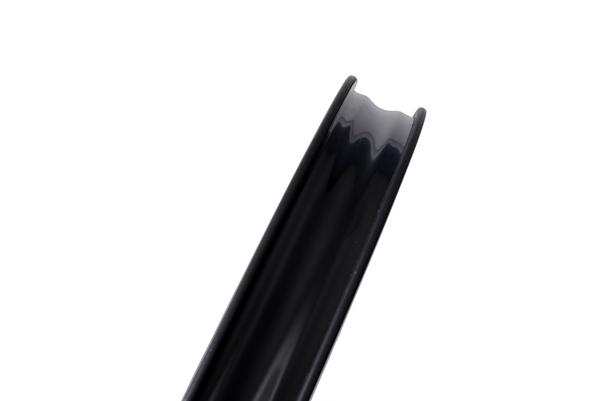

<h1>Rim Bed</h1><i>H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>Rim Surface</h1>

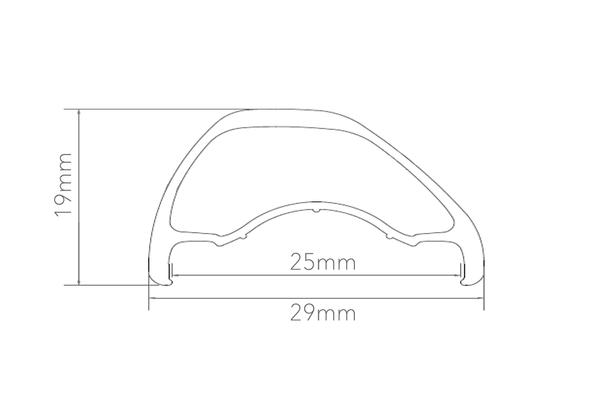

<h1>Rim Profile</h1>
MASON x HUNT 650B Adventure Sport Disc Rim
MASON x HUNT 650B Adventure Sport Disc Rim
MASON x HUNT 650B Adventure Sport Disc Rim
MASON x HUNT 650B Adventure Sport Disc Rim
<h1>Rims</h1><i>A strong and lightweight 6066-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface. The extra wide rim at 29mm (25mm internal) which creates a great tyre profile with wider 28-54mm tyres, giving excellent grip and lower rolling resistance.</i>
<h1>Rim Bed</h1><i>H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>

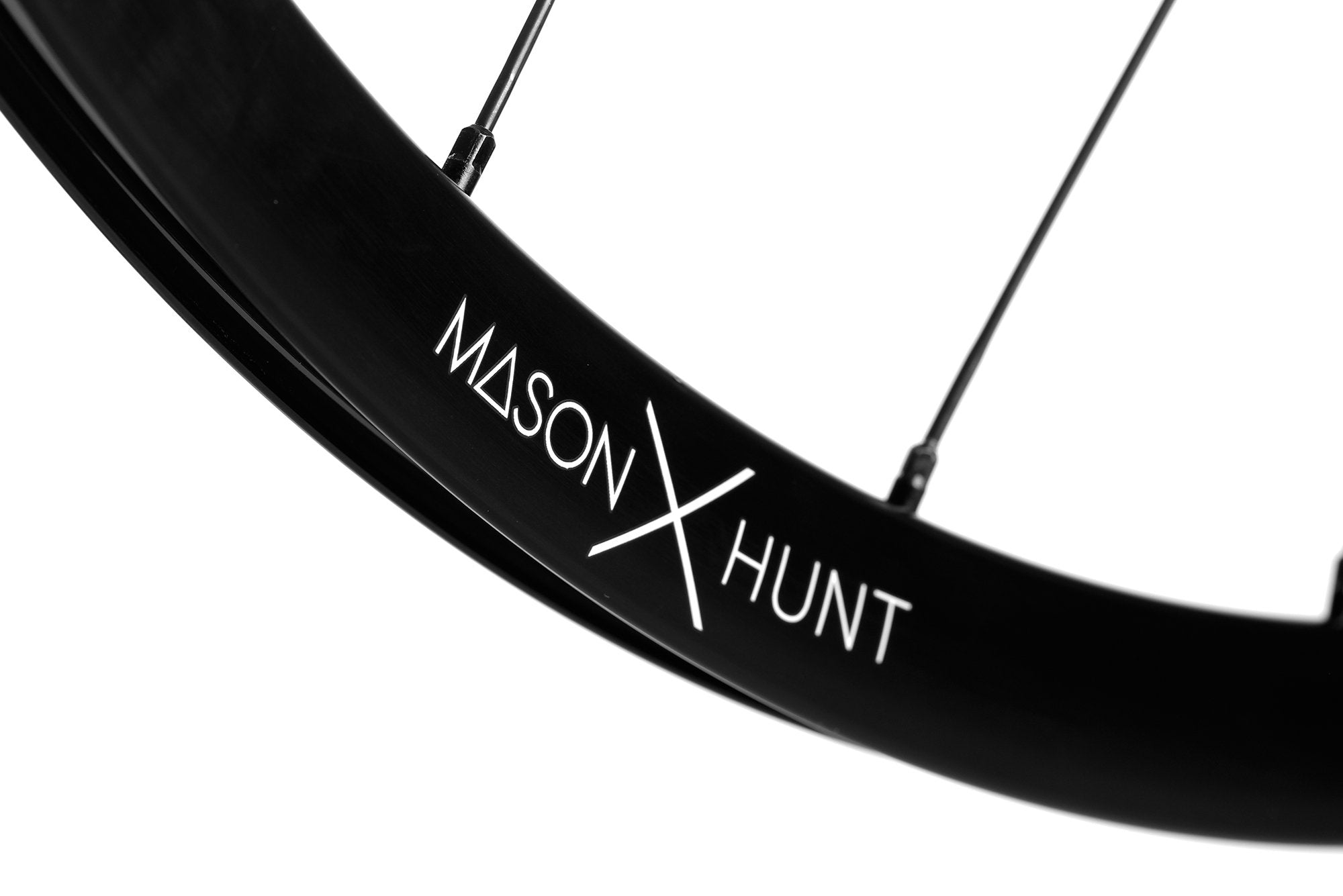

<h1>Rim Surface</h1>

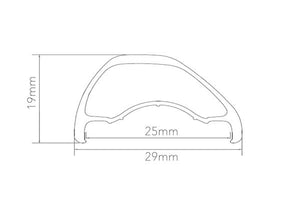

<h1>Rim Profile</h1>

MASON x HUNT 650B Adventure Sport Disc Rim

19 DEEP | 29 WIDE Ext | 25 Wide Int | 400G

Rims for wheels specifically created for the new breed of adventurous thrasher go-anywhere drop-bar bikes designed to work with multiple wheel and tyre sizes.

19 DEEP | 29 WIDE Ext | 25 Wide Int | 400G

Key features of this rim that make it great for the focused purpose of drop-bar adventure/gravel road riding are:

  • Wider 29mm external/25mm internal rim provides excellent ride handling and support for wider tyres and they work perfectly with up to 2.3” MTB tyres.
  • The 19mm deep rim delivers excellent strength needed for the lower spoke counts and higher gear torques from road groupsets when compared to MTB setups.
  • Asymmetric rim accommodates the front disc and rear cassette hub offsets and helps build an even stronger and more durable wheelset thanks to balanced spoke tensions.

Detailed Specifications

Rim

  • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless rim tape offered separately.
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • 6066-T6 (+34% tensile strength vs 6061-T6) heat-treated aluminium alloy.
  • Asymmetric to balance spoke tensions
  • Disc-specific tubeless-ready profile
  • 29mm outer and 25mm inner width ideal for 28-54mm tyre widths
  • 19mm depth
  • Matt black anodized finish with laser-etched graphics for excellent durability
  • Maximum tyre pressure for this rim is 120psi when used with an inner tube and 100psi when running the wheel set-up tubeless. Please do not exceed the maximum pressure stated on your tyre.
  • ERD 558mm
  • Lacing:
    • Front - Cross 2
    • Rear - Cross 2
  • Recommended spoke tension:
    • Front - 115-130 kgf
    • Rear - 110-125 kgf

Rims for wheels specifically created for the new breed of adventurous thrasher go-anywhere drop-bar bikes designed to work with multiple wheel and tyre sizes.

19 DEEP | 29 WIDE Ext | 25 Wide Int | 400G

Key features of this rim that make it great for the focused purpose of drop-bar adventure/gravel road riding are:

  • Wider 29mm external/25mm internal rim provides excellent ride handling and support for wider tyres and they work perfectly with up to 2.3” MTB tyres.
  • The 19mm deep rim delivers excellent strength needed for the lower spoke counts and higher gear torques from road groupsets when compared to MTB setups.
  • Asymmetric rim accommodates the front disc and rear cassette hub offsets and helps build an even stronger and more durable wheelset thanks to balanced spoke tensions.

Detailed Specifications

Rim

  • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless rim tape offered separately.
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • 6066-T6 (+34% tensile strength vs 6061-T6) heat-treated aluminium alloy.
  • Asymmetric to balance spoke tensions
  • Disc-specific tubeless-ready profile
  • 29mm outer and 25mm inner width ideal for 28-54mm tyre widths
  • 19mm depth
  • Matt black anodized finish with laser-etched graphics for excellent durability
  • Maximum tyre pressure for this rim is 120psi when used with an inner tube and 100psi when running the wheel set-up tubeless. Please do not exceed the maximum pressure stated on your tyre.
  • ERD 558mm
  • Lacing:
    • Front - Cross 2
    • Rear - Cross 2
  • Recommended spoke tension:
    • Front - 115-130 kgf
    • Rear - 110-125 kgf

MASON x HUNT 650B Adventure Sport Disc Rim

19 DEEP | 29 WIDE Ext | 25 Wide Int | 400G

Regular price £79 GBP
MASON x HUNT 650B Adventure Sport Disc Rim £79.00 GBP
