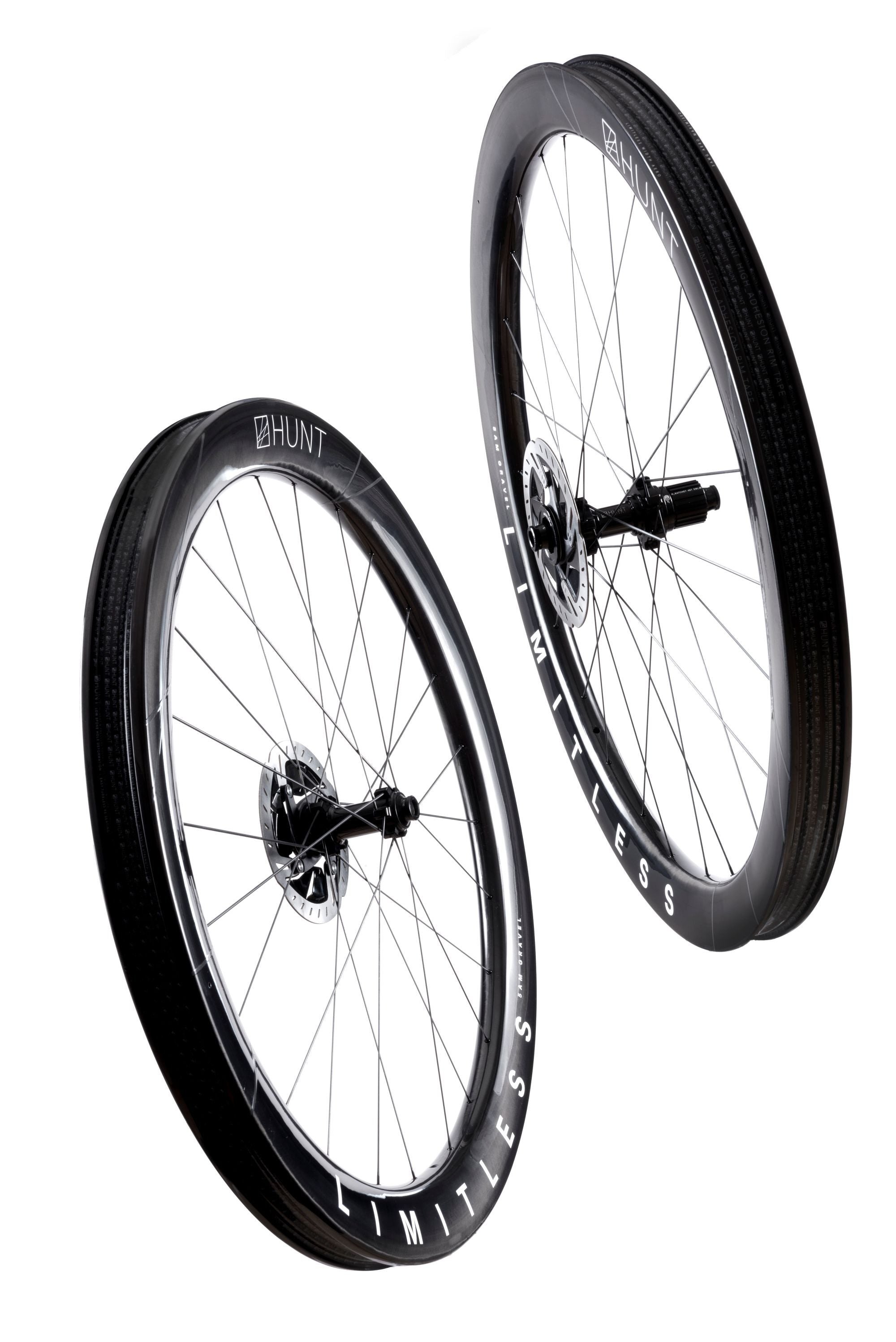

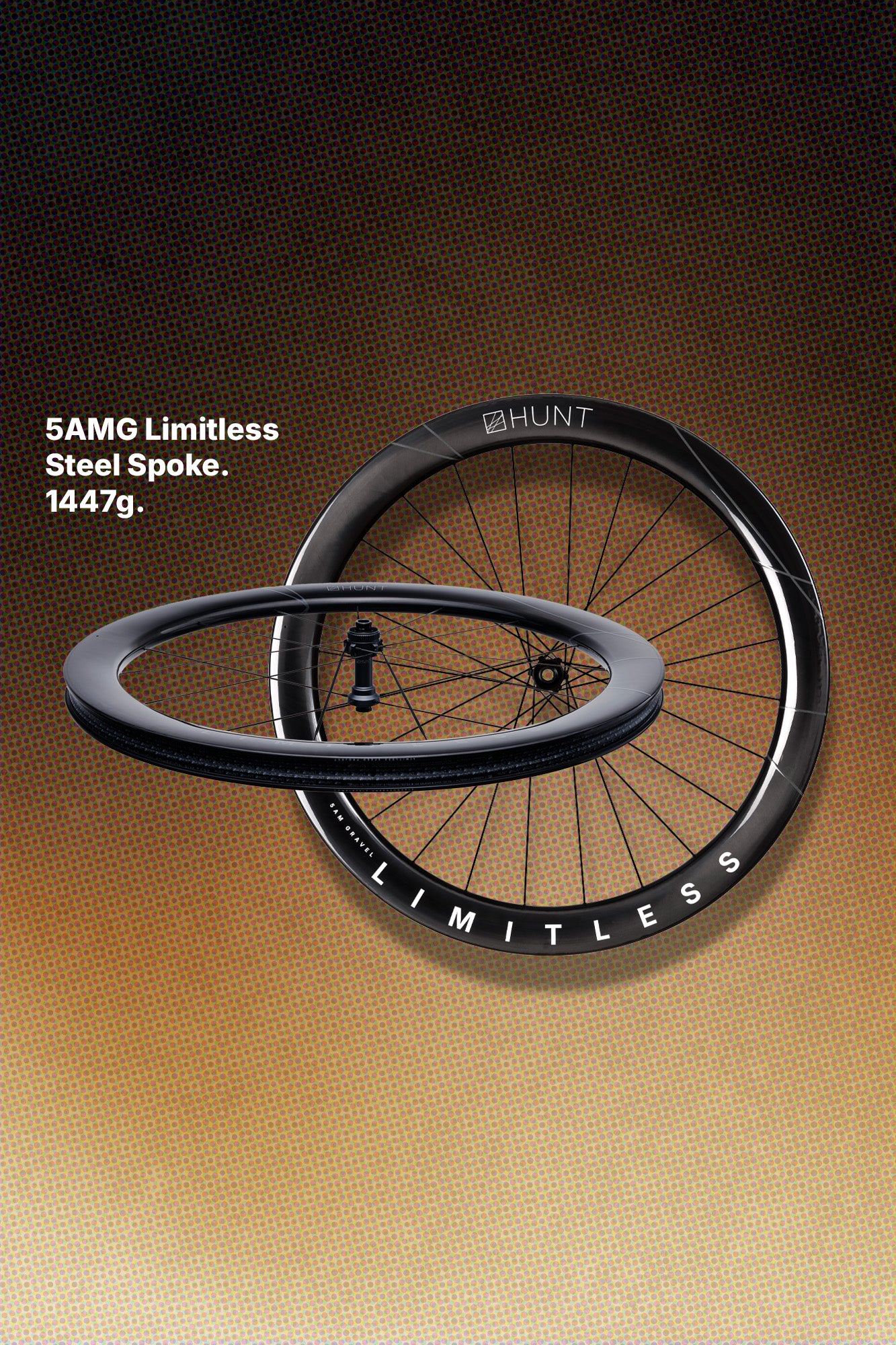

HUNT 5AM Gravel Limitless Wheelset

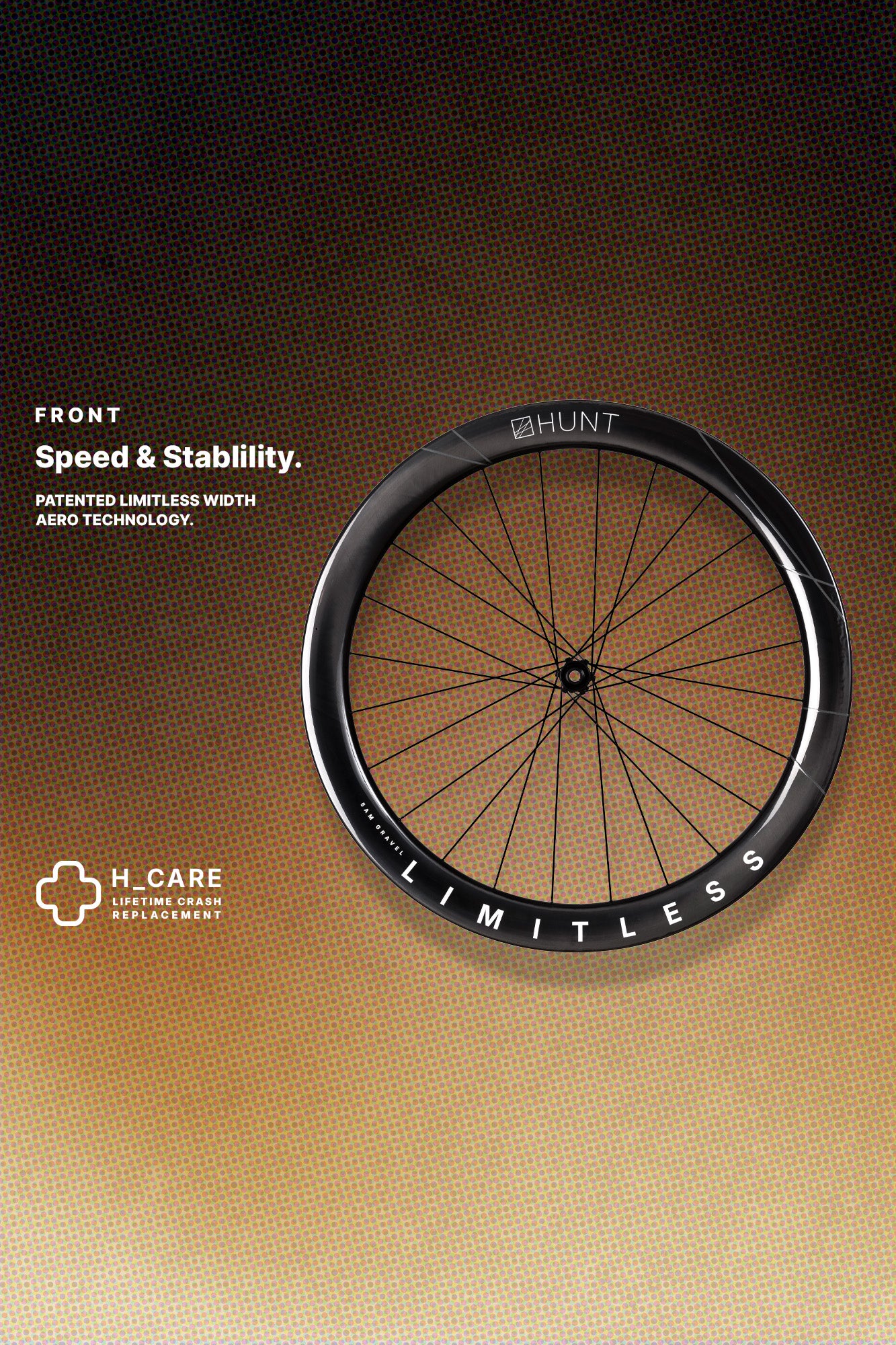

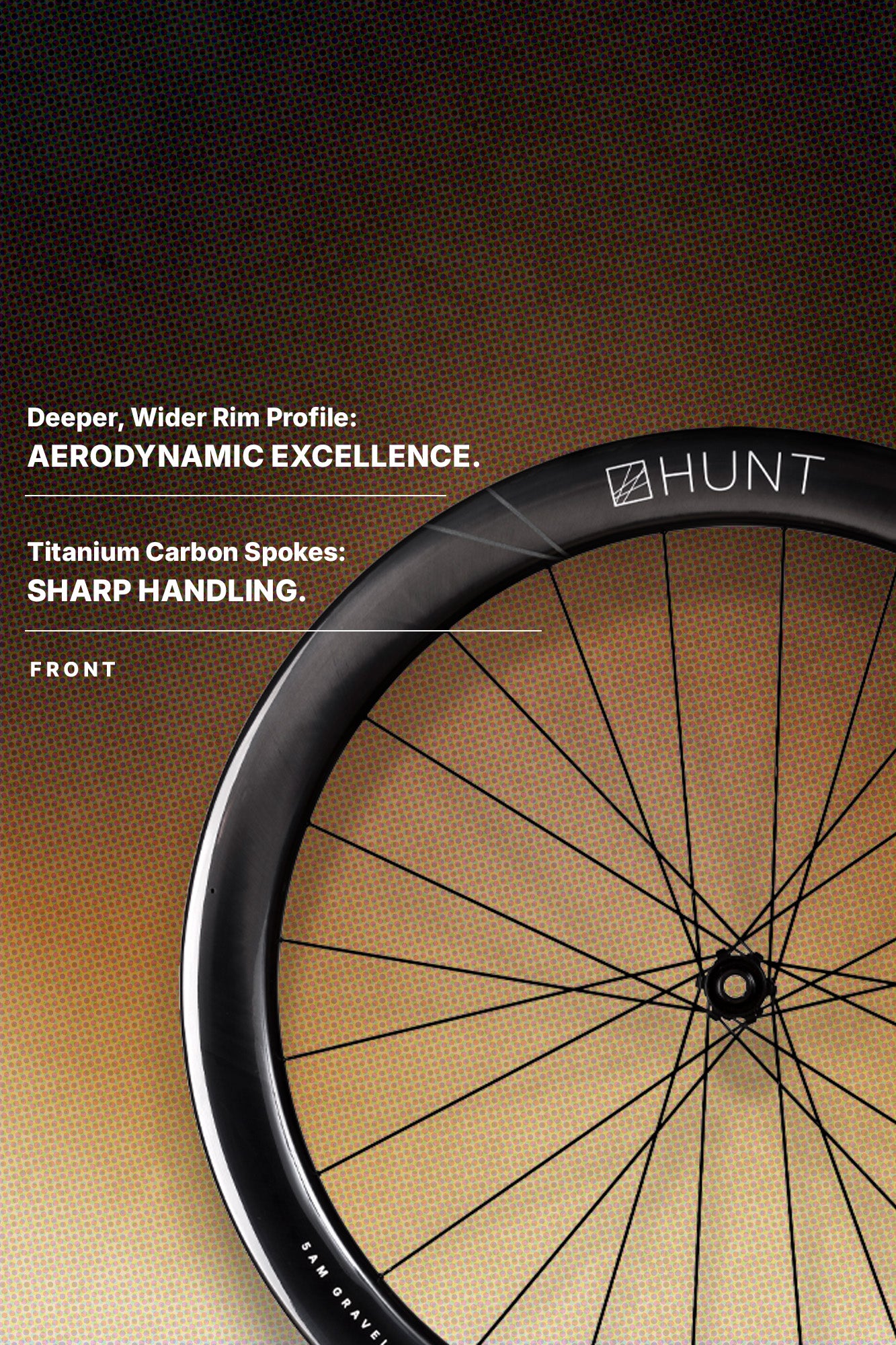

• 54mm deep front rim profile with a 45mm external width.

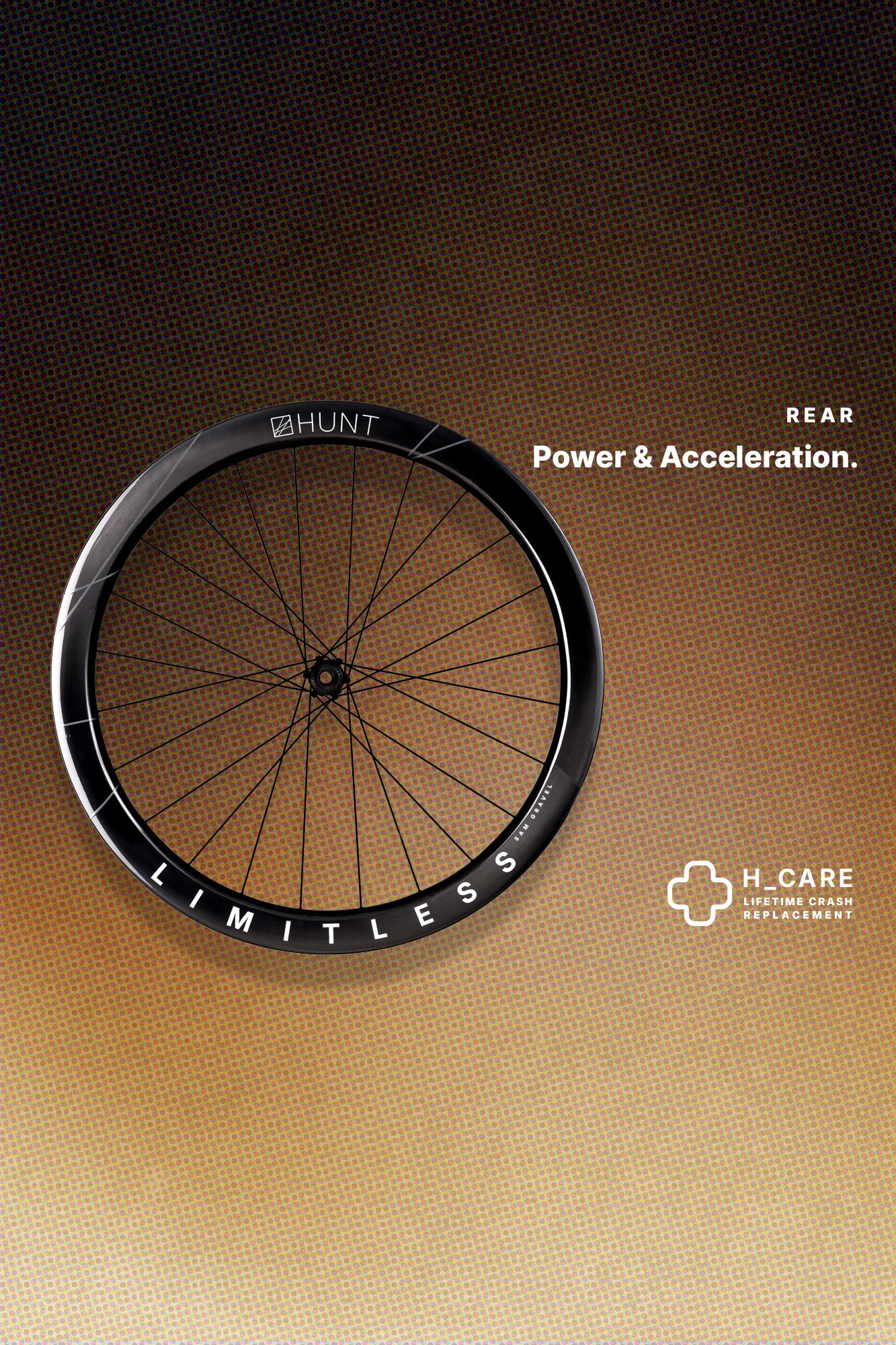

• 49mm deep rear profile with a 38mm external width.
• Hookless 27mm internal profile.
• Aerodynamically optimised for a 45-50mm tyre.
• Unique carbon fibre layup strategy, comprised of T700, T800, T1000 and a High Modulus Pyrofil HR4012M carbon.
• Pre-formed 3D spoke reinforcement.
• Designed by HUNT’s in-house Engineering Team using Computational Fluid Dynamics (CFD) and then validated using extensive rounds of wind tunnel testing.
• High gloss finish unidirectional carbon fibre rim.

• 24 front | 24 rear (2 cross both sides).
• Pillar Super Wing 20 with aerofoil profile to reduce aero drag.
• Triple butted 2.2/0.95/2.0mm to increase strength.
• Straight-pull for excellent torsional strength and direct power transfer.
• Cold drawn from high grade T302 (18/10) stainless steel by Sandvik, Sweden.
• Patented Pillar spoke reinforcement, additional butting near the head of the spoke to increase strength in this high-stress area.
• Black stainless treatment.

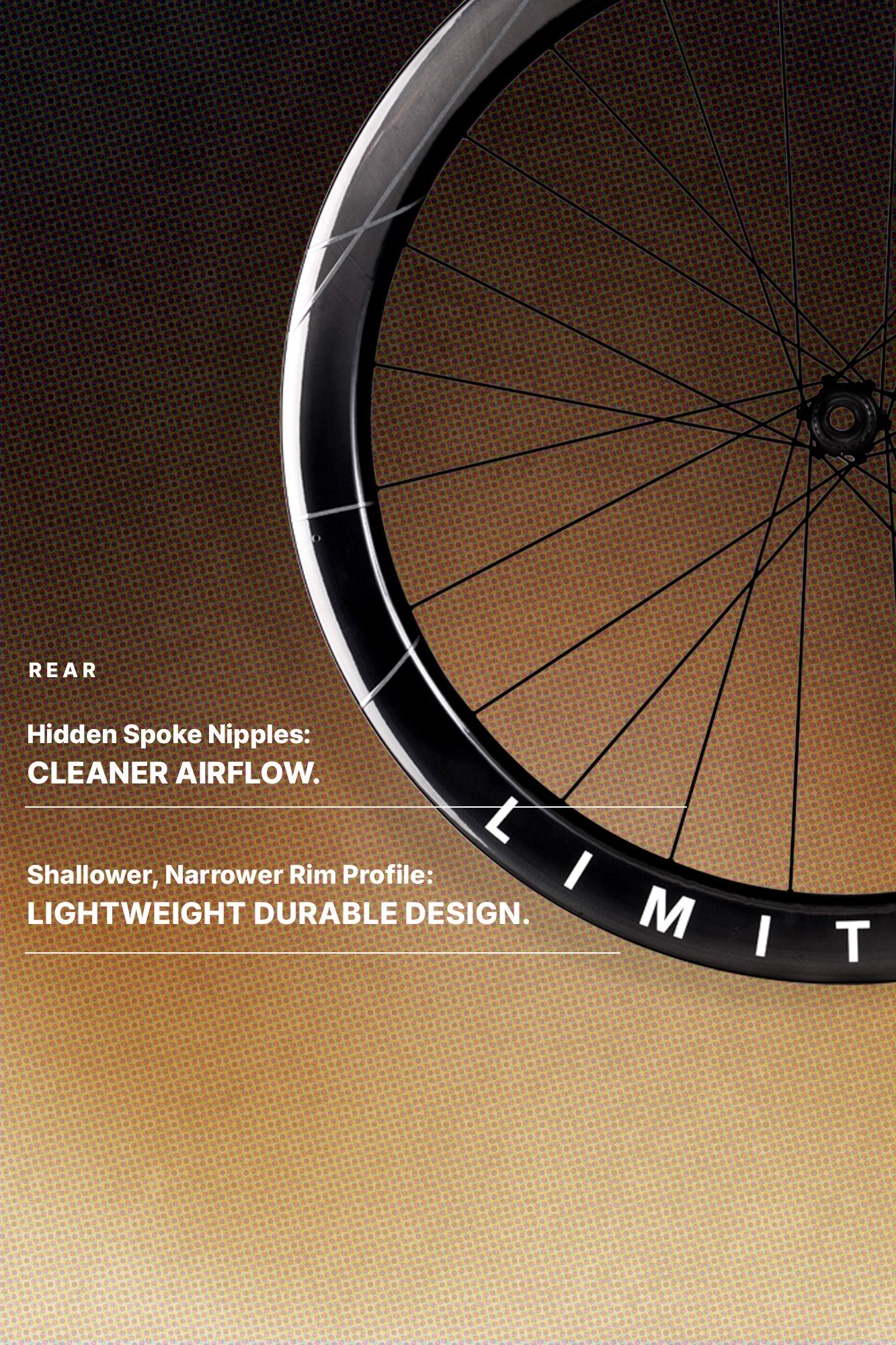

• Internal spoke nipples for improved aerodynamic performance.
• 10mm in length.
• Black anodised finish.

HUNT recommends a 45-54mm tyre for best performance, tyre widths between 40mm and 60mm are also safe to use.

Only use tyres suitable for hookless (TSS) rims. If unsure, please contact the tyre manufacturer. Leading brands, including Schwalbe, Continental and Vittoria, have many tyres suitable for hookless TSS rims.

You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.

Tubeless-ready for lower weight and rolling resistance.

These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:

• Front: 12x100mm Thru-Axle, Quick Release 9x100mm.
• Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm.

*Shimano Microspline and Campagnolo N3W is only available in 12x142mm

If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

• H_Ratchet DBL 48T.
• CNC’d 6061-T6 heat treated aluminium alloy body.
• 7075-T6 aluminium alloy axle to increase stiffness.
• Push-fit endcaps for easy serviceability.
• Polished anodised black finish with laser graphics.
• Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.

• H_Ratchet DBL 48T.
• Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
• 7075-T6 aluminium alloy axle.

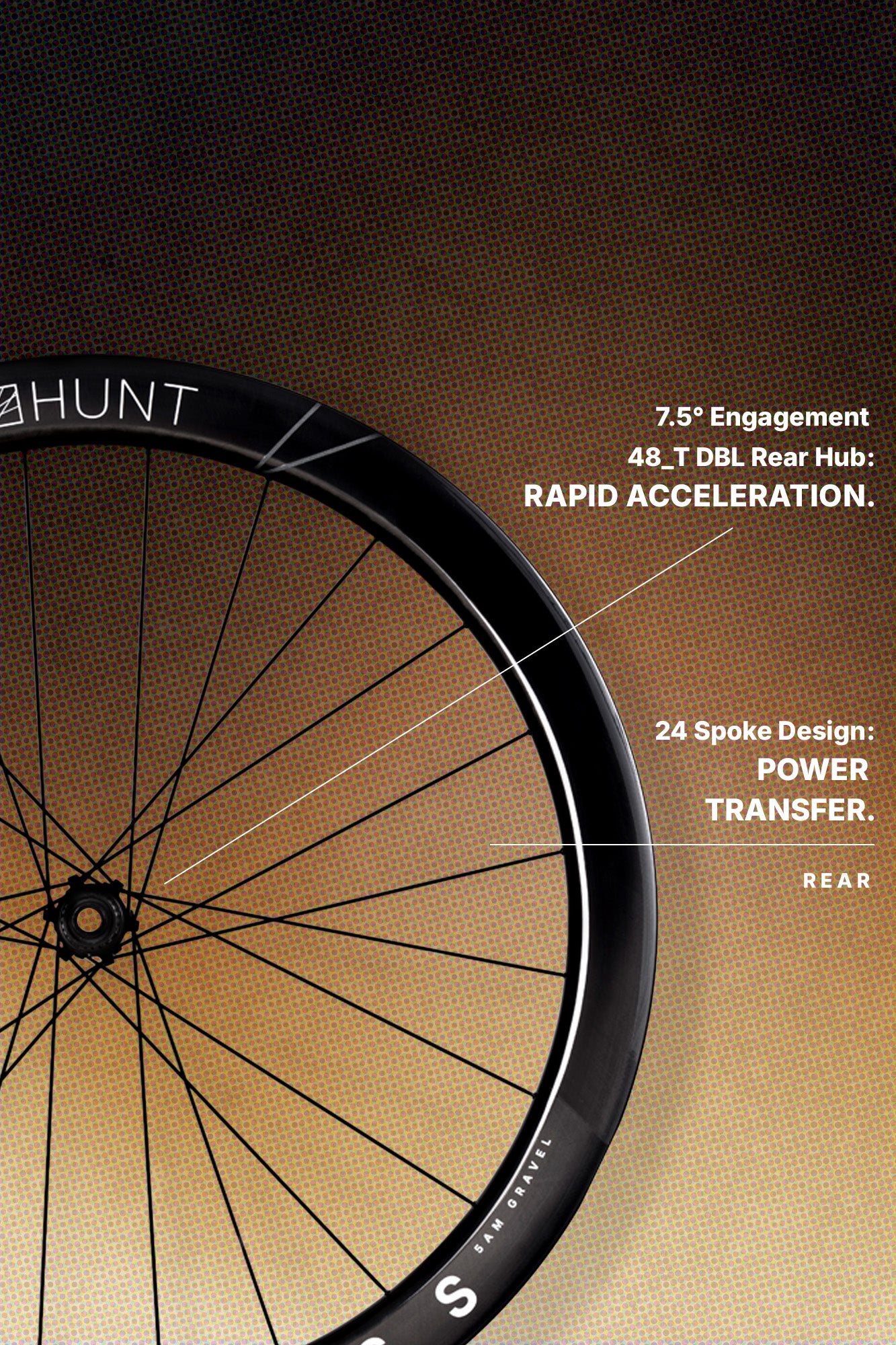

• Dual sided ratchet rings, 7.5˚ engagement.
• The ratchets are nickel-coated to maximise longevity, tested to 100,000 cycles at 250Nm of torque.
• All freehub standards accounted for.
• Toolless fitment making routine servicing a simple task.
• Polished anodised black finish with laser graphics.
• Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.

• Stainless steel cartridge bearings.
• Manufactured by TPI.
• CN clearance to provide the best fitment possible and long bearing life under cycling conditions.
