HUNT All Mountain Carbon MTB WHeelset
HUNT All-Mountain Carbon H_Impact 29 Wheelset
HUNT All-Mountain Carbon H_Impact 29 Wheelset

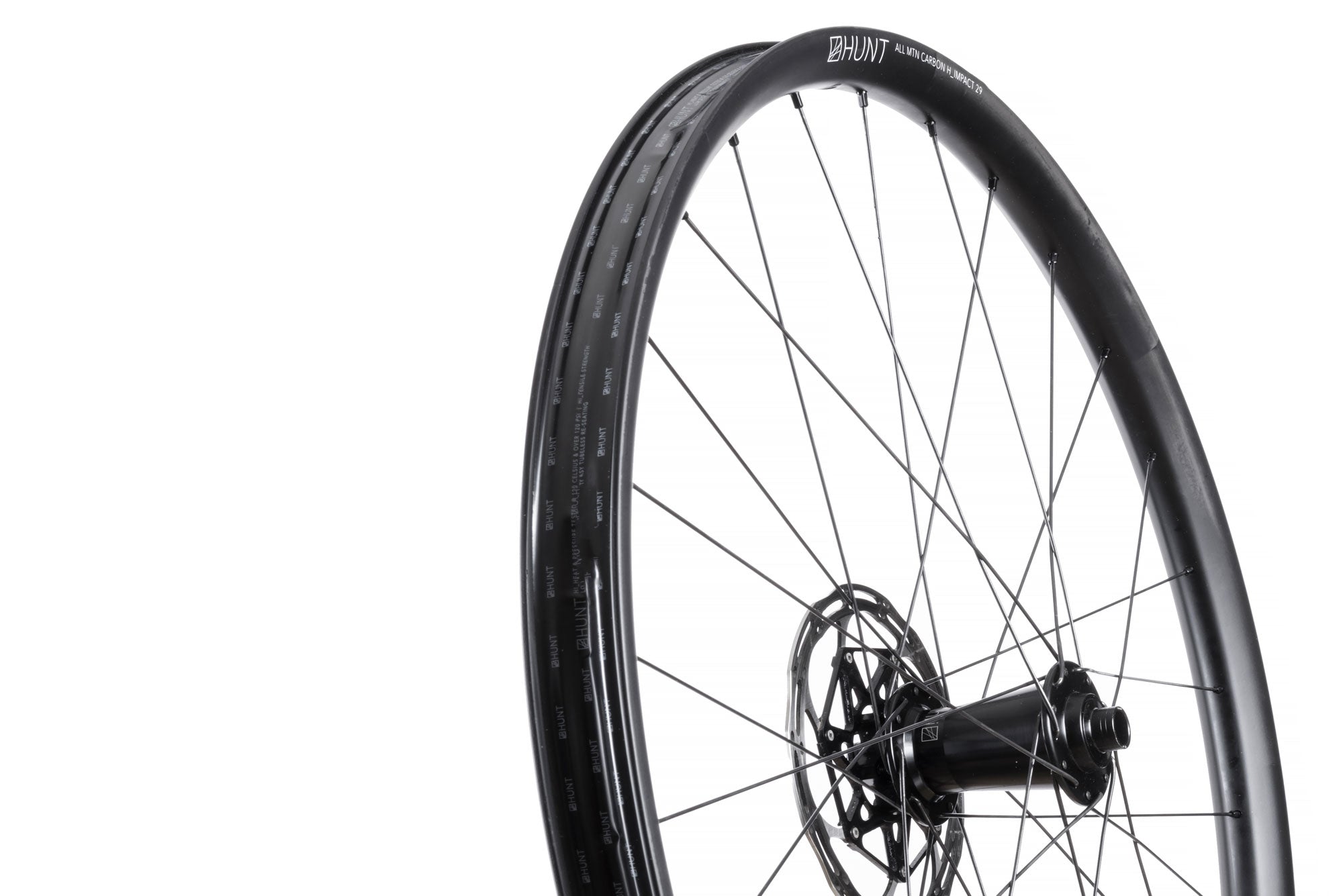

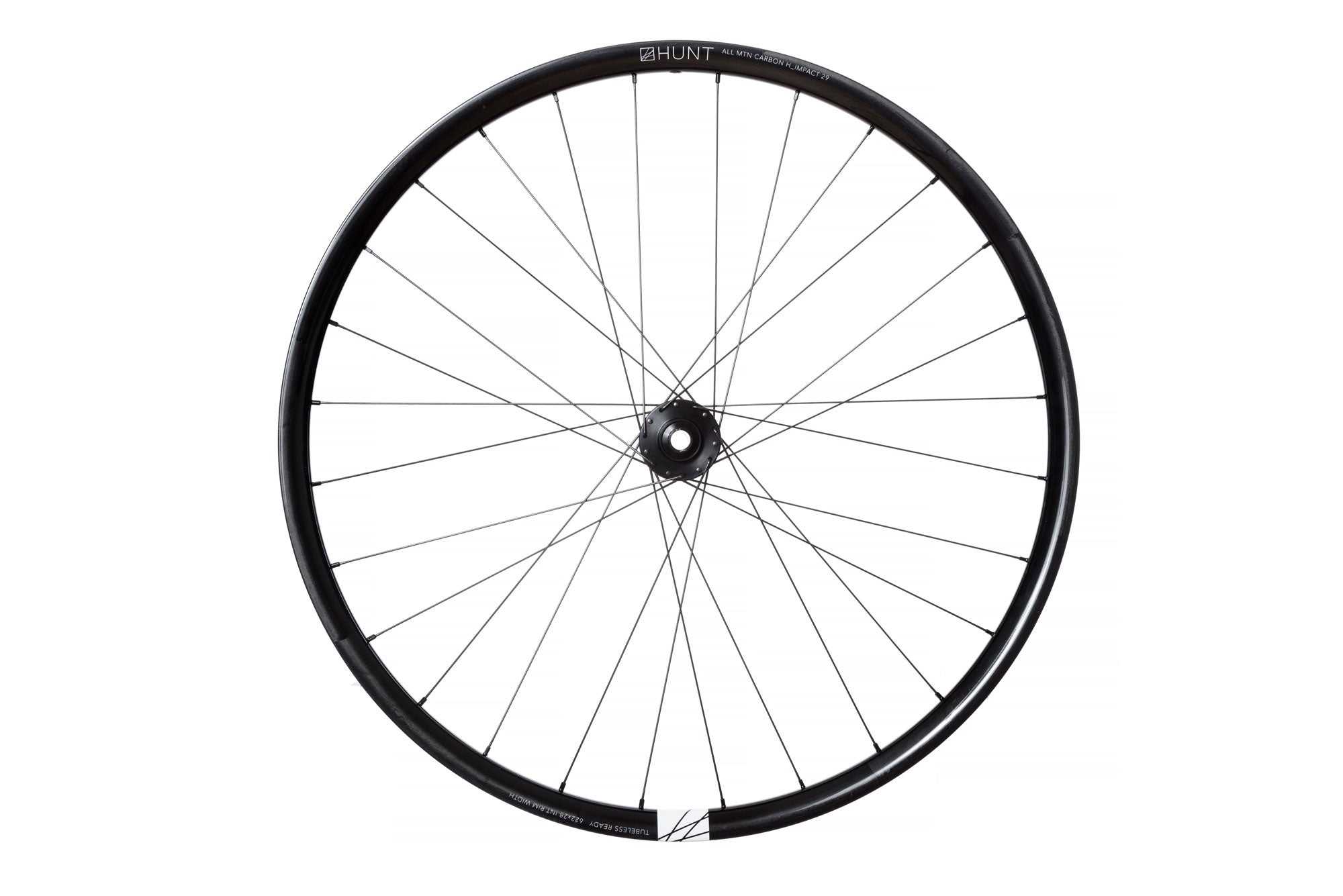

<h1>Front Wheel</h1><i>Front rim weight 460g (27.5) – Excellent handling and vibration absorption due to the lower material density lay-up, matched to 28 spoke count to improve compliance and grip where it’s needed most. </i>

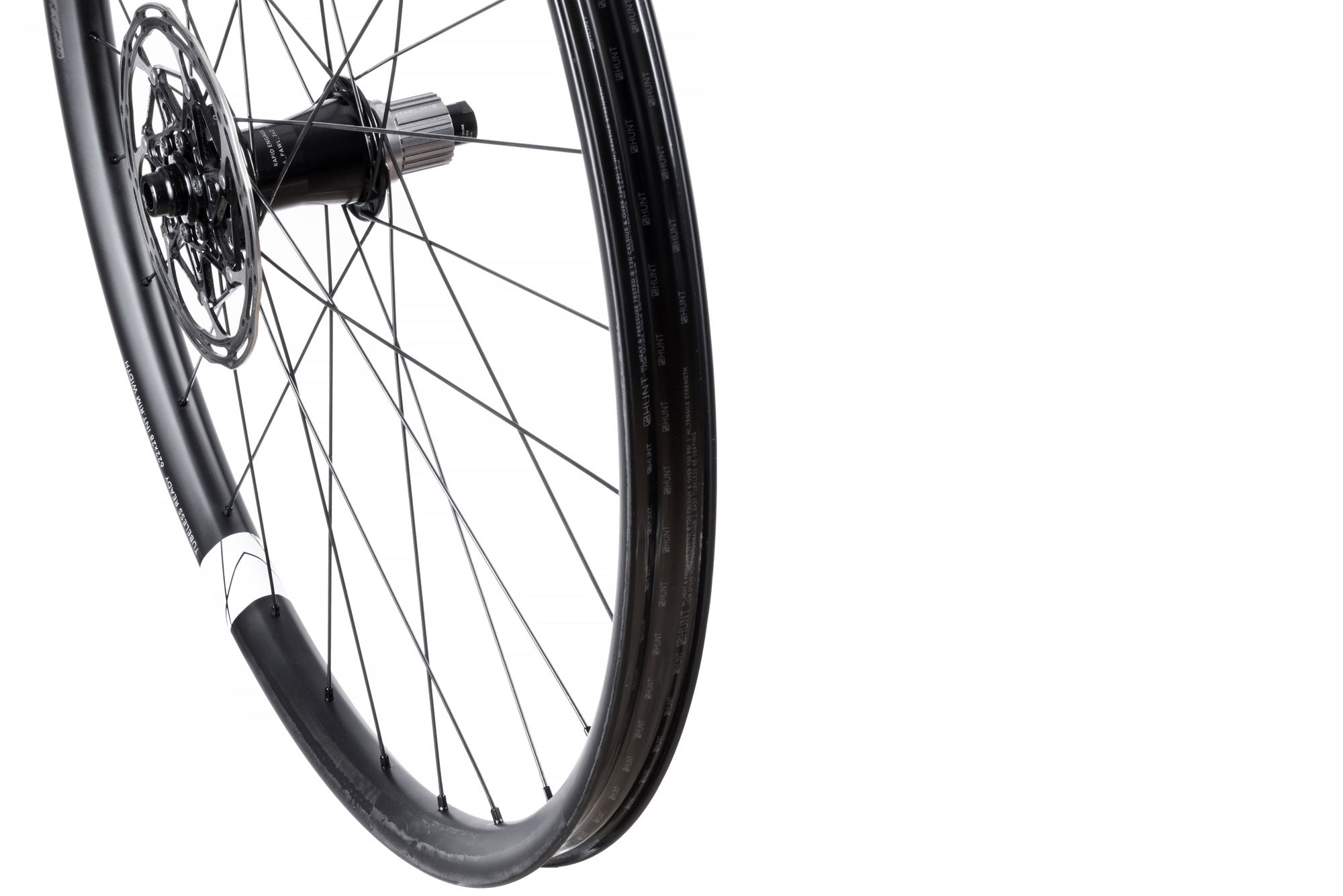

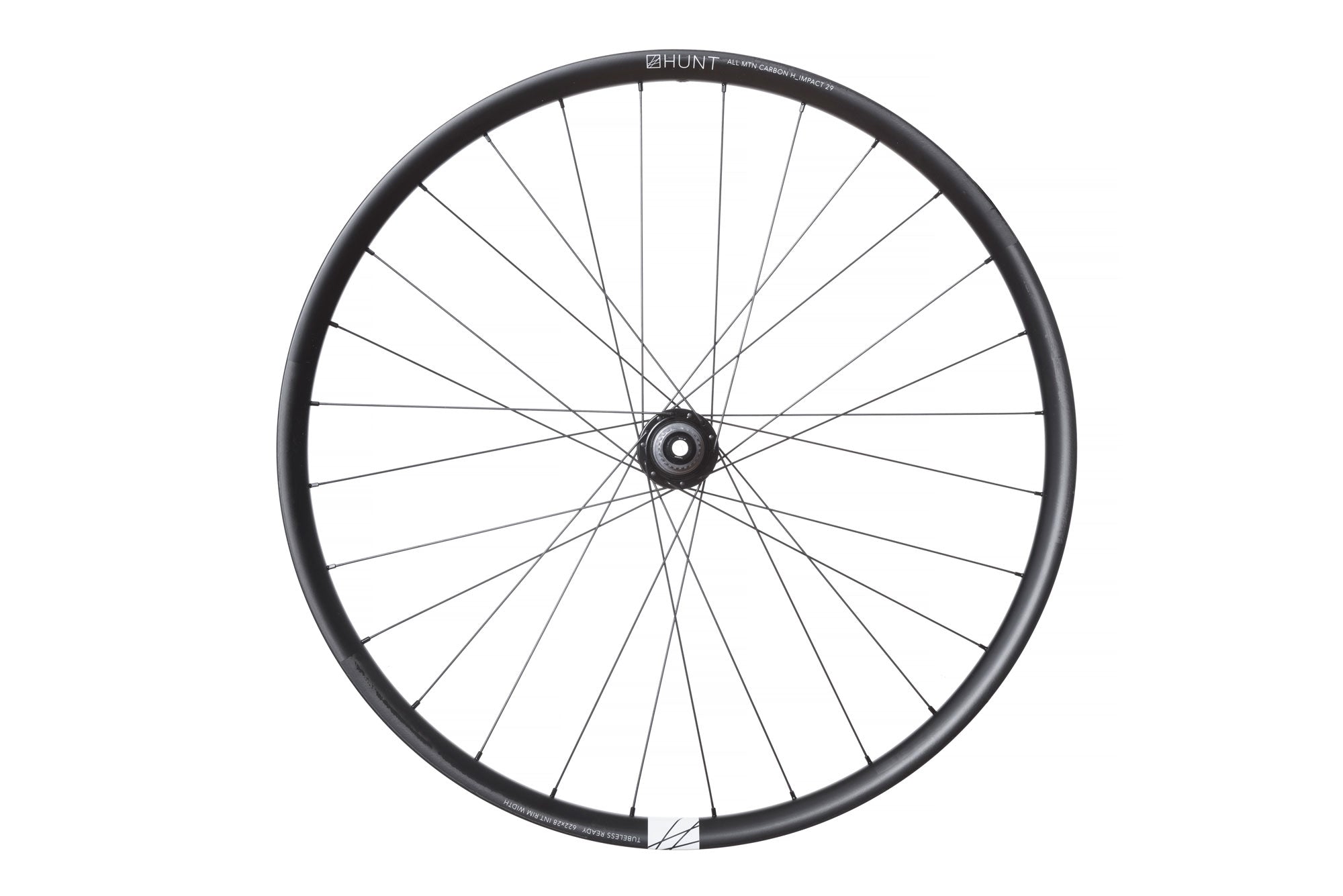

<h1>Rear Wheel</h1><i>Rear rim weight 530g (27.5)– High impact lay-up with extra material matched to the higher 32 spoke count. Greater impact strength, better stability and more precise tracking at speed. </i>
<h1>Rims</h1><i> We put a huge emphasis on durability for the All-MTN rim - Unidirectional T24/30 with 3K weave reinforced spoke holes, Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration. <br /><br />V:Absorb resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively. </i>
<h1>Rim Profile</h1><i>Like all of our wheels, the HUNT MTB line-up is designed to be used as a tubeless system. Featuring a Hookless H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for fast installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.</i>

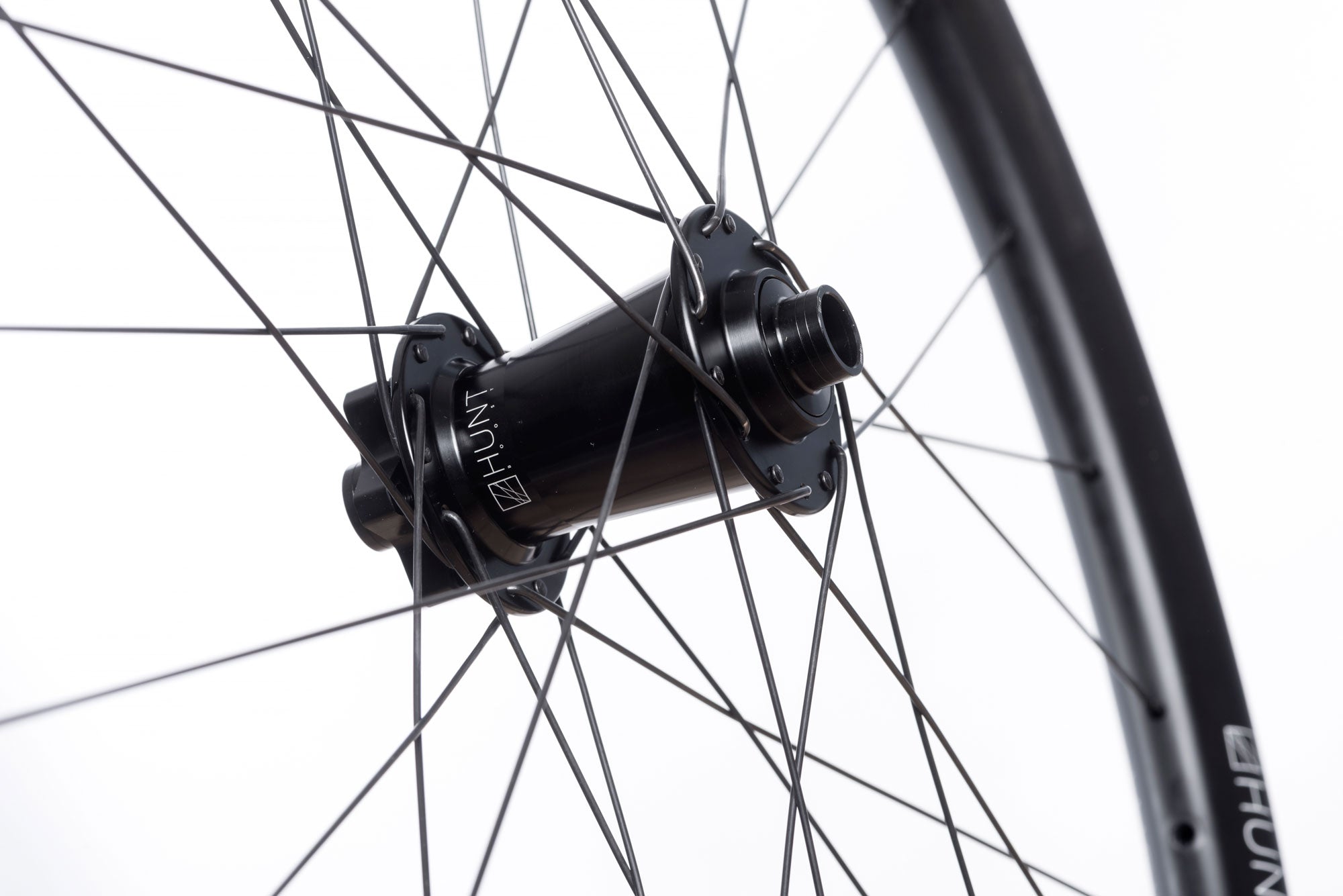

<h1>Front Hub</h1><i>We have gone all out on the front hub and beefed it up over our XCWide and TrailWide wheelsets. Featuring an oversized shell to accommodate larger and extremely durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails. </i>

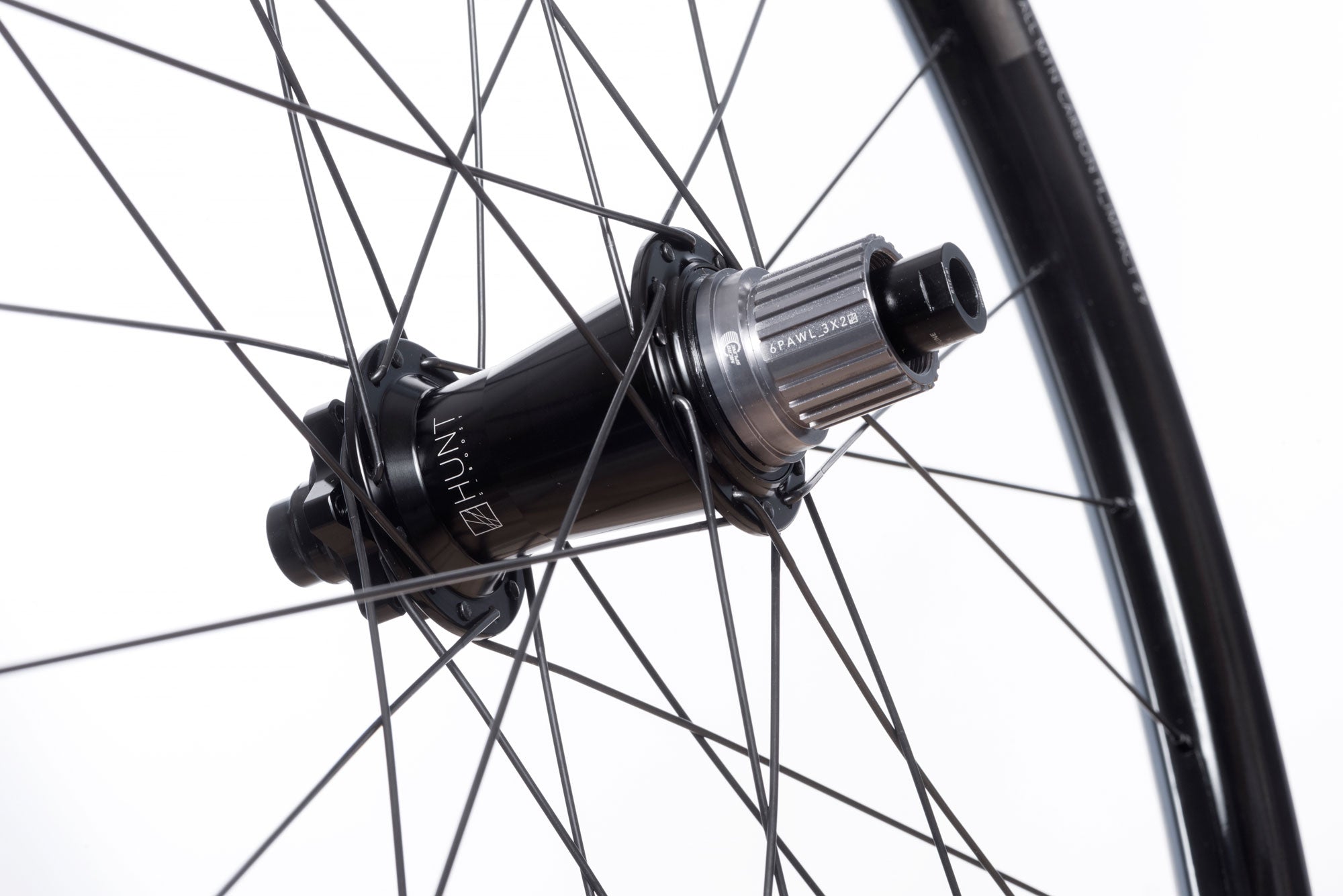

<h1>Rear Hub</h1><i>The demands of modern day Enduro riding are tougher than ever before, so the EnduroWide hubs have been designed with oversized 17mm axles to increase stiffness and bearing durability. On the rear, the Hunt RapidEngage MTB hubs with a fast 5 degree engagement, means you will be able to put the power down straight out of the corners. </i>
<h1>Freehub Body</h1><i>Choose between SRAM/Shimano 8/9/10/11sp, Shimano Microspline or SRAM XD to be fitted to your All-Mountain Carbon H_Impact Wheels </i>
<h1>Weight</h1><i>Mountain bikers aren't concerned about weight, right? Nope! Whether you're doing a back-country epic or pedalling between stages, we have paid attention to weight to suit the type of riding they will be subjected too. For example, using the highest quality Pillar triple butted spokes with PSR (Pillar Spoke Re-enforcement) has allowed us to not only create a stronger wheel with a higher spoke count, but one which does not add a weight penalty.</i>

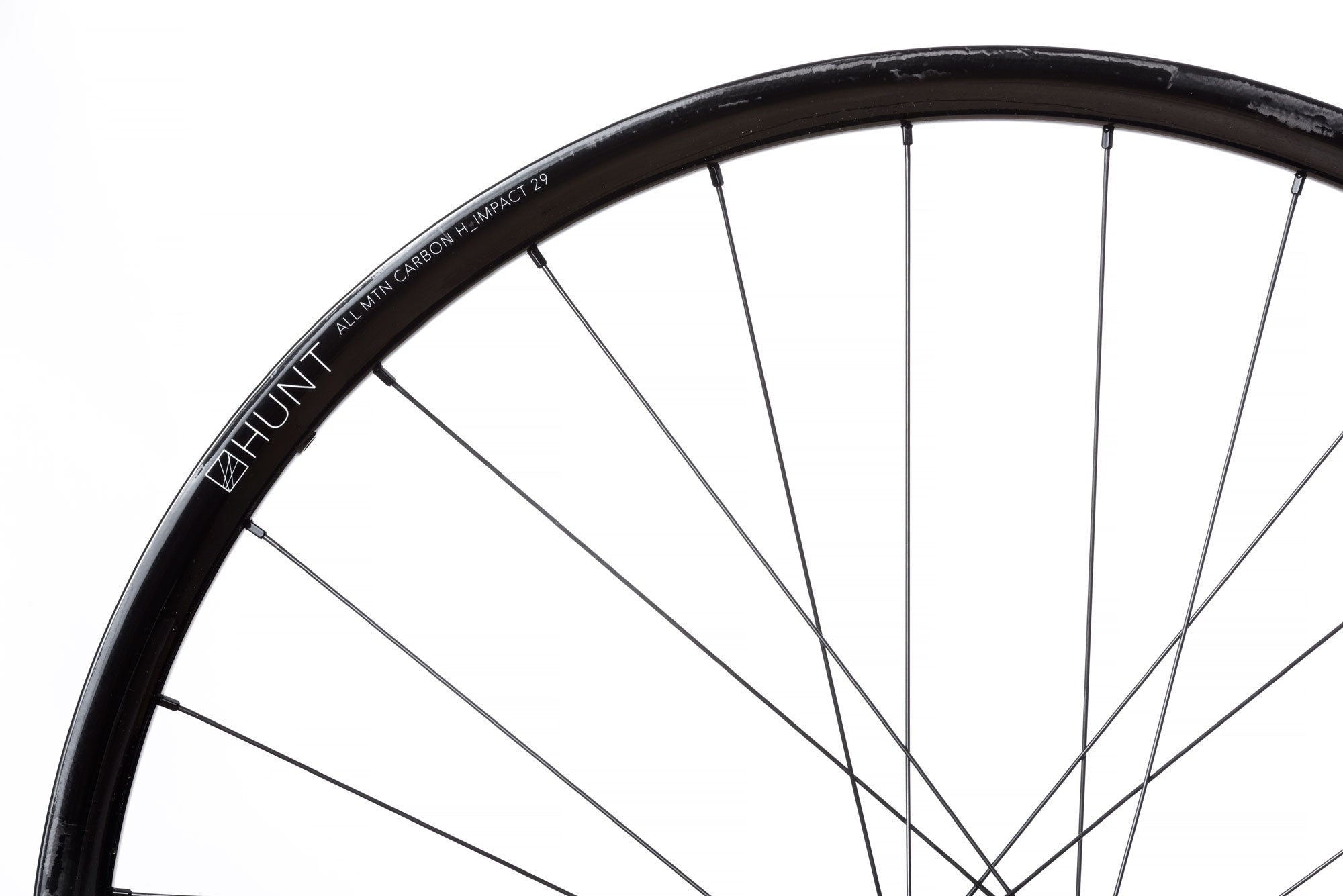

<h1>Spokes</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.</i>

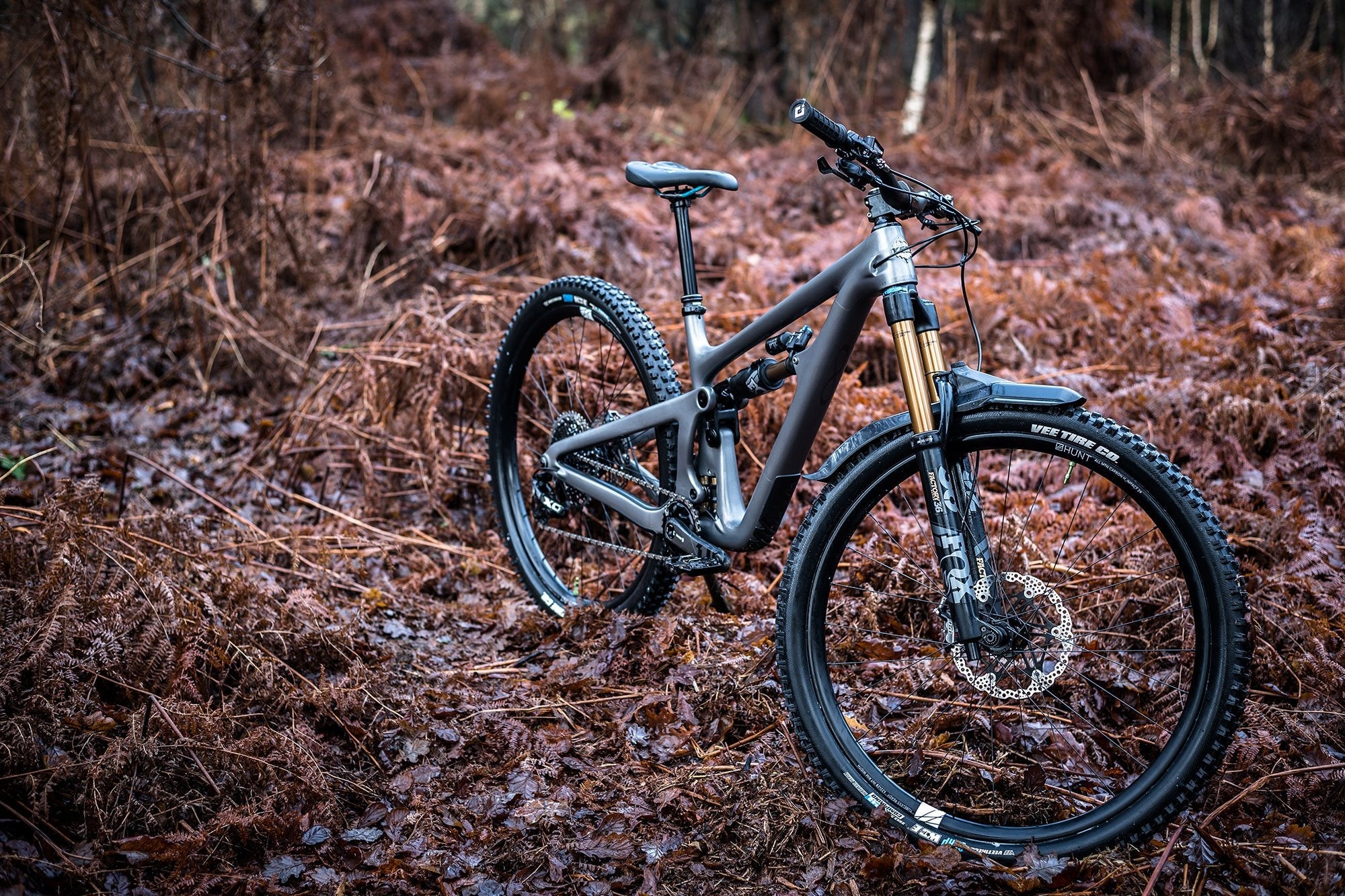

<h1>Dream Build</h1><i>Yeti SB150 with All-MTN Carbon wheelset</i>

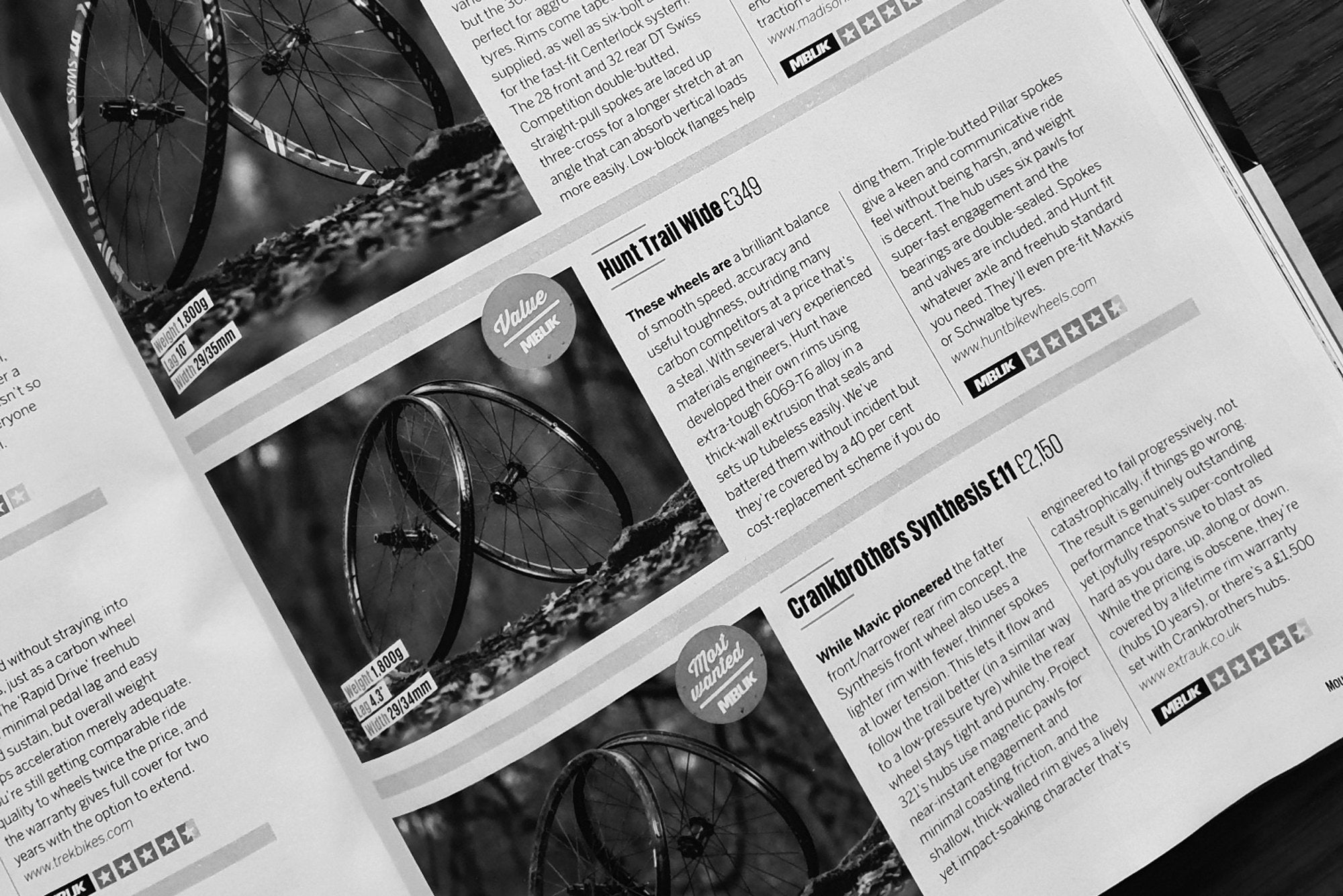

<h1>TRAIL WIDE - MBUK 4.5/5 REVIEW</h1>
<h1>In the Box</h1><ul><li>Black Shield PET high tensile strength tubeless tape fitted to wheels</li><li>Freehub fitted</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>
HUNT All Mountain Carbon MTB WHeelset
<h1>Front Wheel</h1><i>Front rim weight 460g (27.5) – Excellent handling and vibration absorption due to the lower material density lay-up, matched to 28 spoke count to improve compliance and grip where it’s needed most. </i>
<h1>Rear Wheel</h1><i>Rear rim weight 530g (27.5)– High impact lay-up with extra material matched to the higher 32 spoke count. Greater impact strength, better stability and more precise tracking at speed. </i>
<h1>Rims</h1><i> We put a huge emphasis on durability for the All-MTN rim - Unidirectional T24/30 with 3K weave reinforced spoke holes, Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration. <br /><br />V:Absorb resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively. </i>
<h1>Rim Profile</h1><i>Like all of our wheels, the HUNT MTB line-up is designed to be used as a tubeless system. Featuring a Hookless H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for fast installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.</i>
<h1>Front Hub</h1><i>We have gone all out on the front hub and beefed it up over our XCWide and TrailWide wheelsets. Featuring an oversized shell to accommodate larger and extremely durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails. </i>
<h1>Rear Hub</h1><i>The demands of modern day Enduro riding are tougher than ever before, so the EnduroWide hubs have been designed with oversized 17mm axles to increase stiffness and bearing durability. On the rear, the Hunt RapidEngage MTB hubs with a fast 5 degree engagement, means you will be able to put the power down straight out of the corners. </i>
<h1>Freehub Body</h1><i>Choose between SRAM/Shimano 8/9/10/11sp, Shimano Microspline or SRAM XD to be fitted to your All-Mountain Carbon H_Impact Wheels </i>
<h1>Weight</h1><i>Mountain bikers aren't concerned about weight, right? Nope! Whether you're doing a back-country epic or pedalling between stages, we have paid attention to weight to suit the type of riding they will be subjected too. For example, using the highest quality Pillar triple butted spokes with PSR (Pillar Spoke Re-enforcement) has allowed us to not only create a stronger wheel with a higher spoke count, but one which does not add a weight penalty.</i>
<h1>Spokes</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.</i>
<h1>Dream Build</h1><i>Yeti SB150 with All-MTN Carbon wheelset</i>
<h1>TRAIL WIDE - MBUK 4.5/5 REVIEW</h1>
<h1>In the Box</h1><ul><li>Black Shield PET high tensile strength tubeless tape fitted to wheels</li><li>Freehub fitted</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>

HUNT All-Mountain Carbon H_Impact 29 Wheelset

1876g Width int size
28 mm 29

ALL-MTN CARBON: PROVEN UNDER CHLOE TAYLOR IN THE ENDURO WORLD SERIES, HE ALL-MOUNTAIN CARBON’S FRONT AND REAR SPECIFIC WHEELS ARE OPTIMISED FOR PRECISION AND HIGH IMPACT STRENGTH.

RESPONSIVE, DYNAMIC AND INCREDIBLY STRONG.

More details Right

The Purpose _

<h1>Spokes</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.</i>

The Purpose _

Tested on the world stage under Chloe Taylor on her Enduro World Series campaigns, the AllMountain Carbons are built to handle anything you can throw at them; be it the infamous rocks of Finale, big days on the Front Range or even the local push up DH run.

To build an incredibly strong and precise wheelset, the All-Mountain Carbon combines our 5° RapidEngage hubs and triple butted Pillar PSR spokes with front/rear optimised rims.

HUNT All Mountain Carbon MTB WHeelset

Full Specs _

HUNT All-Mountain Carbon H_Impact 29 Wheelset Full Specs
Rims 28mm internal width ideal for 2.3"-2.5" tyre widths, but also work very well with 2.25"-2.6". H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes. Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration. Tubeless-ready – designed to work best with tubeless tyres. Tubeless-rim tape and valves included. Hookless H-lock bead-seat up-kicks for easy and secure tubeless installation. Spokes J-bend cold drawn. 28F/32R spoke count. Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden. Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement). Black stainless Nipples Hard-anodized alloy for weight reduction and strength. Square body for external adjustment and hex head for easy internal adjustment/tensioning. Long 14mm thread for durability. 14 gauge. Black finish Tyres Info Maximum tyre pressure for this rim: Up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tyre. Designed to work perfectly with tubeless and non-tubeless tyres. Suitable tubeless MTB tyre combinations from Schwalbe and Maxxis are available to be fitted to your Hunt TrailWide Wheels. Axle Size148 (Boost) x 12mm (Rear) and 110x15mm Boost (Front) standard. Rock Shox Torque Caps available - just add a comment in the notes section on the cart page. SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible. Front HubOversized hub and axles. Forged and CNC’d 7075-T6 heat treated aluminium alloy body. 110x15mm spacing. Rock Shox Torque Caps for Boost option available - just add a comment in the notes section on the cart page. Oversized 17mm 7075-T6 aluminium alloy axles. 6 bolt disc mount. Polished anodized black finish with laser graphics. Rear HubForged and CNC’d 7075-T6 heat treated aluminium alloy Hub body. 148 (boost) x 12mm spacing. RapidEngage 5 degree, 3x2 freehub for increased resistance to the extra torque generated. 9/10/11 speed Shimano/SRAM, Shimano Microspline and Sram XD compatible freehubs available. 6 bolt disc mount. Polished anodized black finish with laser graphics. Bearings Precision sealed cartridge replaceable units. Large diameter ball bearings for extra durability. Dual full-contact rubber seals.

Rims

  • 28mm internal width ideal for 2.3"-2.5" tyre widths, but also work very well with 2.25"-2.6".
  • H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes.
  • Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration.
  • Tubeless-ready – designed to work best with tubeless tyres. Tubeless-rim tape and valves included.
  • Hookless H-lock bead-seat up-kicks for easy and secure tubeless installation.

Spokes

  • J-bend cold drawn.
  • 28F/32R spoke count.
  • Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
  • Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
  • Black stainless

Nipples

  • Hard-anodized alloy for weight reduction and strength.
  • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
  • Long 14mm thread for durability.
  • 14 gauge.
  • Black finish

Tyres Info

  • Maximum tyre pressure for this rim: Up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tyre.
  • Designed to work perfectly with tubeless and non-tubeless tyres.
  • Suitable tubeless MTB tyre combinations from Schwalbe and Maxxis are available to be fitted to your Hunt TrailWide Wheels.

Axle Size

  • 148 (Boost) x 12mm (Rear) and 110x15mm Boost (Front) standard. Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
  • SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible.

Front Hub

  • Oversized hub and axles.
  • Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
  • 110x15mm spacing. Rock Shox Torque Caps for Boost option available - just add a comment in the notes section on the cart page.
  • Oversized 17mm 7075-T6 aluminium alloy axles.
  • 6 bolt disc mount.
  • Polished anodized black finish with laser graphics.

Rear Hub

  • Forged and CNC’d 7075-T6 heat treated aluminium alloy Hub body.
  • 148 (boost) x 12mm spacing.
  • RapidEngage 5 degree, 3x2 freehub for increased resistance to the extra torque generated.
  • 9/10/11 speed Shimano/SRAM, Shimano Microspline and Sram XD compatible freehubs available.
  • 6 bolt disc mount.
  • Polished anodized black finish with laser graphics.

Bearings

  • Precision sealed cartridge replaceable units.
  • Large diameter ball bearings for extra durability.
  • Dual full-contact rubber seals.
