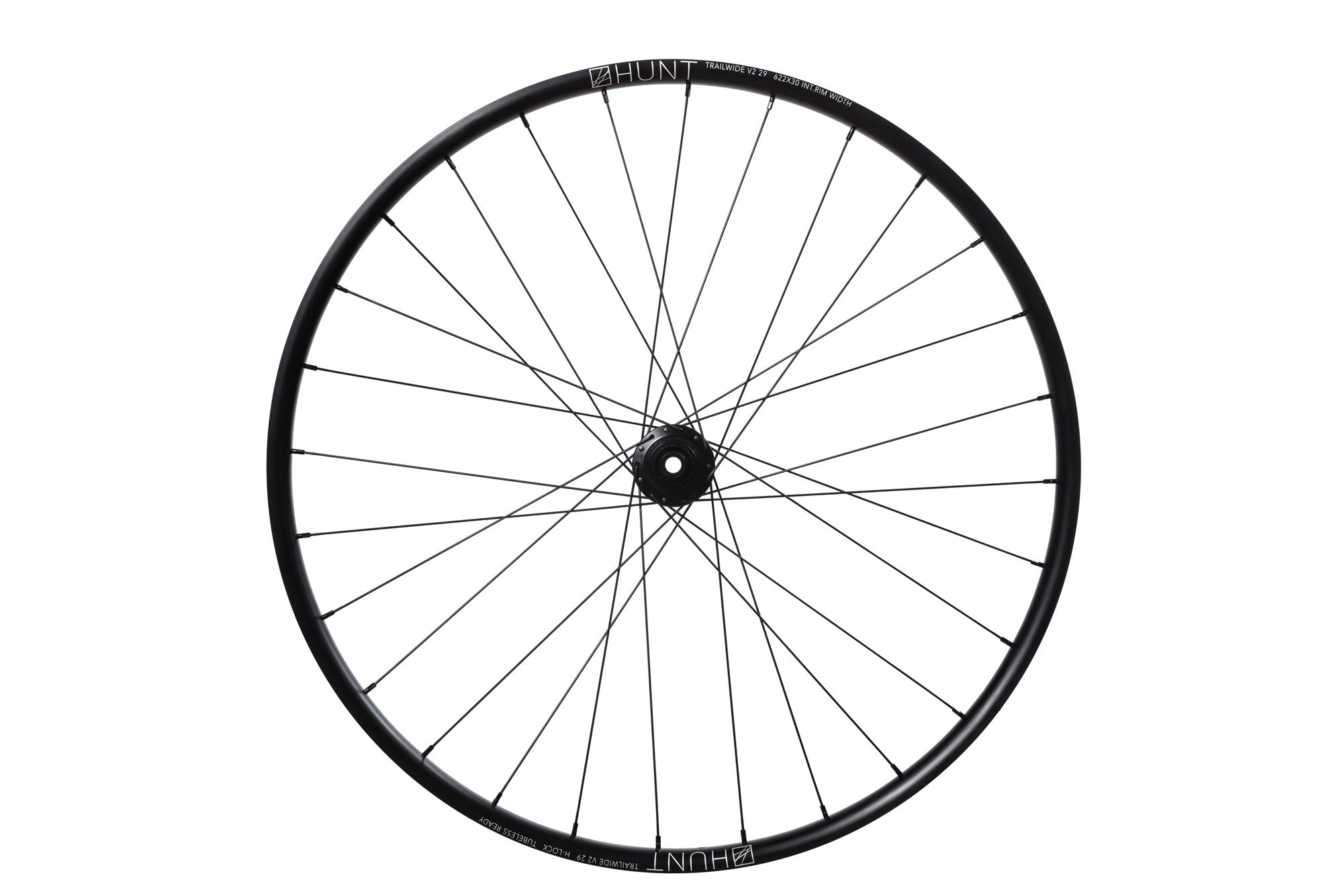

HUNT TrailWide MTB Wheelset
Hunt TrailWide MTB Wheelset
Hunt TrailWide MTB Wheelset

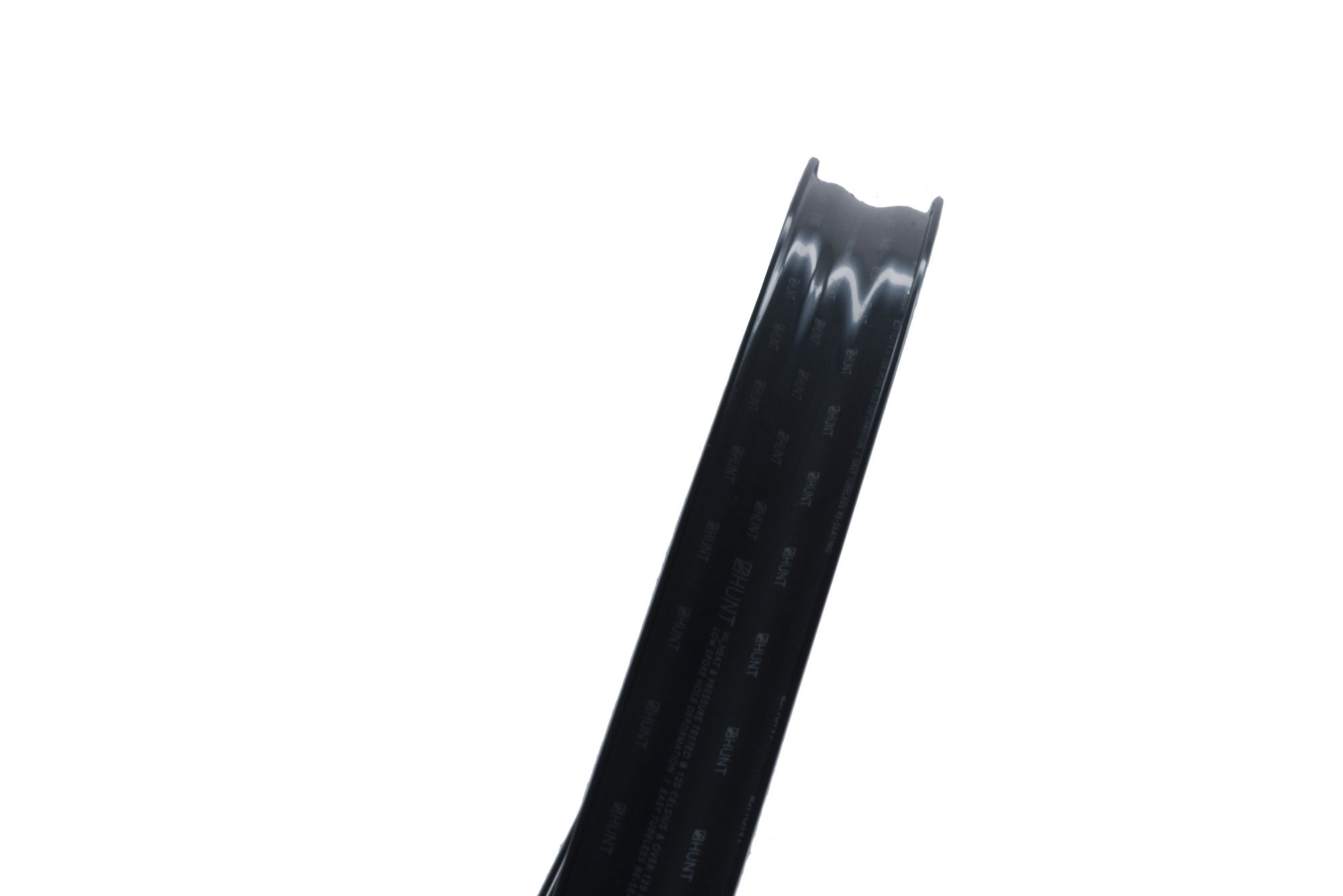

<h1>Rims</h1><i>The TrailWide rim includes details which are high on the durability factor to make sure you finish every ride with a big grin. The 6069-T6  (+69% tensile strength vs 6061-T6) alloy rim sticks with the wider-is-better mantra. Designed for 2.3"-2.5" tyres, the wide 30mm (internal) rim provides support to the tyre during hard cornering, landing in a root strewn shoot or when your throttling down a high-speed section and folding a tyre is the last thing you need to happen!</i>
<h1>Weight</h1><i>Mountain bikers aren't concerned about weight, right? Nope! Whether you're doing a back-country epic or pedalling between stages, we have paid attention to weight to suit the type of riding they will be subjected too. For example, using the highest quality Pillar triple butted spokes with PSR (Pillar Spoke Re-enforcement) has allowed us to not only create a stronger wheel with a higher spoke count, but one which does not add a weight penalty.</i>
<h1>Spokes</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.</i>
<h1>Rear Hub</h1><i>We create wheels to match the needs of riders who want the most from their wheels. The TrailWide hubs have been chosen to increase stiffness, bearing durability and overall strength of your wheelset. On the rear, the RapidEngage MTB hubs with a superfast 4.3degree engagement, means you will be able to put the power down straight out of the corners.</i>
<h1>Front Hub</h1><i>Suited to match the needs of the modern trail bike rider. Featuring durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails. </i>
<h1>Rim Profile</h1><i>Like all of our wheels, the Hunt MTB line-up is designed to be used as a tubeless system. Featuring a H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for first installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.</i>

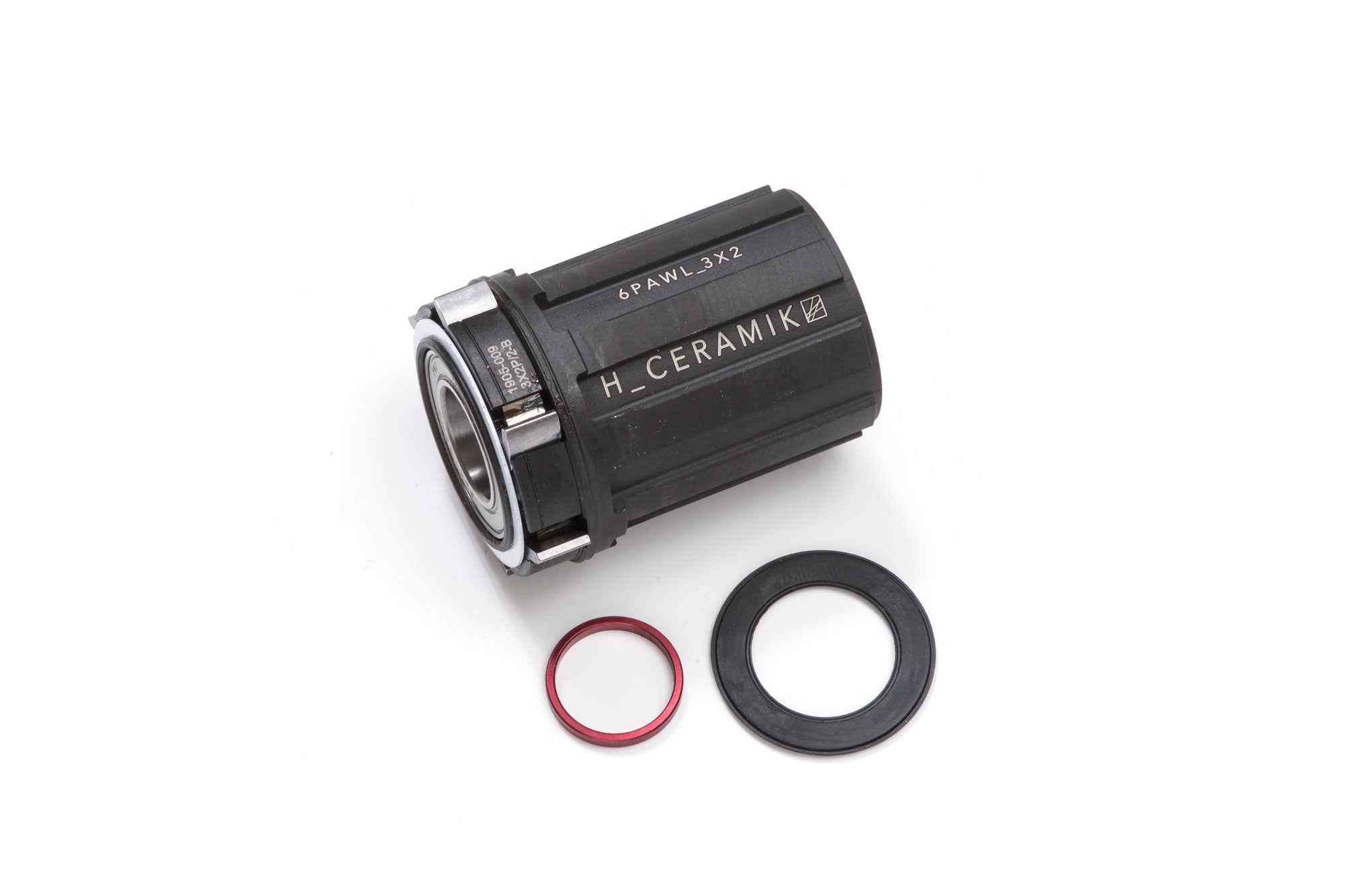

<h1>Freehub Body</h1><i>Choose between SRAM/Shimano 8/9/10/11 or SRAM XD to be fitted to your TrailWide Wheels. Each freehub features six individual MultiPawls to ensure strong engagement, even in the grimmest conditions.</i>
<h1>In the Box</h1><ul><li>Black Shield PET high tensile strength tubeless tape fitted to wheels</li><li>Freehub fitted</li><li>Tubeless Valves</li><li>HUNT spoke key for hex and square fitment</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>
<h1>Made for where you ride</h1><i>From the local trails, to a remote piece of trail highup in a remote mountain range; we wanted to create a series of wheelsets tailored for your Trail riding.</i>
<h1>Tubeless Tyres Fitted</h1><i>Gain the most out of your riding with a set of tubeless Maxxis or Schwalbe Tyres fitted and set up tubeless with sealant ready to roll straight out of the box.</i>
<h1>Made for how you ride</h1><i>Enhanced to perfectly compliment your riding, the TrailWide is for those 'first out, last in' type of riders.</i>
<h1>Dream Build</h1><i>Cotic FlareMAX with TrailWide</i>
Hunt TrailWide MTB Wheelset
HUNT TrailWide MTB Wheelset
Hunt TrailWide MTB Wheelset
Hunt TrailWide MTB Wheelset
<h1>Rims</h1><i>The TrailWide rim includes details which are high on the durability factor to make sure you finish every ride with a big grin. The 6069-T6  (+69% tensile strength vs 6061-T6) alloy rim sticks with the wider-is-better mantra. Designed for 2.3"-2.5" tyres, the wide 30mm (internal) rim provides support to the tyre during hard cornering, landing in a root strewn shoot or when your throttling down a high-speed section and folding a tyre is the last thing you need to happen!</i>
<h1>Weight</h1><i>Mountain bikers aren't concerned about weight, right? Nope! Whether you're doing a back-country epic or pedalling between stages, we have paid attention to weight to suit the type of riding they will be subjected too. For example, using the highest quality Pillar triple butted spokes with PSR (Pillar Spoke Re-enforcement) has allowed us to not only create a stronger wheel with a higher spoke count, but one which does not add a weight penalty.</i>
<h1>Spokes</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.</i>
<h1>Rear Hub</h1><i>We create wheels to match the needs of riders who want the most from their wheels. The TrailWide hubs have been chosen to increase stiffness, bearing durability and overall strength of your wheelset. On the rear, the RapidEngage MTB hubs with a superfast 4.3degree engagement, means you will be able to put the power down straight out of the corners.</i>
<h1>Front Hub</h1><i>Suited to match the needs of the modern trail bike rider. Featuring durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails. </i>
<h1>Rim Profile</h1><i>Like all of our wheels, the Hunt MTB line-up is designed to be used as a tubeless system. Featuring a H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for first installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.</i>
<h1>Freehub Body</h1><i>Choose between SRAM/Shimano 8/9/10/11 or SRAM XD to be fitted to your TrailWide Wheels. Each freehub features six individual MultiPawls to ensure strong engagement, even in the grimmest conditions.</i>
<h1>In the Box</h1><ul><li>Black Shield PET high tensile strength tubeless tape fitted to wheels</li><li>Freehub fitted</li><li>Tubeless Valves</li><li>HUNT spoke key for hex and square fitment</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>
<h1>Made for where you ride</h1><i>From the local trails, to a remote piece of trail highup in a remote mountain range; we wanted to create a series of wheelsets tailored for your Trail riding.</i>
<h1>Tubeless Tyres Fitted</h1><i>Gain the most out of your riding with a set of tubeless Maxxis or Schwalbe Tyres fitted and set up tubeless with sealant ready to roll straight out of the box.</i>
<h1>Made for how you ride</h1><i>Enhanced to perfectly compliment your riding, the TrailWide is for those 'first out, last in' type of riders.</i>
<h1>Dream Build</h1><i>Cotic FlareMAX with TrailWide</i>

HUNT Trail Wide MTB Wheelset

27.5/29" | 30 Wide Int. | 1757/1823g

TrailWide: Ride Without Boundaries

27.5/29" | 30 Wide Int. | 1757/1823g

The Purpose

The TrailWide is your go to wheelset no matter the conditions. Optimized to take a no-nonsense approach on the descents and not hold you back on the climbs Read More

The TrailWide is the answer to your weekends at the trail centre; back country epics; days spent smashing through your local woods and late afternoon sessions on the piece of trail still being bedded in - so pretty much a wheelset which can do it all!

The TrailWide rim includes details which are high on the durability factor to make sure you finish every ride with a big grin. The 6069-T6 series alloy rim sticks with the wider-is-better mantra. Designed around for 2.3"-2.5" tyres, the wide 30mm (internal) rim provides support to the tyre during hard cornering, landing in a root strewn shoot or when your throttling down a high-speed section and folding a tyre is the last thing you need to happen!

The Hunt RapidEngage MTB hubs have been specced based on our demands for an MTB wheelset. That is a superfast engagement, long lasting hub pawls no matter the conditions you're riding in and to be optimized to accommodate the latest 148x12mm Boost (Rear) and 110x15mm Boost (Front) standard. A super low engagement of 4.3 degrees means you will be able to put the power down straight out of the corners and not have any lag when jumping up those techy climbs.Read Less

The Experts' View

Pinkbike Logo Singletrack Logo Offroadcc Logo Bikerumor Logo MBR Logo Bikeradar Logo

Overview

We see wheels as a system, not an single component

  • Rims | 6069 T6 (+69% tensile strength vs 6061-T6) welded construction, 30mm wide (internal), work-hardened shot-peened finish.
  • Hubs | 4.3 degree RapidEngage, boost (110/148) or standard (100/142) spacing hubs available, large double sealed cartridge bearings. Rock Shox Torque Caps for Boost hubs and QR adapters for standard hubs are available. (We will fit the axles you need, just complete the simple form shown after checkout or add a comment in the notes section of the cart page).
  • Spokes | 28F/32R Spoke Count, Triple Butted (2.2-1.6-2.0) PSR reinforced Pillar Spokes.
  • Tyres | Optimised for 2.35"-2.6" tyres set up Tubeless, but also work very well with 2.25"-2.8". Also great with standard tyres and tubes.
  • Axles | Oversized 7075-T6 heat-treated aluminium alloy axles.
  • See the full specs here
  • Weight | 1757/1823g 27.5"/29"

Tech Specs

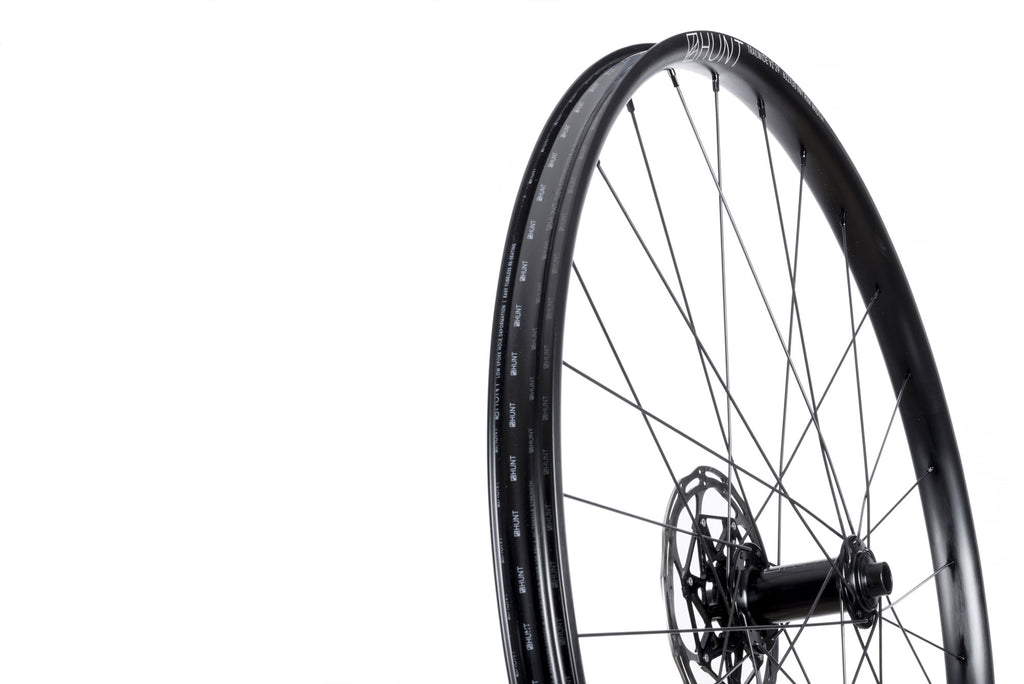

  • Rims

    • 30mm internal width ideal for 2.3"-2.4" tyre widths, but also work very well with 2.25"-2.8".
    • 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6).
    • Tubeless-ready – designed to work best with tubeless tyres. Tubeless-rim tape and valves included.
    • H-lock bead-seat up-kicks for easy and secure tubeless installation.
    • Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
  • Spokes

    • J-bend cold drawn.
    • 28F/32R spoke count.
    • Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
    • Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
    • Black stainless treatment.
    • Nipples

      • Hard-anodized alloy for weight reduction and strength.
      • Square body for external adjustment and hex head for easy internal adjustment/tensioning. Hex/square spoke key included.
      • Long 14mm thread for durability.
      • 14 gauge.
      • Black finish
    • Tyres Info

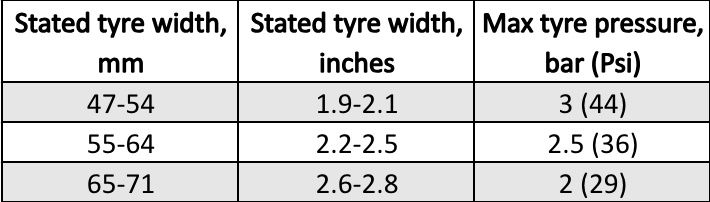

      • Maximum tyre pressure for this rim is 60psi when used with an inner tube and 50psi when running the wheel set-up tubeless. Please do not exceed the maximum pressure stated on your tyre.
      • Designed to work perfectly with tubeless and non-tubeless tyres.
      • Suitable tubeless MTB tyre combinations from Schwalbe and Maxxis are available to be fitted to your Hunt TrailWide Wheels.
    • Axle Size

      • Boost - 148x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
      • Standard - 142x12 (Rear) with 100x15mm (Front). QR adapters available - just complete the simple form after checkout.
      • SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.

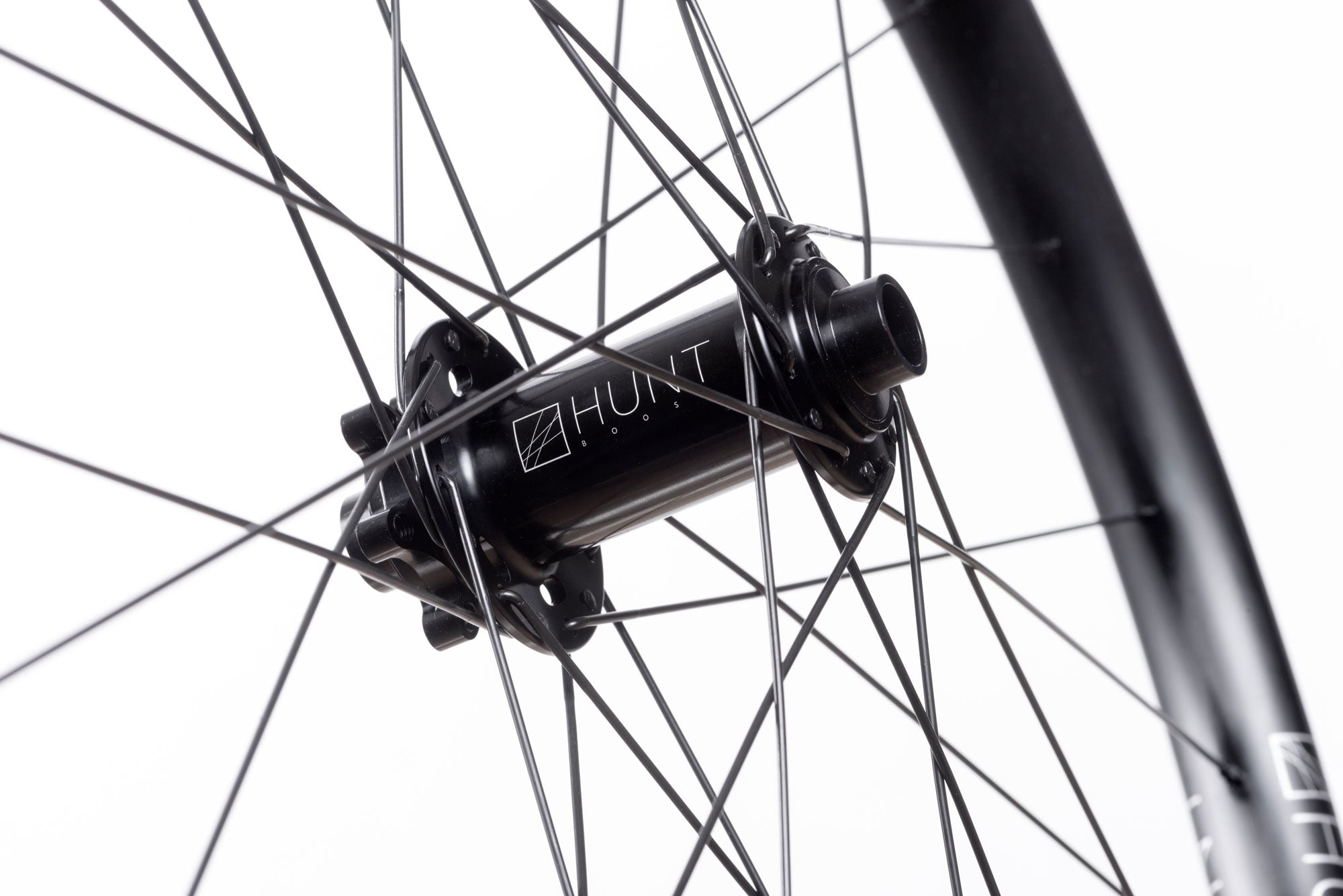

    • Front Hub

      • Forged and CNC’d 6061-T6 heat treated aluminium alloy Hub body
      • 110x15mm or 100x15mm spacing. Rock Shox Torque Caps for Boost option available - just add a comment in the notes section on the cart page.
      • Oversized 7075-T6 aluminium alloy axles.
      • 6 bolt disc mount.
      • Polished anodized black finish with laser graphics.
    • Rear Hub

      • Forged and CNC’d 6061-T6 heat treated aluminium alloy hub body.
      • 148x12mm or 142x12mm spacing.
      • Oversized 7075-T6 heat treated aluminium Axles.
      • 7075-T6 heat-treated aluminium alloy freehub body.
      • 9/10/11 speed Shimano/SRAM compatible freehub and SRAM XD Driver version available.
      • 7075-T6 aluminium alloy axles.
      • Polished anodized black finish with laser graphics.
    • Bearings

      • Precision sealed cartridge replaceable units.
      • Large diameter ball bearings for extra durability.
      • Dual full-contact rubber seals.
    • Warranty, Support and Weight Limits

      A full 2 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details

      All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 110Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 40psi as this will reduce the fatigue on the wheelset.

      Crash replacement 40% off plus All HUNT wheels models have been designed to meet the needs of the type of riding they are intended for. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

      60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

      Reviews

      Bike Magazine and Website Experts' Views

      Pinkbike Logo

      First Look

      "Hunt Launches Range of MTB Wheelsets"
      Singletrack Logo

      Is The Hunt Trail Wide The Best Wheelset You Can Buy Under £400?

      "With the Trail Wide being upgraded to a tougher alloy, and with only a slight increase in weight I believe that they are going to prove to be one of the best sub £400 wheelsets on the market for some time to come. They look classy, the quality is spot on and they keep rolling even when they’ve been battered."

      Offroadcc Logo

      First Look

      "Hunt's new mountain bike wheelsets look like a bit of a bargain."
      Bikerumor Logo

      First Look

      "A family of three new premium alloy off-road wheels – the EnduroWide, TrailWide & XCWide – ready to hit every kind of trail that awaits…"
      MBR Logo

      First Look

      "After conquering the road and gravel markets Hunt Wheels are looking to take over the MTB world"
      MBR Logo

      First Look

      "Hunt is well established when it comes to producing high quality, high value road and gravel wheelsets, but before now hasn't produced a wheelset for mountain biking."

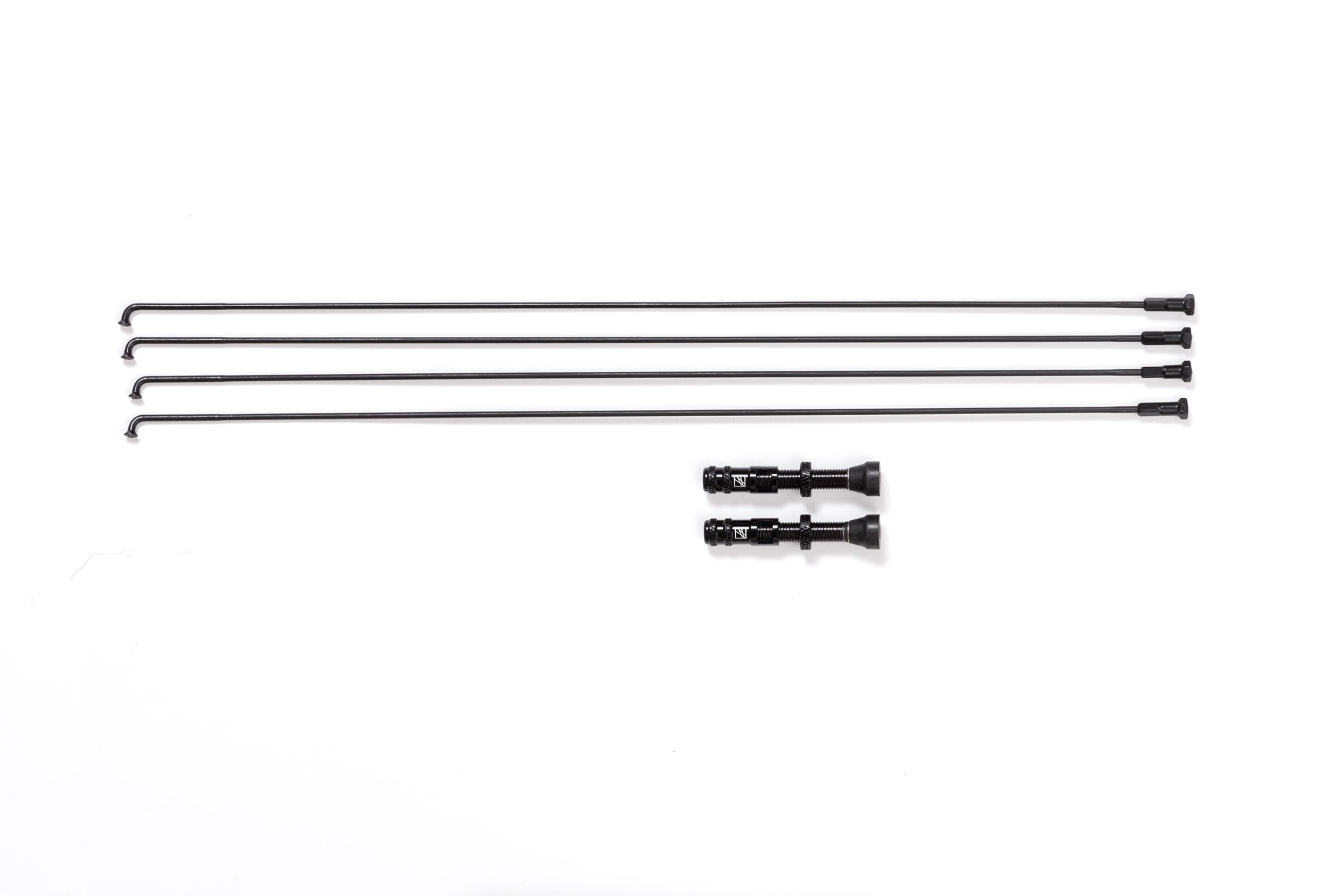

      In the Box

      Contents

      • Black Shield PET high tensile strength tubeless tape fitted to wheels.
      • Cassette spacer for 8/9/10 speed
      • Tubeless Valves
      • Pillar spoke key for hex and square fitment
      • Spare of each spoke plus nipples
      • Quality control card signed by your wheel builder

      TrailWide: Ride Without Boundaries

      27.5/29" | 30 Wide Int. | 1757/1823g

      The Purpose

      The TrailWide is your go to wheelset no matter the conditions. Optimized to take a no-nonsense approach on the descents and not hold you back on the climbs Read More

      The TrailWide is the answer to your weekends at the trail centre; back country epics; days spent smashing through your local woods and late afternoon sessions on the piece of trail still being bedded in - so pretty much a wheelset which can do it all!

      The TrailWide rim includes details which are high on the durability factor to make sure you finish every ride with a big grin. The 6069-T6 series alloy rim sticks with the wider-is-better mantra. Designed around for 2.3"-2.5" tyres, the wide 30mm (internal) rim provides support to the tyre during hard cornering, landing in a root strewn shoot or when your throttling down a high-speed section and folding a tyre is the last thing you need to happen!

      The Hunt RapidEngage MTB hubs have been specced based on our demands for an MTB wheelset. That is a superfast engagement, long lasting hub pawls no matter the conditions you're riding in and to be optimized to accommodate the latest 148x12mm Boost (Rear) and 110x15mm Boost (Front) standard. A super low engagement of 4.3 degrees means you will be able to put the power down straight out of the corners and not have any lag when jumping up those techy climbs.Read Less

      The Experts' View

      Pinkbike Logo Singletrack Logo Offroadcc Logo Bikerumor Logo MBR Logo Bikeradar Logo

      Overview

      We see wheels as a system, not an single component

      • Rims | 6069 T6 (+69% tensile strength vs 6061-T6) welded construction, 30mm wide (internal), work-hardened shot-peened finish.
      • Hubs | 4.3 degree RapidEngage, boost (110/148) or standard (100/142) spacing hubs available, large double sealed cartridge bearings. Rock Shox Torque Caps for Boost hubs and QR adapters for standard hubs are available. (We will fit the axles you need, just complete the simple form shown after checkout or add a comment in the notes section of the cart page).
      • Spokes | 28F/32R Spoke Count, Triple Butted (2.2-1.6-2.0) PSR reinforced Pillar Spokes.
      • Tyres | Optimised for 2.35"-2.6" tyres set up Tubeless, but also work very well with 2.25"-2.8". Also great with standard tyres and tubes.
      • Axles | Oversized 7075-T6 heat-treated aluminium alloy axles.
      • See the full specs here
      • Weight | 1757/1823g 27.5"/29"

      Tech Specs

    • Rims

      • 30mm internal width ideal for 2.3"-2.4" tyre widths, but also work very well with 2.25"-2.8".
      • 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6).
      • Tubeless-ready – designed to work best with tubeless tyres. Tubeless-rim tape and valves included.
      • H-lock bead-seat up-kicks for easy and secure tubeless installation.
      • Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
    • Spokes

      • J-bend cold drawn.
      • 28F/32R spoke count.
      • Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
      • Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
      • Black stainless treatment.
      • Nipples

        • Hard-anodized alloy for weight reduction and strength.
        • Square body for external adjustment and hex head for easy internal adjustment/tensioning. Hex/square spoke key included.
        • Long 14mm thread for durability.
        • 14 gauge.
        • Black finish
      • Tyres Info

        • Maximum tyre pressure for this rim is 60psi when used with an inner tube and 50psi when running the wheel set-up tubeless. Please do not exceed the maximum pressure stated on your tyre.
        • Designed to work perfectly with tubeless and non-tubeless tyres.
        • Suitable tubeless MTB tyre combinations from Schwalbe and Maxxis are available to be fitted to your Hunt TrailWide Wheels.
      • Axle Size

        • Boost - 148x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
        • Standard - 142x12 (Rear) with 100x15mm (Front). QR adapters available - just complete the simple form after checkout.
        • SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.
      • Front Hub

        • Forged and CNC’d 6061-T6 heat treated aluminium alloy Hub body
        • 110x15mm or 100x15mm spacing. Rock Shox Torque Caps for Boost option available - just add a comment in the notes section on the cart page.
        • Oversized 7075-T6 aluminium alloy axles.
        • 6 bolt disc mount.
        • Polished anodized black finish with laser graphics.
      • Rear Hub

        • Forged and CNC’d 6061-T6 heat treated aluminium alloy hub body.
        • 148x12mm or 142x12mm spacing.
        • Oversized 7075-T6 heat treated aluminium Axles.
        • 7075-T6 heat-treated aluminium alloy freehub body.
        • 9/10/11 speed Shimano/SRAM compatible freehub and SRAM XD Driver version available.
        • 7075-T6 aluminium alloy axles.
        • Polished anodized black finish with laser graphics.
      • Bearings

        • Precision sealed cartridge replaceable units.
        • Large diameter ball bearings for extra durability.
        • Dual full-contact rubber seals.
      • Warranty, Support and Weight Limits

        A full 2 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details

        All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 110Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 40psi as this will reduce the fatigue on the wheelset.

        Crash replacement 40% off plus All HUNT wheels models have been designed to meet the needs of the type of riding they are intended for. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

        60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

        Reviews

        Bike Magazine and Website Experts' Views

        Pinkbike Logo

        First Look

        "Hunt Launches Range of MTB Wheelsets"
        Singletrack Logo

        Is The Hunt Trail Wide The Best Wheelset You Can Buy Under £400?

        "With the Trail Wide being upgraded to a tougher alloy, and with only a slight increase in weight I believe that they are going to prove to be one of the best sub £400 wheelsets on the market for some time to come. They look classy, the quality is spot on and they keep rolling even when they’ve been battered."

        Offroadcc Logo

        First Look

        "Hunt's new mountain bike wheelsets look like a bit of a bargain."
        Bikerumor Logo

        First Look

        "A family of three new premium alloy off-road wheels – the EnduroWide, TrailWide & XCWide – ready to hit every kind of trail that awaits…"
        MBR Logo

        First Look

        "After conquering the road and gravel markets Hunt Wheels are looking to take over the MTB world"
        MBR Logo

        First Look

        "Hunt is well established when it comes to producing high quality, high value road and gravel wheelsets, but before now hasn't produced a wheelset for mountain biking."

        In the Box

        Contents

        • Black Shield PET high tensile strength tubeless tape fitted to wheels.
        • Cassette spacer for 8/9/10 speed
        • Tubeless Valves
        • Pillar spoke key for hex and square fitment
        • Spare of each spoke plus nipples
        • Quality control card signed by your wheel builder

        HUNT Trail Wide MTB Wheelset

        27.5/29" | 30 Wide Int. | 1757/1823g

        Regular price £349 GBP
        £79 Deposit option, refundable. (In dropdown)
        29" Boost - LIMITED STOCK
        27.5" Boost - LIMITED STOCK
        27.5" Non-Boost PRE-ORDER FOR DELIVERY FEB WK 4
        Need mixed boost/non-boost?
        Please enter the specification you'd require in the cart comments at checkout

        If unsure, please live chat to us (bottom right of screen) or thechase@huntbikewheels.com / +44 1273 931 428

        FREE World-wide shipping on wheels
        Order by 2pm for Next Day delivery** (if shown in-stock)
        60 day ride & return period

        Please don't miss out, order now. Our wheels are in high demand due to their unique superior specifications and excellent reviews. Please be aware that we are working hard to meet demand. Unfortunately sales often outstrip supply, so please order now to avoid disappointment.

        *UK if shown in-stock, International orders 2-7 days. Please allow 3 working days for tyre fitting if required.
