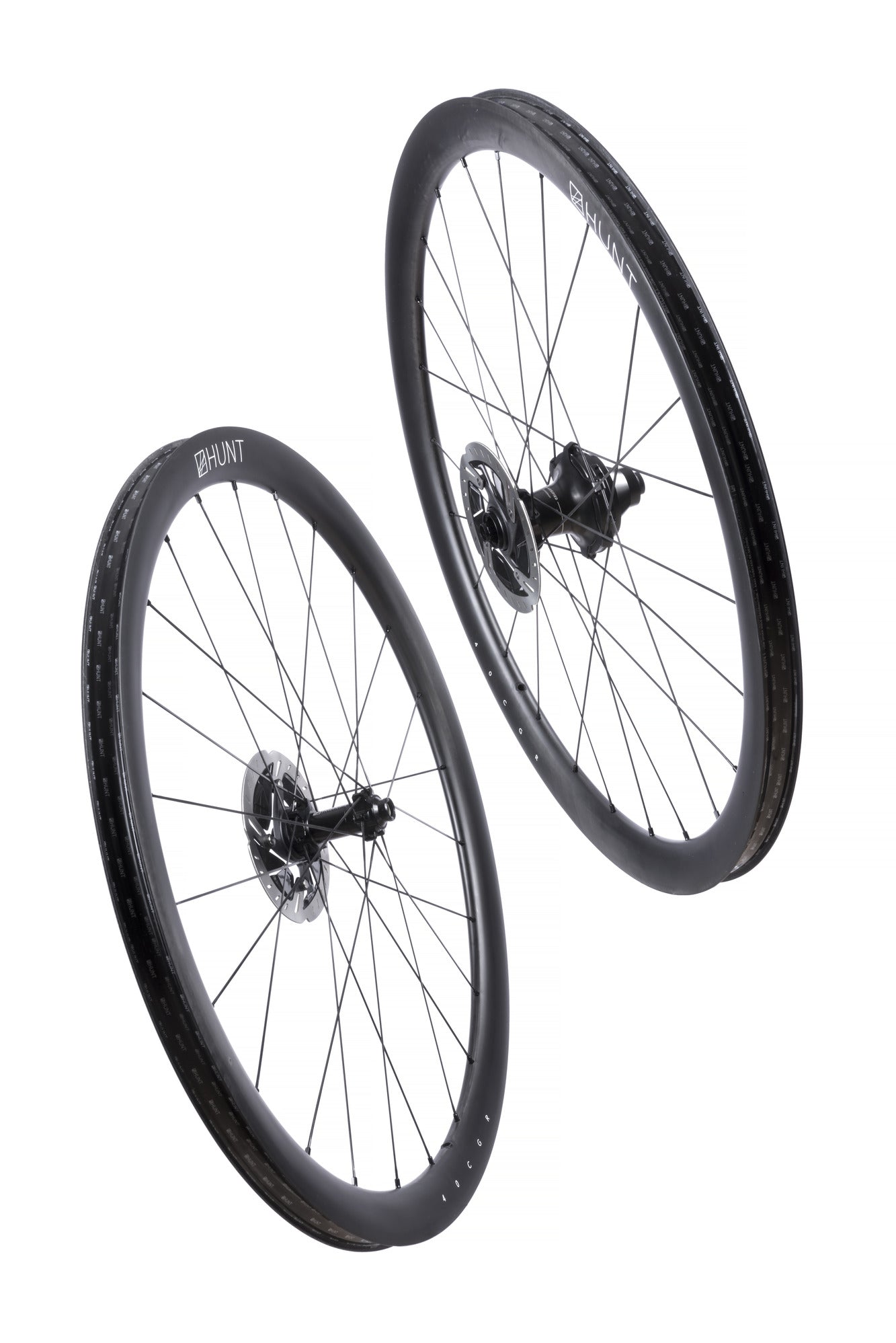

Hunt 40 Carbon Gravel Race x Classified Wheelset
Hunt 40 Carbon Gravel Race x Classified Wheelset
Hunt 40 Carbon Gravel Race x Classified Wheelset

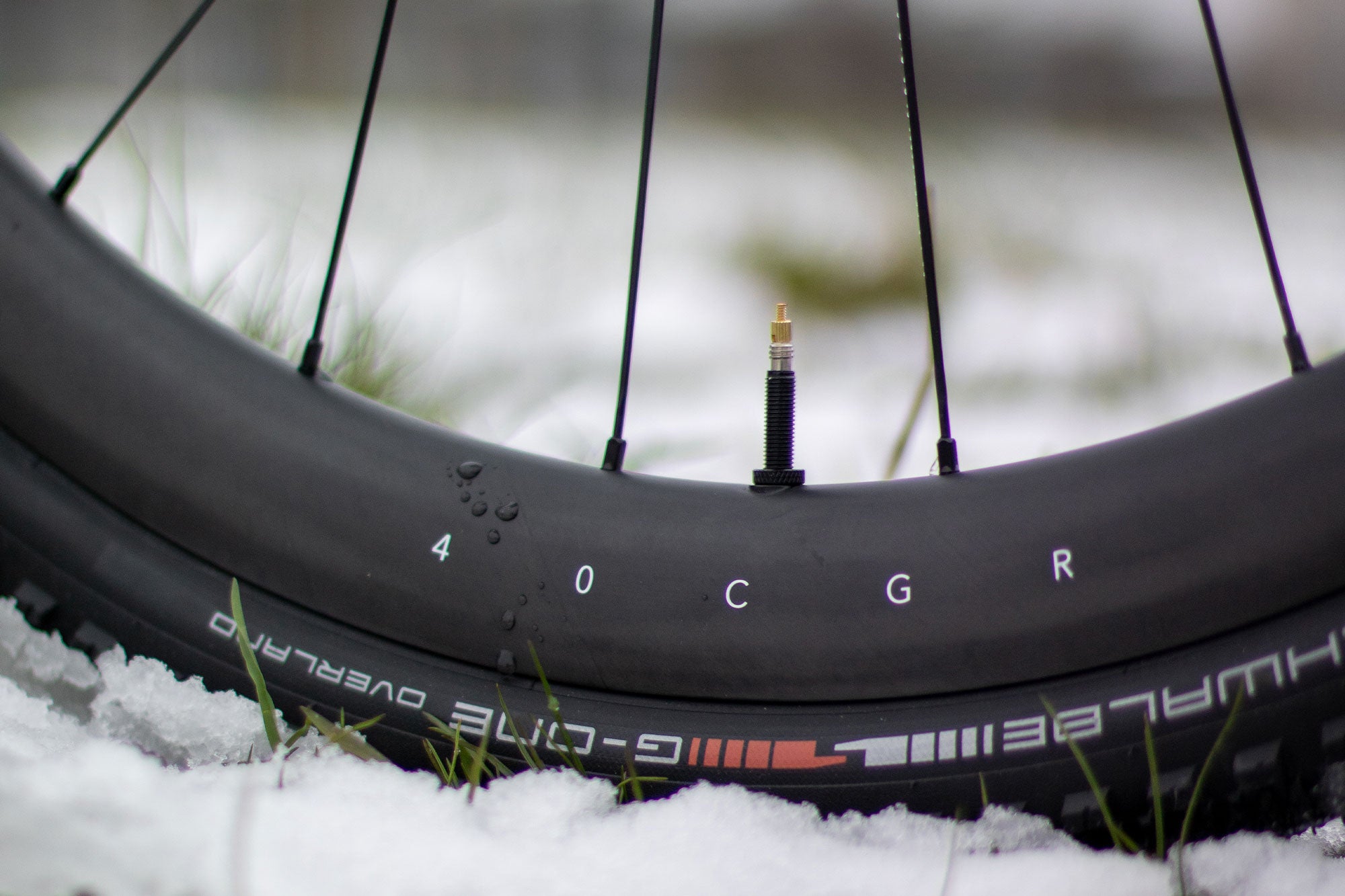

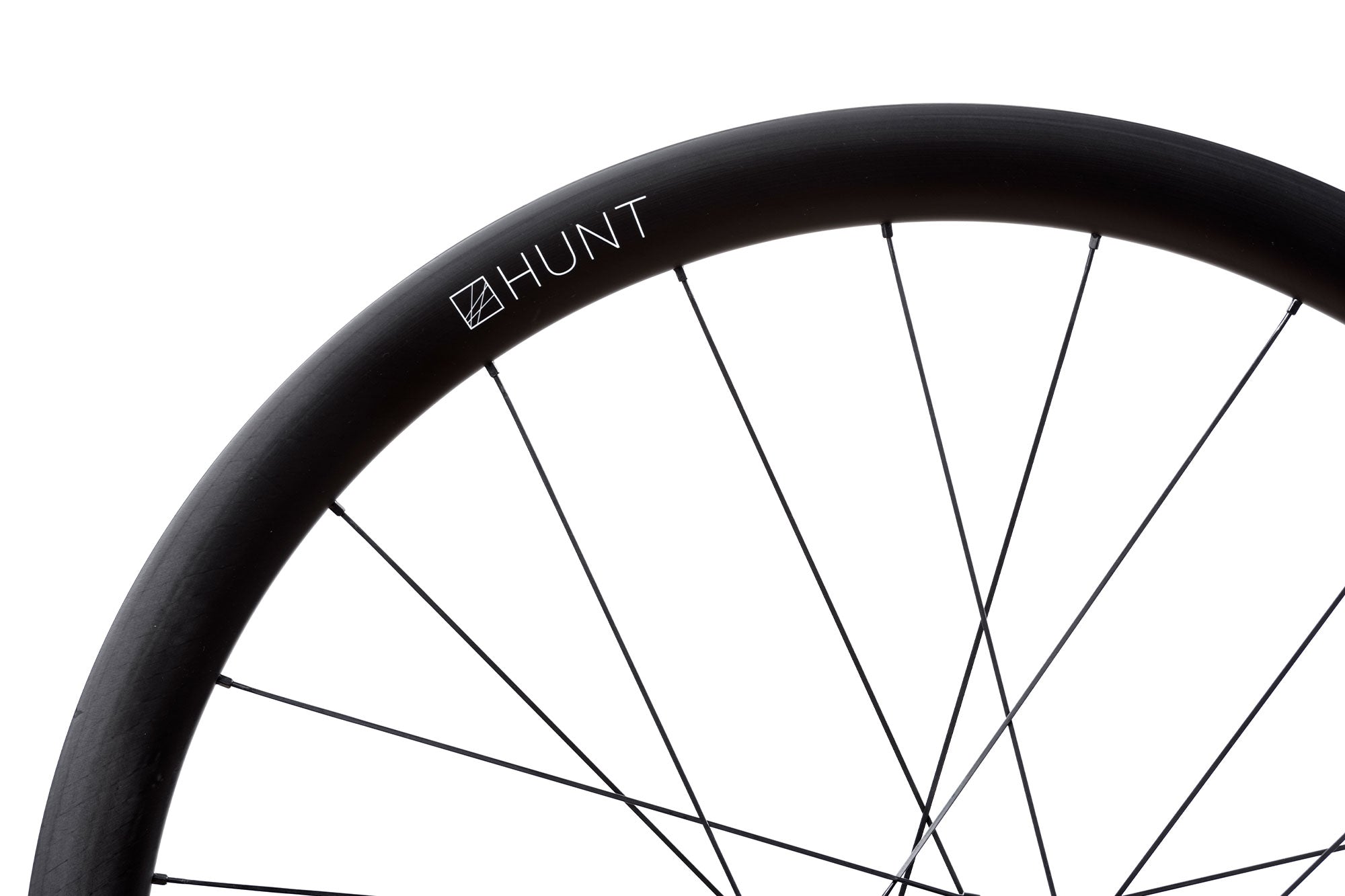

<h1>RIM PROFILE</h1><i>A strong and super-lightweight hookless rim. The rim dimensions are 40mm deep and 30mm wide external (25mm internal) optimised for 38-40mm tyres. Tubeless for lower weight, rolling resistance, and better puncture protection.</i>

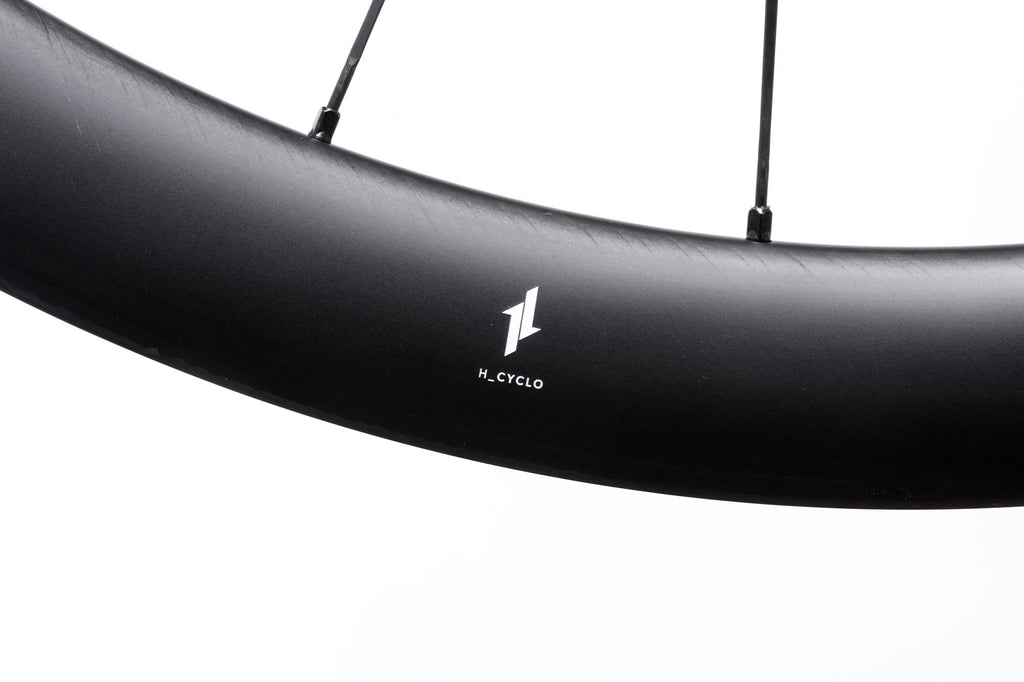

<h1>RIM PROFILE</h1><i>When designing a wheelset with absolute lightness and off-road capabilities as the driving principle, then a hookless rim profile is the right choice.</i>
<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan.</i>

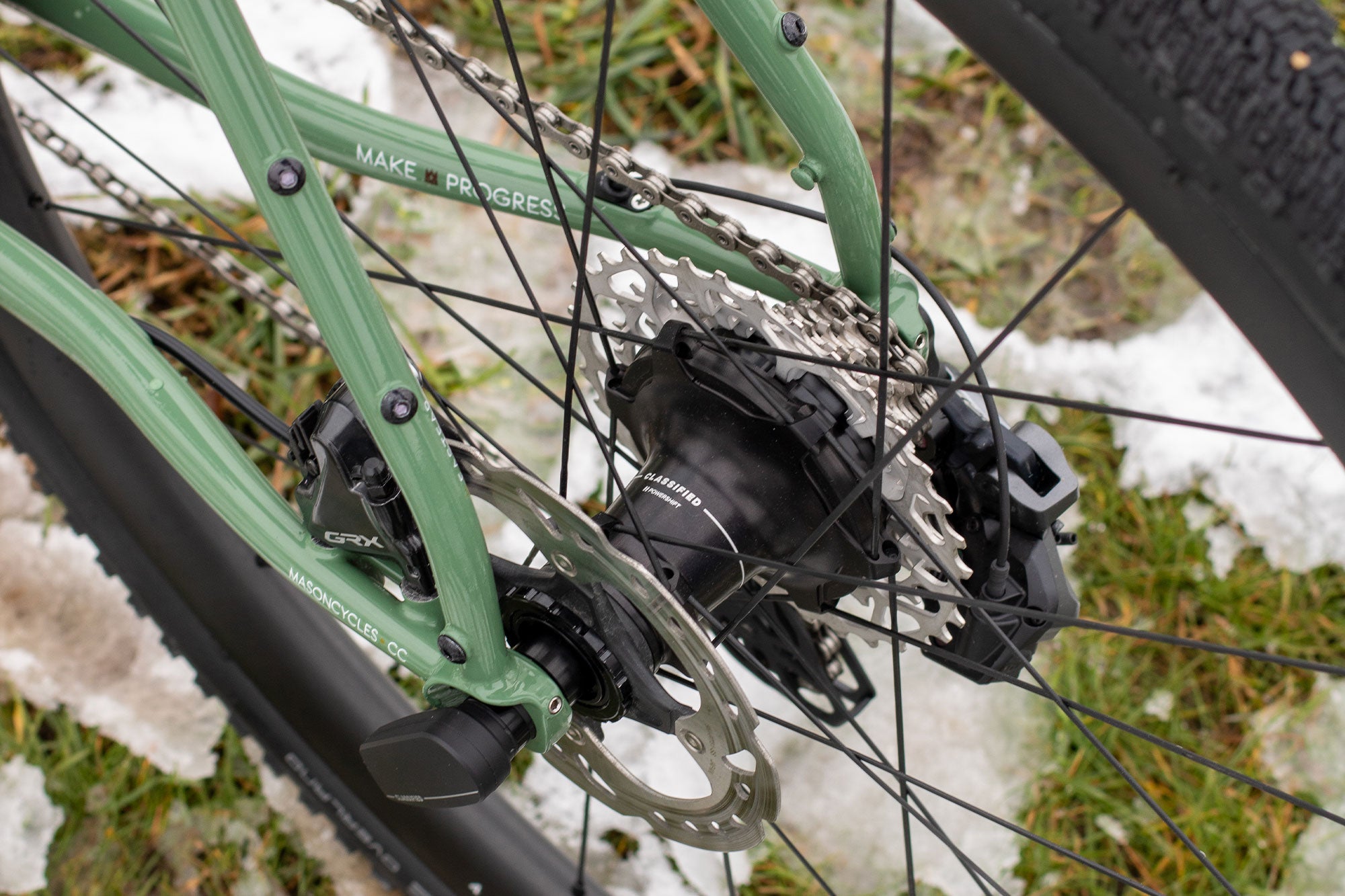

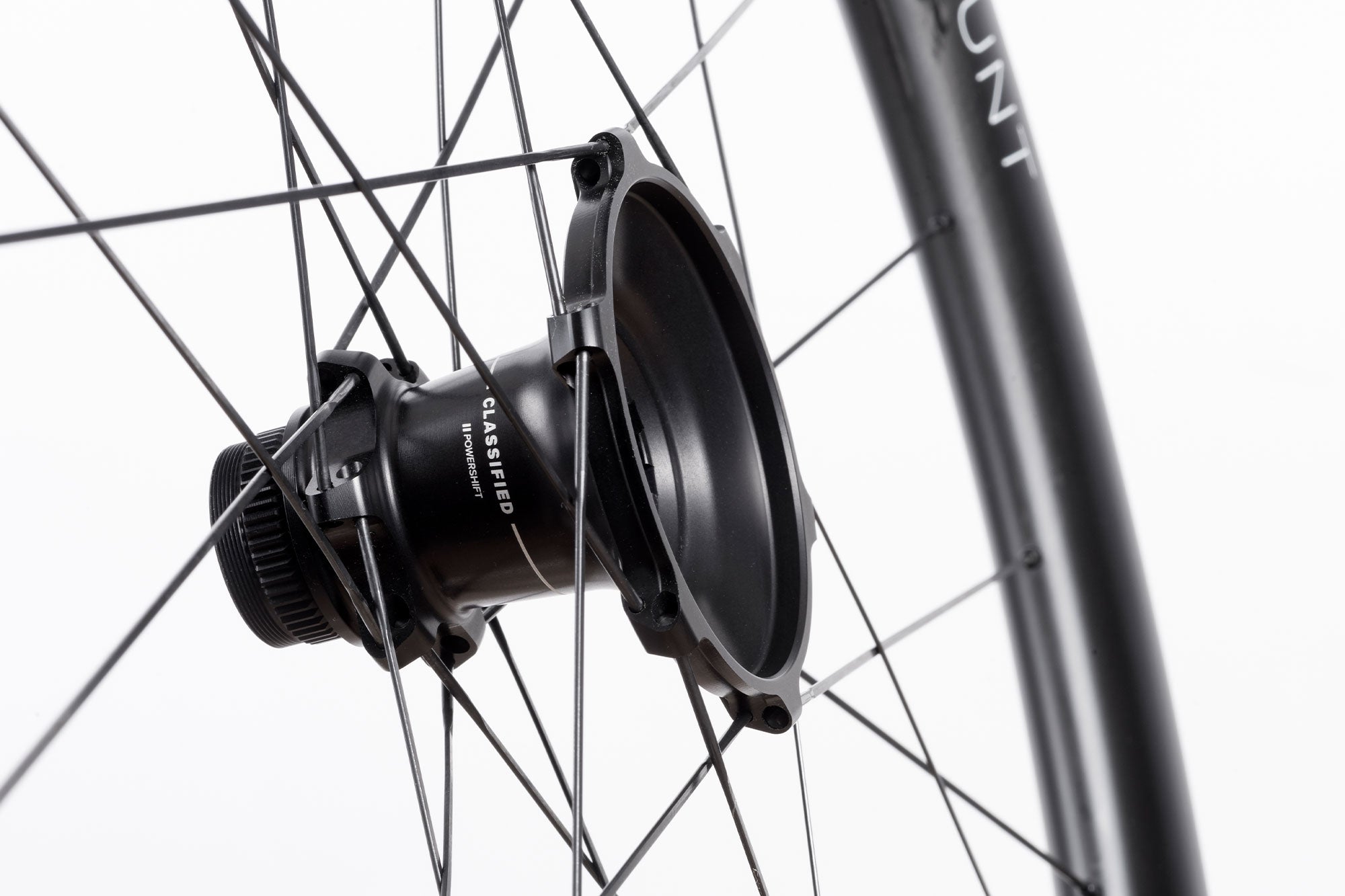

<h1>Classified Rear Hub</h1><i>Classified rear hubshell has been fitted to this wheelset by hand, and will arrive ready to fit a Powershift hub system.</i>
<h1>Spokes</h1><i>We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a hex head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.</i>
<h1>Tyre Width Optimisation</h1><i>25mm internal rim profile, featuring a hookless and ETRTO-compliant tubeless rim, designed exclusively for tubeless tyres.</i>

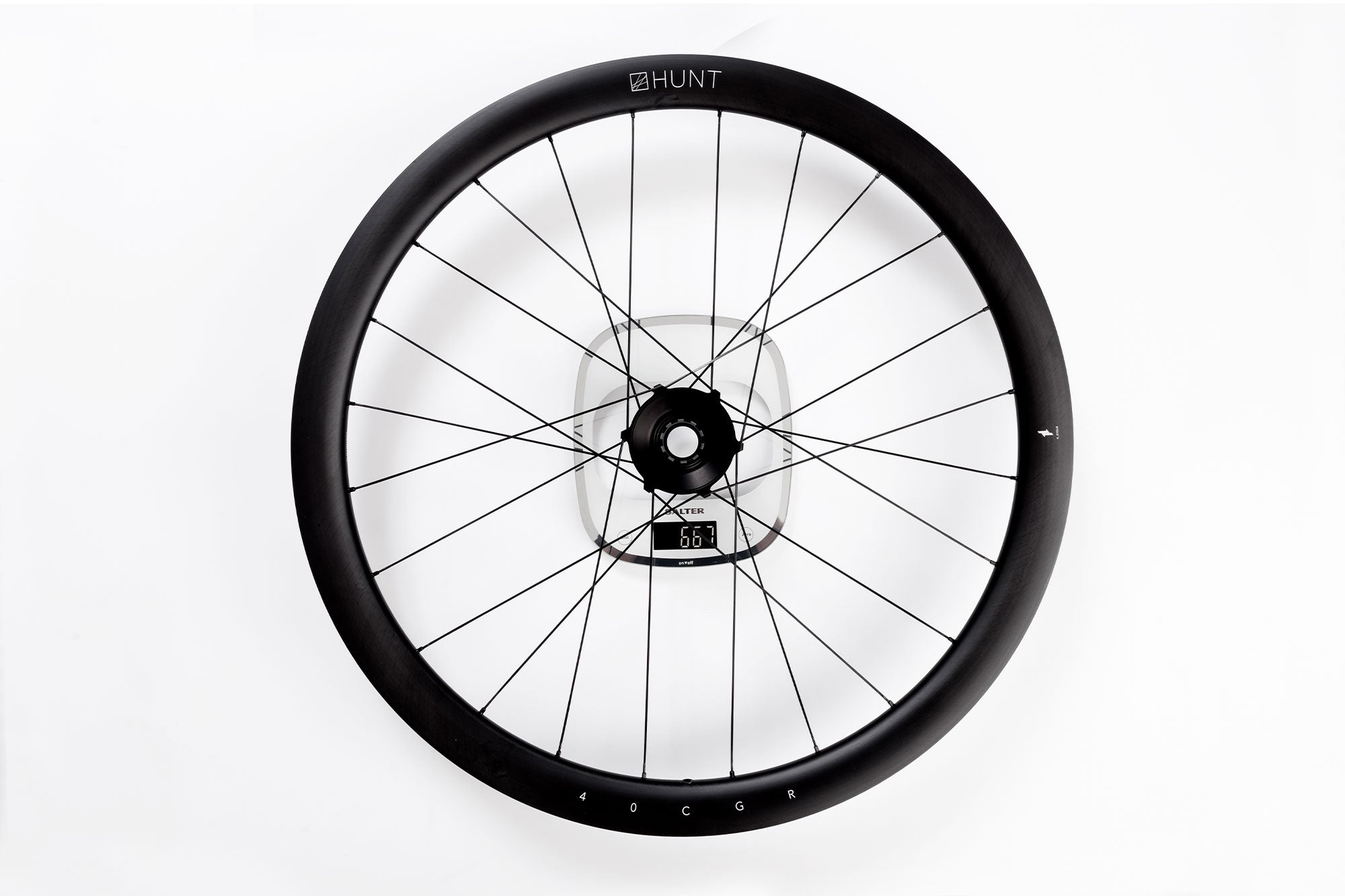

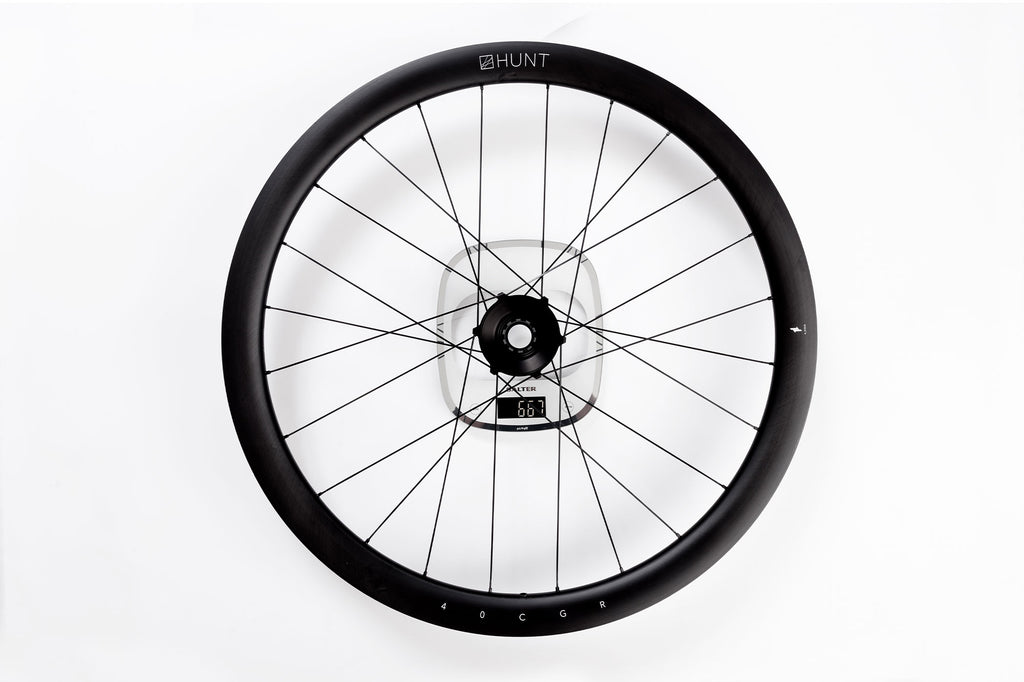

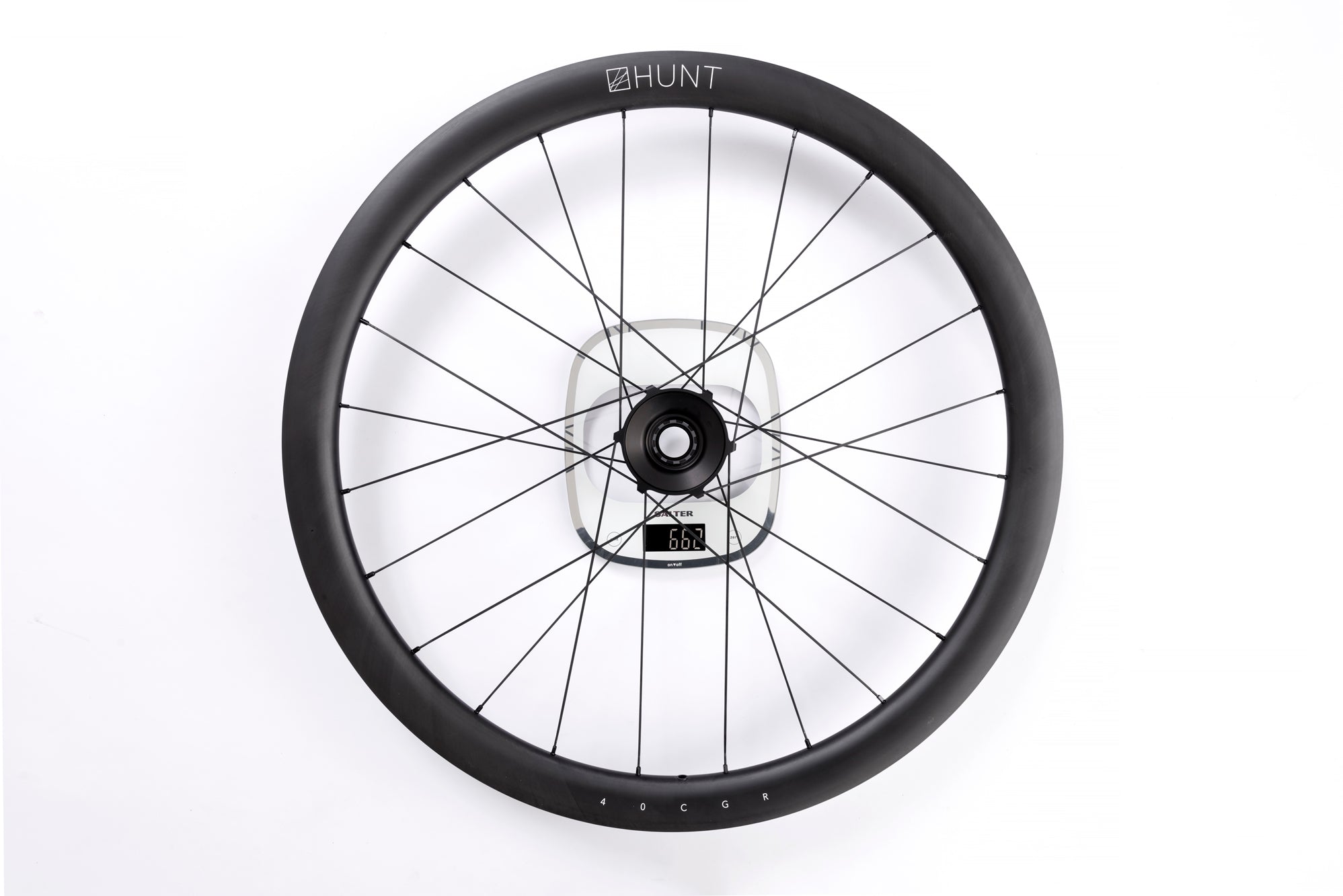

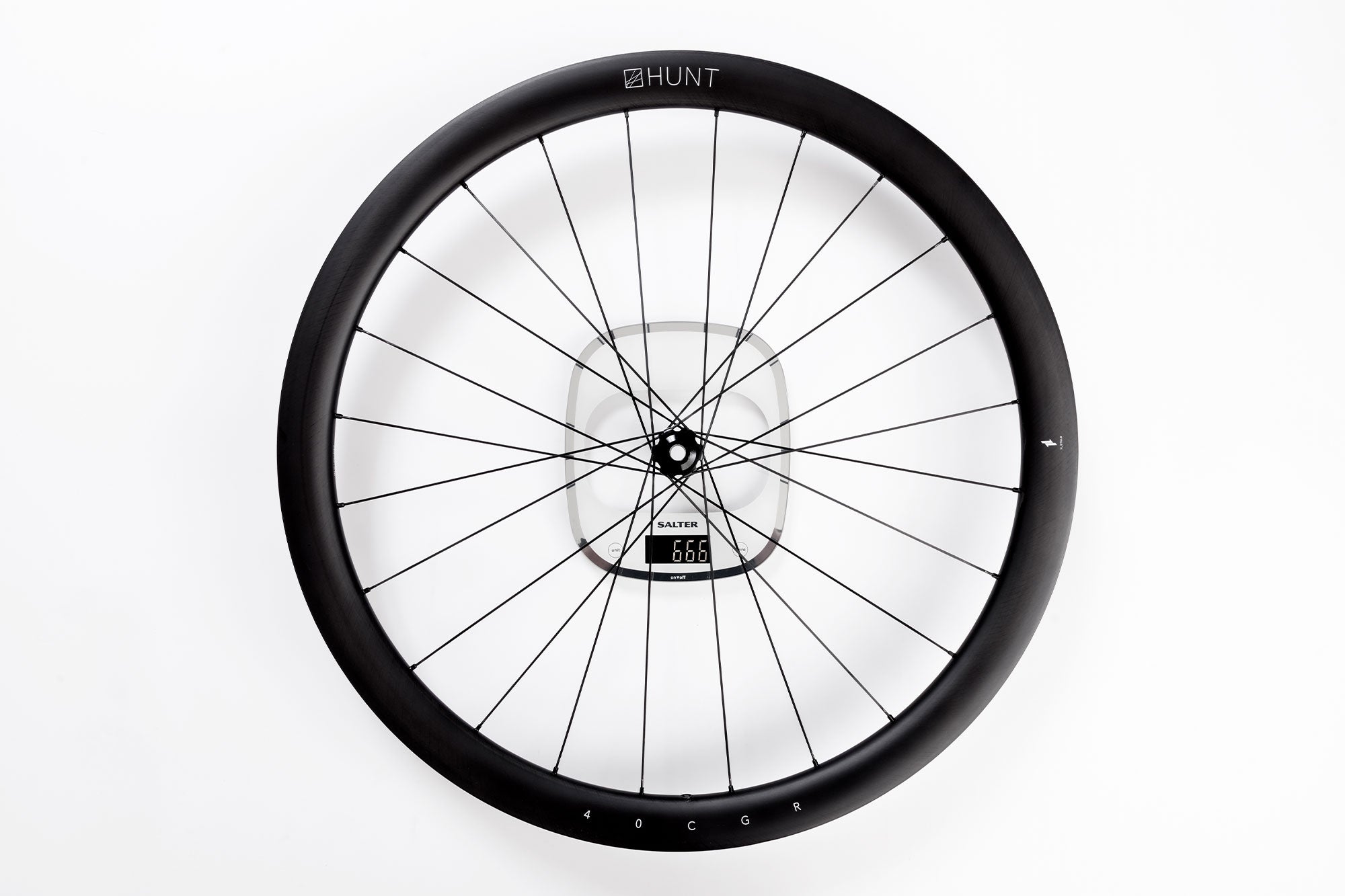

<h1>Weight</h1><i>1,270g (Including Powershift rear hub shell)</i>

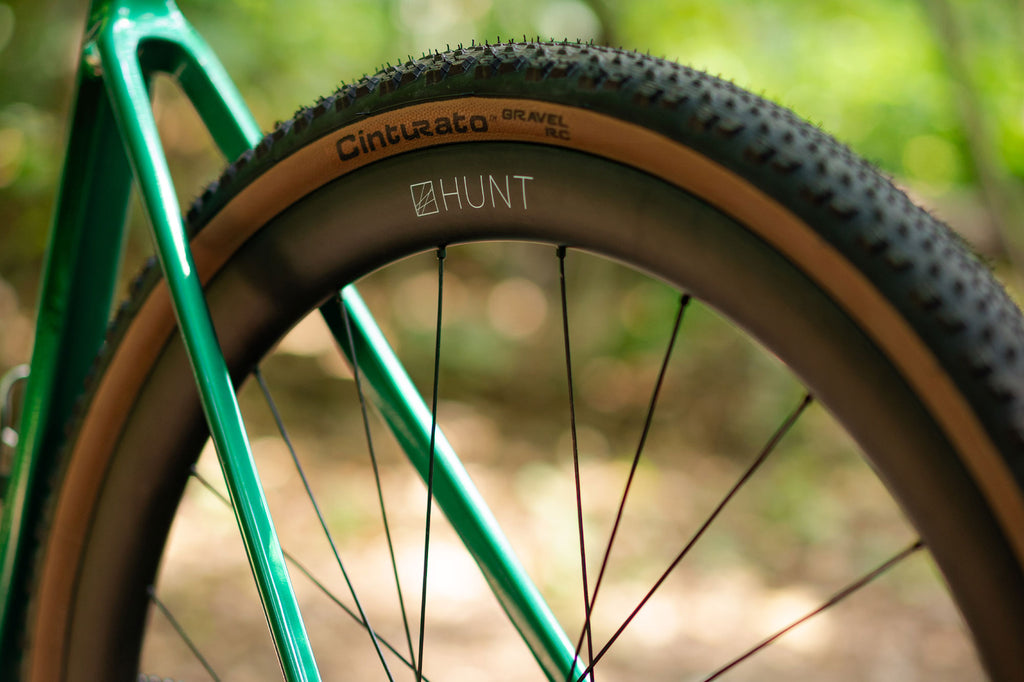

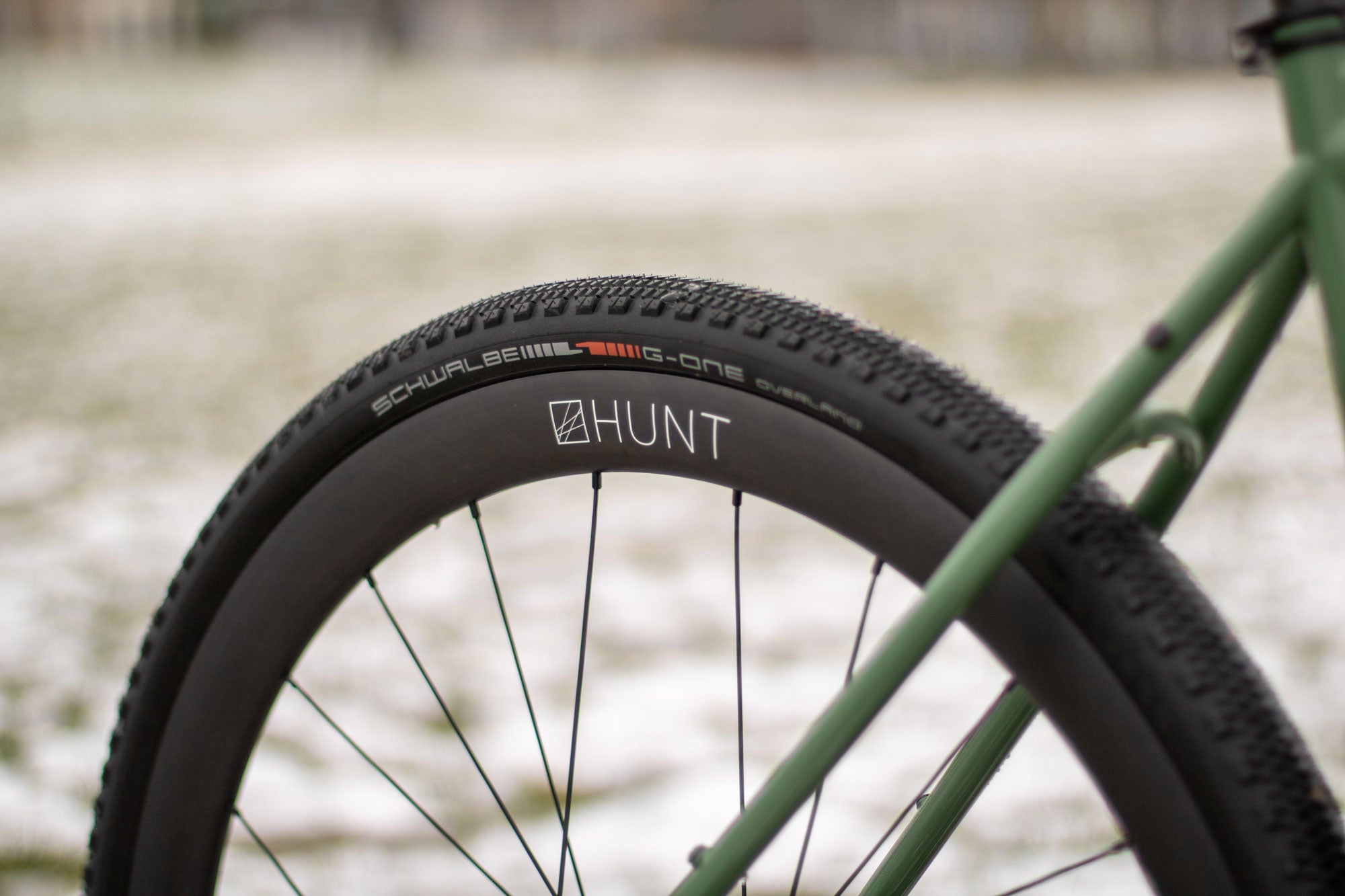

<h1>Tyres</h1><i>Optimised for a 38mm-40mm tyre, but compatible with tubeless hookless compatible tyres from 29 up to 71mm.</i>
<h1>In The Box</h1><i><ul><li>HUNT BlackShield tubeless tape fitted to wheels.</li><li>Tubeless Valves</li> <li>Quality control card signed by your wheel builder.</li></ul></i>

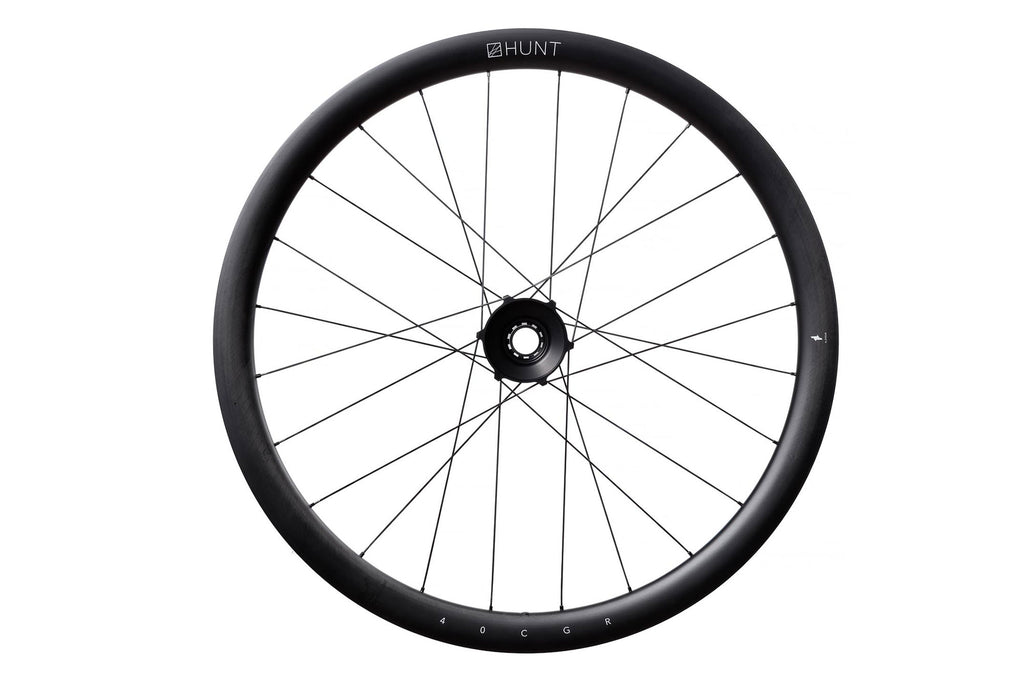

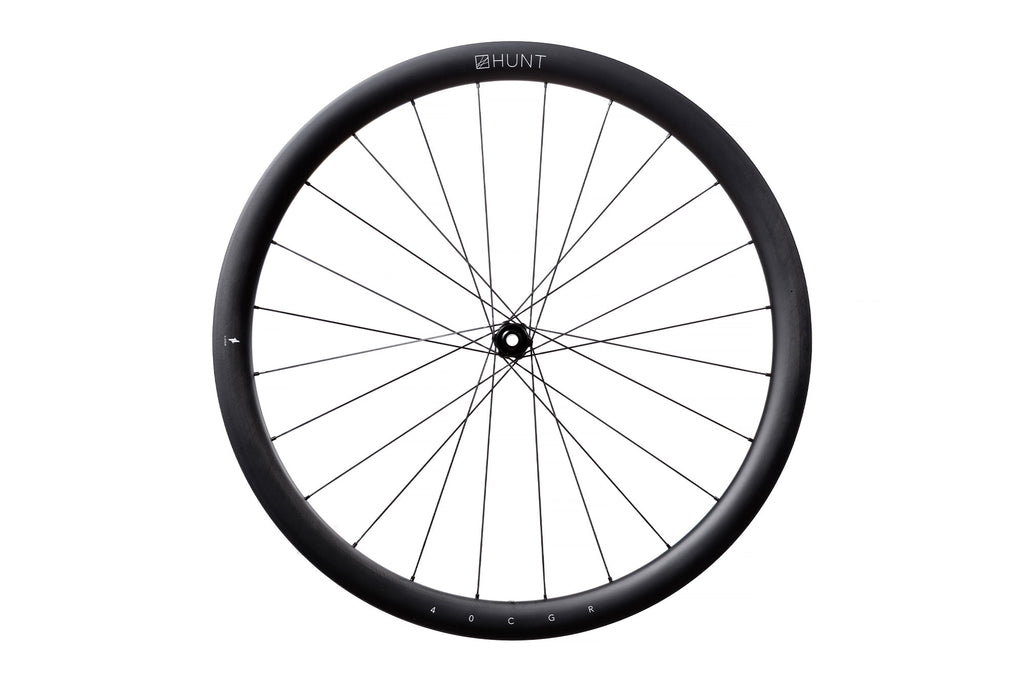

Hunt 40 Carbon Gravel Race x Classified Wheelset

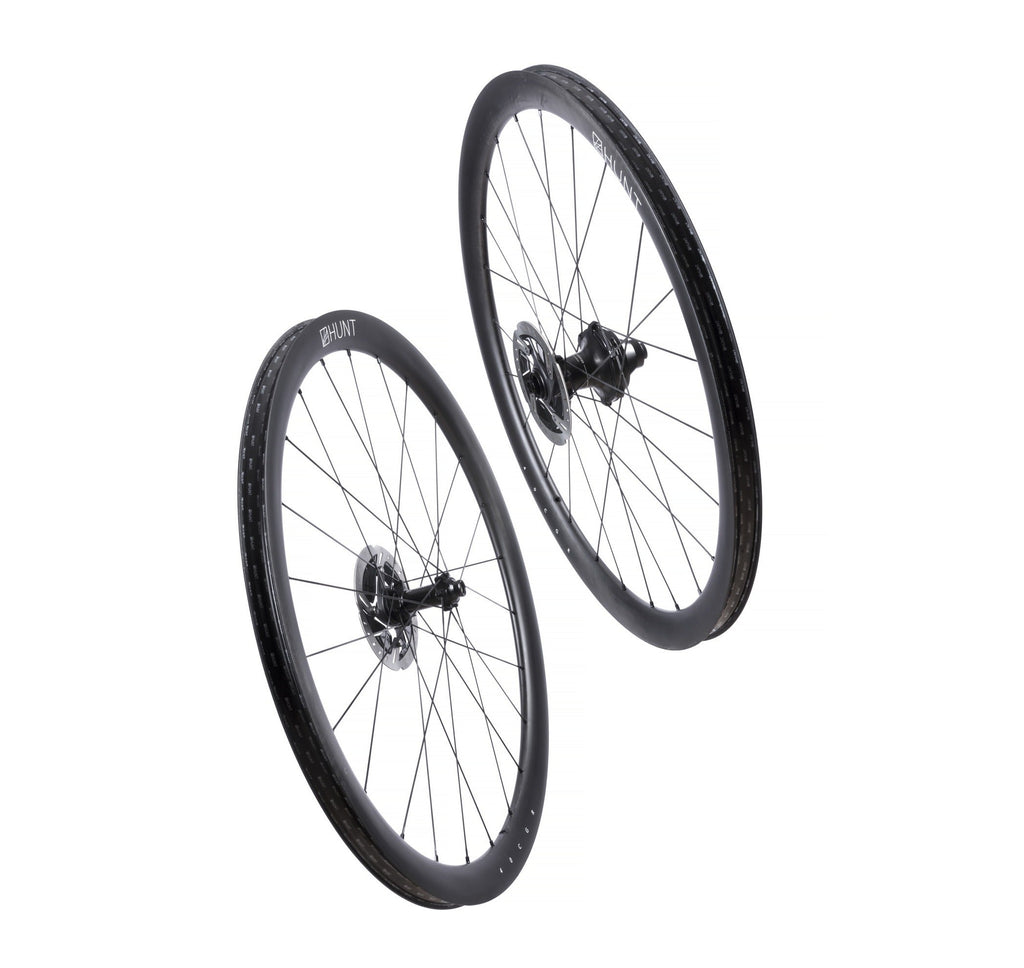

Classified x HUNT 40 Carbon Gravel Race Wheelset

40 DEEP | 30 WIDE EXT | 25 WIDE INT | 1,270g (Including POWERSHIFT rear hub shell)

A LIGHTWEIGHT, RACE-FOCUSED HOOKLESS GRAVEL WHEELSET BUILT FOR DEMANDING DAYS IN THE SADDLE. NOW AVAILABLE WITH A CLASSIFIED POWERSHIFT REAR HUB SHELL.

40 DEEP | 30 WIDE EXT | 25 WIDE INT | 1,270g (Including POWERSHIFT rear hub shell)

The Purpose

The HUNT 40 Carbon Gravel Race wheelset was built to meet the needs of the gravel racer and rider. With the integration of a Classified Powershift rear hub shell, we’re able to pack even more industry-leading design to into this versatile and fast, best-selling gravel wheelset.

Wide and lightweight 40mm-deep hookless rims offer durability, quick acceleration and aerodynamic efficiency, intended for use with modern width gravel race tyres. With an integrated Powershift rear hub, your riding will benefit from the wide gearing range and functionality of a front derailleur and 2x drivetrain, while enjoying the simplicity and aero benefits of a 1x setup.

Long-time advocates of tubeless technology for riding on and off-road, HUNT’s development into hookless rims began back in 2016. With the 40 Carbon Gravel Race rim development, we were able to push the boundaries of rim weight-saving further, bringing the final rim weights to a mere 395g. As well as having that performance benefit, due to a simpler manufacturing process, hookless rims can be produced with less waste, resulting in a cost reduction which can be passed on to riders.

Wide, tubeless, ETRTO-compliant hookless rims, laced to the Powershift rear hub shell for a lightweight gravel-specific wheel system ready to go the distance in your next gravel race or fast ride.

Read More

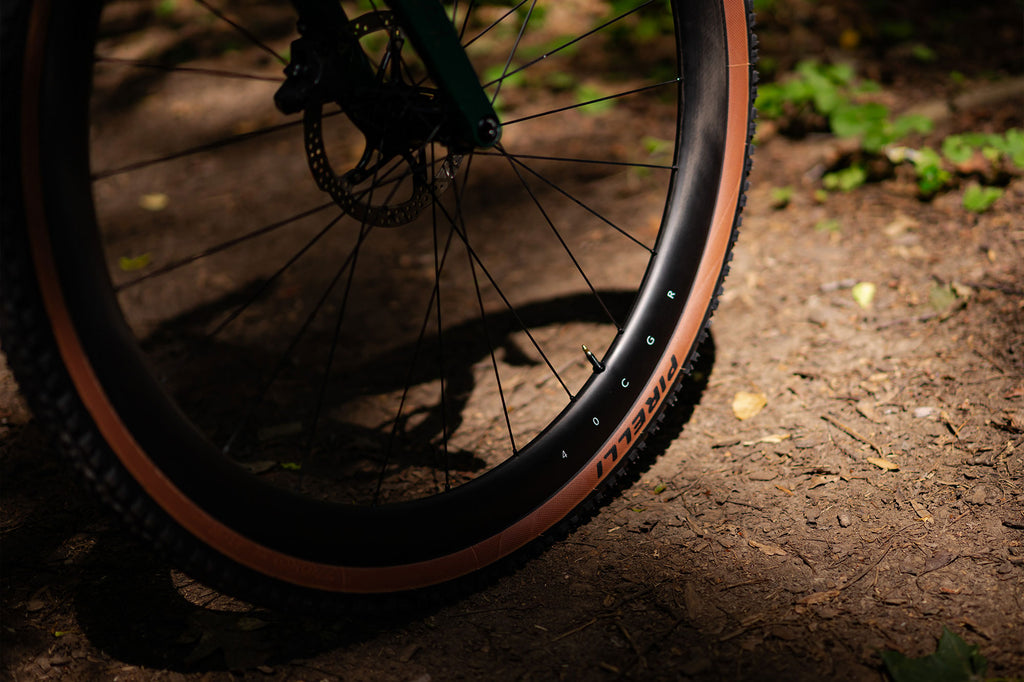

LATERALLY RESPONSIVE

These wheels have been designed to provide the superior balance between a laterally responsive and lightweight package. Straight pull hubs and bladed spokes reduce weight and add strength, creating a system that responds instantly to your accelerations.

HOOKLESS/STRAIGHT SIDE-WALL DESIGN

40mm-deep and 30mm-wide external rim profile, featuring a hookless/straight-sidewall and ETRTO-compliant tubeless rim, designed for gravel tubeless tyre compatibility.

Read Less


Classified Logo

Powershift technology is a wireless shifting technology that allows you to shift gears instantly and under full load. Its first application is the Powershift rear hub, which replaces the front derailleur. The Powershift hub offers unrivalled shift quality, wide gearing range and small steps in between gears combining the benefits of both 1x and 2x drivetrains.

NOTE: The Classified Powershift internal system and electronics must be supplied by select Classified dealers. This wheelset does not contain the complete system. The rear wheel is delivered with the Classified hub shell, without the Powershift hub internals. Please contact our Rider Experience team with any questions.

For our detailed explainer outlining the differences and characteristics of hookless and hooked click here.

The Purpose

The HUNT 40 Carbon Gravel Race wheelset was built to meet the needs of the gravel racer and rider. With the integration of a Classified Powershift rear hub shell, we’re able to pack even more industry-leading design to into this versatile and fast, best-selling gravel wheelset.

Wide and lightweight 40mm-deep hookless rims offer durability, quick acceleration and aerodynamic efficiency, intended for use with modern width gravel race tyres. With an integrated Powershift rear hub, your riding will benefit from the wide gearing range and functionality of a front derailleur and 2x drivetrain, while enjoying the simplicity and aero benefits of a 1x setup.

Long-time advocates of tubeless technology for riding on and off-road, HUNT’s development into hookless rims began back in 2016. With the 40 Carbon Gravel Race rim development, we were able to push the boundaries of rim weight-saving further, bringing the final rim weights to a mere 395g. As well as having that performance benefit, due to a simpler manufacturing process, hookless rims can be produced with less waste, resulting in a cost reduction which can be passed on to riders.

Wide, tubeless, ETRTO-compliant hookless rims, laced to the Powershift rear hub shell for a lightweight gravel-specific wheel system ready to go the distance in your next gravel race or fast ride.

Read More

LATERALLY RESPONSIVE

These wheels have been designed to provide the superior balance between a laterally responsive and lightweight package. Straight pull hubs and bladed spokes reduce weight and add strength, creating a system that responds instantly to your accelerations.

HOOKLESS/STRAIGHT SIDE-WALL DESIGN

40mm-deep and 30mm-wide external rim profile, featuring a hookless/straight-sidewall and ETRTO-compliant tubeless rim, designed for gravel tubeless tyre compatibility.

Read Less


Classified Logo

Powershift technology is a wireless shifting technology that allows you to shift gears instantly and under full load. Its first application is the Powershift rear hub, which replaces the front derailleur. The Powershift hub offers unrivalled shift quality, wide gearing range and small steps in between gears combining the benefits of both 1x and 2x drivetrains.

NOTE: The Classified Powershift internal system and electronics must be supplied by select Classified dealers. This wheelset does not contain the complete system. The rear wheel is delivered with the Classified hub shell, without the Powershift hub internals. Please contact our Rider Experience team with any questions.

For our detailed explainer outlining the differences and characteristics of hookless and hooked click here.

Key Features

A LIGHT, VERSATILE, NO COMPROMISE WHEELSET BUILT WITH RACE DAY IN MIND. NOW EVEN MORE CAPABLE WITH THE POWERSHIFT SYSTEM.

  • Rims | Disc-specific hookless/straight-sidewall rim profile. ETRTO-compliant tubeless rims. Hookless (what does this mean?).
  • Tyres | 25mm internal rim width, Tubeless-ready for lower weight & rolling resistance, featuring H_LOCK bead-seat for easy and secure tubeless installation. Hookless rims require the use of tubeless tyres. (Please always refer to your tyres manufacturer's guidelines on pressure, rim width, and hookless compatibility).
  • Hubs | Sprint SL Front Hub | Classified Powershift-Ready Rear Hub Shell | SPRINT SL straight-pull centre-lock front hub, combined with the Powershift rear hub shell, which replaces the front derailleur. The Powershift hub offers unrivalled shift quality, high gearing range and small steps in between gears combining the benefits of both 1x and 2x drivetrains.
  • EZO Stainless Steel Bearings | High-grade Japanese EZO bearings in front hub. Rear hub internals and bearings not included (to be supplied by Classified).
  • Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - Bolt thru 12x142. Powershift System (including rear axle) not included.
  • Included | Tubeless tape & valves, spare spokes.
  • Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
  • Weight | 1,270g (Including Powershift rear hub shell)
    See the full specs here

Please note: If you require a 6-bolt adapter you can purchase separately here.

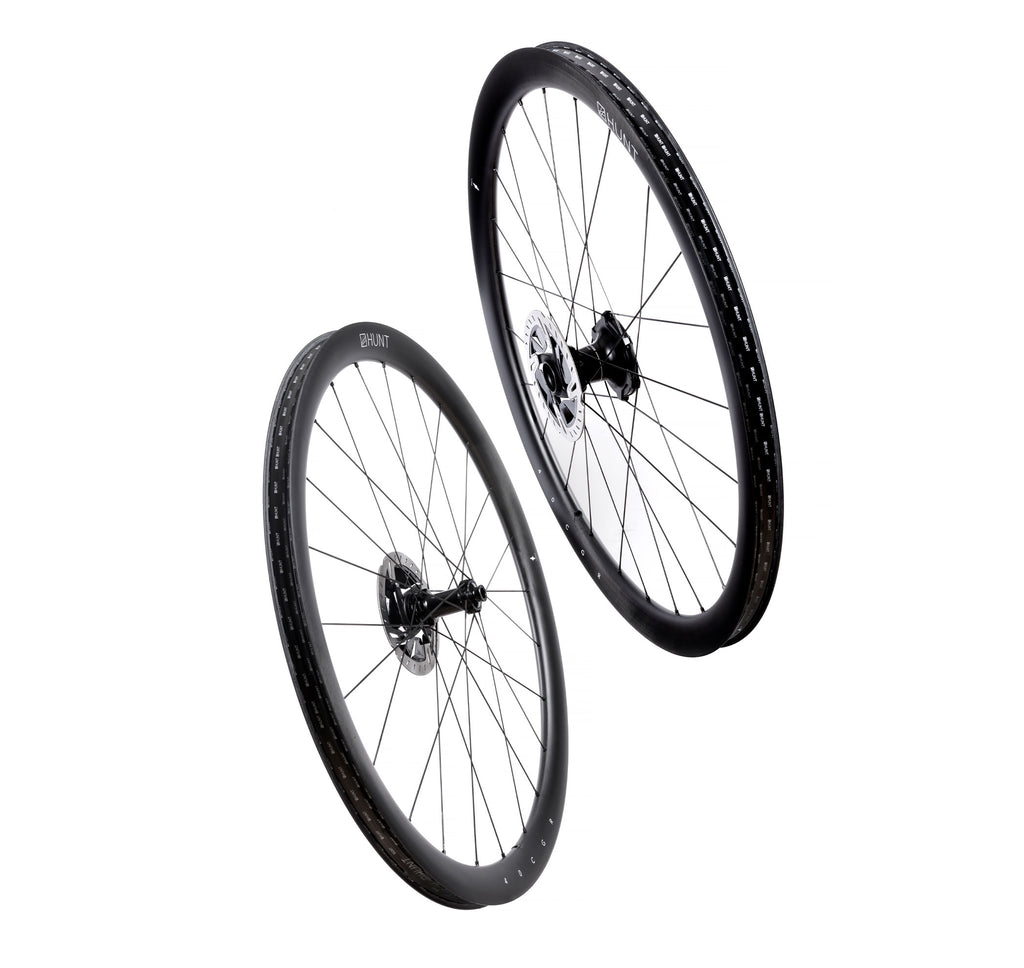

Full Spec

  • Rims

    • Disc-specific hookless/straight-sidewall design and compatible with 29-71mm tyres.
    • 30mm external and 25mm internal.
    • H_LOCK bead-seat up-kicks, for easy and secure tubeless installation.
    • Matt black base finished with matt white contrasting graphics.
  • Spokes

    • 24 front and 24 rear, laced 2-cross.
    • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
    • Straight-pull, for excellent torsional strength and direct power transfer.
    • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
    • Patented Pillar Spoke Re-enforcement (butted again just before the spoke head, providing more durability in high stress area).
    • Black stainless finish.
  • Nipples

    • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
    • 16mm length with washer for a strong connection to the spoke added durability.
    • 14 gauge.
    • Black anodized finish.
  • Tyres Info

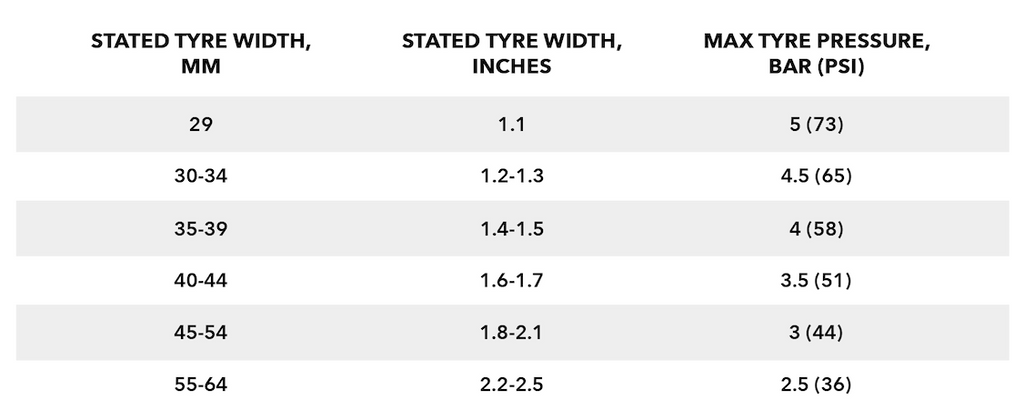

    • Maximum tyre pressure for this rim is 72.5psi.
      • Please do not exceed the maximum pressure stated on your tyre.
    • Suitable for tyres from 29mm up to 71mm wide.
    • Please consult with your preferred tyre manufacturer for compatibility.
  • Axle Size

    • These wheels are available with all existing disc brake road bike axle adapter sizes for the front wheel.. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.
    • Please note: The rear axle is included in the Classified Powershift system, and will be supplied by Classified.

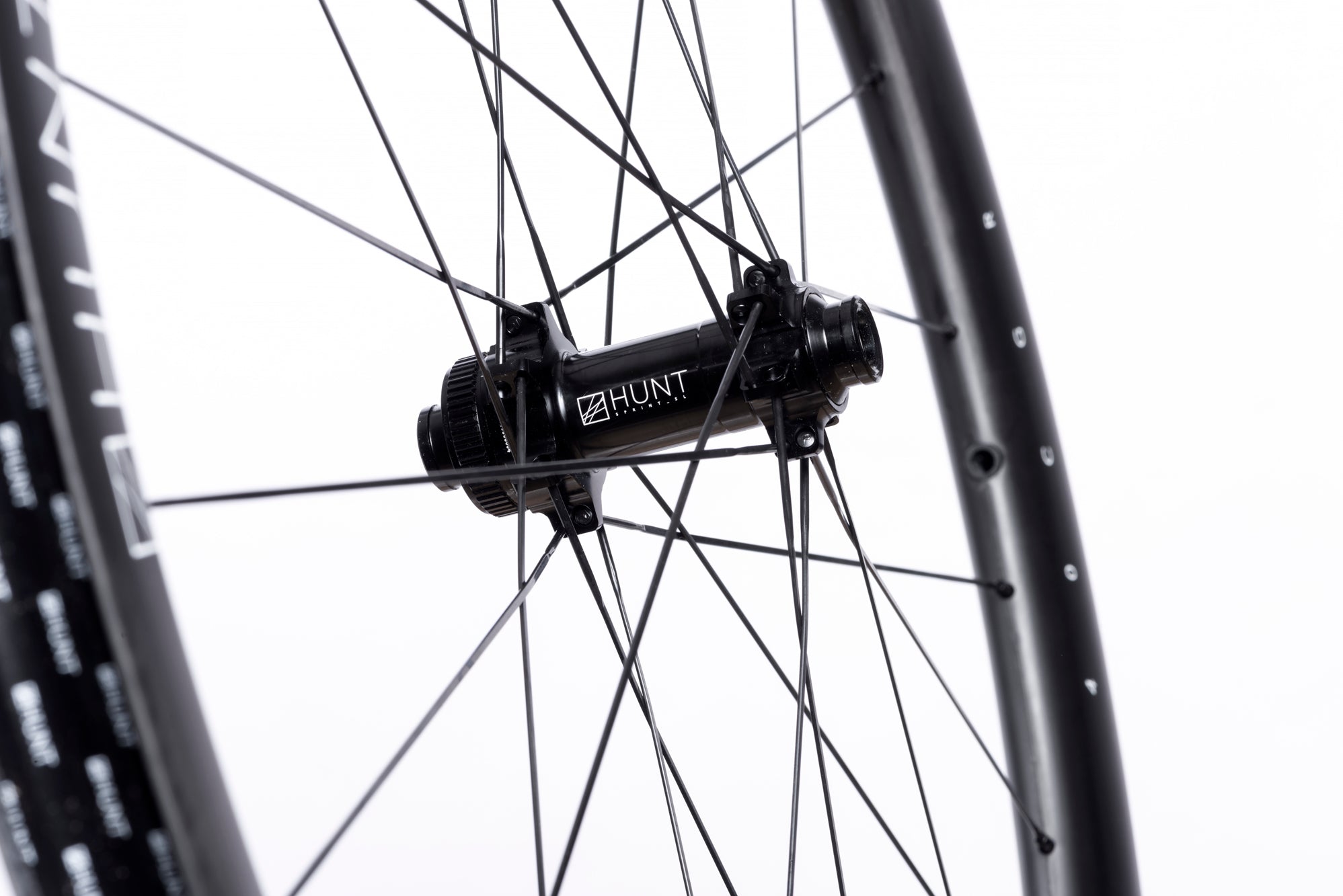

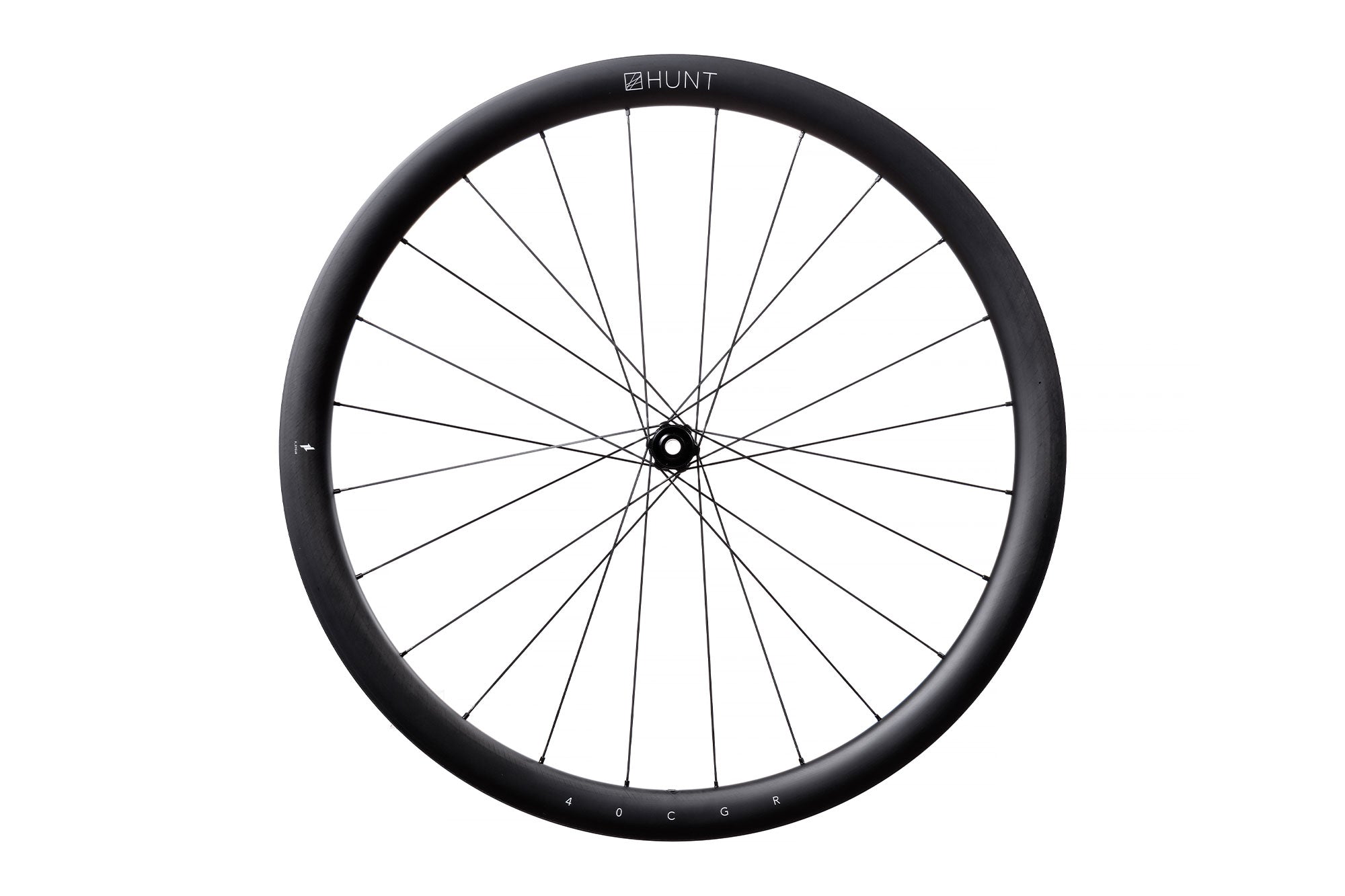

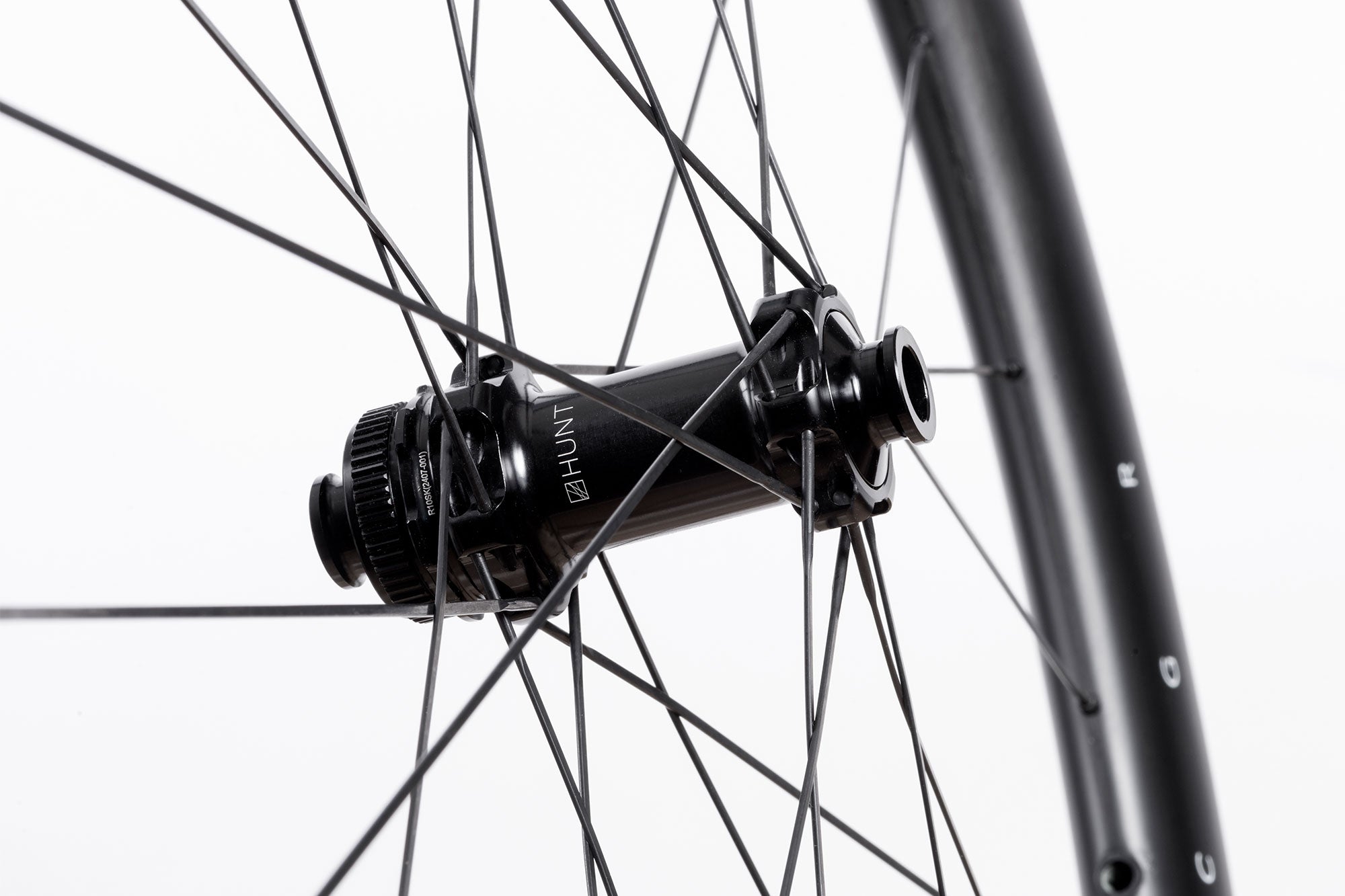

  • Front Hub

    • We fit the axles you need, just complete the simple form shown after checkout:
    • All existing road/CX disc front axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12mm Bolt Thru
    • All axle adapters are also available separately.
      • Forged and CNC’d 6066-T6 heat treated aluminum alloy body.
      • 6066-T6 aluminum alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adapter you can purchase separately here.
    • HUNT SPRINT SL Disc straight-pull super-light alloy.
    • Polished anodized black finish with laser graphics.

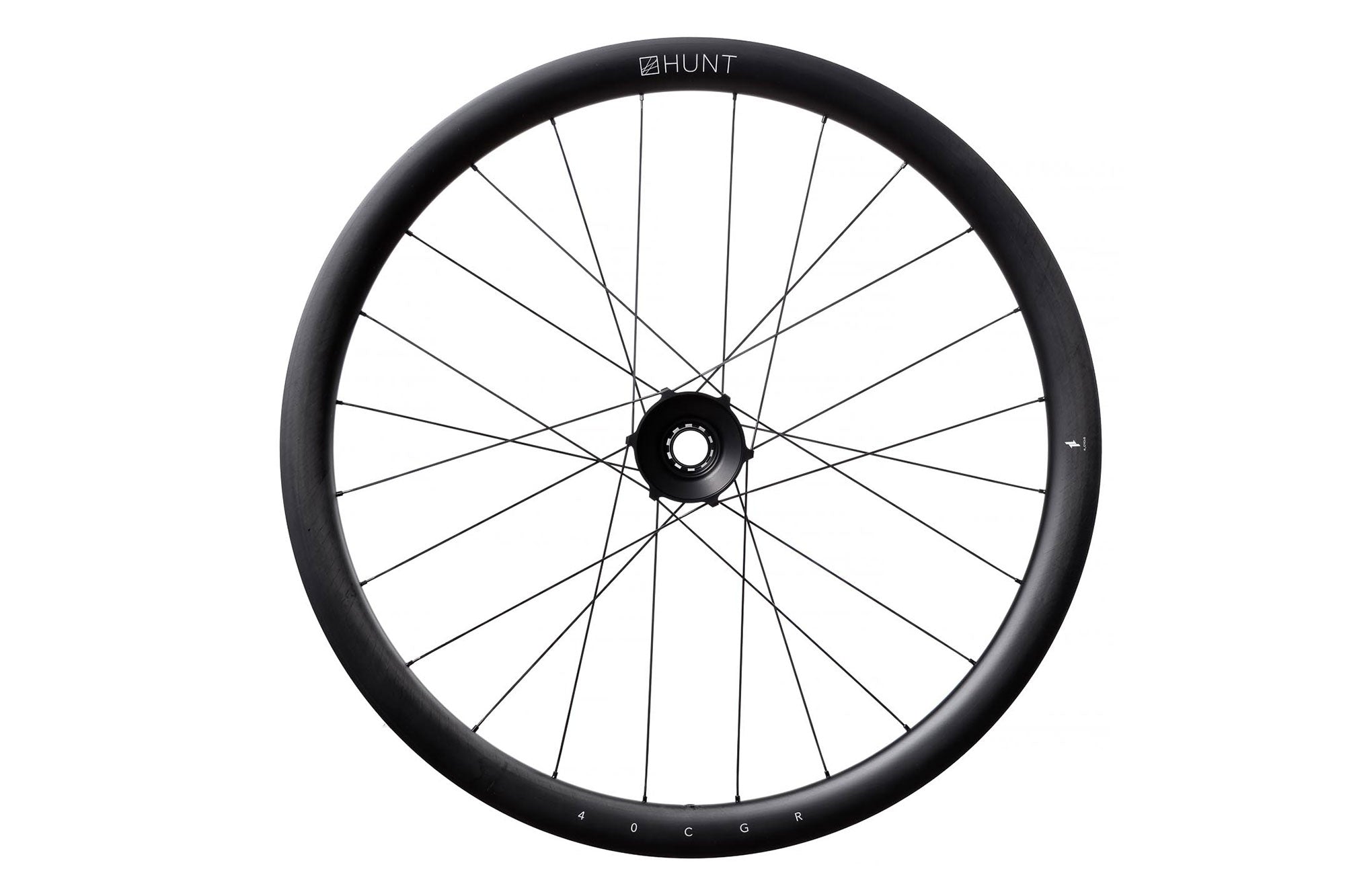

  • Rear Hub

    • Classified Powershift Rear Hub Shell Only. Rear 12x142 Bolt Thru Only (Not included)
  • Bearings

    • High-grade Japanese EZO bearings.
    • Incredibly fast rolling.
  • Warranty, HUNT Rolling Road Tests & Weight Limits

    A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

    All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 105kgs then an experienced bike mechanic should check the wheel regularly. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

    60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

    Maximum tyre pressure for this rim is 72.5psi when used with 29mm tyres. Please do not exceed the maximum pressure stated on your tyre. Suitable for tyres from 29mm up to 71mm wide. Please do not exceed the maximum pressure stated on your tyre. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.

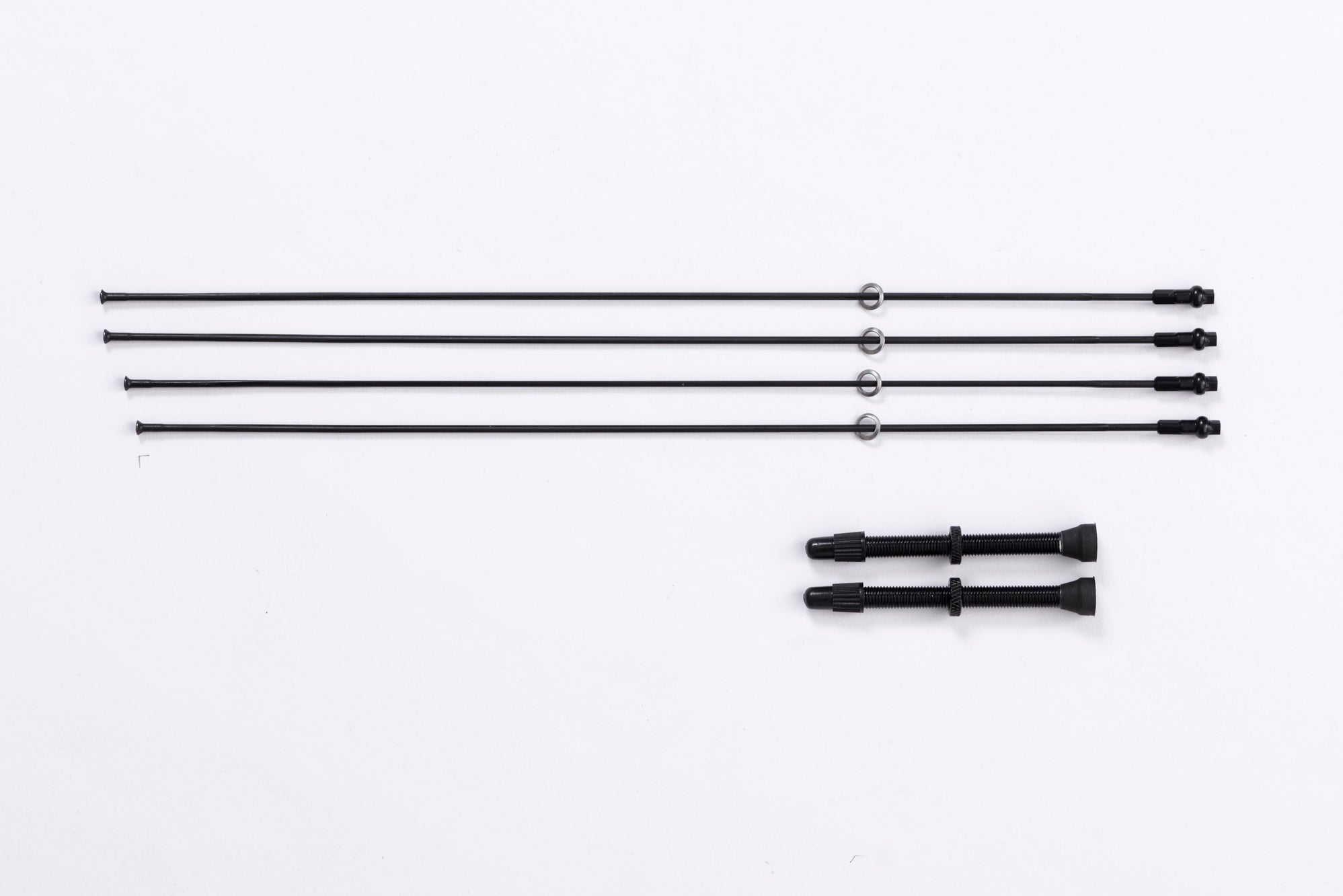

    In the Box

    Contents

    • HUNT Black Shield tubeless tape fitted to wheels.
    • Tubeless Valves
    • Spare of each spoke plus nipples
    • Quality control card signed by your wheel builder

    A LIGHTWEIGHT, RACE-FOCUSED HOOKLESS GRAVEL WHEELSET BUILT FOR DEMANDING DAYS IN THE SADDLE. NOW AVAILABLE WITH A CLASSIFIED POWERSHIFT REAR HUB SHELL.

    40 DEEP | 30 WIDE EXT | 25 WIDE INT | 1,270g (Including POWERSHIFT rear hub shell)

    The Purpose

    The HUNT 40 Carbon Gravel Race wheelset was built to meet the needs of the gravel racer and rider. With the integration of a Classified Powershift rear hub shell, we’re able to pack even more industry-leading design to into this versatile and fast, best-selling gravel wheelset.

    Wide and lightweight 40mm-deep hookless rims offer durability, quick acceleration and aerodynamic efficiency, intended for use with modern width gravel race tyres. With an integrated Powershift rear hub, your riding will benefit from the wide gearing range and functionality of a front derailleur and 2x drivetrain, while enjoying the simplicity and aero benefits of a 1x setup.

    Long-time advocates of tubeless technology for riding on and off-road, HUNT’s development into hookless rims began back in 2016. With the 40 Carbon Gravel Race rim development, we were able to push the boundaries of rim weight-saving further, bringing the final rim weights to a mere 395g. As well as having that performance benefit, due to a simpler manufacturing process, hookless rims can be produced with less waste, resulting in a cost reduction which can be passed on to riders.

    Wide, tubeless, ETRTO-compliant hookless rims, laced to the Powershift rear hub shell for a lightweight gravel-specific wheel system ready to go the distance in your next gravel race or fast ride.

    Read More

    LATERALLY RESPONSIVE

    These wheels have been designed to provide the superior balance between a laterally responsive and lightweight package. Straight pull hubs and bladed spokes reduce weight and add strength, creating a system that responds instantly to your accelerations.

    HOOKLESS/STRAIGHT SIDE-WALL DESIGN

    40mm-deep and 30mm-wide external rim profile, featuring a hookless/straight-sidewall and ETRTO-compliant tubeless rim, designed for gravel tubeless tyre compatibility.

    Read Less


    Classified Logo

    Powershift technology is a wireless shifting technology that allows you to shift gears instantly and under full load. Its first application is the Powershift rear hub, which replaces the front derailleur. The Powershift hub offers unrivalled shift quality, wide gearing range and small steps in between gears combining the benefits of both 1x and 2x drivetrains.

    NOTE: The Classified Powershift internal system and electronics must be supplied by select Classified dealers. This wheelset does not contain the complete system. The rear wheel is delivered with the Classified hub shell, without the Powershift hub internals. Please contact our Rider Experience team with any questions.

    For our detailed explainer outlining the differences and characteristics of hookless and hooked click here.

    The Purpose

    The HUNT 40 Carbon Gravel Race wheelset was built to meet the needs of the gravel racer and rider. With the integration of a Classified Powershift rear hub shell, we’re able to pack even more industry-leading design to into this versatile and fast, best-selling gravel wheelset.

    Wide and lightweight 40mm-deep hookless rims offer durability, quick acceleration and aerodynamic efficiency, intended for use with modern width gravel race tyres. With an integrated Powershift rear hub, your riding will benefit from the wide gearing range and functionality of a front derailleur and 2x drivetrain, while enjoying the simplicity and aero benefits of a 1x setup.

    Long-time advocates of tubeless technology for riding on and off-road, HUNT’s development into hookless rims began back in 2016. With the 40 Carbon Gravel Race rim development, we were able to push the boundaries of rim weight-saving further, bringing the final rim weights to a mere 395g. As well as having that performance benefit, due to a simpler manufacturing process, hookless rims can be produced with less waste, resulting in a cost reduction which can be passed on to riders.

    Wide, tubeless, ETRTO-compliant hookless rims, laced to the Powershift rear hub shell for a lightweight gravel-specific wheel system ready to go the distance in your next gravel race or fast ride.

    Read More

    LATERALLY RESPONSIVE

    These wheels have been designed to provide the superior balance between a laterally responsive and lightweight package. Straight pull hubs and bladed spokes reduce weight and add strength, creating a system that responds instantly to your accelerations.

    HOOKLESS/STRAIGHT SIDE-WALL DESIGN

    40mm-deep and 30mm-wide external rim profile, featuring a hookless/straight-sidewall and ETRTO-compliant tubeless rim, designed for gravel tubeless tyre compatibility.

    Read Less


    Classified Logo

    Powershift technology is a wireless shifting technology that allows you to shift gears instantly and under full load. Its first application is the Powershift rear hub, which replaces the front derailleur. The Powershift hub offers unrivalled shift quality, wide gearing range and small steps in between gears combining the benefits of both 1x and 2x drivetrains.

    NOTE: The Classified Powershift internal system and electronics must be supplied by select Classified dealers. This wheelset does not contain the complete system. The rear wheel is delivered with the Classified hub shell, without the Powershift hub internals. Please contact our Rider Experience team with any questions.

    For our detailed explainer outlining the differences and characteristics of hookless and hooked click here.

    Key Features

    A LIGHT, VERSATILE, NO COMPROMISE WHEELSET BUILT WITH RACE DAY IN MIND. NOW EVEN MORE CAPABLE WITH THE POWERSHIFT SYSTEM.

    • Rims | Disc-specific hookless/straight-sidewall rim profile. ETRTO-compliant tubeless rims. Hookless (what does this mean?).
    • Tyres | 25mm internal rim width, Tubeless-ready for lower weight & rolling resistance, featuring H_LOCK bead-seat for easy and secure tubeless installation. Hookless rims require the use of tubeless tyres. (Please always refer to your tyres manufacturer's guidelines on pressure, rim width, and hookless compatibility).
    • Hubs | Sprint SL Front Hub | Classified Powershift-Ready Rear Hub Shell | SPRINT SL straight-pull centre-lock front hub, combined with the Powershift rear hub shell, which replaces the front derailleur. The Powershift hub offers unrivalled shift quality, high gearing range and small steps in between gears combining the benefits of both 1x and 2x drivetrains.
    • EZO Stainless Steel Bearings | High-grade Japanese EZO bearings in front hub. Rear hub internals and bearings not included (to be supplied by Classified).
    • Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - Bolt thru 12x142. Powershift System (including rear axle) not included.
    • Included | Tubeless tape & valves, spare spokes.
    • Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
    • Weight | 1,270g (Including Powershift rear hub shell)
      See the full specs here

    Please note: If you require a 6-bolt adapter you can purchase separately here.

    Full Spec

  • Rims

    • Disc-specific hookless/straight-sidewall design and compatible with 29-71mm tyres.
    • 30mm external and 25mm internal.
    • H_LOCK bead-seat up-kicks, for easy and secure tubeless installation.
    • Matt black base finished with matt white contrasting graphics.
  • Spokes

    • 24 front and 24 rear, laced 2-cross.
    • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
    • Straight-pull, for excellent torsional strength and direct power transfer.
    • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
    • Patented Pillar Spoke Re-enforcement (butted again just before the spoke head, providing more durability in high stress area).
    • Black stainless finish.
  • Nipples

    • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
    • 16mm length with washer for a strong connection to the spoke added durability.
    • 14 gauge.
    • Black anodized finish.
  • Tyres Info

    • Maximum tyre pressure for this rim is 72.5psi.
      • Please do not exceed the maximum pressure stated on your tyre.
    • Suitable for tyres from 29mm up to 71mm wide.
    • Please consult with your preferred tyre manufacturer for compatibility.
  • Axle Size

    • These wheels are available with all existing disc brake road bike axle adapter sizes for the front wheel.. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.
    • Please note: The rear axle is included in the Classified Powershift system, and will be supplied by Classified.
  • Front Hub

    • We fit the axles you need, just complete the simple form shown after checkout:
    • All existing road/CX disc front axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12mm Bolt Thru
    • All axle adapters are also available separately.
      • Forged and CNC’d 6066-T6 heat treated aluminum alloy body.
      • 6066-T6 aluminum alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adapter you can purchase separately here.
    • HUNT SPRINT SL Disc straight-pull super-light alloy.
    • Polished anodized black finish with laser graphics.
  • Rear Hub

    • Classified Powershift Rear Hub Shell Only. Rear 12x142 Bolt Thru Only (Not included)
  • Bearings

    • High-grade Japanese EZO bearings.
    • Incredibly fast rolling.
  • Warranty, HUNT Rolling Road Tests & Weight Limits

    A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

    All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 105kgs then an experienced bike mechanic should check the wheel regularly. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

    60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

    Maximum tyre pressure for this rim is 72.5psi when used with 29mm tyres. Please do not exceed the maximum pressure stated on your tyre. Suitable for tyres from 29mm up to 71mm wide. Please do not exceed the maximum pressure stated on your tyre. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.

    In the Box

    Contents

    • HUNT Black Shield tubeless tape fitted to wheels.
    • Tubeless Valves
    • Spare of each spoke plus nipples
    • Quality control card signed by your wheel builder

    Classified x HUNT 40 Carbon Gravel Race Wheelset

    40 DEEP | 30 WIDE EXT | 25 WIDE INT | 1,270g (Including POWERSHIFT rear hub shell)

    Regular price £949
    Pre-Order Now. Shipping:
    Jun Wk 4 Wheels are scheduled to ship from us in the week stated. Delivery time is 1 day*
    We will ask for axle info after checkout.


    Order by 3pm for Next Day Delivery*
    Our wheels are in high demand, don't miss out. Order now.

    *If shown in stock

    PRODUCT QUESTIONS & ANSWERS

    Have a Question?

    Be the first to ask a question about this.

    Classified x HUNT 40 Carbon Gravel Race Wheelset £949.00
