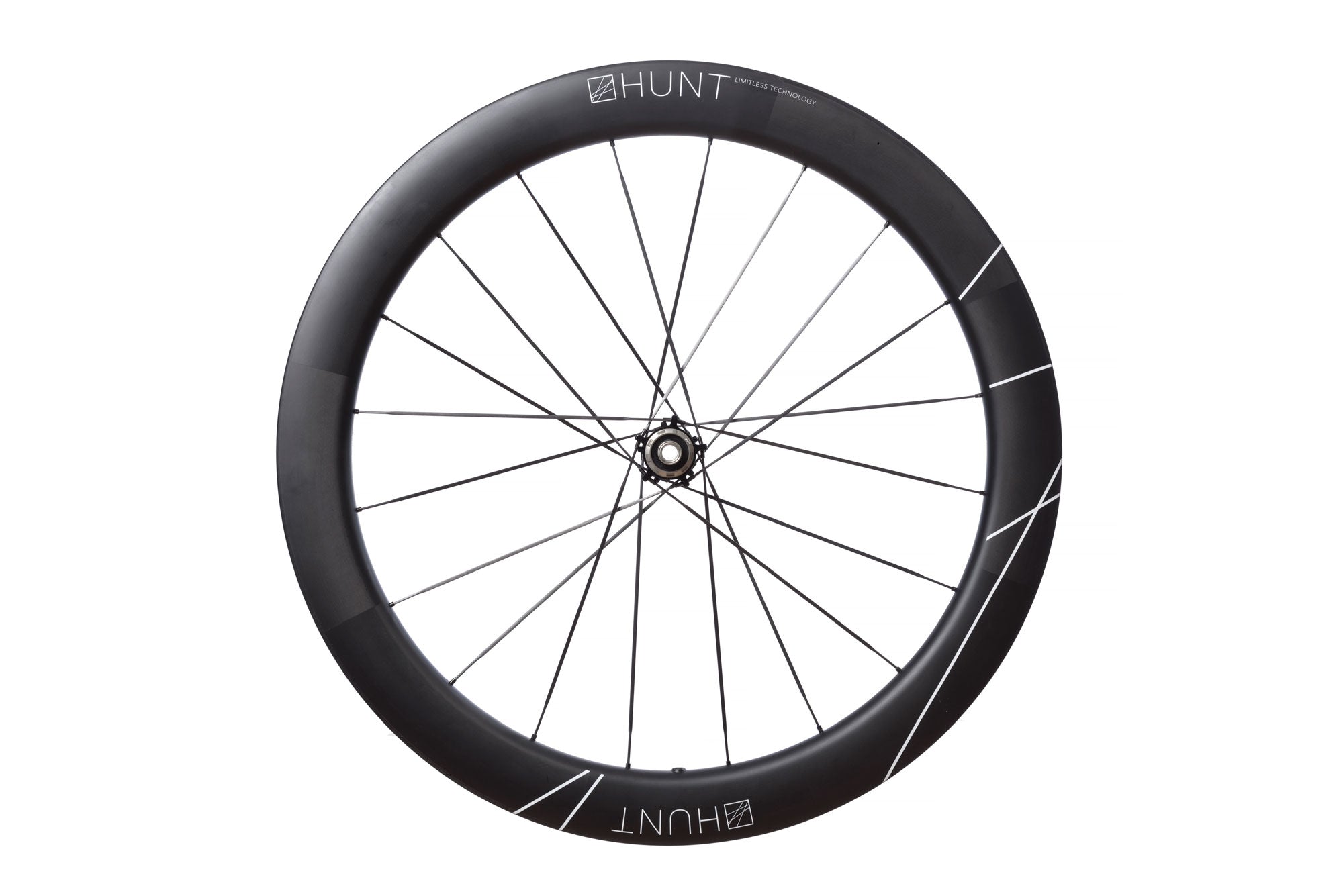

HUNT 60 Limitless UD Carbon Spoke Disc Wheelset
60 Deep | 34 Wide Ext | 21 Wide Int | 1551g | CeramicSpeed
The combination of two flagship HUNT technologies, resulting in the ultimate riding experience.
60 DEEP | 34 WIDE EXT | 21 WIDE INT | 1551G | CeramicSpeed
The Purpose
The fastest road-race rims we've ever designed, now paired with our UD Carbon Spoke technology. The result is a wheelset offering complete performance across the board. The same superior aerodynamic efficiency, with added responsiveness and lower weight.
The ultimate in aerodynamics. Designed specifically to meet the needs of the modern rider, at the speeds they ride at. We ride at a range of wind yaw angles far greater than previously considered, and so HUNT Limitless is able to deliver aerodynamic supremacy across a wide range of riding and at real-world speeds.

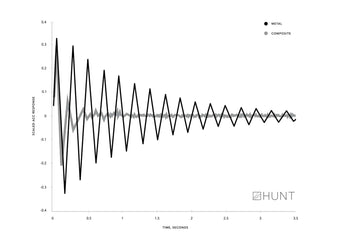

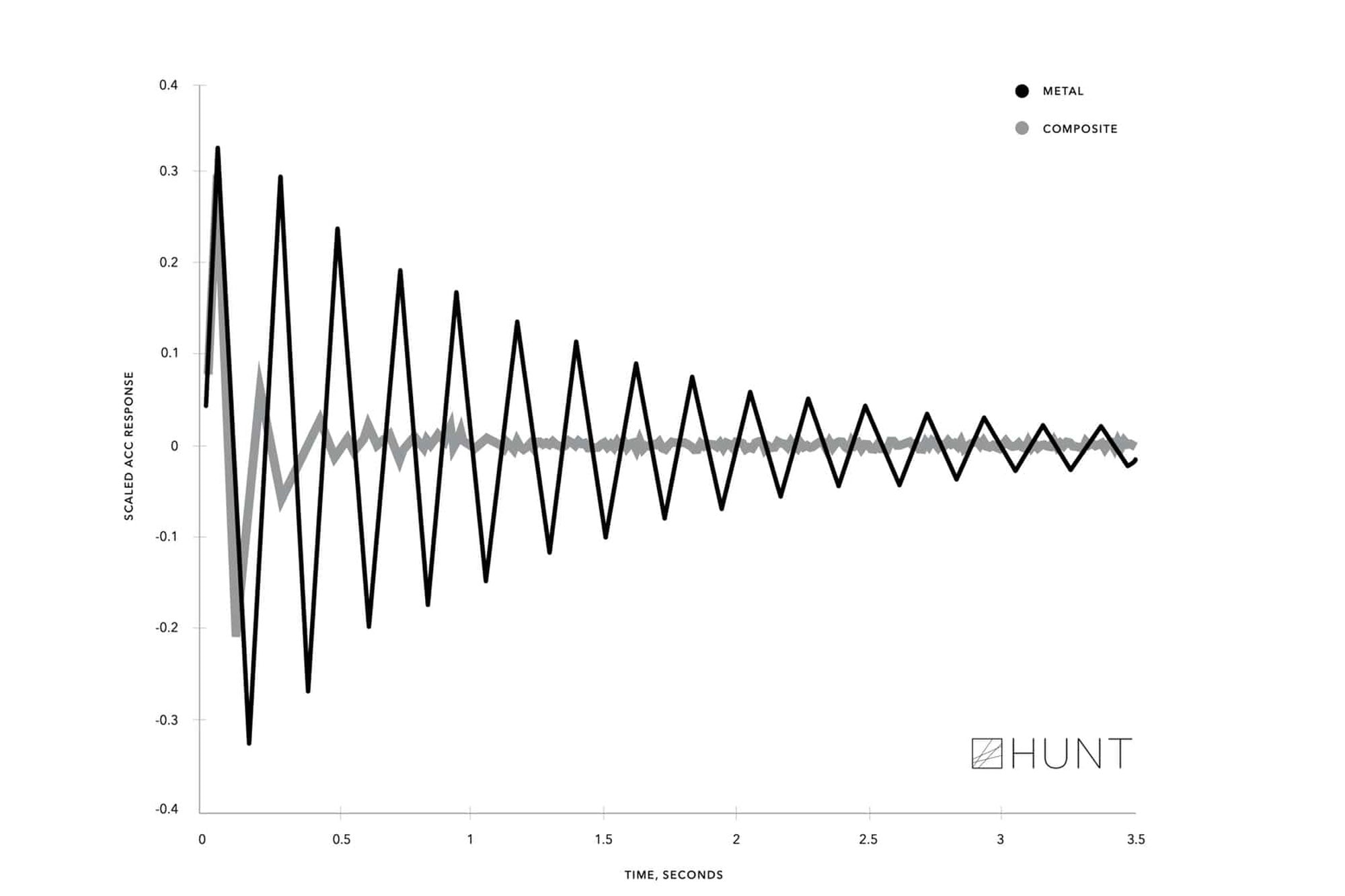

6% more laterally responsive than identical steel spoked wheels, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see the graph in the image gallery below.
Includes FREE H_Care lifetime crash replacement for the first owners of these wheels. Read all about it here.
Aerodynamics: Steel vs. UD Carbon Spokes
We've wind tunnel tested our new 48 and 60 Limitless UD Carbon Spoke Disc wheelsets against our original steel spoke version, as well as their relevant competitive set. Compared to their steel spoke counterparts, both the 48 and 60 Limitless UD Carbon Spoke Disc wheelsets perform very similarly (within the margin of error for standardised wind tunnel testing), suggesting there is no material aerodynamic penalty associated with the bladed UD Carbon Spokes. To review all the wind tunnel data, we welcome riders to review the provided graphs below.
See Graphs +
Read Less
The Purpose
The fastest road-race rims we've ever designed, now paired with our UD Carbon Spoke technology. The result is a wheelset offering complete performance across the board. The same superior aerodynamic efficiency, with added responsiveness and lower weight.
The ultimate in aerodynamics. Designed specifically to meet the needs of the modern rider, at the speeds they ride at. We ride at a range of wind yaw angles far greater than previously considered, and so HUNT Limitless is able to deliver aerodynamic supremacy across a wide range of riding and at real-world speeds.
6% more laterally responsive than identical steel spoked wheels, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see the graph in the image gallery below.
Includes FREE H_Care lifetime crash replacement for the first owners of these wheels. Read all about it here.
Aerodynamics: Steel vs. UD Carbon Spokes
We've wind tunnel tested our new 48 and 60 Limitless UD Carbon Spoke Disc wheelsets against our original steel spoke version, as well as their relevant competitive set. Compared to their steel spoke counterparts, both the 48 and 60 Limitless UD Carbon Spoke Disc wheelsets perform very similarly (within the margin of error for standardised wind tunnel testing), suggesting there is no material aerodynamic penalty associated with the bladed UD Carbon Spokes. To review all the wind tunnel data, we welcome riders to review the provided graphs below.
See Graphs + Read Less
Key Features
The combination of two flagship HUNT technologies, resulting in the ultimate deep aero road wheelset.
- LIMITLESS Rims | Wind tunnel developed, unidirectional T24/30 rims, offering 21mm internal and 34mm external widths, and a 60mm u-shape aero profile. Designed in-house by the HUNT engineering team. Exclusive, patented technology.
- Tyres | Aerodynamically optimised for 25-28c tyres. Tubeless-ready for lower weight and rolling resistance, featuring H_Lock technology for easy and secure tubeless installation. Hooked sidewall for maximum tyre compatability.
- Hubs | HUNT Sprint SLC hubs add strength and enhance power transfer, meaning more of your power pushing you forwards. The hub shell is a cold-forged 7000 series alloy, offering a greater strength-to-weight ratio than extruded 6000 series alloys. Large 15mm diameter hub axles for sprinting and climbing responsiveness. Circular dropout interface steps ensure a secure fitment.
- CeramicSpeed Bearings | CeramicSpeed bearings are renowned for their low rolling resistance and unmatched durability, and are chosen by the top international athletes and teams around the world. EZO option also available.
- Spokes | TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
- Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
- Included | Tubeless tape & valves, axle adapters (please fill in the simple form after checkout to select your required size).
- Weight | 1551g
- See the full specs here
Please note: If you require a 6 bolt adaptor you can purchase separately here
Full Specs
Rims
- Wind tunnel tested, aerodynamically optimised for 25-28c tyres
- Disc-specific tubeless-ready profile
- H-lock bead-seat up-kicks for easy and secure tubeless installation
- 34mm outer and 21mm inner width
- 60mm depth
- Matt black base finished with matt white contrasting graphics.
Spokes
- TaperLock nipples secure spokes head to the hub
- 2.7g per spoke
- 18 front (1 cross on rotor side, radial on drive side)
- 20 rear (2 cross both sides)
- No interlacing
Nipples
- TaperLock nipples secure spoke head to the hub.
- Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing.
- Internal nipple for truing.
- Black anodized finish.
Tyres Info
- Fully compliant with new ETRTO tubeless road guidelines (yet to be released) for 23/25/28mm+ road tyres.
- Hooked sidewall.
- Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres.
- Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
- Please do not exceed the maximum pressure stated on your tyre.
- Suitable for tyres from 23mm up to 50mm wide.
Axle Size
- We fit the axles you need, just complete the simple form shown after checkout. All existing road/CX disc front axle standards are available including:
- Quick Release (Quick release skewers included)
- 12mm Bolt Thru
- 9mm Bolt Thru (uncommon)
- All axle adapters are also available separately.

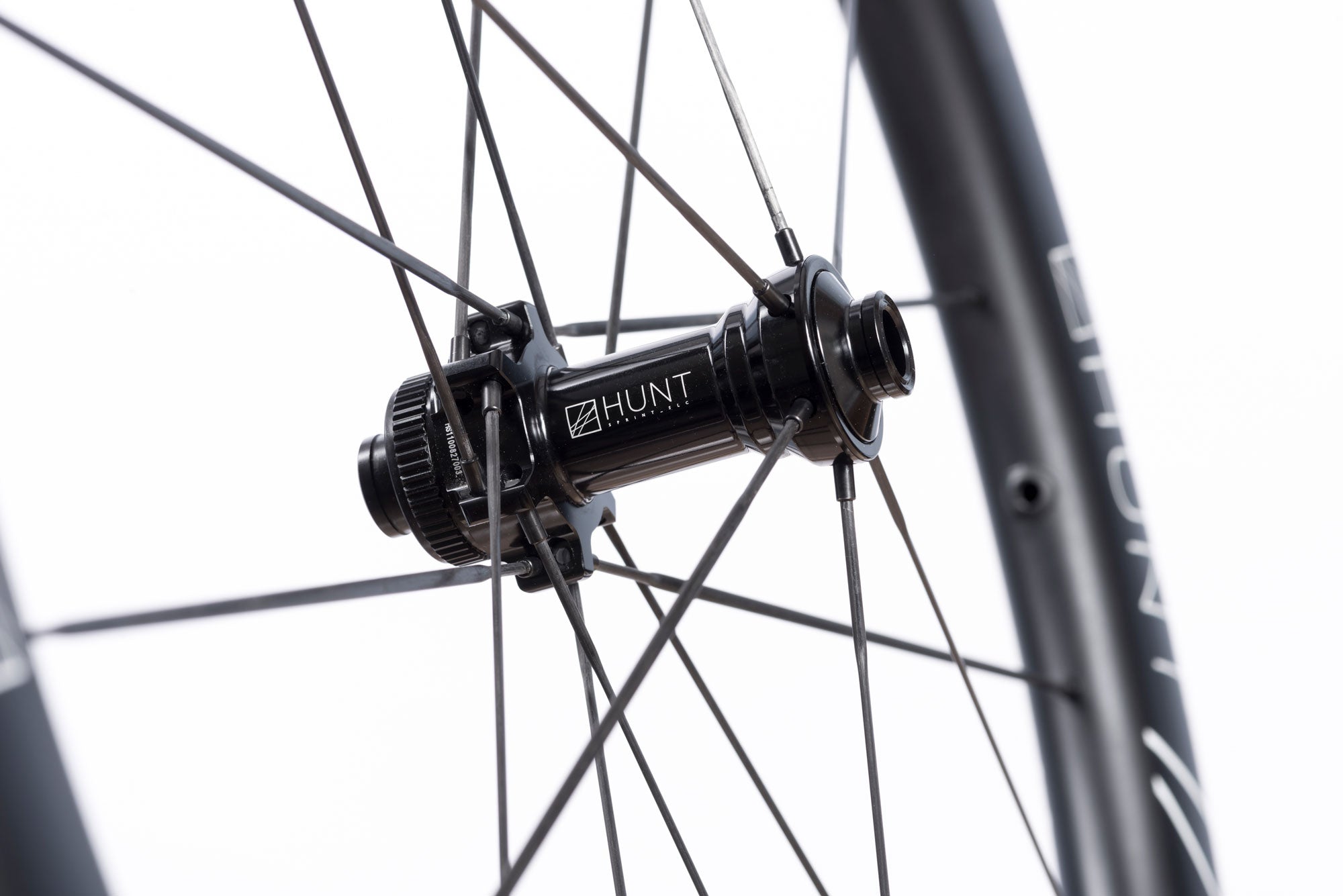

Front Hub
- HUNT Sprint SLC straight-pull hubs.
- Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
- TaperLock spoke interface.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

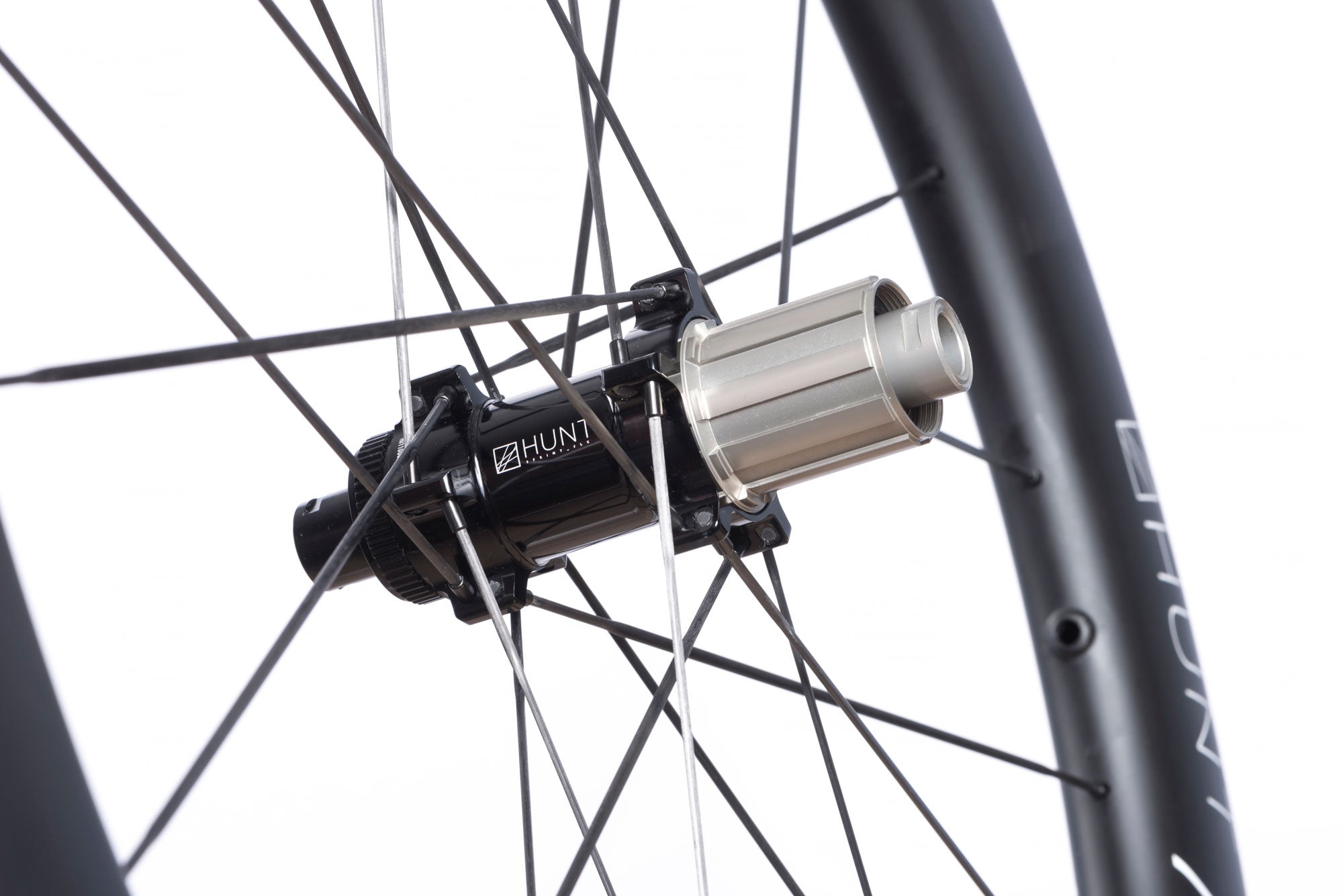

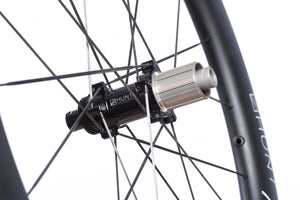

Rear Hub
- We fit the axles you need, just complete the simple form shown after checkout.
- All existing road/CX disc rear axle standards are available including:
- Quick Release (Quick release skewers included)
- 12x142 Bolt Thru
- 12x135 Bolt Thru (uncommon)
- 10x135 Bolt Thru (uncommon)
- All axle adapters are also available separately.
- HUNT Sprint SLC straight-pull hubs.
- Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- 7075-T6 aluminium alloy axles.
- Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
- TaperLock spoke interface
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.
Bearings
- Industry leading CeramicSpeed hybrid ceramic bearings
- 3 to 5 times longer lasting than other ceramic bearings on the market and 10 times more than standard steel bearings.
- CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique.
- 4 year warranty (When registered with CeramicSpeed)
Warranty, HUNT Rolling Road Tests & Weight Limits
These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. Read all about it here.
A full 3 years (4 years on CeramicSpeed bearings*) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 125kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer H_CARE (Free Lifetime Crash Replacement) on these wheels. *Must be registered with CeramicSpeed
In the Box
Contents
- HUNT Black Shield tubeless rim tape fitted to wheels.
- The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
- Cassette spacer for 8/9/10 speed
- Tubeless Valves
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
The combination of two flagship HUNT technologies, resulting in the ultimate riding experience.
60 DEEP | 34 WIDE EXT | 21 WIDE INT | 1551G | CeramicSpeed
The Purpose
The fastest road-race rims we've ever designed, now paired with our UD Carbon Spoke technology. The result is a wheelset offering complete performance across the board. The same superior aerodynamic efficiency, with added responsiveness and lower weight.
The ultimate in aerodynamics. Designed specifically to meet the needs of the modern rider, at the speeds they ride at. We ride at a range of wind yaw angles far greater than previously considered, and so HUNT Limitless is able to deliver aerodynamic supremacy across a wide range of riding and at real-world speeds.
6% more laterally responsive than identical steel spoked wheels, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see the graph in the image gallery below.
Includes FREE H_Care lifetime crash replacement for the first owners of these wheels. Read all about it here.
Aerodynamics: Steel vs. UD Carbon Spokes
We've wind tunnel tested our new 48 and 60 Limitless UD Carbon Spoke Disc wheelsets against our original steel spoke version, as well as their relevant competitive set. Compared to their steel spoke counterparts, both the 48 and 60 Limitless UD Carbon Spoke Disc wheelsets perform very similarly (within the margin of error for standardised wind tunnel testing), suggesting there is no material aerodynamic penalty associated with the bladed UD Carbon Spokes. To review all the wind tunnel data, we welcome riders to review the provided graphs below.
See Graphs + Read Less
The Purpose
The fastest road-race rims we've ever designed, now paired with our UD Carbon Spoke technology. The result is a wheelset offering complete performance across the board. The same superior aerodynamic efficiency, with added responsiveness and lower weight.
The ultimate in aerodynamics. Designed specifically to meet the needs of the modern rider, at the speeds they ride at. We ride at a range of wind yaw angles far greater than previously considered, and so HUNT Limitless is able to deliver aerodynamic supremacy across a wide range of riding and at real-world speeds.
6% more laterally responsive than identical steel spoked wheels, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see the graph in the image gallery below.
Includes FREE H_Care lifetime crash replacement for the first owners of these wheels. Read all about it here.
Aerodynamics: Steel vs. UD Carbon Spokes
We've wind tunnel tested our new 48 and 60 Limitless UD Carbon Spoke Disc wheelsets against our original steel spoke version, as well as their relevant competitive set. Compared to their steel spoke counterparts, both the 48 and 60 Limitless UD Carbon Spoke Disc wheelsets perform very similarly (within the margin of error for standardised wind tunnel testing), suggesting there is no material aerodynamic penalty associated with the bladed UD Carbon Spokes. To review all the wind tunnel data, we welcome riders to review the provided graphs below.
See Graphs + Read Less
Key Features
The combination of two flagship HUNT technologies, resulting in the ultimate deep aero road wheelset.
- LIMITLESS Rims | Wind tunnel developed, unidirectional T24/30 rims, offering 21mm internal and 34mm external widths, and a 60mm u-shape aero profile. Designed in-house by the HUNT engineering team. Exclusive, patented technology.
- Tyres | Aerodynamically optimised for 25-28c tyres. Tubeless-ready for lower weight and rolling resistance, featuring H_Lock technology for easy and secure tubeless installation. Hooked sidewall for maximum tyre compatability.
- Hubs | HUNT Sprint SLC hubs add strength and enhance power transfer, meaning more of your power pushing you forwards. The hub shell is a cold-forged 7000 series alloy, offering a greater strength-to-weight ratio than extruded 6000 series alloys. Large 15mm diameter hub axles for sprinting and climbing responsiveness. Circular dropout interface steps ensure a secure fitment.
- CeramicSpeed Bearings | CeramicSpeed bearings are renowned for their low rolling resistance and unmatched durability, and are chosen by the top international athletes and teams around the world. EZO option also available.
- Spokes | TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
- Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
- Included | Tubeless tape & valves, axle adapters (please fill in the simple form after checkout to select your required size).
- Weight | 1551g
- See the full specs here
Please note: If you require a 6 bolt adaptor you can purchase separately here
Full Specs
Rims
- Wind tunnel tested, aerodynamically optimised for 25-28c tyres
- Disc-specific tubeless-ready profile
- H-lock bead-seat up-kicks for easy and secure tubeless installation
- 34mm outer and 21mm inner width
- 60mm depth
- Matt black base finished with matt white contrasting graphics.
Spokes
- TaperLock nipples secure spokes head to the hub
- 2.7g per spoke
- 18 front (1 cross on rotor side, radial on drive side)
- 20 rear (2 cross both sides)
- No interlacing
Nipples
- TaperLock nipples secure spoke head to the hub.
- Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing.
- Internal nipple for truing.
- Black anodized finish.
Tyres Info
- Fully compliant with new ETRTO tubeless road guidelines (yet to be released) for 23/25/28mm+ road tyres.
- Hooked sidewall.
- Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres.
- Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
- Please do not exceed the maximum pressure stated on your tyre.
- Suitable for tyres from 23mm up to 50mm wide.
Axle Size
- We fit the axles you need, just complete the simple form shown after checkout. All existing road/CX disc front axle standards are available including:
- Quick Release (Quick release skewers included)
- 12mm Bolt Thru
- 9mm Bolt Thru (uncommon)
- All axle adapters are also available separately.
Front Hub
- HUNT Sprint SLC straight-pull hubs.
- Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
- TaperLock spoke interface.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Rear Hub
- We fit the axles you need, just complete the simple form shown after checkout.
- All existing road/CX disc rear axle standards are available including:
- Quick Release (Quick release skewers included)
- 12x142 Bolt Thru
- 12x135 Bolt Thru (uncommon)
- 10x135 Bolt Thru (uncommon)
- All axle adapters are also available separately.
- HUNT Sprint SLC straight-pull hubs.
- Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- 7075-T6 aluminium alloy axles.
- Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
- TaperLock spoke interface
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.
Bearings
- Industry leading CeramicSpeed hybrid ceramic bearings
- 3 to 5 times longer lasting than other ceramic bearings on the market and 10 times more than standard steel bearings.
- CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique.
- 4 year warranty (When registered with CeramicSpeed)
Warranty, HUNT Rolling Road Tests & Weight Limits
These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. Read all about it here.
A full 3 years (4 years on CeramicSpeed bearings*) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 125kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer H_CARE (Free Lifetime Crash Replacement) on these wheels. *Must be registered with CeramicSpeed
In the Box
Contents
- HUNT Black Shield tubeless rim tape fitted to wheels.
- The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
- Cassette spacer for 8/9/10 speed
- Tubeless Valves
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
