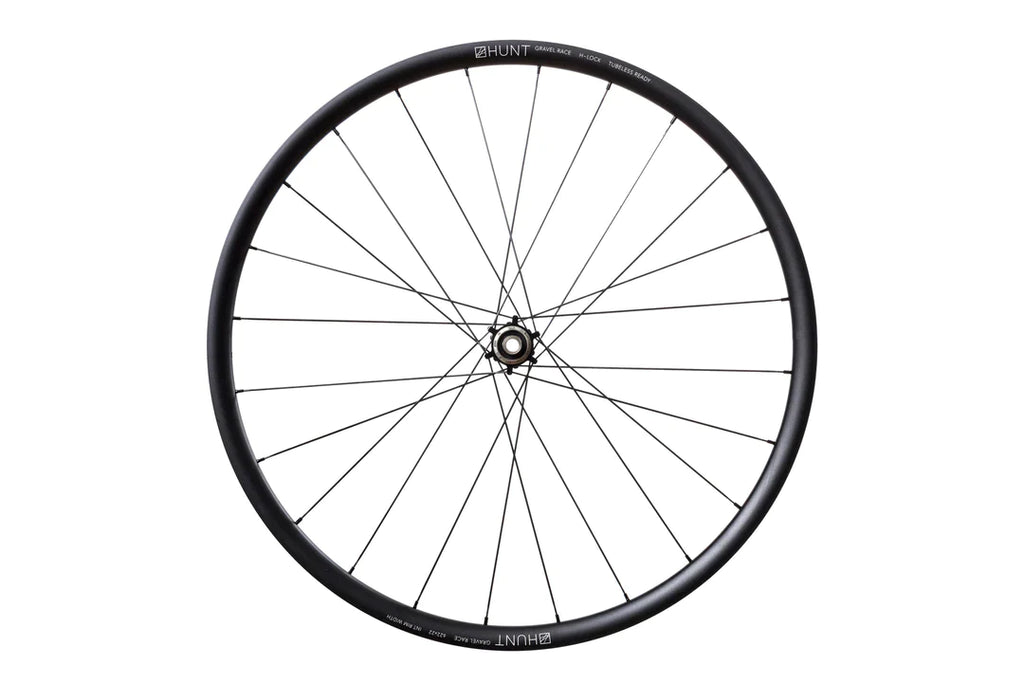

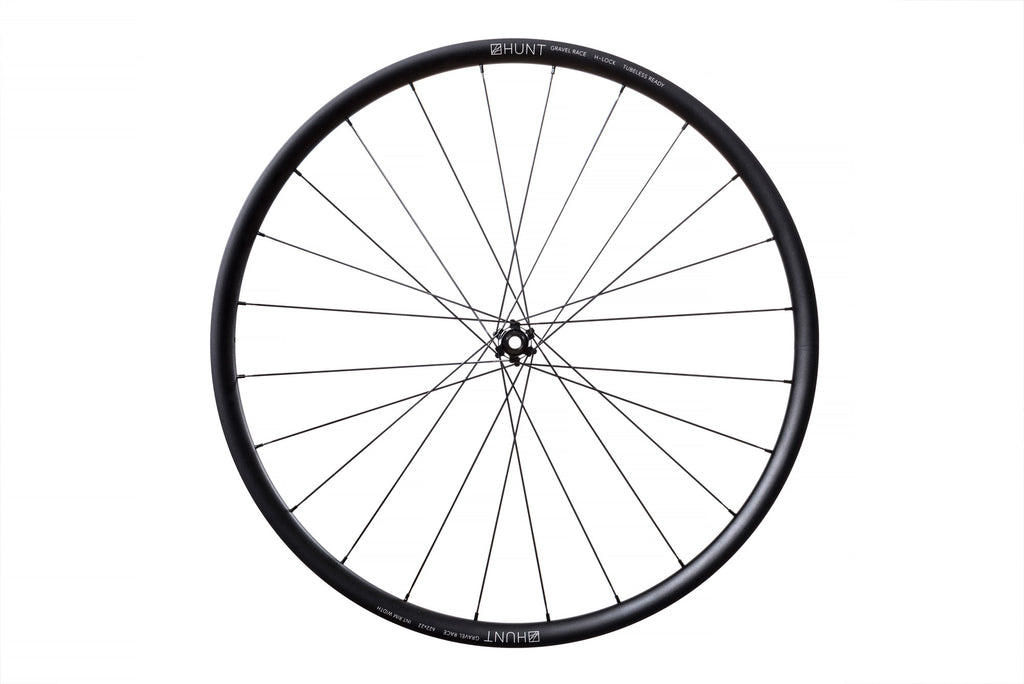

HUNT Gravel Race Single Wheel

1459g Depth Width ext Width int size
25 mm 26 mm 22 mm 700c

Race-ready alloy upgrade wheels for those seeking quicker acceleration and high-speed hub engagement for their gravel or all-road bike.

Tyre size: Optimized for 30 to 45mm tyres; work well with 25mm up to 55mm.

Which freehub do I need?
£159.50 £319.00
50% off
Limited Stock

We will ask for axle info after checkout.

Please note: These are single wheels only. Specifications may not exactly match details listed.

Choose your finance options at checkout:

Order by 3pm for Next Day Delivery (if shown in stock). Allow 1-3 days for tyre-fitting.

Our wheels are in high demand, don't miss out.

More details Right

The Purpose _

The Purpose _

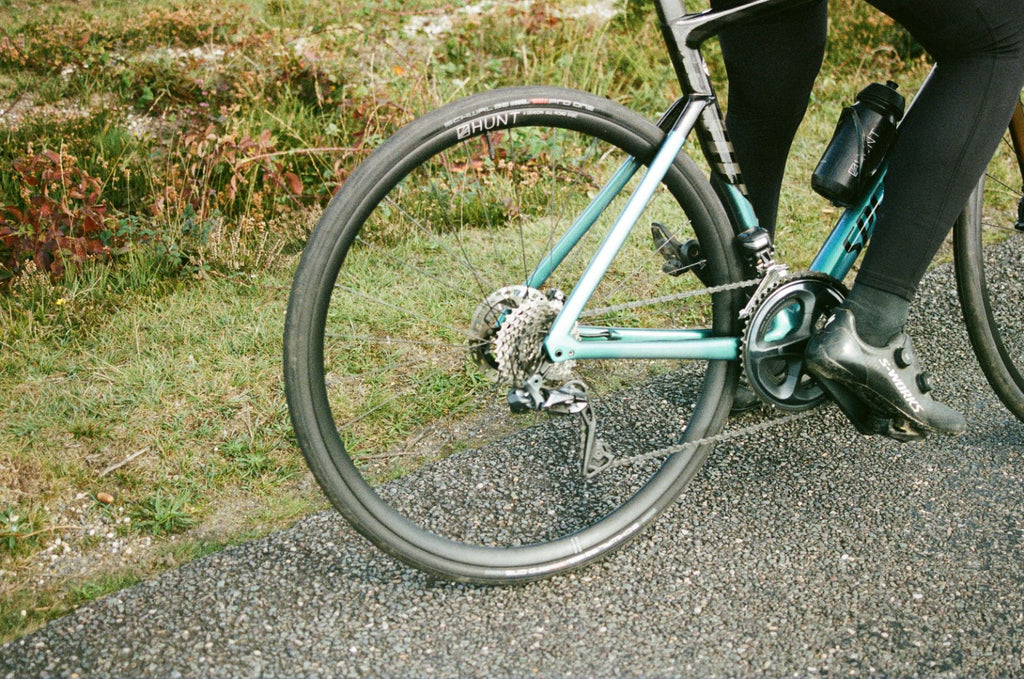

The HUNT Gravel Race 700c wheelset was designed to offer super-sharp performance on the path less pedalled. The line between road and gravel has never been more blurred, so we built a wheelset that could excel on gravel and fast off-road segments, while providing the responsiveness and durability riders demand.
Lightweight 6069-T6 alloy rims offer quick acceleration, combined with our straight-pull Sprint hubs, providing just 7.5 degrees of engagement. Whether going full gas on the flats or cresting over a climb, you’ll be ready for whatever terrain lies ahead.

KEY FEATURES_

Rims

700c 6069-T6 Heat treated rim material. Tubeless-ready. Disc specific. Rounded 25mm profile. Micro-peened finish strengthens the surface even further. H_LOCK bead-seat for easy and secure tubeless installation.

Sprint Hubs

Race Season SPRINT straight-pull hubs, boasting an engagement rate of just 7.5 degrees owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell. Center-lock brake mount. Please note: If you require a 6-bolt adapter you can purchase separately here.

Spokes

Highly durable SAPIM CX-Ray, combining strength and flexibility to suit gravel racing. The nipples come with a square head so you can achieve precise tensioning.

Full Specs _

Rims
Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included. Hooked H_LOCK bead-seat up-kicks for easy and secure tubeless installation. 6069-T6 heat-treated aluminium alloy Asymmetric, to balance spoke tensions. Disc-specific tubeless-ready profile. 26mm outer and 22mm inner width. Rounded 25mm deep profile. Micro-peened black finish strengthens the surface even further. Laser etched graphics for excellent durability.
  • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included.
  • Hooked
  • H_LOCK bead-seat up-kicks for easy and secure tubeless installation.
  • 6069-T6 heat-treated aluminium alloy
  • Asymmetric, to balance spoke tensions.
  • Disc-specific tubeless-ready profile.
  • 26mm outer and 22mm inner width.
  • Rounded 25mm deep profile.
  • Micro-peened black finish strengthens the surface even further.
  • Laser etched graphics for excellent durability.
Spokes
Sapim CX Ray. 24 front and 24 rear interlaced. Straight-pull for excellent torsional strength and direct power transfer Black stainless treatment.
  • Sapim CX Ray.
  • 24 front and 24 rear interlaced.
  • Straight-pull for excellent torsional strength and direct power transfer
  • Black stainless treatment.
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. 14 gauge. Black anodized finish.
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
  • 14 gauge.
  • Black anodized finish.

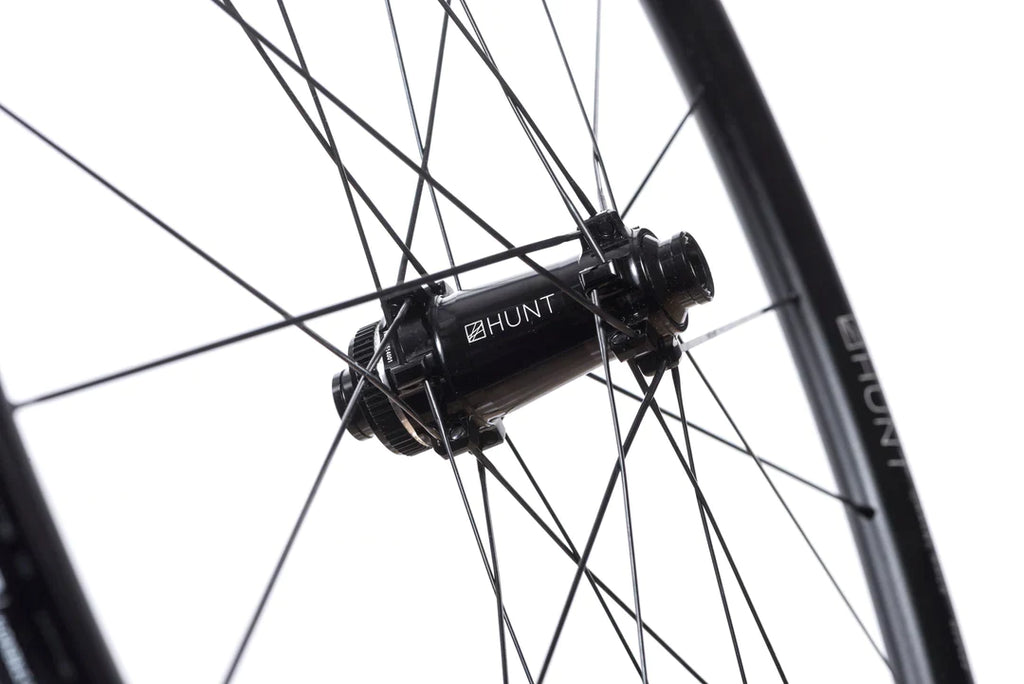

Front Hub
Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here. Polished anodized black finish with laser graphics.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
  • Polished anodized black finish with laser graphics.
Rear Hub
7075-T6 heat-treated aluminium alloy freehub body Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration. Hunt Race Season Disc straight-pull super-light alloy. Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here Polished anodized black finish with laser graphics.
  • 7075-T6 heat-treated aluminium alloy freehub body
  • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies
  • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
  • Hunt Race Season Disc straight-pull super-light alloy.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Polished anodized black finish with laser graphics.
Bearings
Super smooth precision bearings with waterproof grease specially selected for even the worst weather. Sealed cartridge replaceable units. Dual full-contact seals
  • Super smooth precision bearings with waterproof grease specially selected for even the worst weather.
  • Sealed cartridge replaceable units.
  • Dual full-contact seals
Tyres Info
HUNT recommends a 38mm tyre for best performance, tyre widths between 25mm and 54mm are also safe to use.   Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 38mm tyre for best performance, tyre widths between 25mm and 54mm are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.

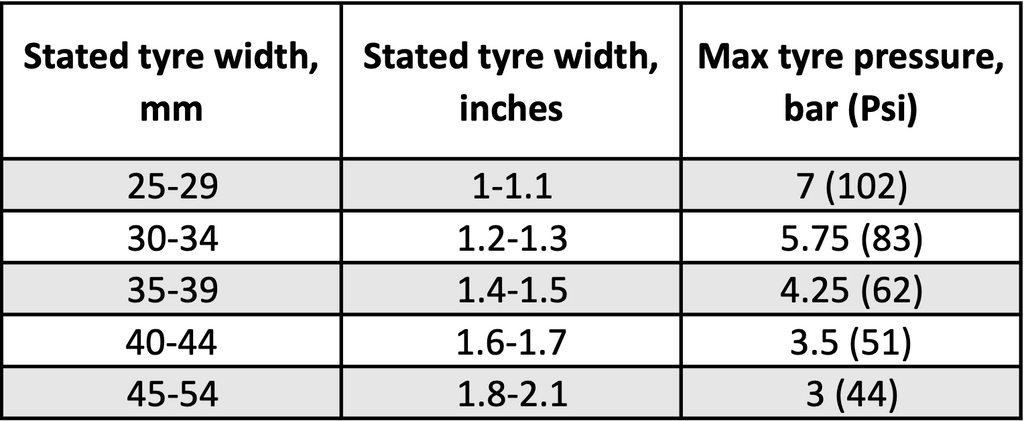

  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

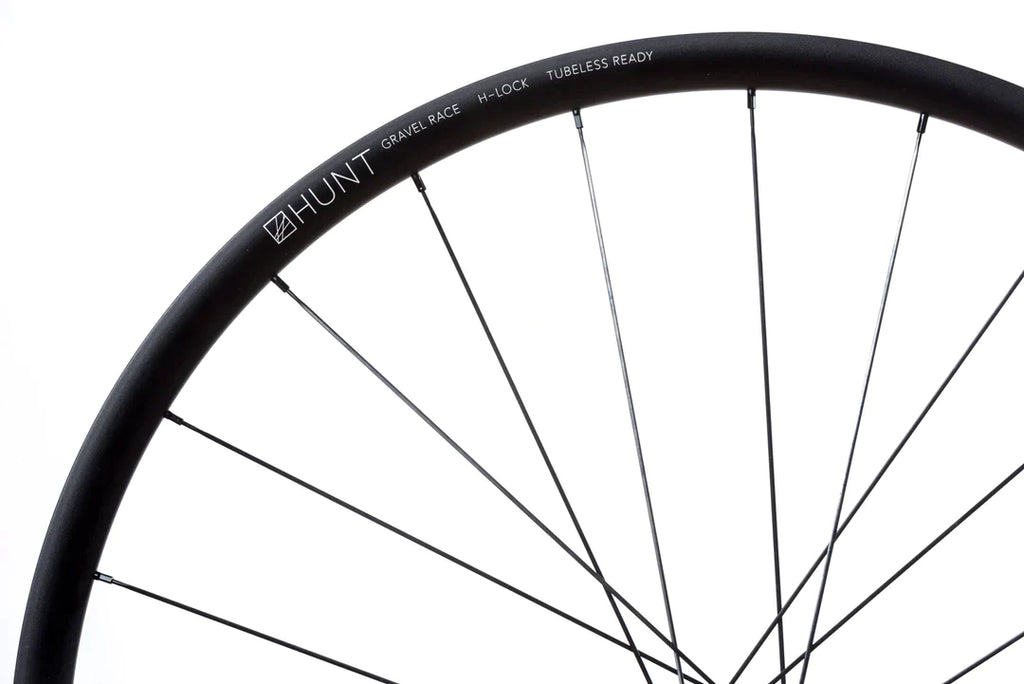

Rims

A strong and lightweight 6069-T6 heat-treated rim. The rim profile is rounded and true disc specific which allows higher strength to weight. The rim dimensions are wide at 26mm (22mm internal) which creates a great tyre profile with wider 30-45mm tyres, giving excellent grip and lower rolling resistance.
Spokes

The SAPIM CX-Ray receives one of the best results in fatigue testing of any spoke. Its unique strength and flexibility make the CX-Ray suitable for the Gravel Race wheels. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.

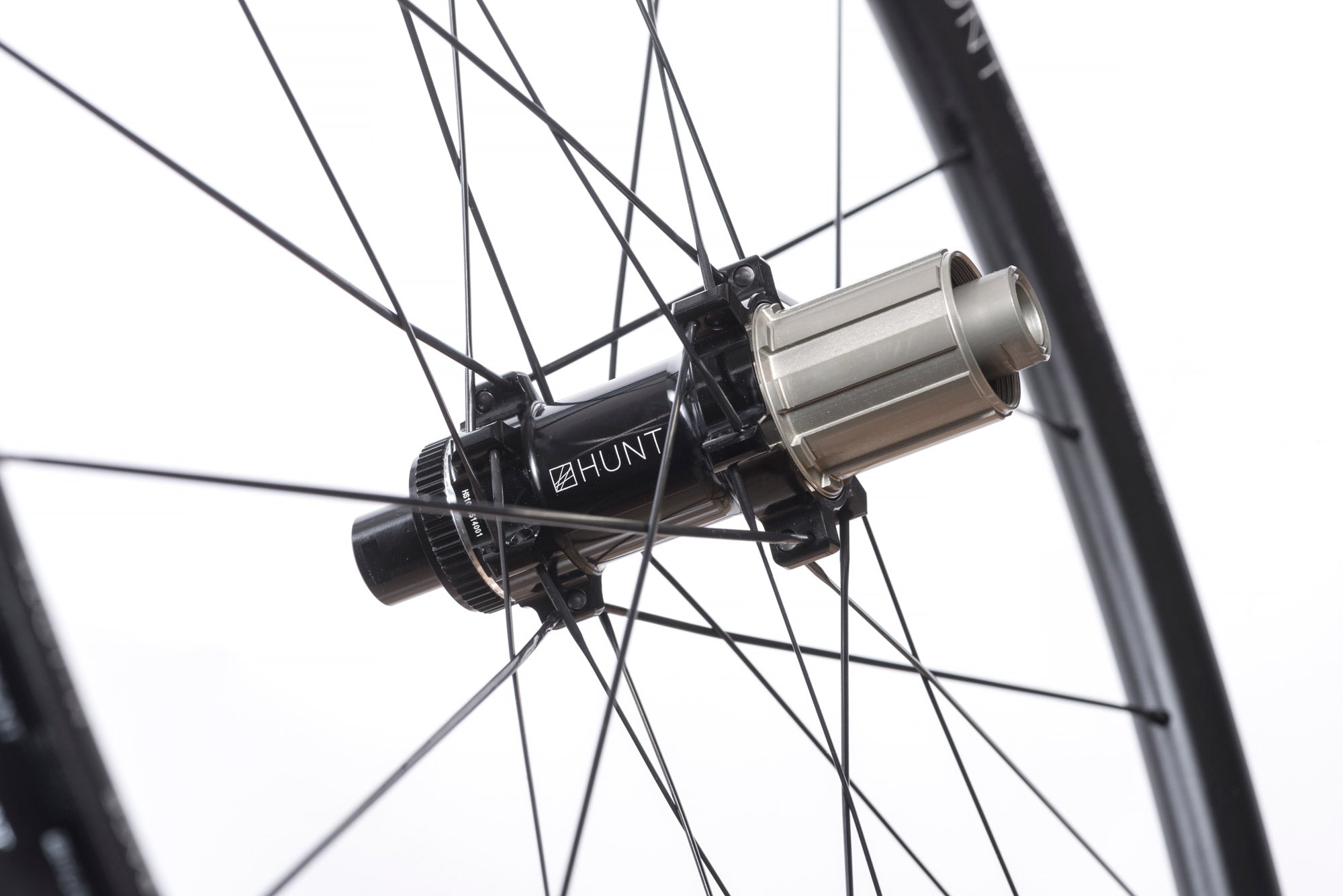

Freehub Body

Featuring 3 multi-point pawls with 3 teeth each and a 48t ratchet ring. The result an impressively low 7.5 deg engagement angle. Durability is a theme for HUNT, and so all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.
Bearings

Bearings are the heart of any wheel and investing in them makes huge sense, so we went to Japanese bearing experts EZO and invested extra to spec their high-grade precision sealed cartridge bearings in our full range.
Nipples

To accompany these high-end spokes, we selected alloy nipples for our HUNT Gravel Race wheels. All with the goal to create the ultimate light weight, serviceable and durable wheels for gravel. To finish it off, we are using external spoke nipples to achieve ease of service so when running tubeless you won’t need to take off the rim tape to true. As well as the standard square body we chose nipples with a hex head so you can achieve precise tensioning.

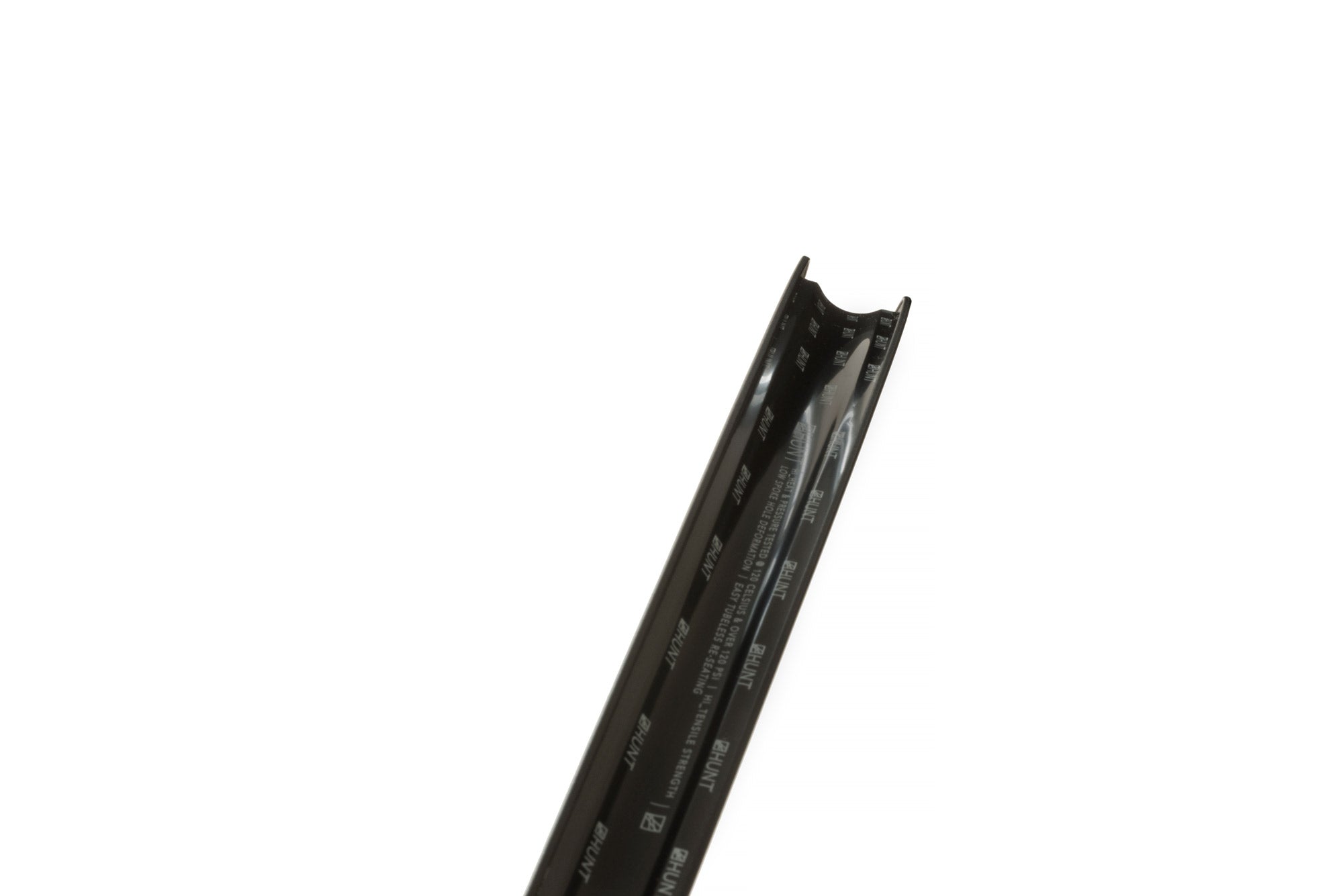

Rim bed

H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • 35mm Tubeless Valves
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

<h1>In the Box</h1><ul><li>HUNT Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Spare spokes with nipples & washers.</li><li>Tubeless Valves</li><li>Quality control card signed by your wheel builder</li></ul>

Our riders also bought_

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 105 kg then an experienced bike mechanic should check the wheel regularly.
