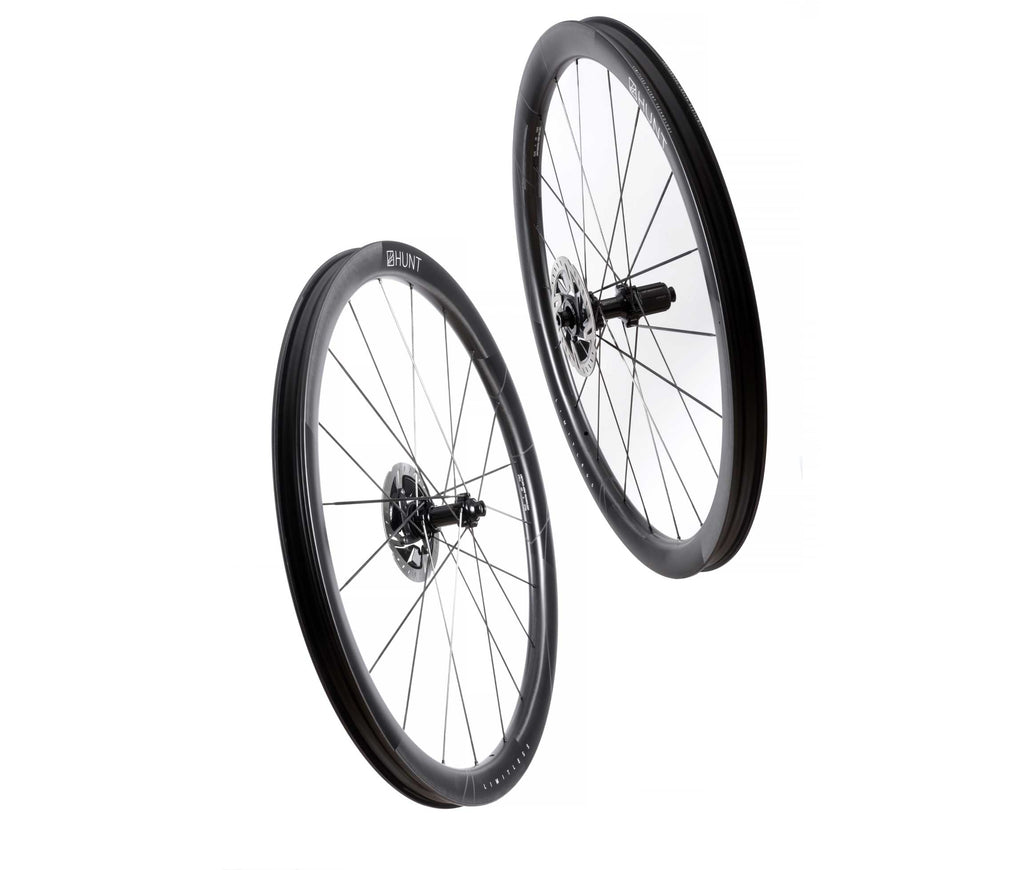

HUNT 40 Limitless Gravel Aero UD Carbon Spoke Wheelset

NEW

HUNT 40 Limitless Gravel Aero UD Carbon Spoke Wheelset

1328g	Depth	Width ext	Width int	size
1328g	F40 / R41 mm	F36 / R35 mm	F27 / R26 mm	700

The engineering team at HUNT aimed to create the fastest and most versatile gravel race wheelset, aerodynamically optimized for 40mm and 45mm tyre widths. The class-leading combination of wind tunnel-proven aerodynamic efficiency, crosswind stability, and low system weight (with UD Carbon Spokes) results in a true no-compromise wheelset for today’s fastest races.

Aero optimised for a 40mm and 45mm tyre; works well with a 35-60mm tyre.

Bearings

Freehub

£1,849

£99 deposit option available, fully refundable.

Pre-Order Now. Shipping:
Stainless Steel Bearings - Feb Wk 1 (£1,849)
CeramicSpeed Bearings - Feb Wk 1 (£2,449)Items are selected to ship from us in the week stated. Delivery time is 1 day*

We will ask for axle info after checkout.

Choose your finance options at checkout:

Order by 3pm for Next Day Delivery (if shown in stock). Allow 1-3 days for tyre-fitting.

Our wheels are in high demand, don't miss out.

H_CARE

FREE LIFETIME CRASH REPLACEMENT

To ensure you're not out of pocket should the worst happen. Learn more.

More details

The Purpose _

Engineered to maximize aerodynamic advantage for today's high-speed gravel races, without compromising on weight, responsiveness or crosswind stability. With the sharp end of today's gravel races mirroring the speed and tactics of road racing, our athletes asked us for wheels that held speed for solo moves and offered the quick acceleration they need to close gaps and attack on climbs. Patented Limitless Width Aero technology paired with UD Carbon Spoke unlocks the next level of weight savings in the gravel category.

Aerodynamically optimized around 40 and 45mm Schwalbe G-One gravel tyres to reduce aerodynamic drag across the system, saving you watts and time. Wind tunnel-proven crosswind stability allows you to focus on your race, regardless of the wind conditions, while the extra-wide rim beads prevent race-ending pinch flats.

KEY FEATURES_

Front & Rear Specific Rim Design

Through the extensive testing with CFD modeling and wind tunnel validation, our engineering team have developed front and rear specific profiles that maximize aero benefit across the bike system while minimizing material mass.

H_Ratchet 48T DBL Rear Hub

The new dual-sided ratchet system with 48-tooth drive delivers a fast 7.5 degrees of engagement. 6061 aluminium alloy hub shell with extra strong 7075-T6 alloy axle.

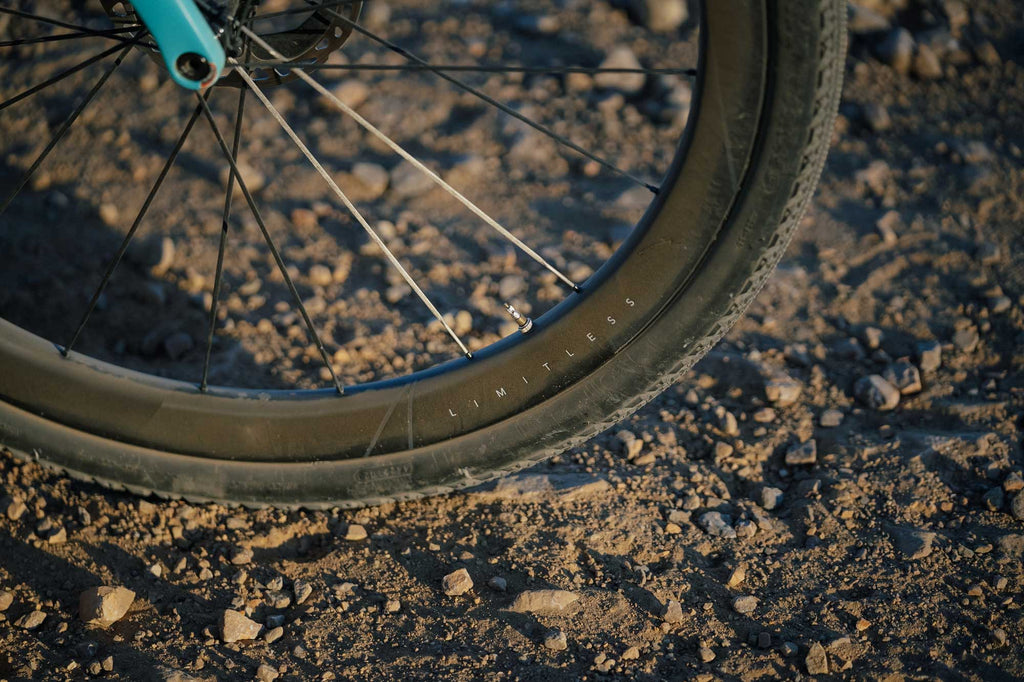

UD Carbon Spokes

TaperLock UD carbon spokes offer up to a 6% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke compared to around 290kgf for leading stainless steel aero spokes.

Durability

The in-house engineering team have designed and tested against new gravel wheel protocols which far exceed industry-standard ISO testing. Combining this with a broad 4.5mm bead hook thickness reduces the likelihood of pinch flats while maximizing your comfort and rolling resistance when running low tyre pressures.

TECHNOLOGY _

Through the use of the entire engineering suite, HUNT’s in-house engineering team has spent the last two years developing the rim profiles for the 40 Limitless Gravel Aero to maintain the aero efficiency benefits achieved by the category-leading Hunt 42 LGA wheels, while significantly reducing system weight and optimizing rim shapes around wider modern gravel tyres.

The wind tunnel results, as seen in the graph, depict the performance of HUNT 40 Limitless Gravel Aero wheels among a range of world class aero wheels commonly used in competitive gravel racing. The data suggests that with both a 40mm and 45mm tyre, the HUNT 40 Limitless Gravel Aero has the second-best aerodynamic drag while offering the fastest overall package when considering aerodynamic drag and system weight.

With the use of patented Limitless Width Aero construction and UD Carbon Spokes, HUNT was able to design unique front and rear rim profiles that offers an extremely wide profile with a truncated edge (blunted spoke bed) to help airflow remain attached to the system, while providing weight saving of up to 220g compared to the 42 Limitless Gravel Aero, and enhanced performance and durability on the harshest gravel roads due to the addition of wider internal rim widths and rim walls to prevent pinch flats.

See the research white paper for full technical details of our wind tunnel testing methodology, including data/graphs and the full range of wheels we tested against.

Full Specs _

Rims

Wind tunnel tested, aerodynamically optimised for 40-45mm tyres Mixed rim profiles with Limitless Width technology for Aero optimization: - Front rim dimensions: 40mm deep | 36mm external width | 27mm internal width - Rear Rim dimensions: 41mm deep | 35mm external width | 26mm internal width - ETRTO compliant for use with 35c tyres and wider H-lock tyre security channel Pinch flat protection with 4.5mm bead thickness Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes Hookless TSS profile for optimised weight and strength Reflective graphics with matte clear coat

Wind tunnel tested, aerodynamically optimised for 40-45mm tyres
Mixed rim profiles with Limitless Width technology for Aero optimization:
- Front rim dimensions: 40mm deep | 36mm external width | 27mm internal width
- Rear Rim dimensions: 41mm deep | 35mm external width | 26mm internal width
- ETRTO compliant for use with 35c tyres and wider
H-lock tyre security channel
Pinch flat protection with 4.5mm bead thickness
Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
Hookless TSS profile for optimised weight and strength
Reflective graphics with matte clear coat

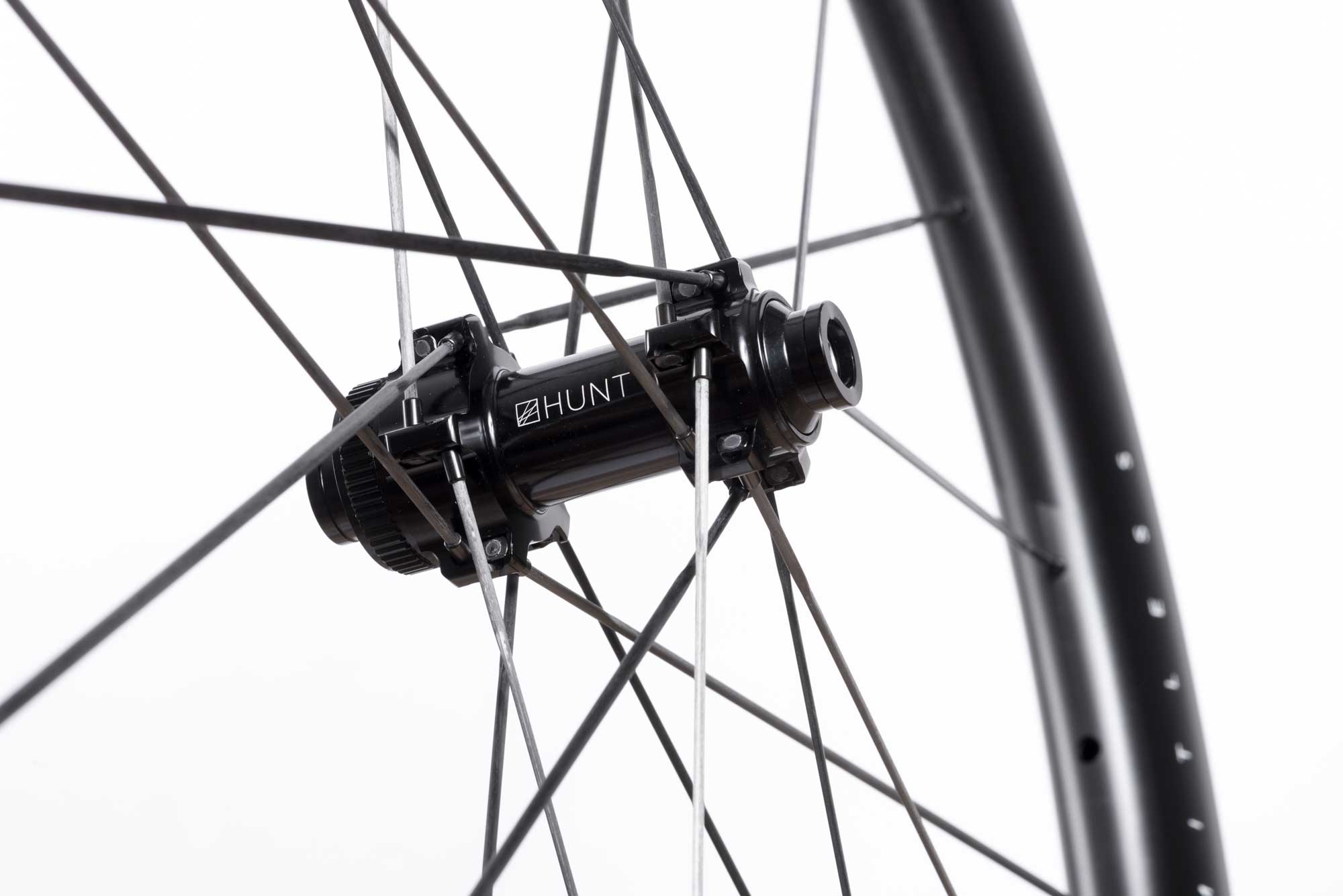

Front Hub

Forged and CNC’d 6061-T6 heat treated aluminium alloy body 7075-T6 aluminium alloy axle Anti rotational keyed spoke holes Polished anodized black finish with laser graphics Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.

Forged and CNC’d 6061-T6 heat treated aluminium alloy body
7075-T6 aluminium alloy axle
Anti rotational keyed spoke holes
Polished anodized black finish with laser graphics
Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.

Rear Hub

H_Ratchet DBL 48T Forged and CNC’d 6061-T6 heat treated aluminium alloy body 7075-T6 aluminium alloy axle Dual sided ratchet rings, 7.5˚ engagement H_CERAMIK coated alloy freehub body, provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies All freehub standards accounted for Anti rotational keyed spoke holes Toolless fitment making routine servicing a simple task Polished anodized black finish with laser graphics Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.

H_Ratchet DBL 48T
Forged and CNC’d 6061-T6 heat treated aluminium alloy body
7075-T6 aluminium alloy axle
Dual sided ratchet rings, 7.5˚ engagement
H_CERAMIK coated alloy freehub body, provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies
All freehub standards accounted for
Anti rotational keyed spoke holes
Toolless fitment making routine servicing a simple task
Polished anodized black finish with laser graphics
Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.

Bearings

Stainless Steel Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather Sealed cartridge replaceable units Dual full-contact seals CeramicSpeed Bearings Industry leading CeramicSpeed ceramic coated bearings, designed specifically for our H_Ratchet hubset to maximize durability and performance 75% tougher than standard hardened steel races, boasting an average lifetime seven and a half times longer than other non-coated solutions CeramicSpeed bearing balls are of the highest quality, featuring the Finest achievable surface finish and roundness Life-time warranty (When registered with CeramicSpeed)

Stainless Steel

Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather
Sealed cartridge replaceable units
Dual full-contact seals

CeramicSpeed Bearings

Industry leading CeramicSpeed ceramic coated bearings, designed specifically for our H_Ratchet hubset to maximize durability and performance
75% tougher than standard hardened steel races, boasting an average lifetime seven and a half times longer than other non-coated solutions
CeramicSpeed bearing balls are of the highest quality, featuring the Finest achievable surface finish and roundness
Life-time warranty (When registered with CeramicSpeed)

Spokes

UD carbon fibre spokes with incredibly high strength, stiffness and weighing only 2.7g per spoke UD carbon spokes reduce weight and road vibration while increasing lateral responsiveness by 6% 20 Spokes Front and Rear (2 cross lacing pattern) Non interlacing for increased compliance

UD carbon fibre spokes with incredibly high strength, stiffness and weighing only 2.7g per spoke
UD carbon spokes reduce weight and road vibration while increasing lateral responsiveness by 6%
20 Spokes Front and Rear (2 cross lacing pattern)
Non interlacing for increased compliance

Nipples

TaperLock nipples secure spoke heads to the hub Nyloc thread build with highly consistent tension Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing Internal nipple for truing Black anodized finish

TaperLock nipples secure spoke heads to the hub
Nyloc thread build with highly consistent tension
Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing
Internal nipple for truing
Black anodized finish

Tyres Info

HUNT recommends a 40-45mm tyre for best performance, tyre widths between 35mm and 60mm are also safe to use. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower. Only use tyres marked as compatible with hookless (TSS) rims. Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this. Tubeless-ready for lower weight and rolling resistance.

HUNT recommends a 40-45mm tyre for best performance, tyre widths between 35mm and 60mm are also safe to use.
You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Only use tyres marked as compatible with hookless (TSS) rims.
Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this.
Tubeless-ready for lower weight and rolling resistance.

Axle Sizes

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

Front: 12x100mm Thru-Axle, Quick Release 9x100mm
Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

Patented Limitless Width Aero Technology

HUNT-patented Limitless Width Aero manufacturing process allows for a wider external rim shape while minimizing material mass, utilizing a strip of low-density structural polymer inserted in a molded channel within the rim sidewall with carbon molded over it. The wider shape and the more blunted the spoke bed increases aerodynamic performance across a wider range of yaw angles (as the airflow is predictable and does not separate to the same degree), resulting in fast, ultra-stable rim shapes without the weight penalty.

Front & Rear Specific Rim Design

The wider front rim profile (36mm wide ext/27mm wide int) provides an optimized aero interface at the leading edge of the bike, reducing drag and offering predictable handling in crosswinds. The increased internal rim width on the front design provides improved traction and cornering performance due to the more open tyre profile. The rear of the bike encounters more turbulent air flow, allowing for the engineering team to optimize the rear rim profile (35mm wide ext/26mm wide int) for power delivery and weight savings.

Wide where it matters, fast everywhere.

Wind Tunnel Tested

Aerodynamically optimised for 40 and 45c tyres. The rounded U-shaped hookless rim profile reduces aero-dynamic drag across yaw angles. HUNT’s in-house engineering team, leveraging CFD analysis and 3D prototyping, along with the proven validation method of wind tunnel testing, has raised the expectation level for aerodynamic efficiency while simultaneously reducing the wheel system weight and increasing responsiveness, creating a world-beating combination of performance attributes.

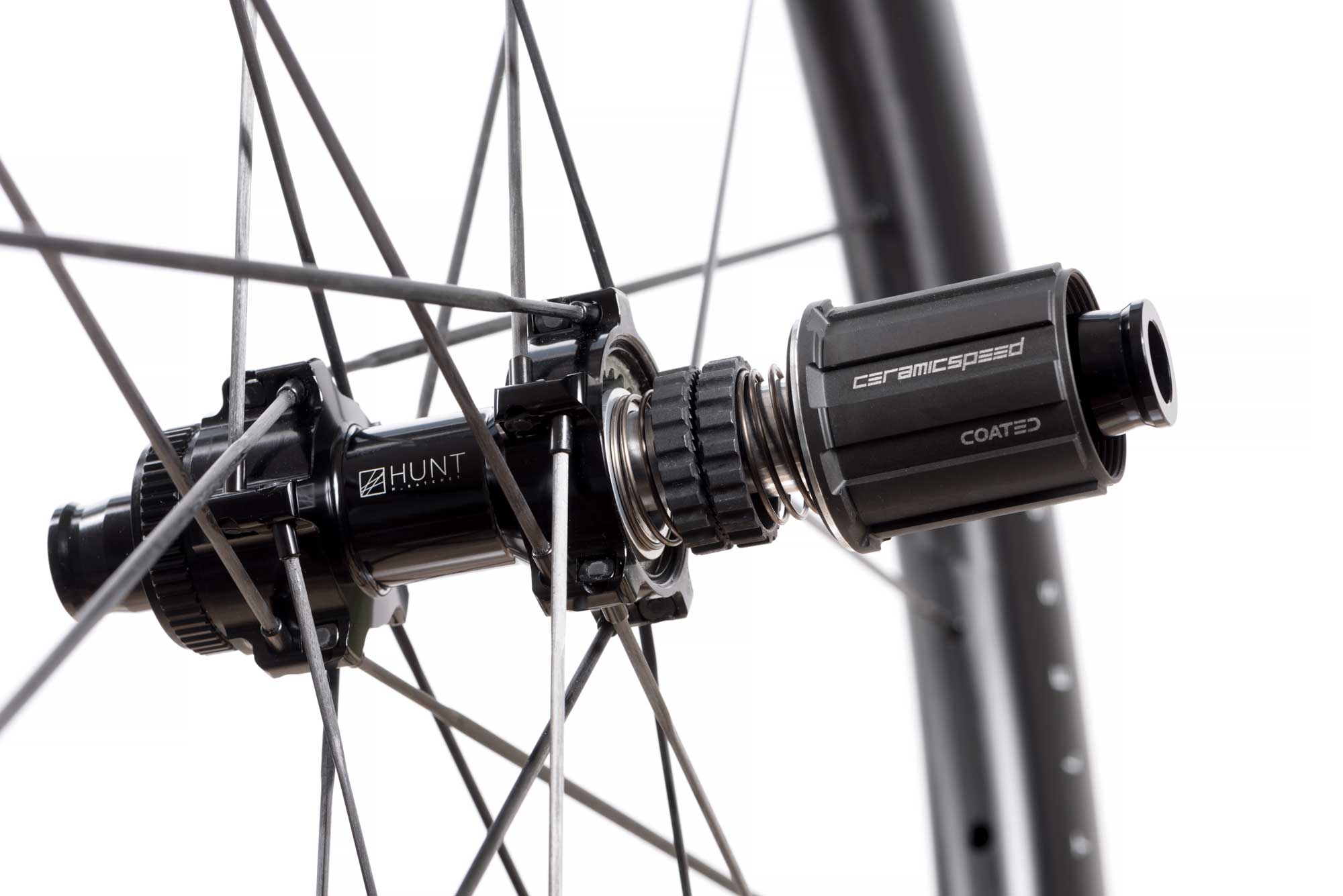

H_Ratchet 48T DBL Hub & Freehub Body

Featuring HUNT’s H_Ratchet double-sided system (with two floating ratchet rings), with a 48t ratchet ring resulting in just 7.5˚ engagement. Durability is a theme for HUNT, and so all our freehub bodies have a H_CERAMIK coating, a process similar to anodization to increase its density and hardness of the surface laser to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.

Precision Bearings

Double sealed stainless steel cartridge bearings offer smooth, reliable service with low friction. Or upgrade to the Industry leading CeramicSpeed ceramic coated bearings, designed specifically for our H_Ratchet hubset to maximize durability and performance.

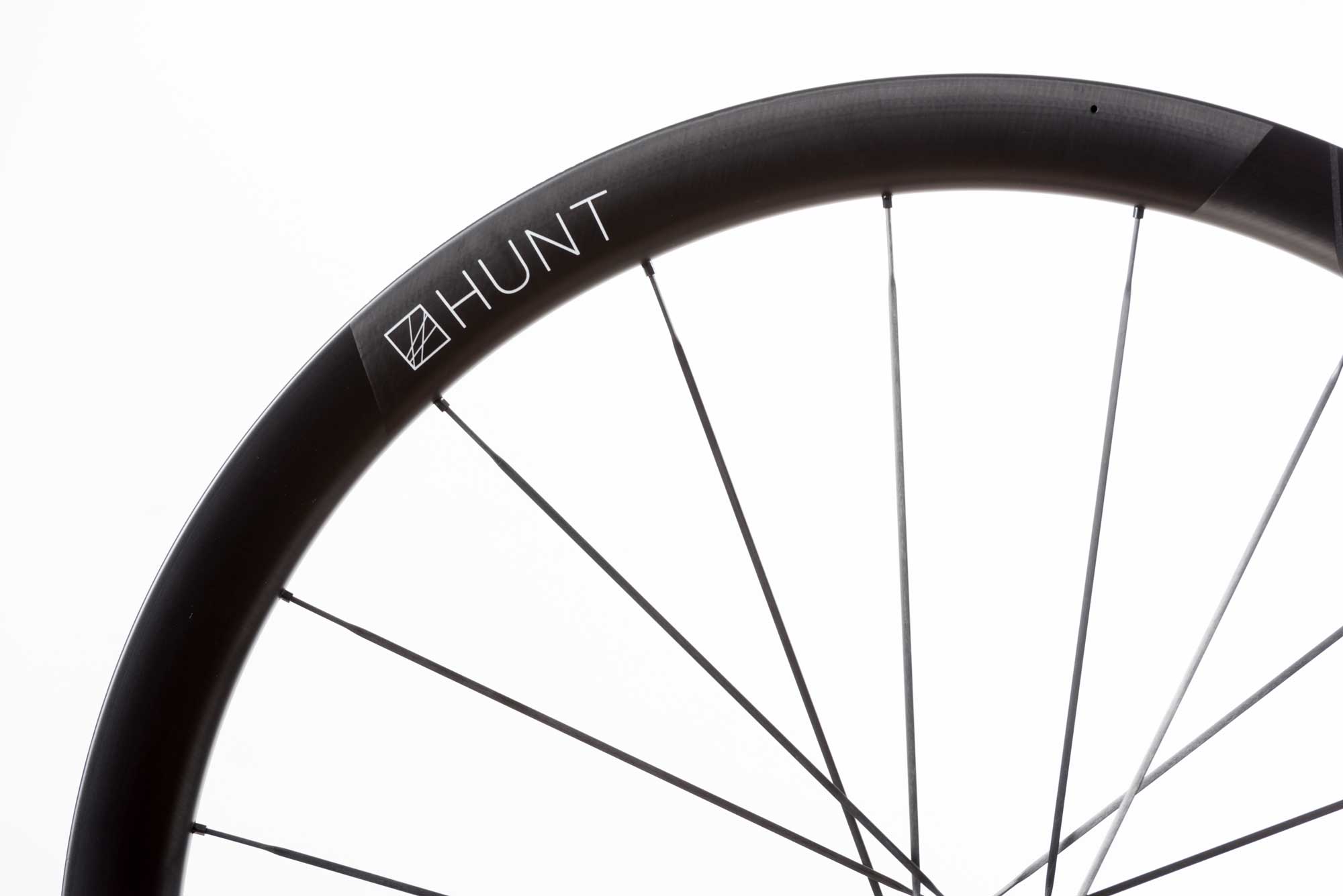

UD Carbon Spokes

TaperLock UD carbon spokes offer up to a 6% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.

Tyre Width Optimisation

Designed with 27/26mm internal rim width optimised for 40mm and 45mm tyres. ETRTO-compatible for tyre sizes 35mm and 60mm and tubeless-ready.

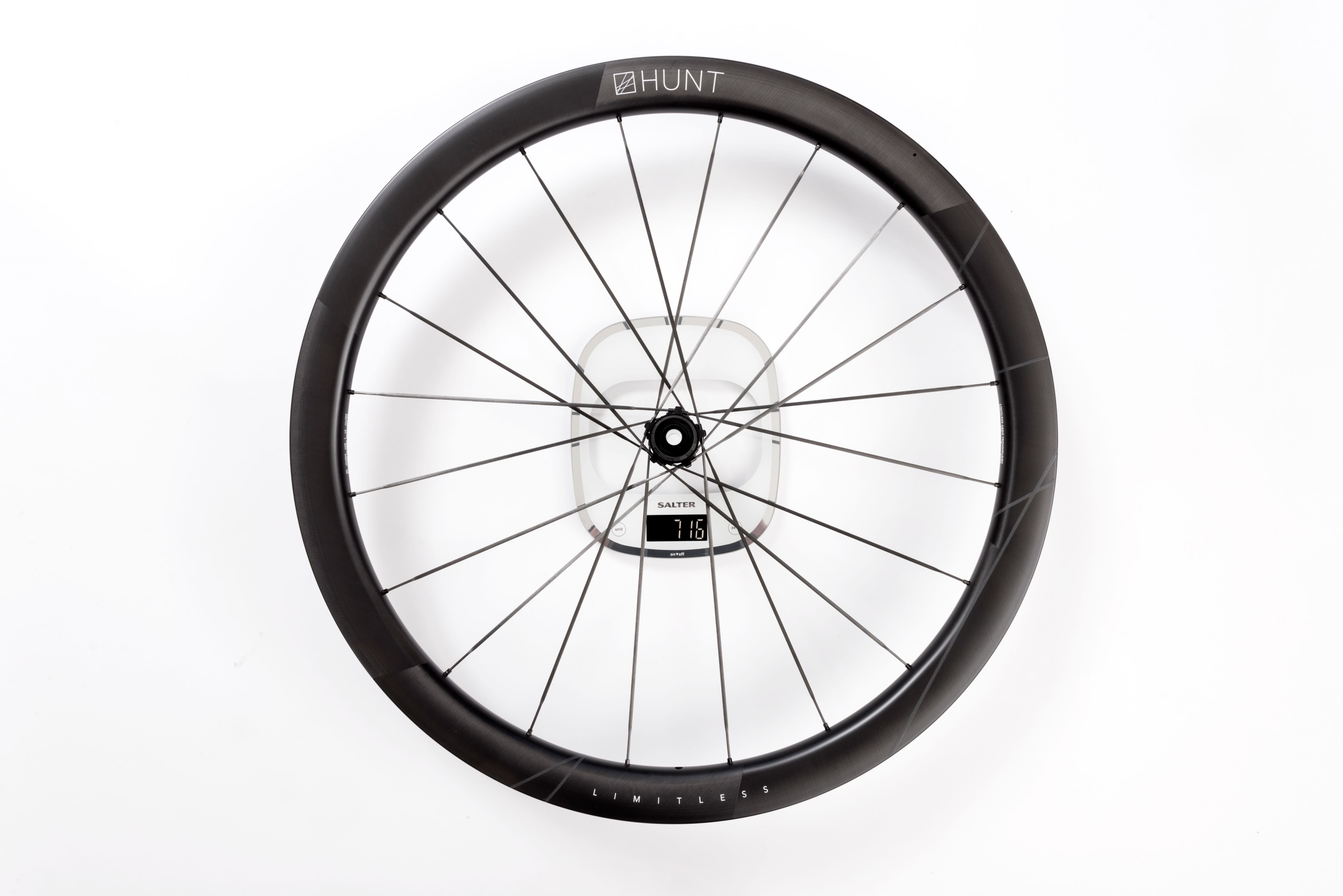

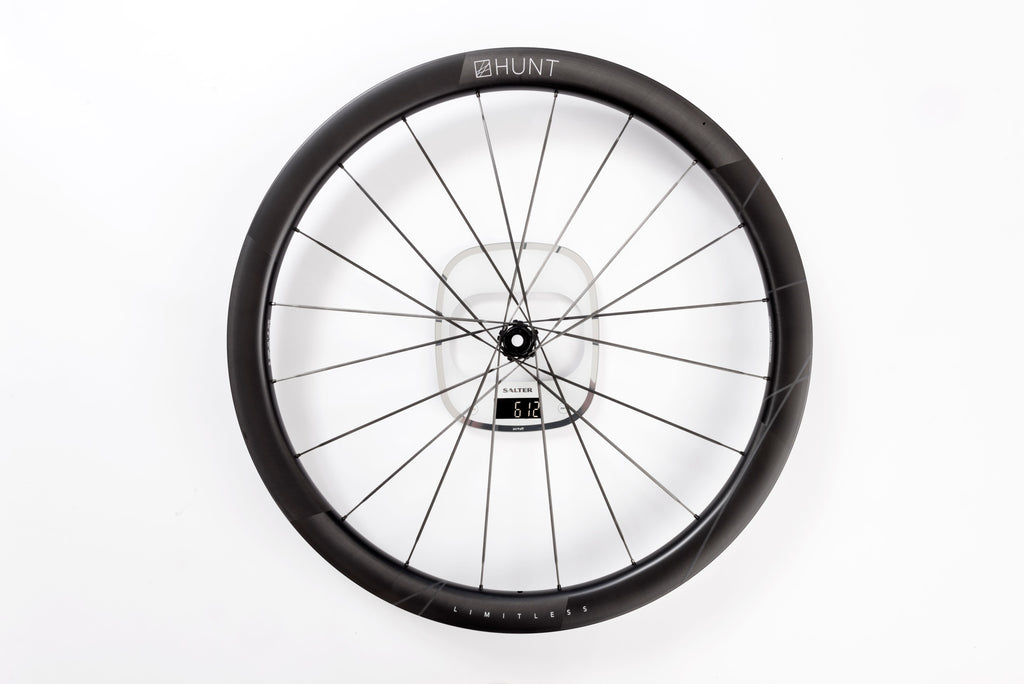

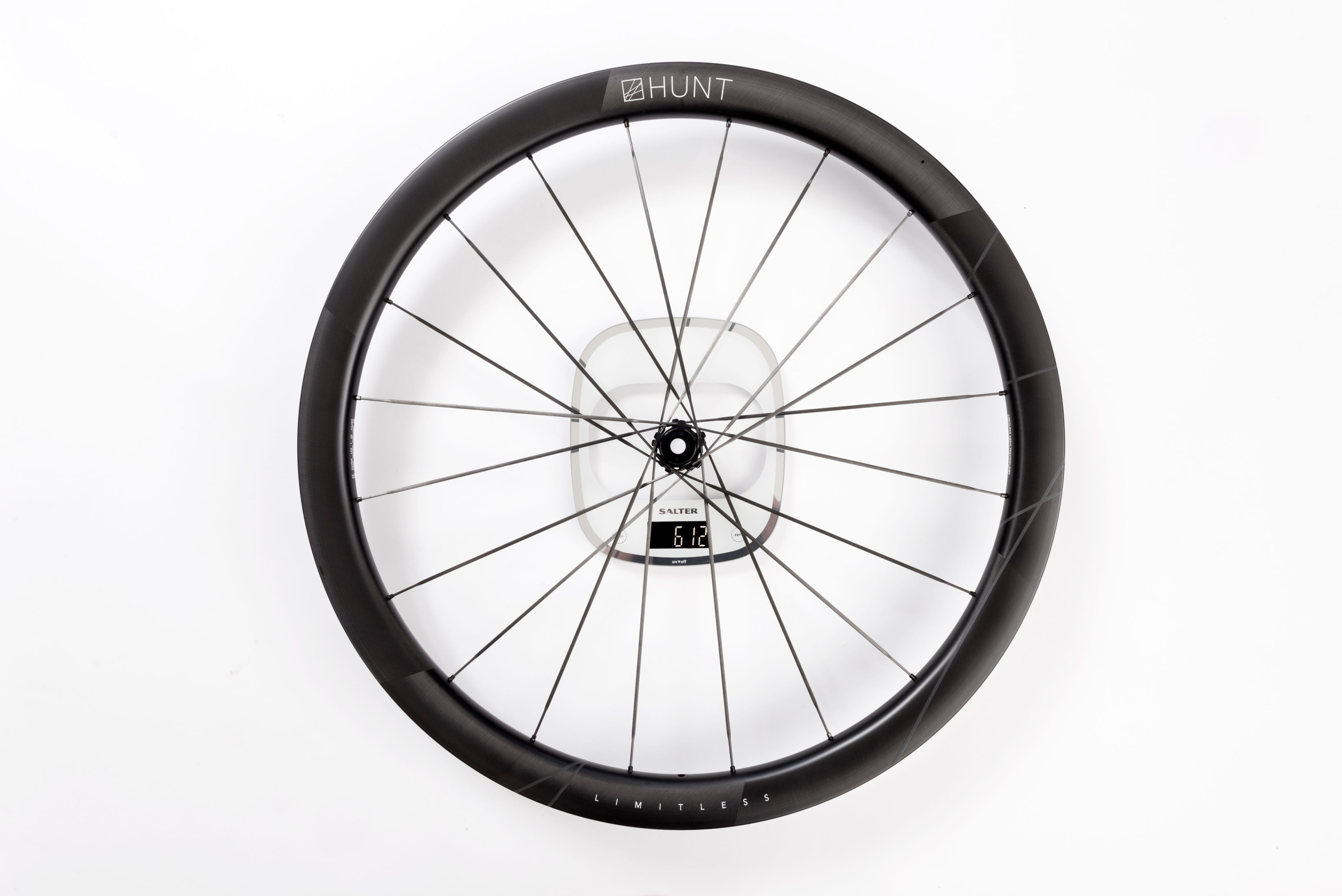

Low System Weight

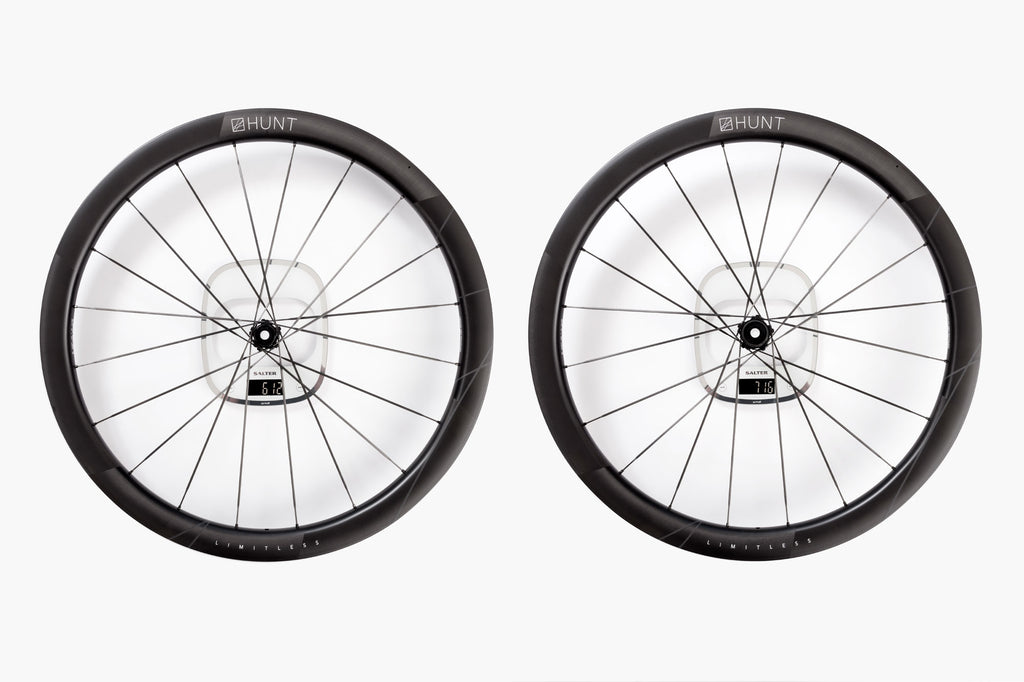

Innovation in rim layup technology and hubs delivers class-leading low weight. Please note on scale images weighed without valves and tape. +/- 3% variation on wheelset weights can occur.

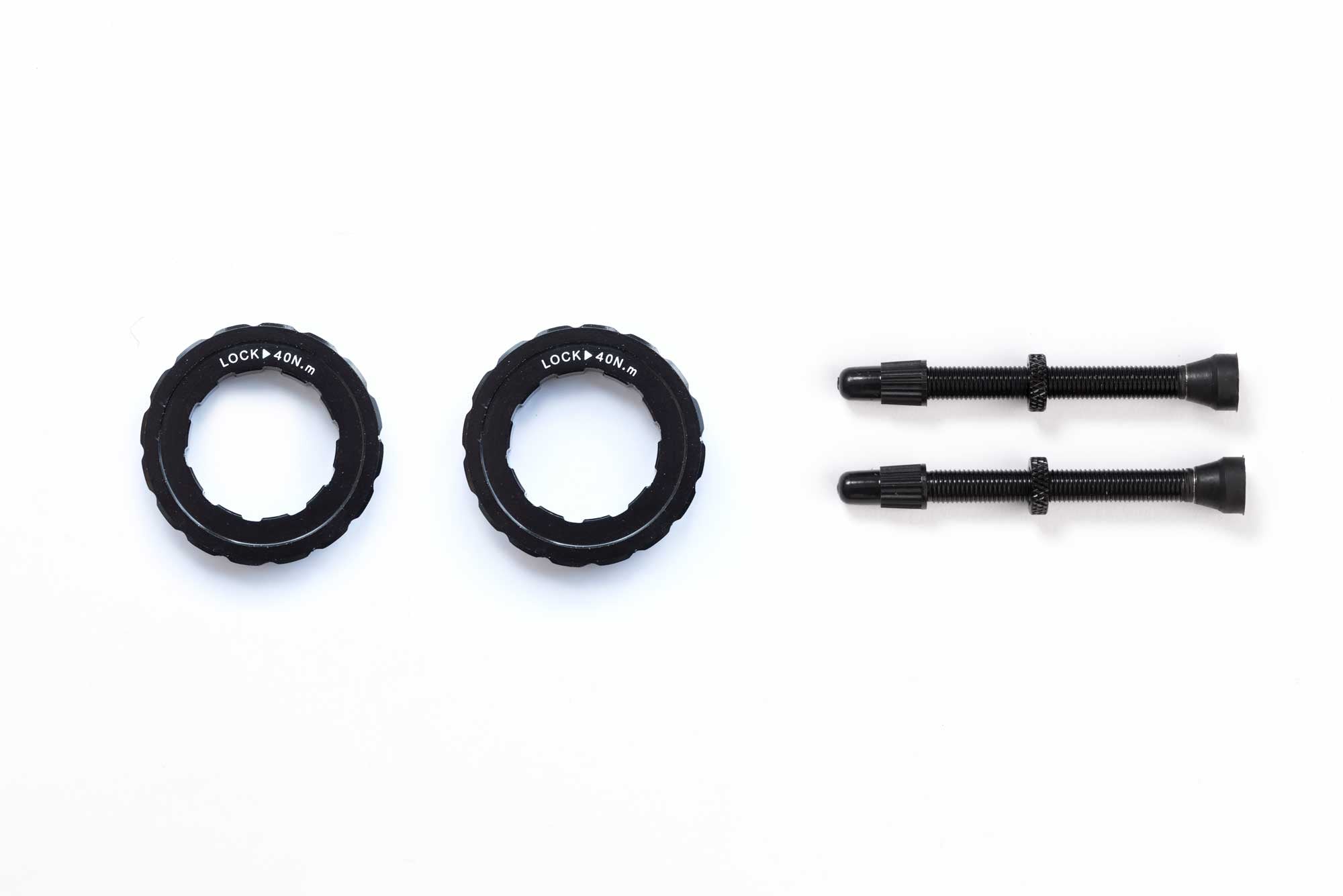

What's in the box _

HUNT tubeless tape fitted to wheels.
The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
Cassette spacer for 8/9/10 speed and XDR-XD compatibility.
60mm Tubeless Valves.
Quality control card signed by your wheel builder.

Our riders also bought_

WARRANTY_

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. Read all about it here.

A full 3 years (4 years on CeramicSpeed bearings*) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 105 kg then an experienced bike mechanic should check the wheel regularly.
