HUNT 5AM Limitless Ti_UD Carbon Spoke Wheelset

NEW

HUNT 5AM Limitless Ti_UD Carbon Spoke Wheelset

1212g	Depth	Width ext	Width int	size
1212g	F58 / R55 mm	F35 / R30 mm	23 mm	700c

The fastest all-round road racing wheel system on the planet. Full stop.

Surpassing all competitors aerodynamically with 30mm tyres, the 5AM is lighter, accelerates faster and delivers confident handling at race speeds across all conditions. Delivered through HUNT's 5-Stage Aero Development, with patented Limitless Width Aero Technology.

Tyre size: 28–30mm tyres for maximum efficiency and stability. Hooked rim supports up to 50mm tubeless or clincher setups.

Ama Nsek. 3x US National Champion.

“Wider is smoother, smoother is more comfortable and faster. It’s a no-brainer. In an ideal world, there isn’t a sacrifice of weight for speed, and in that pursuit, these wheels are uncompromising. Lighter, wider, faster, quicker.”

Bearings

Freehub

Pre-Order Now. Shipping: May Wk 3

£1,999

We will ask for axle info after checkout.

3 Year Warranty

All of our wheelsets are backed by a 3-year warranty when purchased directly from HUNT. Read more details here.

FREE Lifetime Crash Replacement Included

Your wheels are protected by H_Care – our FREE lifetime crash replacement coverage for original owners. This protection comes automatically with your purchase. Wheel components and labour are covered. Learn more.

Cycle to Work Partners

Cyclescheme

Save up to 39% on any HUNT Wheels and accessories with Cyclescheme. Reach out to us via a support ticket to set up your order. Learn more here.

Cycle Solutions

Save at least 32% HUNT wheels and accessories with Cycle Solutions cycle to work scheme. Reach out via a support ticket to create your quote. Learn more here.

60 Day Returns

60 Day Ride & Return: Try your Hunt wheels for 60 days – ride them, test them, love them. Not happy? Return them for a full refund.

EU HQ & Warehouse

We ship all orders from our EU Headquarters & Warehouse in Germany. Prices include all taxes & duties. You order will be delivered to you in 2-7 days when in-stock.

More details

The Purpose.

Engineered for the demands of modern racing, the 5AM Limitless delivers a level of all-round speed beyond any wheel currently raced in the pro peloton, setting a new benchmark for outright performance on fast and rolling terrain at the highest level of the sport.

Drawing on ten years of wheel development, materials innovation and an evolving process of aerodynamic and real-world testing, the 5AM Limitless was created using a complete system approach to performance. Each component of the wheel system was engineered, vetted and validated through HUNT’s 5-Stage Aero Development process, to make riders faster in actual racing conditions, not just on paper.

Key Features.

Limitless Width Aero Technology

HUNT patented carbon construction.
Low density structural polymer moulded between carbon layers.
Width without weight.

Fast & Stable Profile

Aero maximised front rim profile.
Reduced aerodynamic drag.
Improved stability through higher wind angles.

Aero Drag Reduction Spokes

Vonoa ultralight unidirectional carbon fibre.
Reduced front spokes from 18 to 15.
Weighing just 1.7g per spoke.

Chase SLC Hub System

Precision-machined from high strength 7075 alloy. 289g per pair.
Dual-sided zinc-coated ratchet system.
7.5° engagement angle.

CeramicSpeed Bearings

Unreleased ceramic ball bearings with a new stainless steel bearing race.
Friction reduction & corrosion protection.
Covered by lifetime warranty.

Technology.

Designed by HUNT’s in-house engineering team, the 5AM Limitless represents the latest evolution of our rider-first approach to wheel design. Combining years of aerodynamic learning with new testing protocols, designed to understand how wheels perform in the real world, with a rider on the bike. Rather than relying on a single testing method, HUNT leverages a 5-Stage Aero Development process, where each stage answers different questions and builds a complete picture of performance. Through this layered development process and patented Limitless Width Aero Technology, performance is maximised to achieve the optimal balance between aerodynamics and weight, delivering the fastest wheel system available under 60mm.

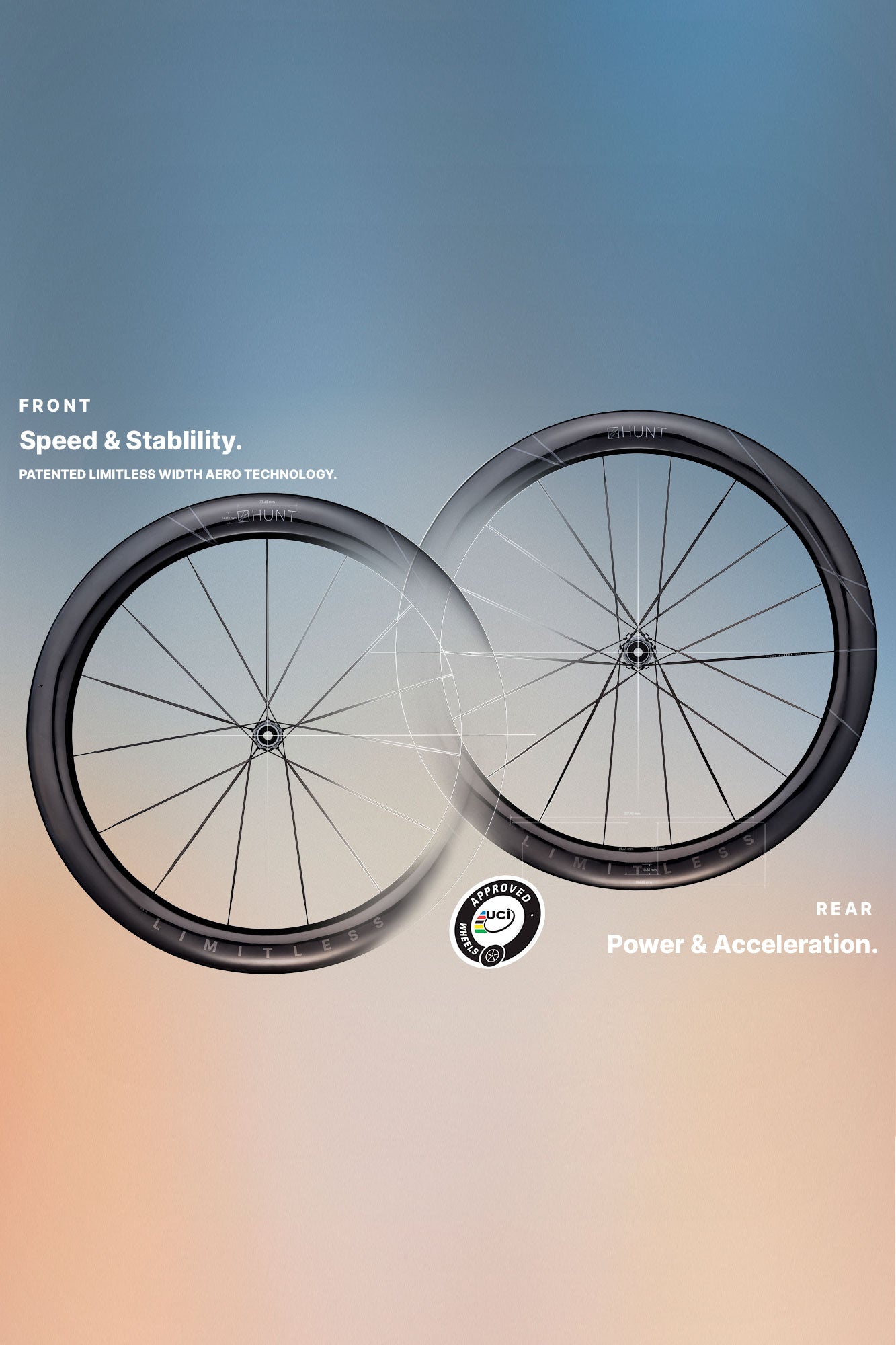

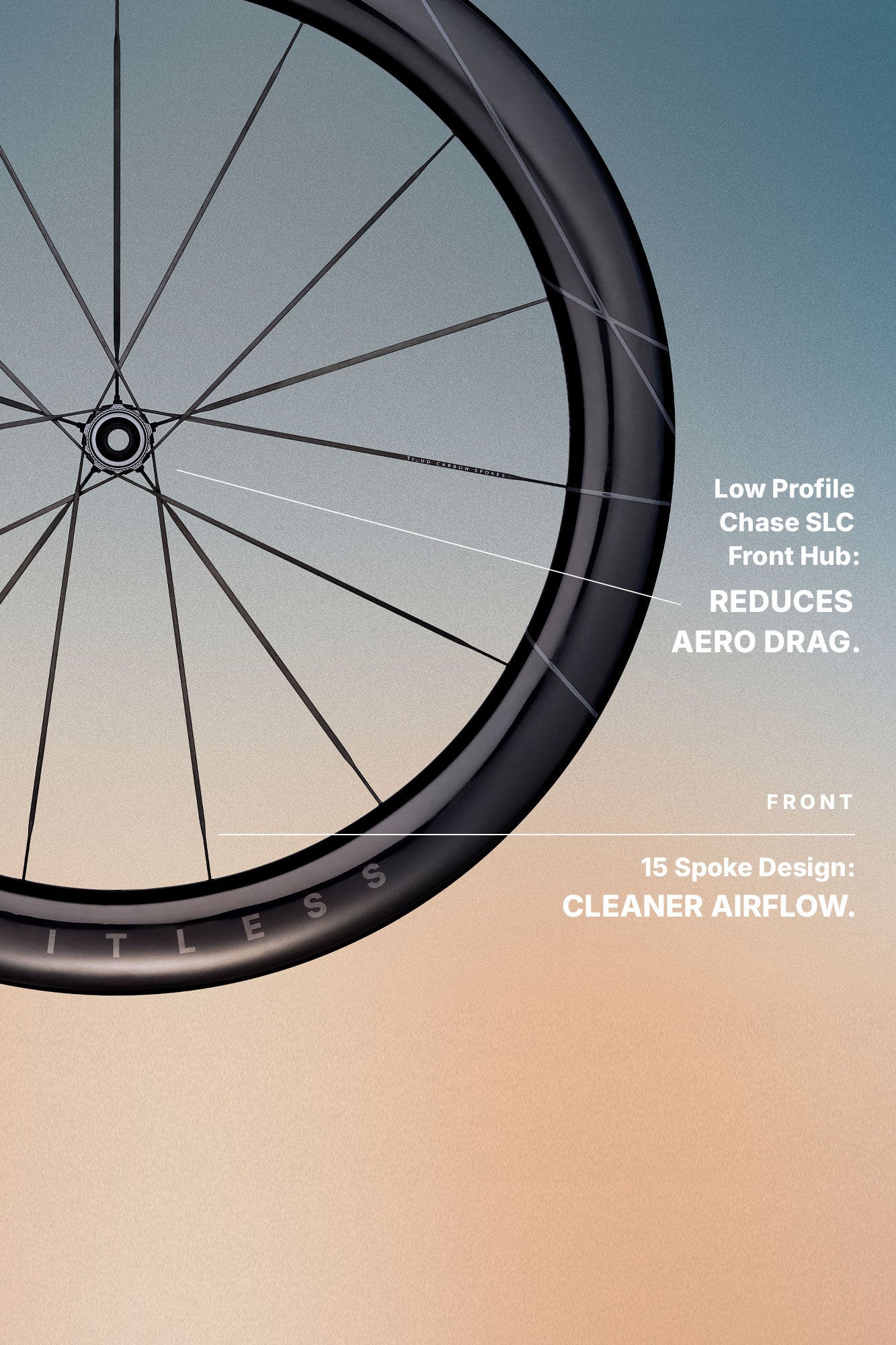

The front wheel runs in clean air, offering the greatest opportunity to reduce drag. By increasing rim depth and width, while minimising rotational drag through reduced spoke count, hidden spoke nipples and low profile hub design, we maximise aerodynamic efficiency where it matters most without compromising crosswind stability.

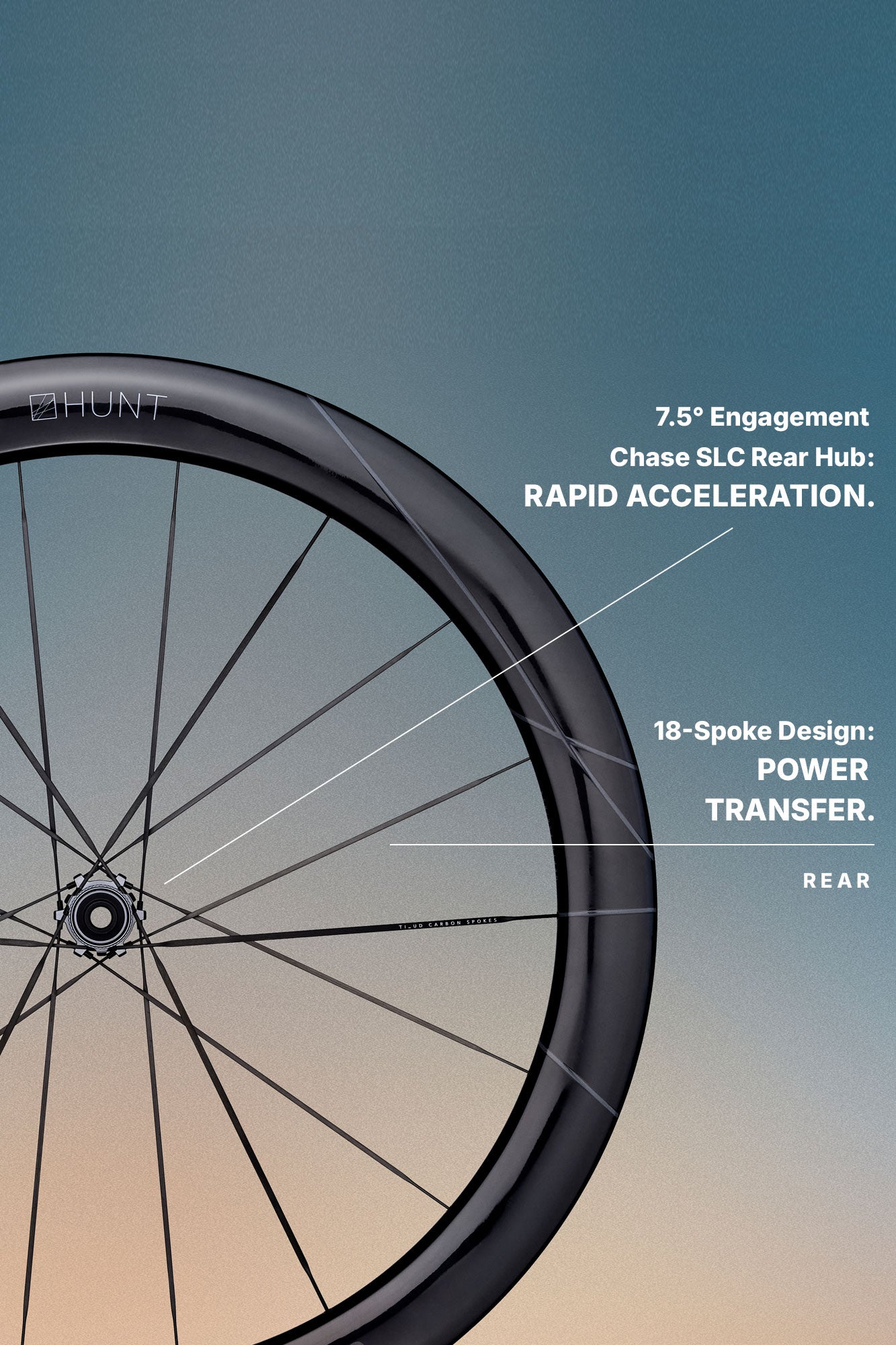

The rear wheel encounters turbulent airflow, downstream of the front wheel, frame, and rider movement, making rear wheel aerodynamic gains less important in the context of the complete system. Rear wheel efficiency is achieved by reducing weight and maximising power transfer. A shallower, narrower rim paired with additional spokes delivers enhanced responsiveness and efficient transmission of every watt to the road.

Read the full in-depth white paper, here.

4.35 watts faster than the ENVE 4.5 Pro with a 30mm tyre. 1.74 and 1.99 watts faster than the deeper and heavier Roval Rapide Sprint and Scope Artech wheels, respectively.

Conducted in partnership with Dr. Barnaby Garrood at Aerosensor™, the rotational drag reduction of the more aerodynamic spoke design and lower spoke count, play an important role in extending the system's lead over rival wheels; delivering a 5.9-watt advantage over the Scope Artech 6, and an 8.5-watt advantage over the Zipp 404 Firecrest.

Full Specs.

Rims

58mm deep front rim profile with a 34.5mm external width. 55mm deep rear profile with a 30mm external width. Hooked 23mm internal profile. Compatible tyres ranging from 28-50mm to be fitted including tubeless or clincher tyres in line with ETRTO guidelines. Aerodynamically optimised for a 28-30mm tyre. Unique carbon fibre layup strategy, comprised of T700, T800, T1000 and a High Modulus Pyrofil HR4012M carbon. Pre-formed 3D spoke reinforcement. Designed by HUNT’s in-house Engineering Team using Computational Fluid Dynamics (CFD) and then validated using wind tunnel testing. High gloss finish unidirectional carbon fibre rim.

58mm deep front rim profile with a 34.5mm external width.
55mm deep rear profile with a 30mm external width.
Hooked 23mm internal profile.
Compatible tyres ranging from 28-50mm to be fitted including tubeless or clincher tyres in line with ETRTO guidelines.
Aerodynamically optimised for a 28-30mm tyre.
Unique carbon fibre layup strategy, comprised of T700, T800, T1000 and a High Modulus Pyrofil HR4012M carbon.
Pre-formed 3D spoke reinforcement.

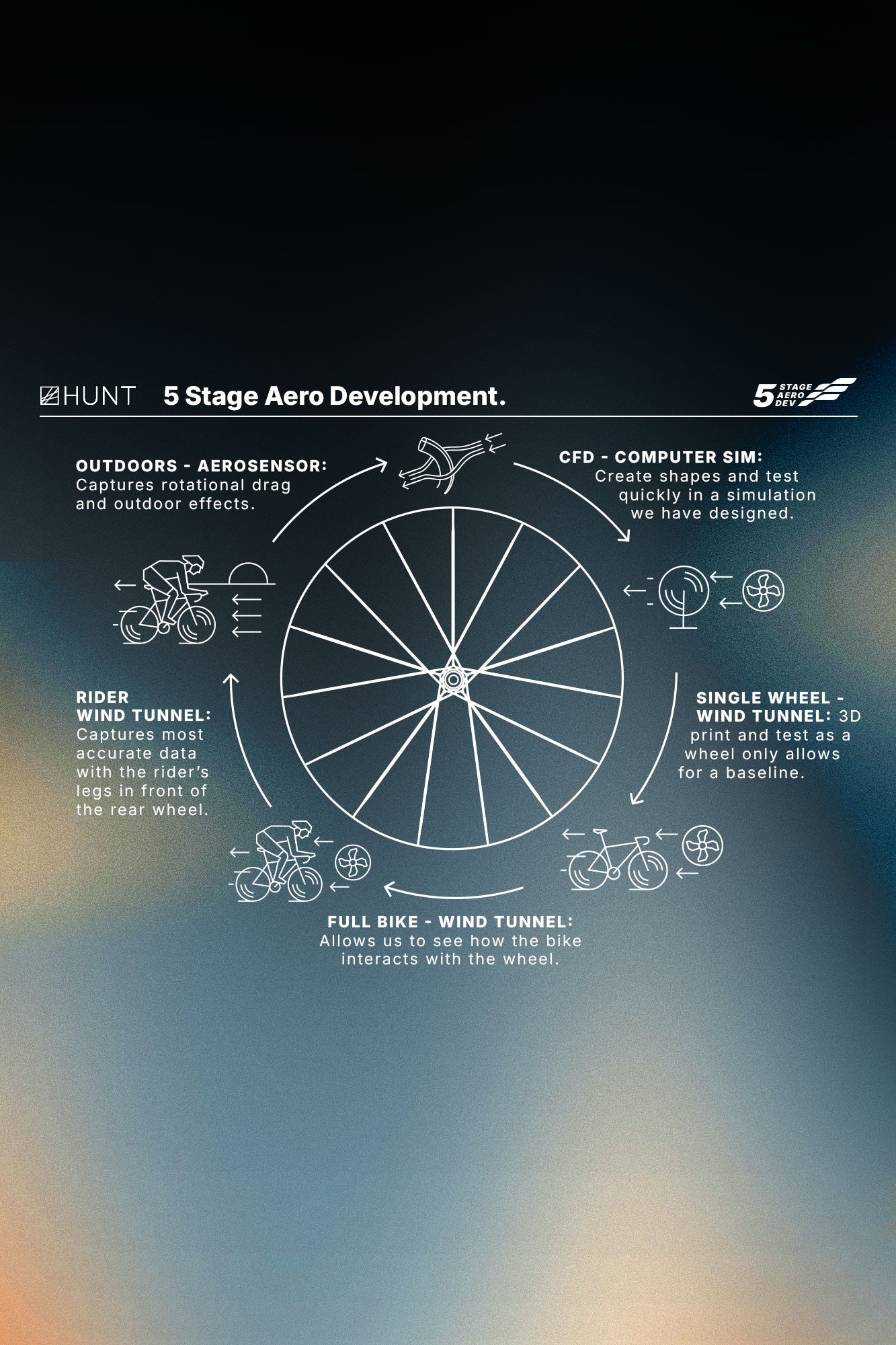

Designed by HUNT’s in-house Engineering Team using Computational Fluid Dynamics (CFD) and then validated using wind tunnel testing.
High gloss finish unidirectional carbon fibre rim.

Spokes

Ti_UD VONOA carbon spokes. 15 front spokes, 2 cross on the rotor side and radial on the drive side. 18 rear spokes, 2 cross on the drive side, 1 cross on the rotor side. Spokes built in a 2:1 lacing pattern. Titanium Ti6-4AL-4V spoke end hardware. Tuned carbon spoke gauges each side to match 2:1 spoke pattern.

Ti_UD VONOA carbon spokes.
15 front spokes, 2 cross on the rotor side and radial on the drive side.
18 rear spokes, 2 cross on the drive side, 1 cross on the rotor side.
Spokes built in a 2:1 lacing pattern.
Titanium Ti6-4AL-4V spoke end hardware.
Tuned carbon spoke gauges each side to match 2:1 spoke pattern.

Nipples

Aluminium nipple, with a Nyloc insert. Fully serviceable, unlike bonded carbon spoke systems. Internal nipple for truing. Black anodised finish.

Aluminium nipple, with a Nyloc insert.
Fully serviceable, unlike bonded carbon spoke systems.
Internal nipple for truing.
Black anodised finish.

Front Hub

Chase SLC front hub. CNC machined from 7075-T6 heat-treated aluminium. Hub weight of 90g. 7075-T6 aluminium alloy axle to increase stiffness. Keyed and captive spoke holes lock spokes into place once tensioned. Push-fit endcaps for easy serviceability. Satin gunmetal grey finish.

Chase SLC front hub.
CNC machined from 7075-T6 heat-treated aluminium.
Hub weight of 90g.
7075-T6 aluminium alloy axle to increase stiffness.
Keyed and captive spoke holes lock spokes into place once tensioned.
Push-fit endcaps for easy serviceability.
Satin gunmetal grey finish.

Rear Hub

Chase SLC rear hub. CNC machined from 7075-T6 heat-treated aluminium. Hub weight of 199g. H_Ratchet DBL 48T drive system, features two floating Star Ratchet discs with 48 teeth, to offer a fast 7.5° of engagement. Zinc-coated to maximise longevity, tested to 100,000 cycles at 250Nm of torque. Keyed and captive spoke holes lock spokes into place once tensioned. Push-fit endcaps for easy serviceability. H_CERAMIK coated alloy freehub body. Satin gunmetal grey finish.

Chase SLC rear hub.
CNC machined from 7075-T6 heat-treated aluminium.
Hub weight of 199g.
H_Ratchet DBL 48T drive system, features two floating Star Ratchet discs with 48 teeth, to offer a fast 7.5° of engagement.
Zinc-coated to maximise longevity, tested to 100,000 cycles at 250Nm of torque.
Keyed and captive spoke holes lock spokes into place once tensioned.
Push-fit endcaps for easy serviceability.
H_CERAMIK coated alloy freehub body.
Satin gunmetal grey finish.

Bearings

Ceramic ball bearings and a new stainless steel bearing race. Custom-made light contact seals. Covered by a lifetime warranty. Or Stainless steel cartridge bearings. Manufactured by TPI. CN clearance to provide the best fitment possible and long bearing life under cycling conditions.

Ceramic ball bearings and a new stainless steel bearing race.
Custom-made light contact seals.
Covered by a lifetime warranty.

Or

Stainless steel cartridge bearings.
Manufactured by TPI.
CN clearance to provide the best fitment possible and long bearing life under cycling conditions.

Tyres Info

HUNT recommends a 28-30mm tyre for best performance, tyre widths between 28mm and 50mm are also safe to use. Tubeless-ready for lower weight and rolling resistance. Also designed to work excellently with standard clincher tyres and inner tubes. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

HUNT recommends a 28-30mm tyre for best performance, tyre widths between 28mm and 50mm are also safe to use.
Tubeless-ready for lower weight and rolling resistance. Also designed to work excellently with standard clincher tyres and inner tubes.
You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

Axle Sizes

These wheels are available in the following existing disc brake road bike axle adapter sizes: Front: 12x100mm Thru-Axle, Quick Release 9x100mm. Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm. If you're not sure about your axle size, no problem - we’ve got you covered. You can simply provide your bike model after check out, and we’ll identify and fit the correct axle adaptors for you. If it turns out they’re not quite right, we’ll happily replace them at no extra cost. Please note: the axle form will appear after you’ve completed your order.

These wheels are available in the following existing disc brake road bike axle adapter sizes:

Front: 12x100mm Thru-Axle, Quick Release 9x100mm.
Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm.

If you're not sure about your axle size, no problem - we’ve got you covered. You can simply provide your bike model after check out, and we’ll identify and fit the correct axle adaptors for you. If it turns out they’re not quite right, we’ll happily replace them at no extra cost.

Please note: the axle form will appear after you’ve completed your order.

High Specification Components.

Advanced Carbon Construction

5AM Limitless rims are made using a blend of T700, T800, and T1000 UD carbon fibres, with high-modulus Mitsubishi PyrofilHR4012M - a material more common in aerospace, aviation and motorsport applications. This blend offers lateral and sidewall strength, enabling low weight without compromising durability or trueness. The high gloss finish resists dirt build up and helps minimise aerodynamic skin drag.

Ti_UD VONOA Carbon Spokes

The top of the wheel moves through the fork at twice the speed of the bike, meaning small design features add up to large aero gains. We have combined a slim frontal profile with elongated bladed shape for improved aerodynamic efficiency. Titanium Ti6-4AL-4V end hardware keeps weight exceptionally low, while maintaining strength and resistance to corrosion.

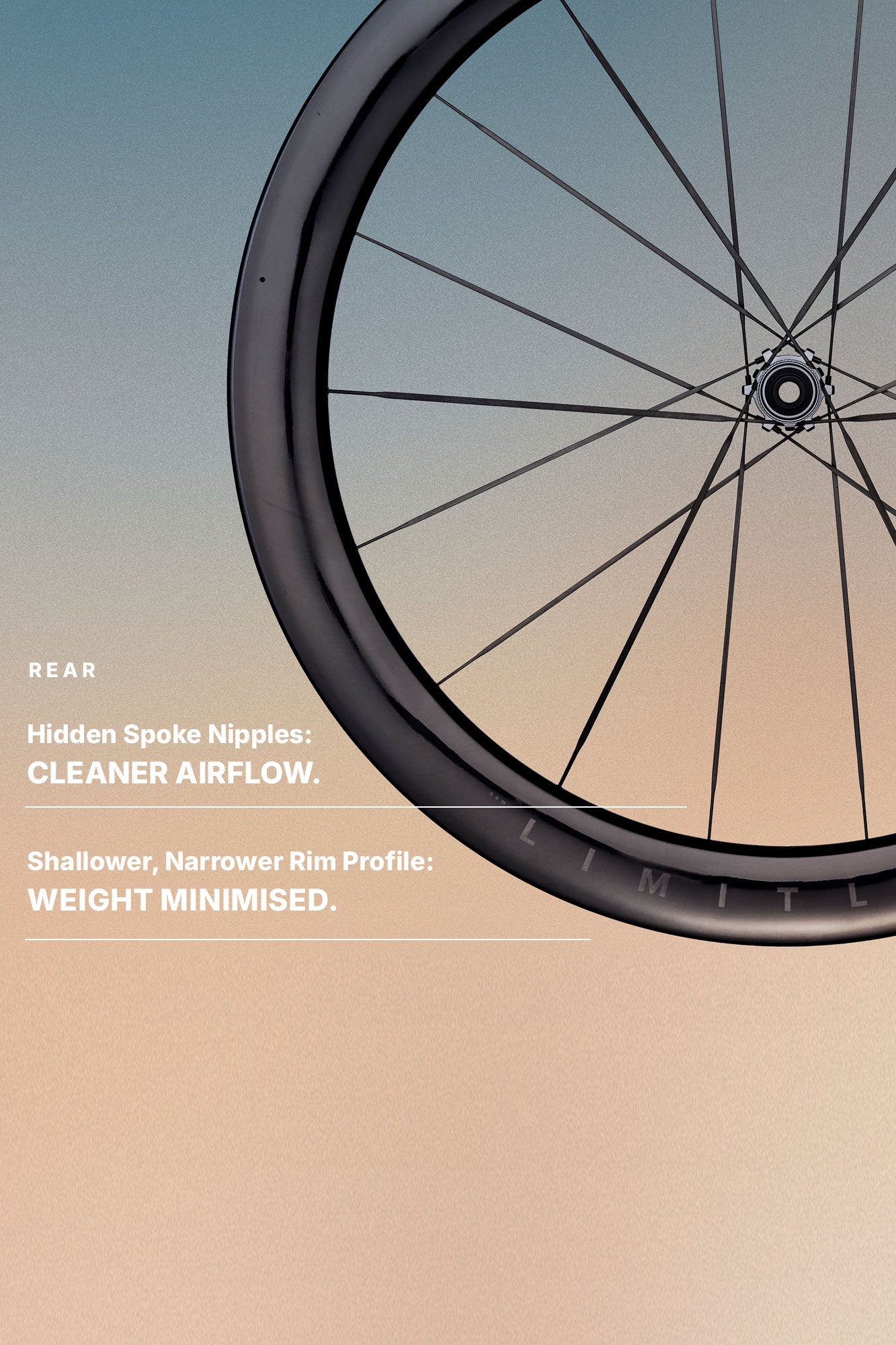

Hidden Spoke Nipples

Internal spoke nipples further reduce aerodynamic and rotational drag across the wheel system.

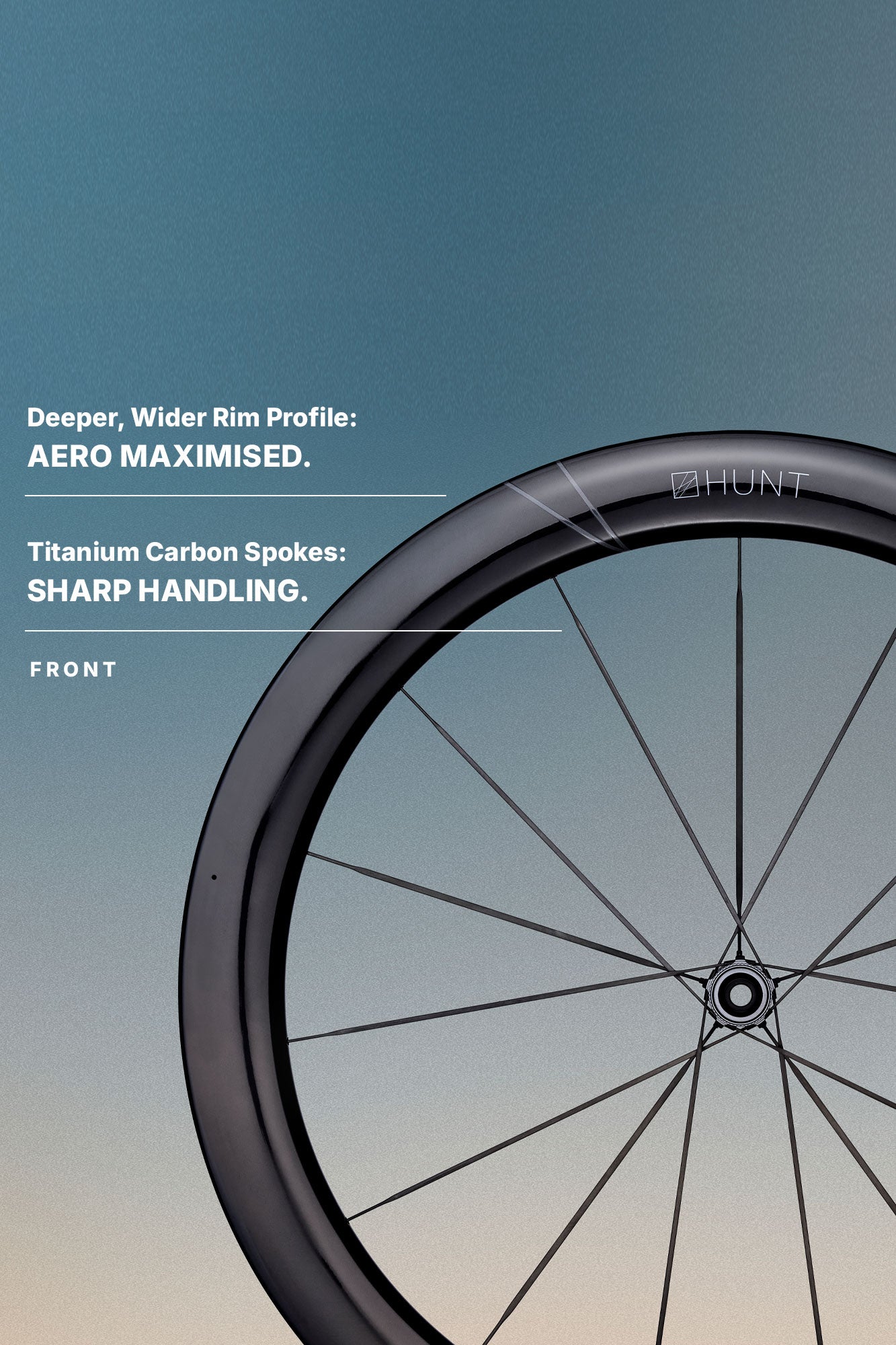

Limitless Aero Maximised Front Rim

HUNT patented Limitless Width Aero Technology enables us to build a rim that possesses wide, blunt dimensions and class-leading aerodynamic and side wind handling characteristics, whilst maintaining a weight that won’t detract from the all-round performance of the wheelset. What does that mean on the road? The wheel carries speed like a deeper wheel, with the stable feel of a shallower wheel.

Chase SLC Hub

The Chase SLC hubset is our premium hubset that has evolved from the race winning 48T DBL ratchet system, developed for our Limitless Road and Gravel Range. Coming in at an astonishing 289g for the pair, a reduction in weight found from the utilisation of higher grade 7075 alloy. This has been tested to withstand over 100,000 cycles at 250Nm of torque, providing exceptional reliability, sprint after sprint.

CeramicSpeed Wheel Bearings

HUNT have partnered with CeramicSpeed to exclusively bring a yet-to-be-released wheel bearing offering the optimal balance between performance and durability to the wheelset. Hand-built in Denmark, these bearings feature a ceramic ball with stainless steel bearing race for industry-leading performance.

Covered by CeramicSpeed's lifetime warranty.

What's in the box.

HUNT BlackShield tubeless tape fitted to wheels.
The axle adapters needed for your bike, just fill in the simple form shown after order completion. The form is also included in your order confirmation page.
Cassette spacer for 8/9/10 speed and XDR-XD compatibility.
Tyre insert compatible tubeless valves with valve core removal endcap. 80mm front, 60mm rear.
Colour-matched brake disc rotor lockrings, cassette tool fitment.
Pair of HUNT padded wheel bags.
Quality control card signed by your wheel builder.

Warranty.

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. Read all about it here.

A full 3 years (4 years on CeramicSpeed bearings*) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 120 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 100 kg then an experienced bike mechanic should check the wheel regularly.
