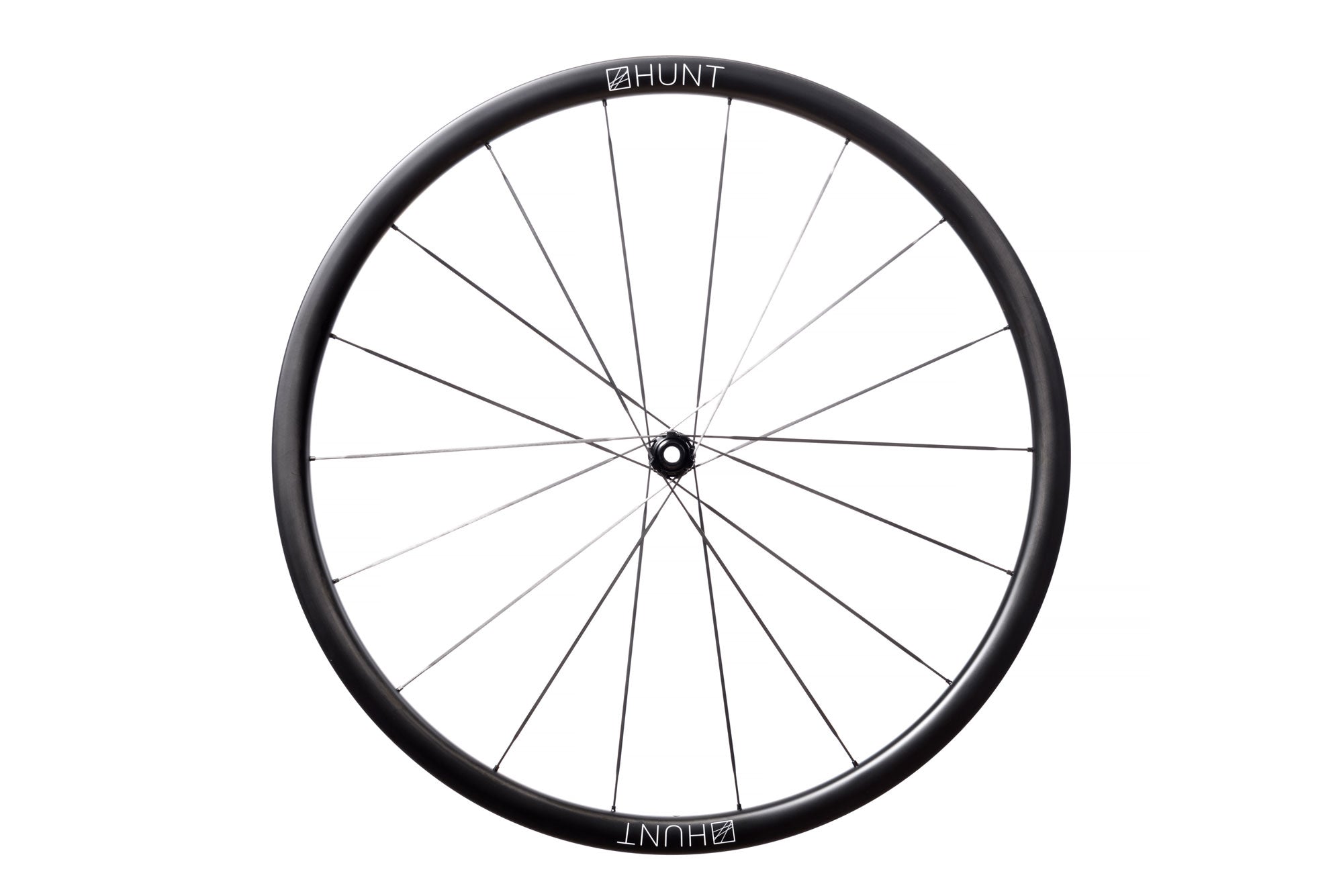

HUNT Hill Climb SL Disc Tubular Wheelset
30 Deep | 26 Wide Ext | Tubular | 936g
Sub-1000 Gram Tubular Disc Brake Wheelset for Hill Climb Racing.
30 DEEP | 26 WIDE EXT | TUBULAR | 963G
The Purpose
Inspired by the passionate British Hill Climb community and developed with input from HUNT-supported athletes, the Hill Climb SL Disc is a hyperlight and minimalist tubular disc-brake wheelset designed specifically for smashing KOMs and PRs from your local wall to the national championships.
Ready for the next generation of ultralight disc brake-equipped road bikes, with 30mm deep carbon tubular rims, fully true-able and replaceable UD carbon TaperLock spokes and an ultralight HUNT H_Ratchet UD SL hubset with 9-degree engagement, the wheelset comes in at an ultra-light 963 grams.
Disc-specific tubular profile. Important; please note these are for Tubular tyres only and will not work with normal clincher or Tubeless tyres.
TaperLock UD Carbon Spoke Technology
HUNT first launched UD Carbon Spoke wheelsets in late 2019, utilizing the now-proven TaperLock carbon spoke technology. The TaperLock system offers riders fully serviceable carbon-spoked wheels that can be trued like any other. With significant increases in lateral responsiveness (see testing info), they have been engineered to provide a responsiveness-to-weight ratio previously unseen on serviceable wheels that delivers your power to the road as effectively as possible.
Tubular Carbon Rims
Working with the world’s best carbon rim suppliers, the HUNT team developed this lightweight climbing wheelset with an ultralight but robust 30mm-deep wheelset that offers a 26mm width, ideal for modern width tubular tyres capable of providing the traction needed to fly up steep hills, and the strength required to get back down safely. Disc-specific tubular profile. Important; please note these are for Tubular tyres only and will not work with normal clincher or Tubeless tyres.

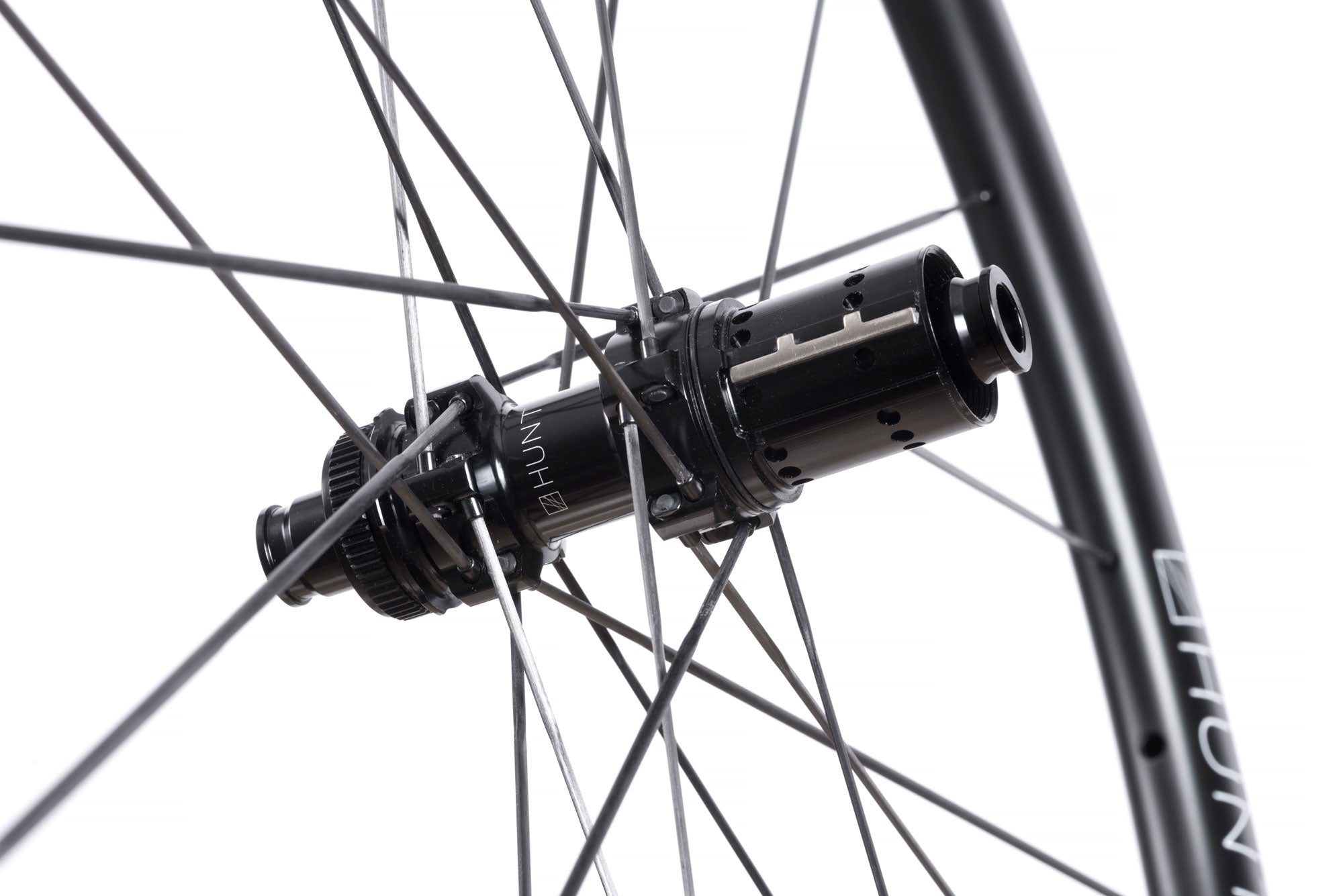

H_Ratchet UD SL Hubset
CNC’d 6066-T6 heat treated aluminium alloy body, the H_Ratchet UD SL hubset takes minimalism to a level not-yet-seen from production wheelsets. The 40-tooth ratchet drive offers 9-degree engagement with pop out end caps for easy serviceability and a drilled out high-strength axle and freehub body (Shimano HG) for further weight reduction. The HG freehub body includes the HUNT signature anti-bite steel insert for protection against cassette gouging, with alloy splines removed to save precious grams.
The Purpose
Inspired by the passionate British Hill Climb community and developed with input from HUNT-supported athletes, the Hill Climb SL Disc is a hyperlight and minimalist tubular disc-brake wheelset designed specifically for smashing KOMs and PRs from your local wall to the national championships.
Ready for the next generation of ultralight disc brake-equipped road bikes, with 30mm deep carbon tubular rims, fully true-able and replaceable UD carbon TaperLock spokes and an ultralight HUNT H_Ratchet UD SL hubset with 9-degree engagement, the wheelset comes in at an ultra-light 963 grams.
Disc-specific tubular profile. Important; please note these are for Tubular tyres only and will not work with normal clincher or Tubeless tyres.
TaperLock UD Carbon Spoke Technology
HUNT first launched UD Carbon Spoke wheelsets in late 2019, utilizing the now-proven TaperLock carbon spoke technology. The TaperLock system offers riders fully serviceable carbon-spoked wheels that can be trued like any other. With significant increases in lateral responsiveness (see testing info), they have been engineered to provide a responsiveness-to-weight ratio previously unseen on serviceable wheels that delivers your power to the road as effectively as possible.
Tubular Carbon Rims
Working with the world’s best carbon rim suppliers, the HUNT team developed this lightweight climbing wheelset with an ultralight but robust 30mm-deep wheelset that offers a 26mm width, ideal for modern width tubular tyres capable of providing the traction needed to fly up steep hills, and the strength required to get back down safely. Disc-specific tubular profile. Important; please note these are for Tubular tyres only and will not work with normal clincher or Tubeless tyres.
H_Ratchet UD SL Hubset
CNC’d 6066-T6 heat treated aluminium alloy body, the H_Ratchet UD SL hubset takes minimalism to a level not-yet-seen from production wheelsets. The 40-tooth ratchet drive offers 9-degree engagement with pop out end caps for easy serviceability and a drilled out high-strength axle and freehub body (Shimano HG) for further weight reduction. The HG freehub body includes the HUNT signature anti-bite steel insert for protection against cassette gouging, with alloy splines removed to save precious grams.
Key Features
OUR SUB-1000G NO-COMPROMISE HILL CLIMB RACE WHEELSET
- Rims | 700c Toray T700/T800 carbon-fibre tubular. Unidirectional sidewalls with 3K weave reinforced bed and spoke areas. 30mm deep, 26mm wide aero U-profile.
- Tyres | Tubular. The 26mm external rim width is optimised for 23-28 tubular tyres. Please note - not suitable for normal clincher or tubeless tyres.
- Hubs | H_Ratchet UD SL Hubs add strength and enhance power transfer, meaning more of your power pushing you forwards. 40-tooth ratchet drive offers 9-degree engagement with pop out end caps for easy serviceability and a drilled out high-strength axle and freehub body (Shimano HG) for further weight reduction. Center-lock brake mount. Please note: If you require a 6 bolt adaptor you can purchase separately here
- Spokes | TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change. Click here to see all axle sizes.
- Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
- Included | Axle adapters (please fill in the simple form after checkout to select your required size)
- Weight | 963g
- See the full specs here
Full Specs
Rims
- Disc-specific tubular profile. Important; please note these are for Tubular tyres only and will not work with normal clincher or Tubeless tyres.
- Toray T700/T800 carbon-fibre tubular. Unidirectional sidewalls with 3K weave reinforced bed and spoke areas.
- 26mm width, optimised for 23-28c tubular tyre widths.
- 30mm depth.
- Matt black base finished with matt white contrasting graphics.
Spokes
- UD Carbon Spokes
- TaperLock nipples secure spokes head to the hub
- 2.7g per spoke
- 18 front (1 cross on rotor side, radial on drive side)
- 20 rear (2 cross)
Nipples
- TaperLock nipples secure spoke head to the hub.
- Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing.
- Internal nipple for truing.
- Black anodized finish.
Tyres Info
- Optimised for 23-28c road tubular tyres
- Can take anything down to 23c and up to 34c
- Please do not exceed the maximum pressure stated on your tyres
- Suitable for tubular tyres only
Axle Sizes
These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:
- Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
- Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.
Front Hub
- HUNT H_Ratchet UD SL designed for race use.
- CNC’d 6066-T6 heat treated aluminium alloy body
- Polished anodized black finish with laser graphics.
- Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Rear Hub
- HUNT H_Ratchet UD SL straight-pull hubs.
- Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 40 tooth ratchet drive hub for a fast 9-degree engagement and instant acceleration.
- All freehub standards accounted for.
- 7075-T6 aluminium alloy axles.
- CNC’d 6066-T6 heat treated aluminium alloy body.
- Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.
Bearings
- Stainless Steel
- Low friction to further reduce rolling resistance
- Incredibly fast rolling
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 95kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 80Kgs then an experienced bike mechanic should check the wheel regularly. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer H_CARE (Free Lifetime Crash Replacement) on these wheels.

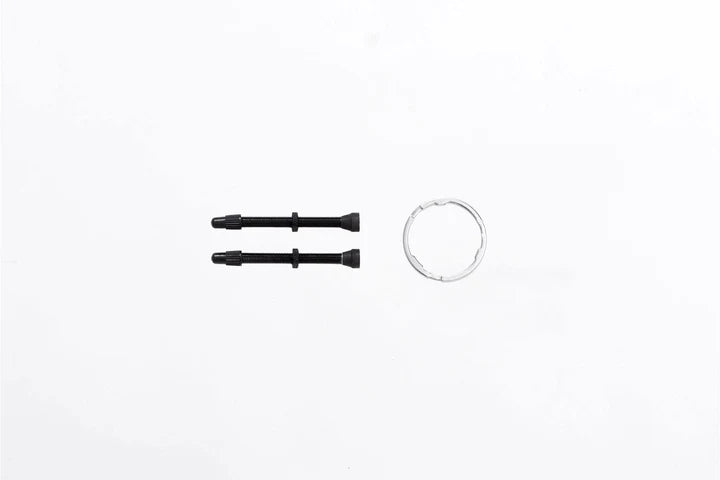

In the Box
Contents
- The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
- Cassette spacer for 8/9/10 speed
- Quality control card signed by your wheel builder
