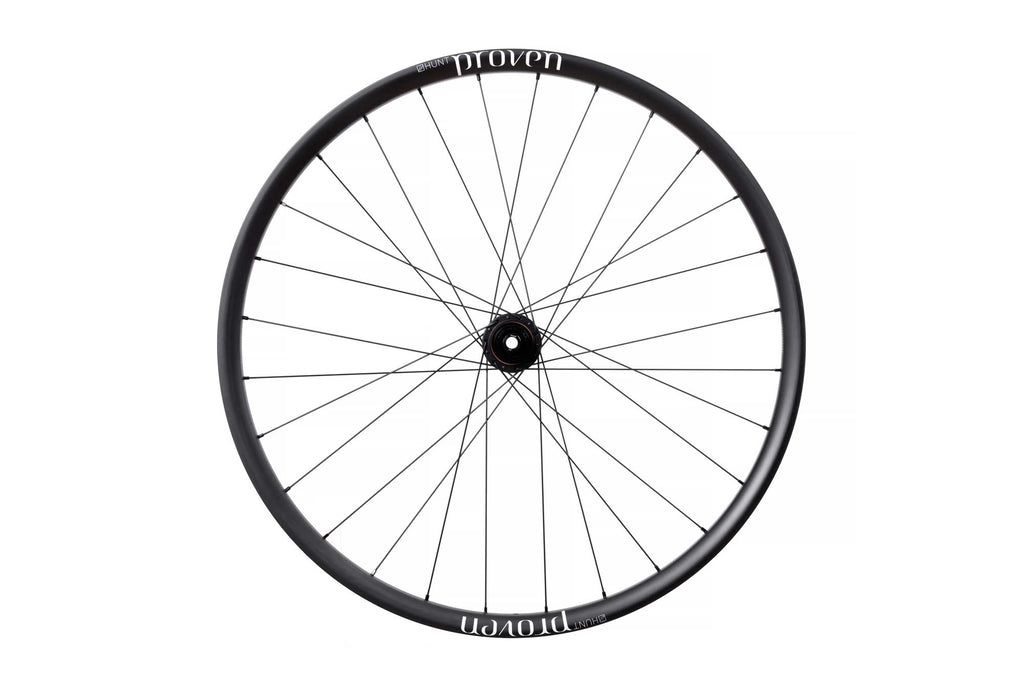

HUNT Proven Carbon Enduro H_Core MTB 29 Rear Wheel

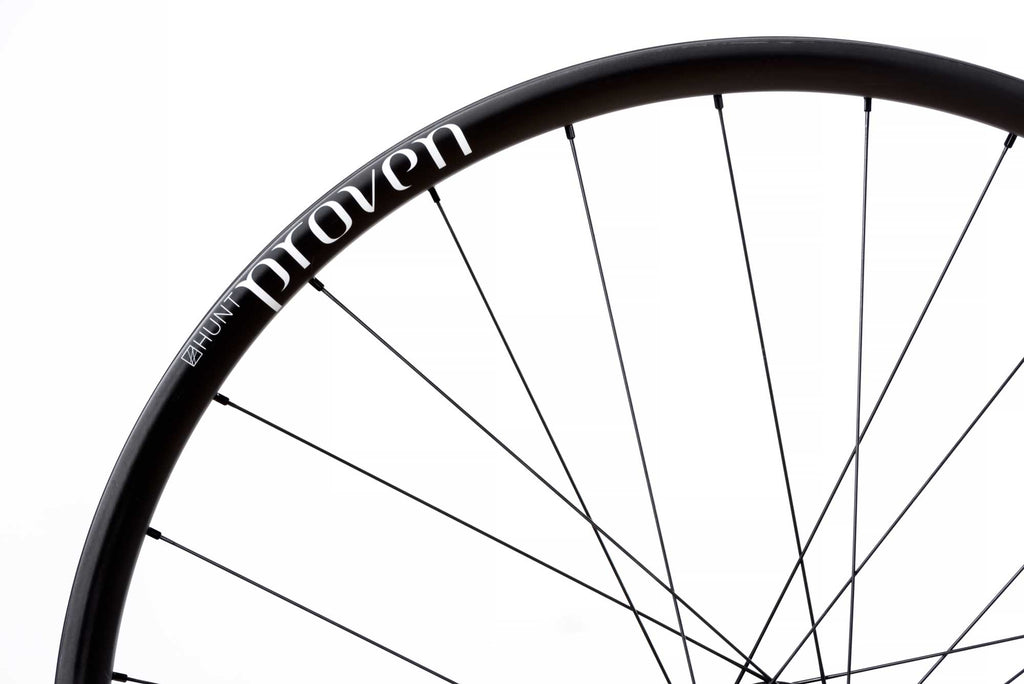

HUNT Proven Carbon Enduro H_Core MTB 29 Rim

NEW 10% off

HUNT Proven Carbon Enduro H_Core V2 MTB 29 Wheelset

1944g	Width ext	Width int	size
1944g	38 mm	F31 / R30 mm	29

A hard-hitting carbon wheelset for technical and fast, enduro-style riding, backed by H_Care lifetime crash replacement.

Front and rear-specific rim profiles and carbon layups offer tuned ride characteristics. Both rims have been completely redesigned and bolstered with new H_Core reinforcement technology to add strength, hand laced with triple butted spokes around the race-validated Rapid_Engage 17 hub system.

Tyre size: Optimized for 2.4"-2.6" tyres; work well with 2.25" up to 2.8" tyres

Freehub

Spacing

£1,034.10 £1,149.00

10% off

Limited Stock. Available Now.
29" (6-bolt) / Boost - Limited StockItems are selected to ship from us in the week stated. Delivery time is 1 day*

We will ask for axle info after checkout.

Choose your finance options at checkout:

Order by 3pm for Next Day Delivery (if shown in stock). Allow 1-3 days for tyre-fitting.

Our wheels are in high demand, don't miss out.

H_CARE

FREE LIFETIME CRASH REPLACEMENT

To ensure you're not out of pocket should the worst happen. Learn more.

More details

The Purpose _

<h1>Spokes</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. Whatsmore the spokes feature a different gauge front and rear to further enhanced the tuned nature of Race Enduro.</i>

The Purpose _

Engineered and updated to strike the perfect balance of comfort, control, and durability. Built for the hardest-hitting terrain, where precision and strength are essential, and backed by the HUNT H_Care lifetime crash replacement policy and best-in-class rider support.

With front and rear-specific carbon layups, rim profiles, and spoke thickness, the Proven Carbon Enduro H_Core delivers a tuned ride feel for maximum control. The front wheel offers comfort and precision to hold a line, with a 31mm internal channel. The rear wheel is reinforced with 3.8mm sidewalls for strength and pinch-flat protection, with a 30mm internal channel and even stronger spokes for hard impacts. These design details and custom internal rim widths help you keep traction and confidence when riding blind at pace. Both carbon rims have been redesigned since the previous iteration, and now feature new-to-market H_Core reinforcement technology, which significantly increases impact resistance by fortifying the rim bed and sidewall junction in the rim moulding process. To learn more about H_Core technology, click here.

The Rapid_Engage freehub system offers a quick 4.3-degrees engagement angle, ensuring fast response when tackling steep climbs or sprinting out of corners. The H_Care lifetime free crash replacement offers peace of mind that your wheels are built to handle whatever you throw at them, and are backed by best-in-class rider support.

KEY FEATURES_

Re-Engineered Tuned Carbon Rims

Our ride-tuned front and rear layup and carbon weaves have been completely redesigned for higher strength, while maintaining tailored front and rear-specific ride characteristics.

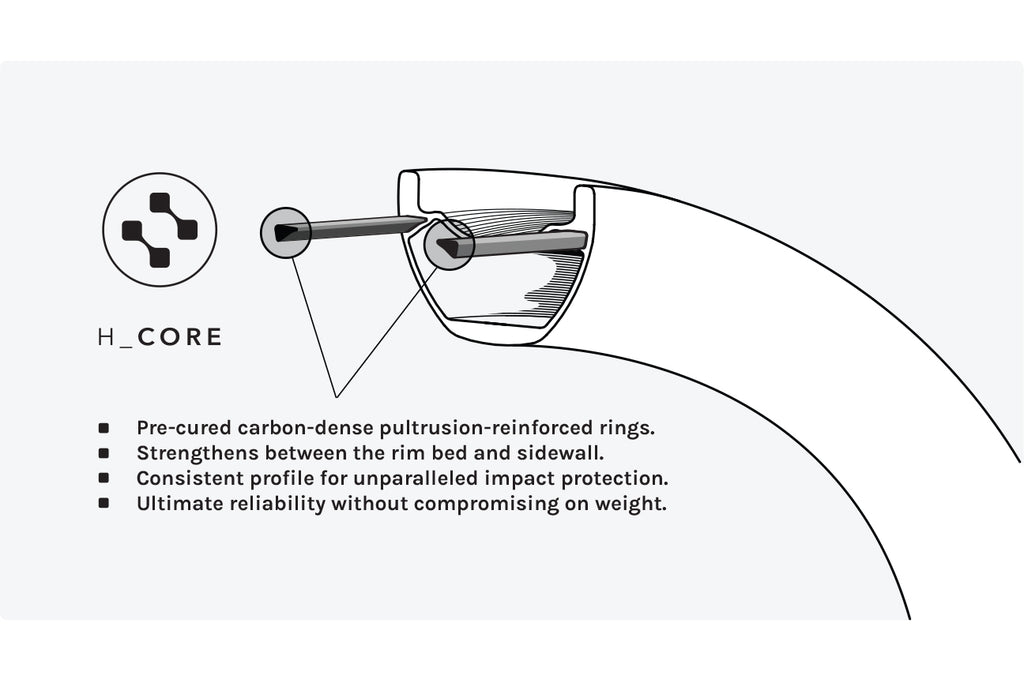

H_Core

H_Core is a pre-moulded, pultruded and highly compacted carbon fibre core component used to reinforce the junction between the rim bed and sidewall on each side of the rim during the rim moulding process.

Oversized Bead

Pinch flats can ruin any ride. Based on rigorous in-house testing and rider feedback, we've increased the bead thickness of the rear rim to 3.8mm, significantly enhancing tyre protection against snake bites.

Rapid_Engage 17 Rear Hub

Fast engagement paired with dependability. The Rapid_Engage 17 hubset combines an oversized 17mm-wide external diameter 7075-T6 axle with a 42-tooth Steel ratchet ring to increase system stiffness, reducing bearing load and thus further increasing bearing life. Rapid 4.3° engagement angle puts your power straight to the ground.

TECHNOLOGY _

The addition of the H_Core reinforcement technology significantly increases impact resistance of the rims compared to the previous iteration, by ensuring consistent carbon and resin construction, creating a more compacted structure, free of voids or pockets. As a new-to-market technology, HUNT is the first to bring this advancement to carbon rim manufacturing. Tested and developed by our engineers in the UK, H_Core has undergone industry-leading in-house impact tests and real-world rider testing, with H_Core rims enduring multiple EDR World Enduro events.

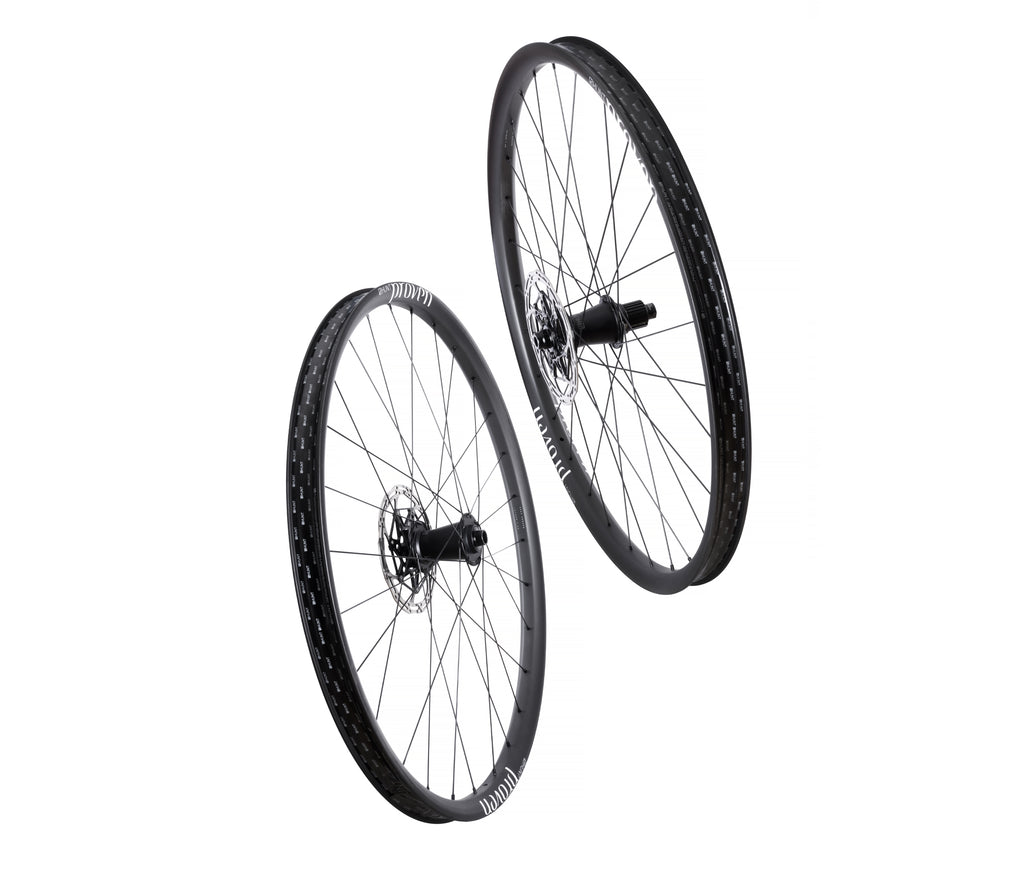

Full Specs _

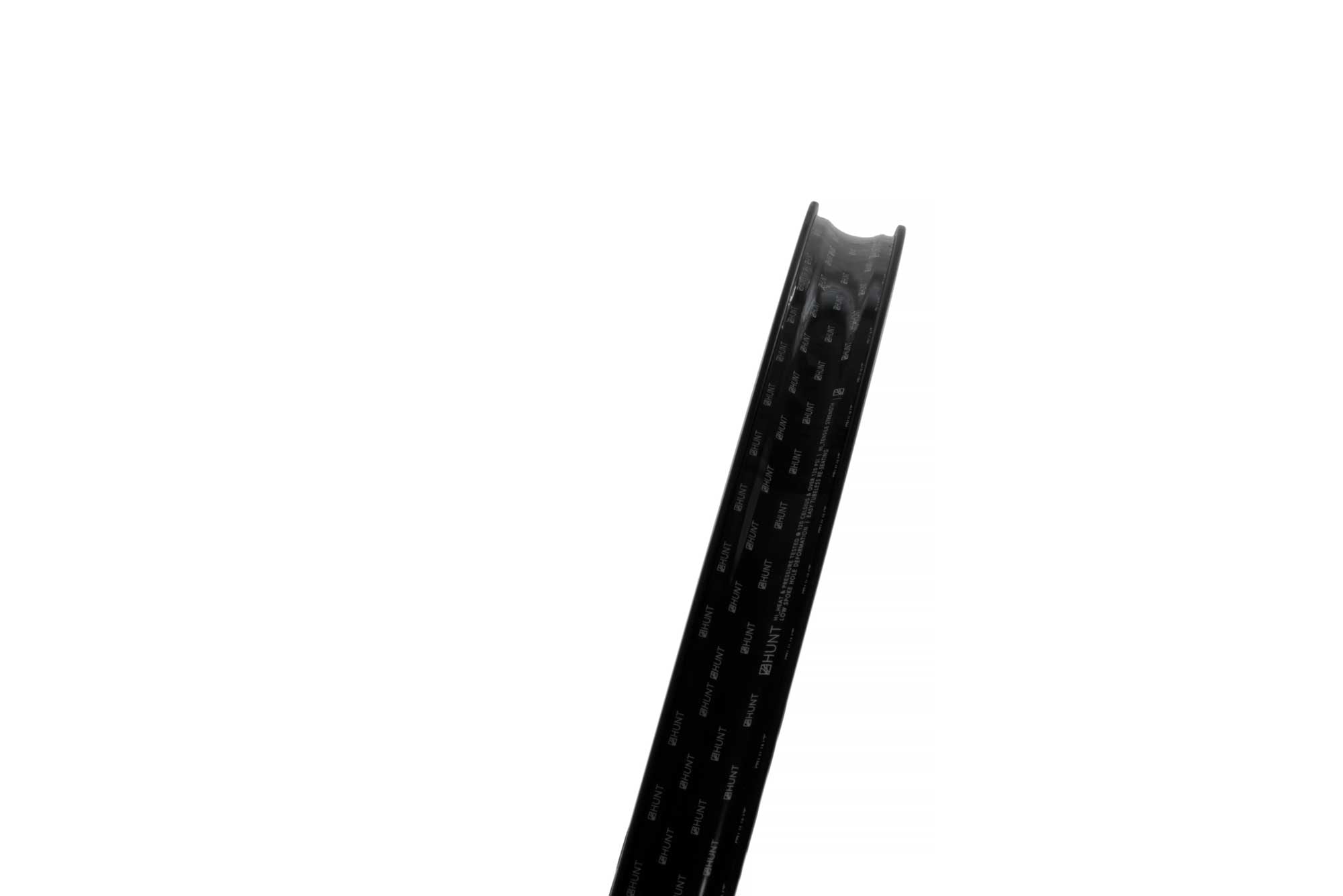

Rims

Hookless, 31.5/30mm internal rim width, 38mm external and 23mm depth 3.8mm rear rim side wall/bead width for added pinch flat puncture resistance H_Core internal carbon insert which increases density of fibres for greater strength. Tubeless-ready – designed to work excellently with tubeless tyres. Tubeless-rim tape and valves included. H-lock bead-seat up-kicks for easy and secure tubeless installation.

Hookless, 31.5/30mm internal rim width, 38mm external and 23mm depth
3.8mm rear rim side wall/bead width for added pinch flat puncture resistance
H_Core internal carbon insert which increases density of fibres for greater strength.
Tubeless-ready – designed to work excellently with tubeless tyres. Tubeless-rim tape and valves included.
H-lock bead-seat up-kicks for easy and secure tubeless installation.

Spokes

J-bend cold drawn. Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden. Front Spokes are Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement) Rear Spokes are Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement) 28(F) & 28(R) spokes laced 3 cross front and rear. Black stainless treatment.

J-bend cold drawn.
Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
Front Spokes are Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement)
Rear Spokes are Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement)
28(F) & 28(R) spokes laced 3 cross front and rear.
Black stainless treatment.

Nipples

Hard-anodized alloy. Lightweight DSN (double square nipple) body for external adjustment and hex head for easy internal adjustment/tensioning. Long 16mm thread for durability. 14 gauge. Black hard-anodized finish.

Hard-anodized alloy.
Lightweight DSN (double square nipple) body for external adjustment and hex head for easy internal adjustment/tensioning.
Long 16mm thread for durability.
14 gauge.
Black hard-anodized finish.

Tyres Info

HUNT recommends a 2.4"-2.6" tyre for best performance, tyre widths between 1.9" and 2.8" are also safe to use. Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

HUNT recommends a 2.4"-2.6" tyre for best performance, tyre widths between 1.9" and 2.8" are also safe to use.
Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
Tubeless-ready for lower weight and rolling resistance.

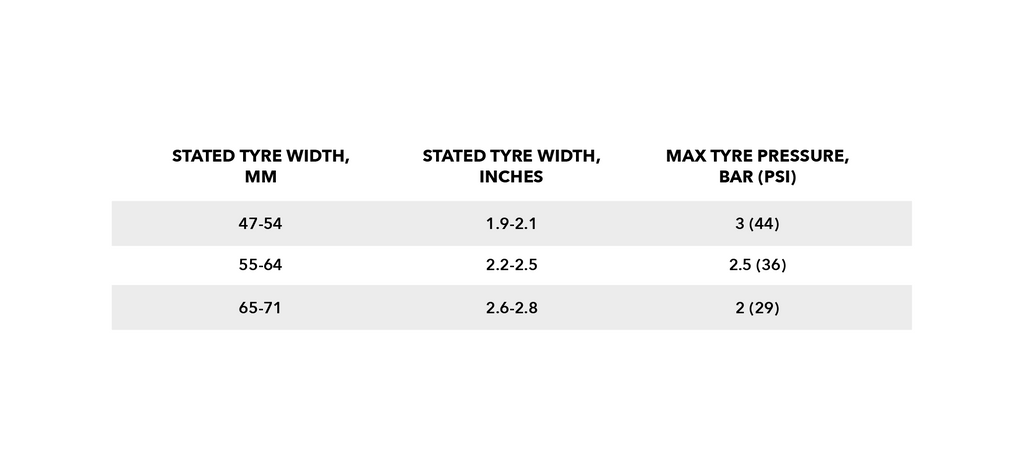

You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

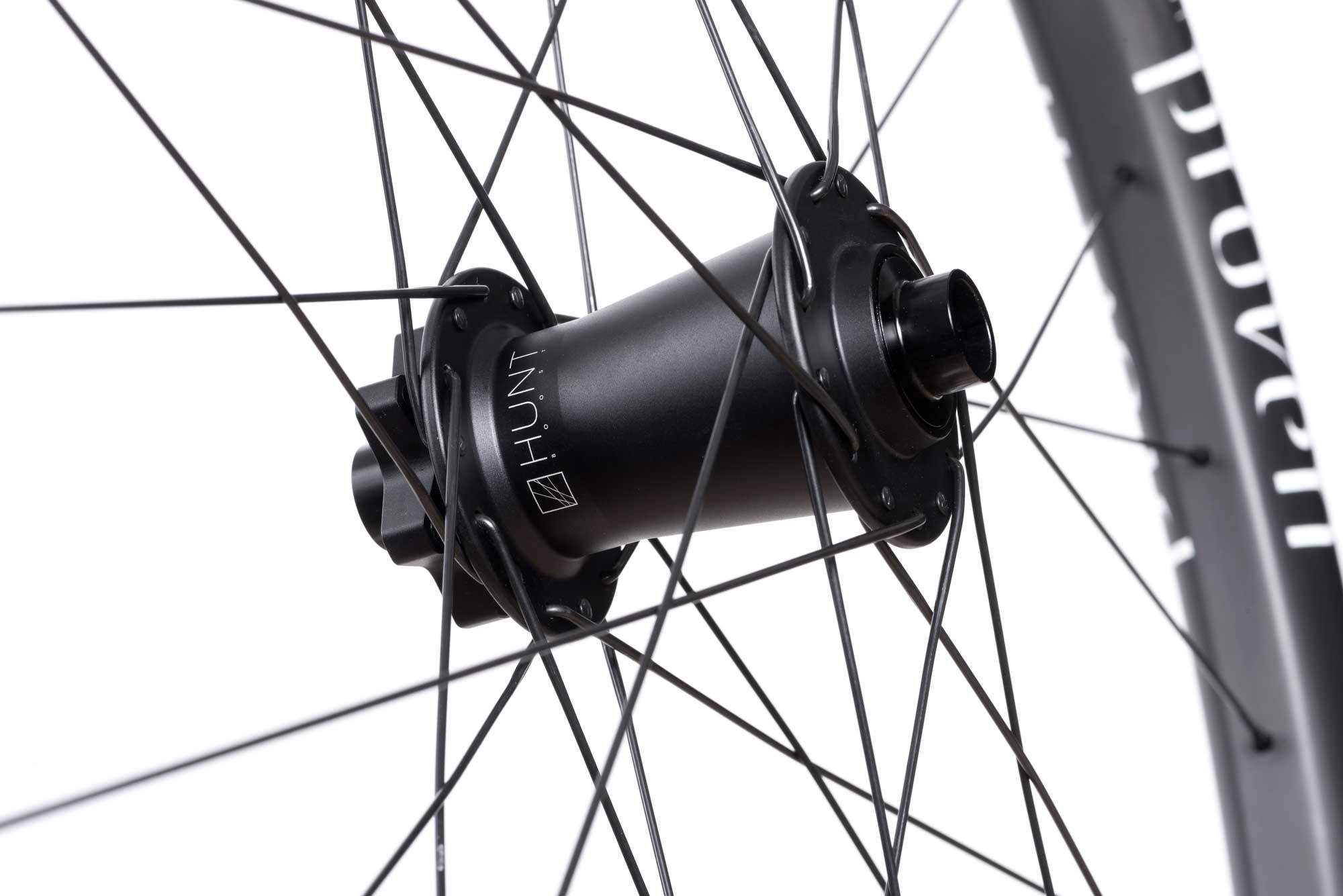

Front Hub

Forged and CNC’d 6066 -T6 heat treated aluminium alloy body. 110x15mm spacing. Rock Shox Torque Caps for Boost option available - request in notes at checkout. 7075-T6 aluminium alloy axles. 6 bolt disc mount. Sandblasted anodised black finish with laser graphics.

Forged and CNC’d 6066 -T6 heat treated aluminium alloy body.
110x15mm spacing. Rock Shox Torque Caps for Boost option available - request in notes at checkout.
7075-T6 aluminium alloy axles.
6 bolt disc mount.
Sandblasted anodised black finish with laser graphics.

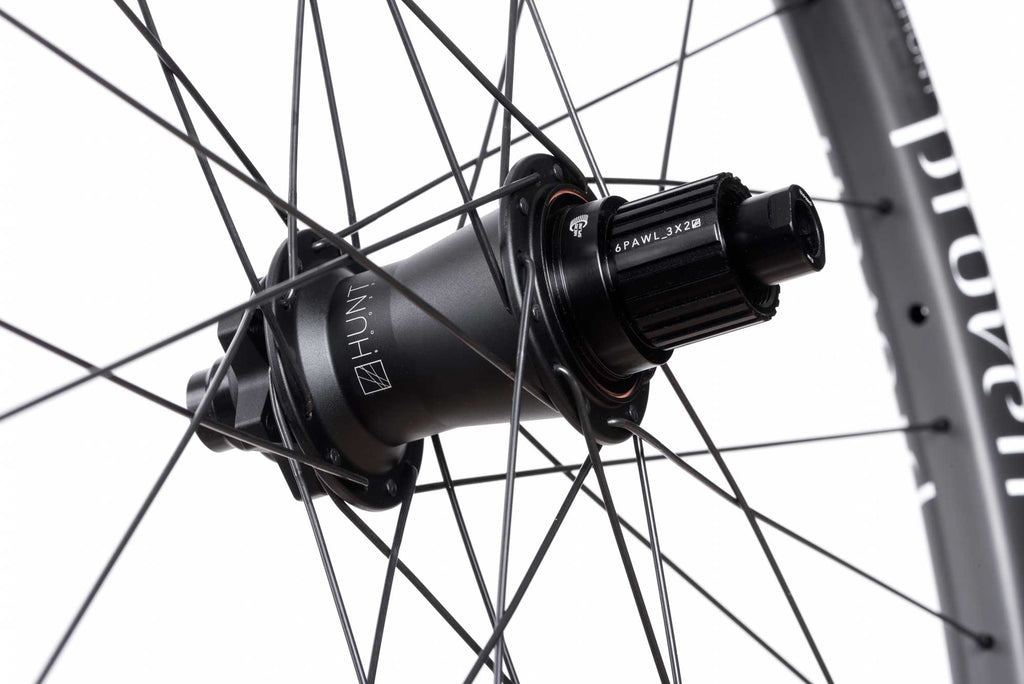

Rear Hub

Forged and CNC’d 6066-T6 heat treated aluminium alloy hub body. Rapid_Engage system: 84 points of engagement, 4.3 degree engagement angle, 6 pawl 3x2 freehub for increased resistance to the extra torque generated. H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. 148x12mm spacing (Boost) 6 bolt disc mount All freehub standards accounted for. Sandblasted anodised black finish with laser graphics.

Forged and CNC’d 6066-T6 heat treated aluminium alloy hub body.
Rapid_Engage system: 84 points of engagement, 4.3 degree engagement angle, 6 pawl 3x2 freehub for increased resistance to the extra torque generated.
H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
148x12mm spacing (Boost)
6 bolt disc mount
All freehub standards accounted for.
Sandblasted anodised black finish with laser graphics.

Bearings

Super smooth precision stainless steel cartridge bearings. Dual full-contact seals. Cartridge design for convenient servicing.

Super smooth precision stainless steel cartridge bearings.
Dual full-contact seals.
Cartridge design for convenient servicing.

Axle Sizes

Boost - 148x12mm with 110x15mm (Front). Rock Shox Torque Caps available - request in notes at checkout. SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible. *Shimano Microspline & Campagnolo CN3W is only available in 12x142mm

Boost - 148x12mm with 110x15mm (Front). Rock Shox Torque Caps available - request in notes at checkout.
SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible.

*Shimano Microspline & Campagnolo CN3W is only available in 12x142mm

HIGH SPECIFICATION COMPONENTS _

All-new H_Core reinforcement technology increases impact resistance significantly over the previous iteration. The front rim is designed for precision handling, featuring a 31.5mm-wide internal profile that enhances tracking and grip on technical terrain. Out back, the rear rim (30mm internal width) is engineered for strength and durability, with a reinforced layup and oversized 3.8mm sidewall dimensions to reduce the risk of pinch flats and enhance impact resistance.

Spokes

We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. Whats more the spokes feature a different gauge front and rear to further enhance the tuned nature of the Proven Carbon Enduro H_Core wheelset.

Nipples

Keeping weight to a minimum, we use hard-anodized alloy nipples. Known for their strength and durability, our nipples won't let you down in the middle of the trail and feature square internal and external heads for ease of maintenance and adjustment.

Freehub Body

Available with SRAM XD, Shimano Microspline or HG freehubs. Extra thick 17mm 7075-T6 axles for increased strength and stiffness. Reducing flex in the hub also helps to increase bearing life.

Bearings

Our precision CNC hubs house double-sealed precision cartridge bearings, providing long service intervals. In addition, the free-spinning bearings maintain low levels of friction for an ultra-efficient ride and long life.

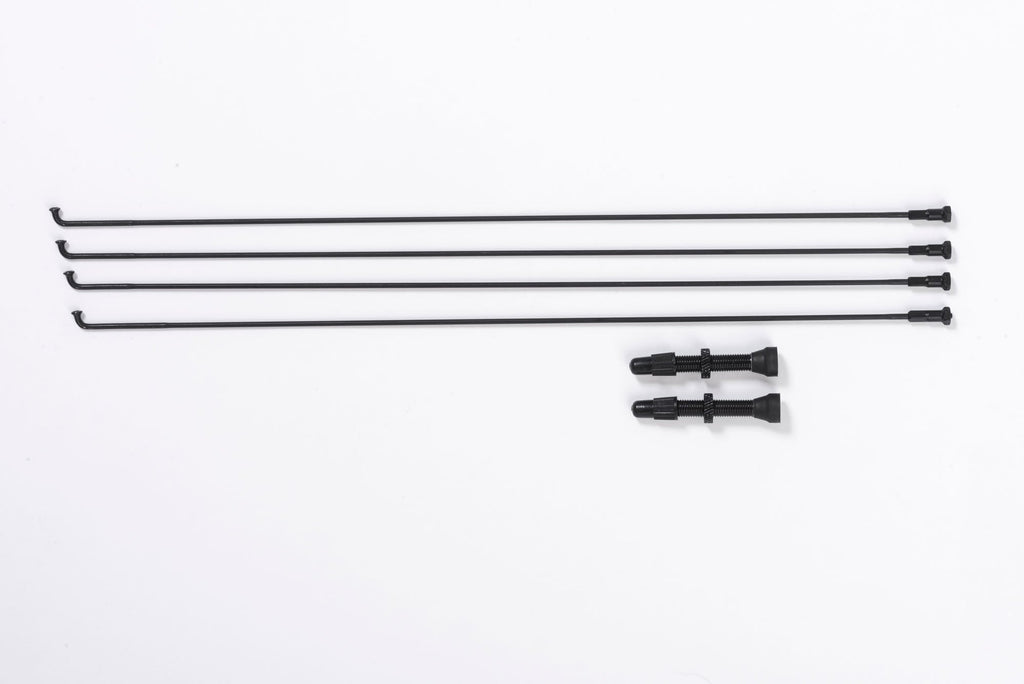

What's in the box _

Black Shield PET high tensile strength tubeless tape fitted to wheels.
Freehub fitted
45mm Tubeless Valves
Spare of each spoke plus nipples
Quality control card signed by your wheel builder

Our riders also bought_

WARRANTY_

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners when used with single crown forks. Read all about it here.

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. Max system weight 135kg (system weight : total weight of fully kitted up rider, bike and luggage). If a rider is over 125Kgs then an experienced bike mechanic should check the wheel regularly.
