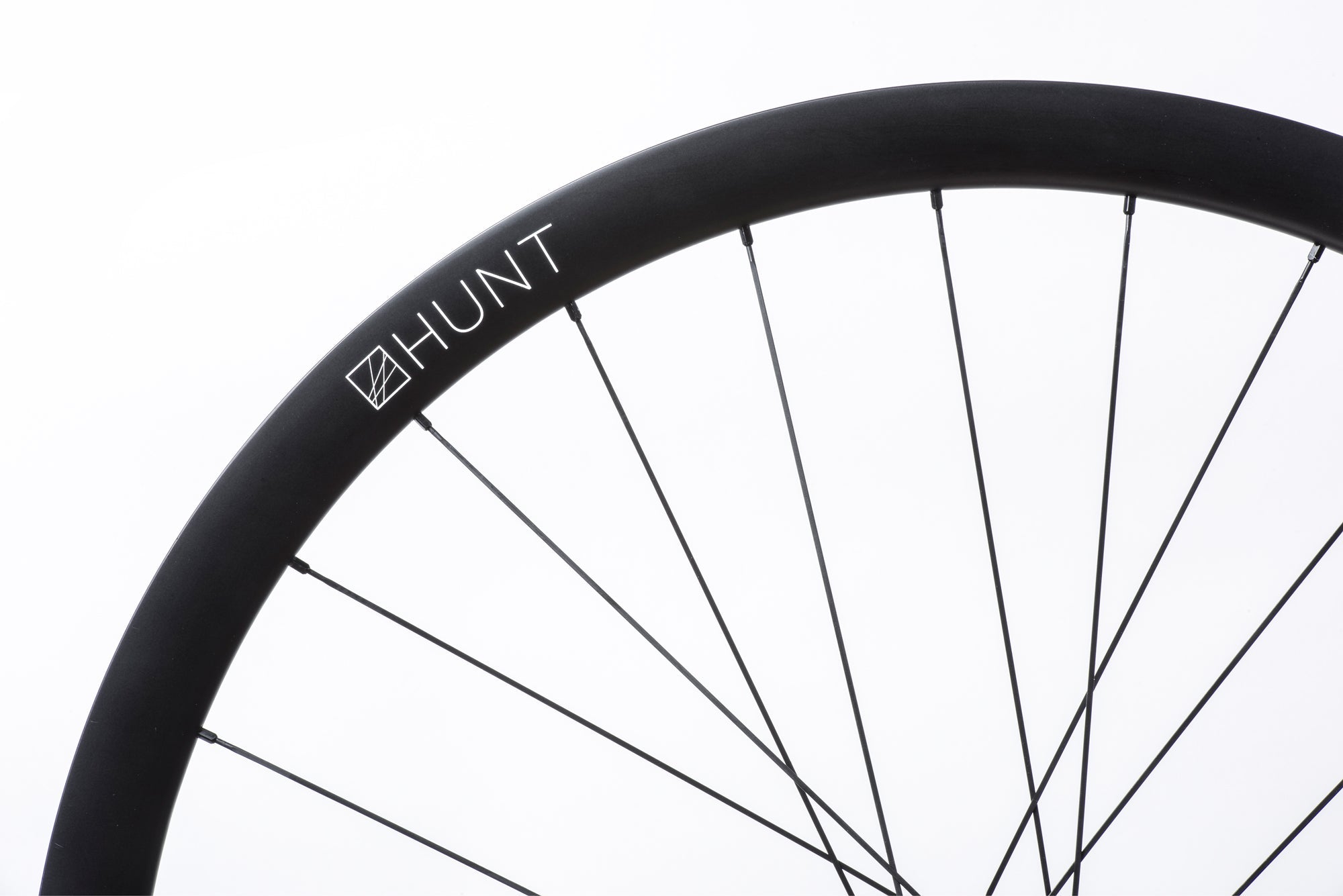

<h1>Rims</h1><i>A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The wide aero profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim-brake rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tyre and spoke forces.</i>
<h1>Spokes</h1><i>We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter and provide a greater degree of elasticity to maintain tensions and add fatigue resistance. These PSR J-bend spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.</i>
<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan.</i>
<h1>Freehub Body</h1><i>Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the <em>H_CERAMIK</em> coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Rim Surface</h1><i>V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.</i>

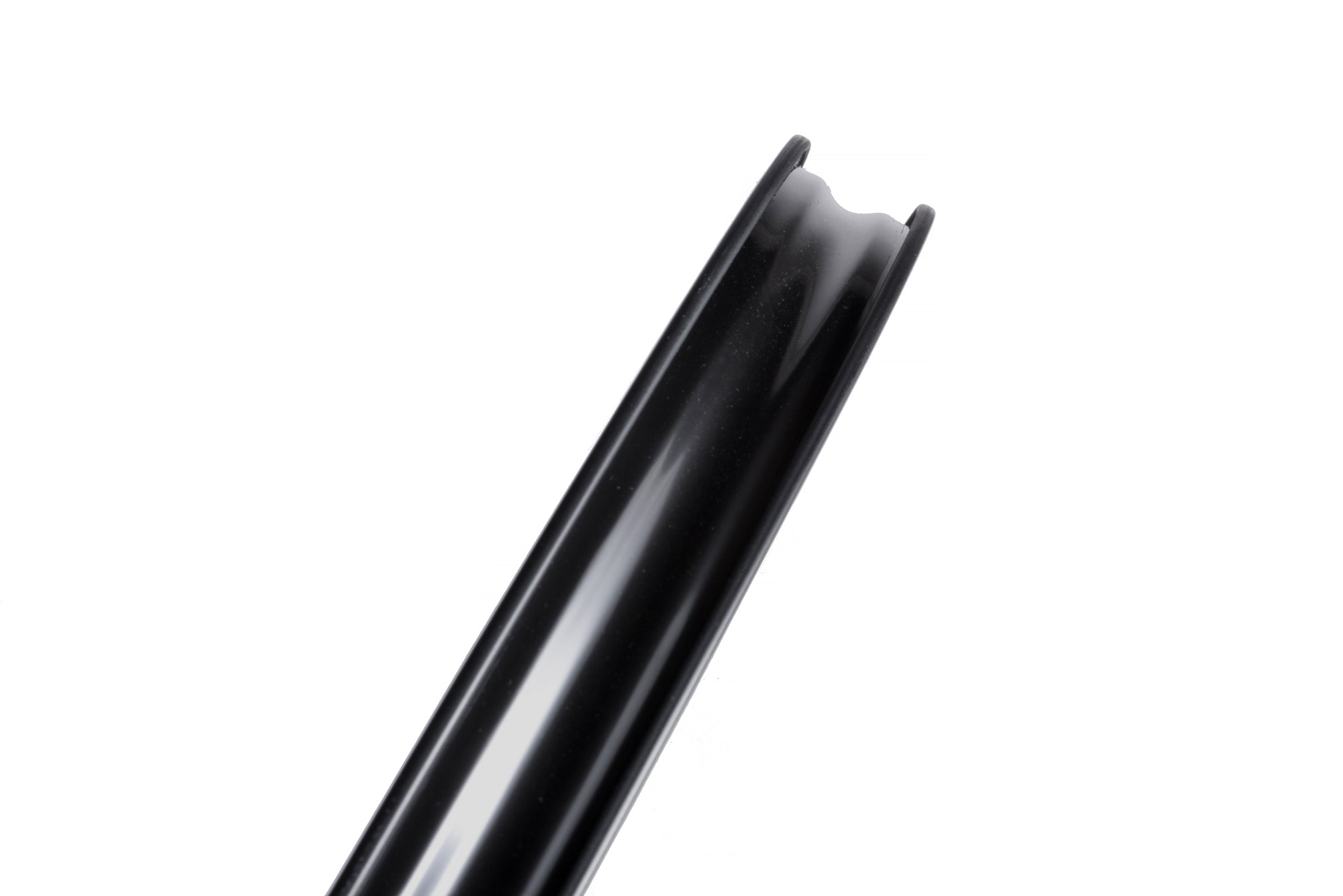

<h1>Rim Bed</h1><i><em>H-LOCK</em> is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The <em>H_LOCK</em> profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout.</i>
<h1>Weight</h1><i>The consequence of the fanatical attention to detail is an outstandingly light 1548 gram wheelset weight. Your acceleration and climbing will be super-charged. There are few, if any disc brake wheels that are designed for the rigours of gravel/CX/heavy-duty road that deliver like the 35 Carbon Gravel X-Wide Disc.</i>
<h1>Tyres</h1><i>At HUNT we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly inner tubes, just use tubes in tubeless ready tyres.</i>

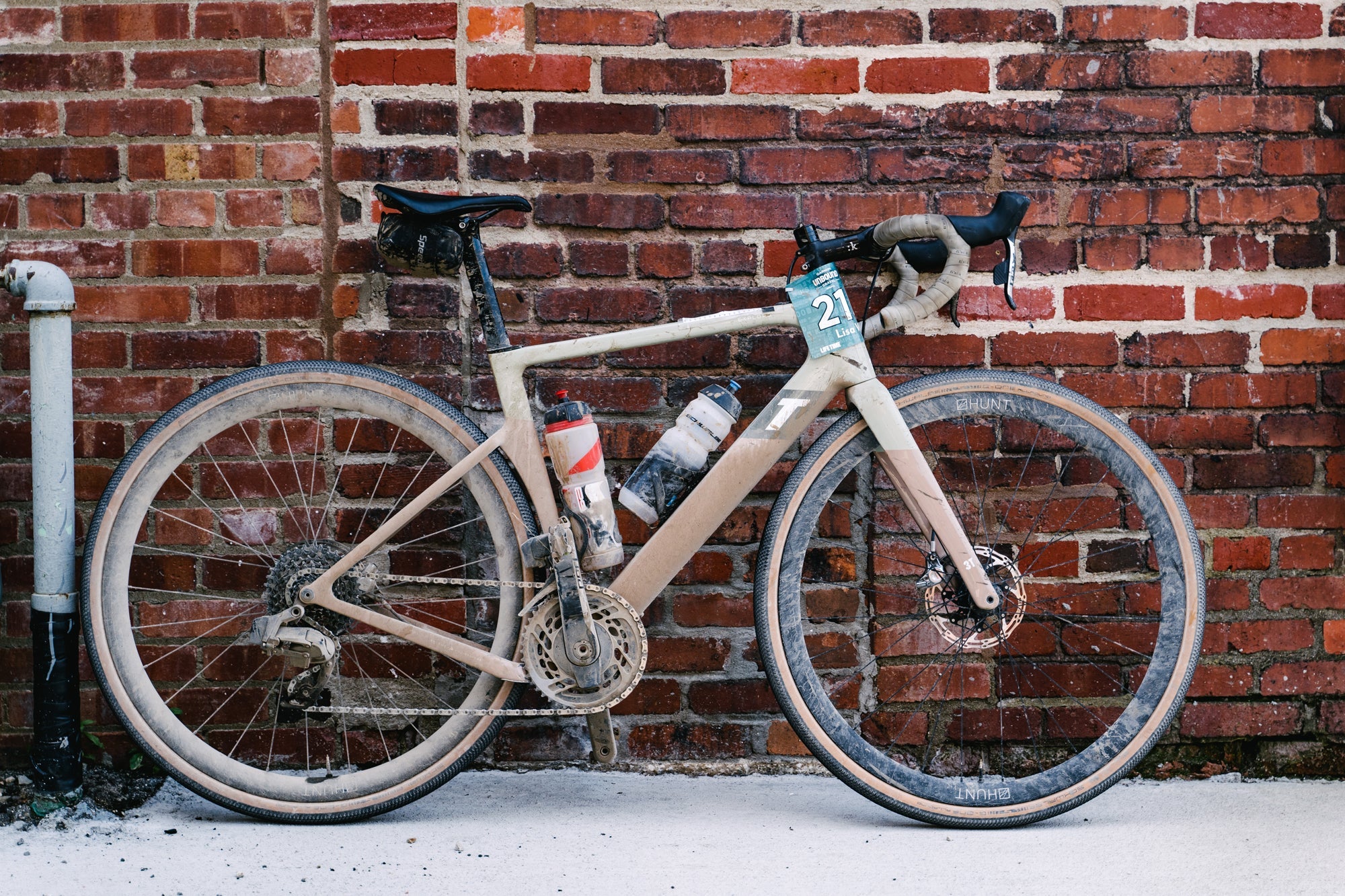

<h1>DREAM BUILD</h1> <i>Team Velocio//Exploro's 3T with 35 Carbon Gravel X-Wide</i>
35% off
Hunt 35 Carbon Gravel X-Wide Wheelset
Hunt 35 Carbon Gravel X-Wide Wheelset
Hunt 35 Carbon Gravel X-Wide Wheelset
<h1>Rims</h1><i>A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The wide aero profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim-brake rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tyre and spoke forces.</i>
<h1>Spokes</h1><i>We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter and provide a greater degree of elasticity to maintain tensions and add fatigue resistance. These PSR J-bend spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.</i>
<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan.</i>
<h1>Freehub Body</h1><i>Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the <em>H_CERAMIK</em> coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Rim Surface</h1><i>V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.</i>
<h1>Rim Bed</h1><i><em>H-LOCK</em> is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The <em>H_LOCK</em> profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout.</i>
<h1>Weight</h1><i>The consequence of the fanatical attention to detail is an outstandingly light 1548 gram wheelset weight. Your acceleration and climbing will be super-charged. There are few, if any disc brake wheels that are designed for the rigours of gravel/CX/heavy-duty road that deliver like the 35 Carbon Gravel X-Wide Disc.</i>
<h1>Tyres</h1><i>At HUNT we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly inner tubes, just use tubes in tubeless ready tyres.</i>
<h1>DREAM BUILD</h1> <i>Team Velocio//Exploro's 3T with 35 Carbon Gravel X-Wide</i>

RE:NEW HUNT 35 Carbon Gravel Disc X-Wide Wheelset

After payment & checkout, we will ask for your freehub and axle information via an automatically generated form.

Which freehub do I need?
£519 £799.00
35% off
Wheels are scheduled to ship from us in the week stated. Delivery time is 1 day*
Finance options available at checkout

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

More details Right

The last word in seriously fast riding across tough gravel. Optimised for wide tyres above 35c, to hit the rough stuff with confidence.

35 DEEP | 30 WIDE EXT | 23 WIDE INT | 1548G

The Purpose

Introducing the Carbon Gravel X-Wide: Carry speed over the seriously rough stuff with confidence on these super-wide rims optimised for wide tyres (40-45c). The 35mm depth was selected for stiffness and burly strength, knowing that you’ll likely be spending plenty of miles off-road.

Read More
Featuring the same 5 degree RapidEngage 6-pawl hub as our 30 Carbon Gravel Disc (inclusive of H_CERAMIK freehub) this wheelset offers riders a more burly option for hardcore gravel/drop-bar off-road riding and racing! Benefitting further from a 28-spoke count both front and rear (for up to 120kg riders), the result is a strong gravel/bike-packing wheelset for the heaviest of duties! The extra-wide rim is ideal for gravel and off-road tyres above 35c, with the ideal width sitting between 40-45c. The minimum tyre width for this wheelset is 28c. Hit the trails, HARD! Read Less

The Experts' View

Cyclist 5 Star Review Logo RoadCC 30Carbon Gravel Disc Five Star Review Logo30 Carbon Gravel Disc Velonews 9/10 Review30 Carbon Gravel Disc Cycling Weekly 9/10 ReviewSingletracks 35 Carbon Gravel Disc X-Wide Wheelset Review

Key Features

Gravel Riding Supremacy

  • Rims | Super-wide (30mm external, 23mm rim bed) unidirectional T24/30, with 3K weave re-enforced spoke holes. Asymmetric and Disc-specific. 35mm deep, ultra-stiff and ready for the burliest of drop-bar off-roading.
  • Tyres | Tubeless-ready for lower weight & rolling resistance, featuring H_LOCK bead-seat for easy and secure tubeless installation. Also works excellently with clincher tyres and tubes.
  • Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. 5 degree RapidEngage 6-pawl freehub, with H_CERAMIK coating for enhanced durability. SRAM XD Driver available. Centre-lock disc mount.
  • Spokes | Pillar PSR reinforced spokes for increased wear and corrosion resistance.
  • Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/15, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
  • Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
  • Included | Tubeless tape & valves, spare spokes, axle adapters (please fill in the simple form after checkout to select your required size).
  • Weight | 1548g
  • See the full specs here

Please note: If you require a 6 bolt adaptor you can purchase separately here

Full Specs

  • Rims

    • Disc-specific tubeless-ready asymmetric profile. Designed to work excellently with normal clincher tyres and tubes or tubeless tyres.
    • H_LOCK bead-seat up-kicks for easy and secure tubeless installation
    • Unidirectional T24/30 carbon fibre, with 3K weave re-enforced spoke holes
    • 30mm outer and 23mm inner width ideal for 35mm+ tyre widths
    • 35mm depth
    • Matt black base finished with matt white contrasting graphics.

  • Spokes

    • 28 front and rear, laced 2-cross.
    • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
    • J-Bend for ease of replacement.
    • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
    • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
    • Black stainless

  • Nipples

    • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
    • 16mm length with washer for a strong connection to the spoke added durability.
    • 14 gauge.
    • Black anodized finish.

  • Tyres Info

    • Maximum tyre pressure for this rim is 45psi for 35-40mm tyres.
    • Maximum tyre pressures for other tyre sizes: 28mm do not exceed 100psi, 30mm do not exceed 70psi, 33mm do not exceed 50 psi, 45-50mm do not exceed 35psi.
    • Please do not exceed the maximum pressure stated on your tyre.
    • Suitable for tyres from 28c+ wide, optimised for 35-40c tyres.
    • Please note: these are not suitable for tyres narrower than 28c.
    • Suitable tubeless gravel and CX tyres are available from a huge range of companies.

  • Axle Size

    • These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

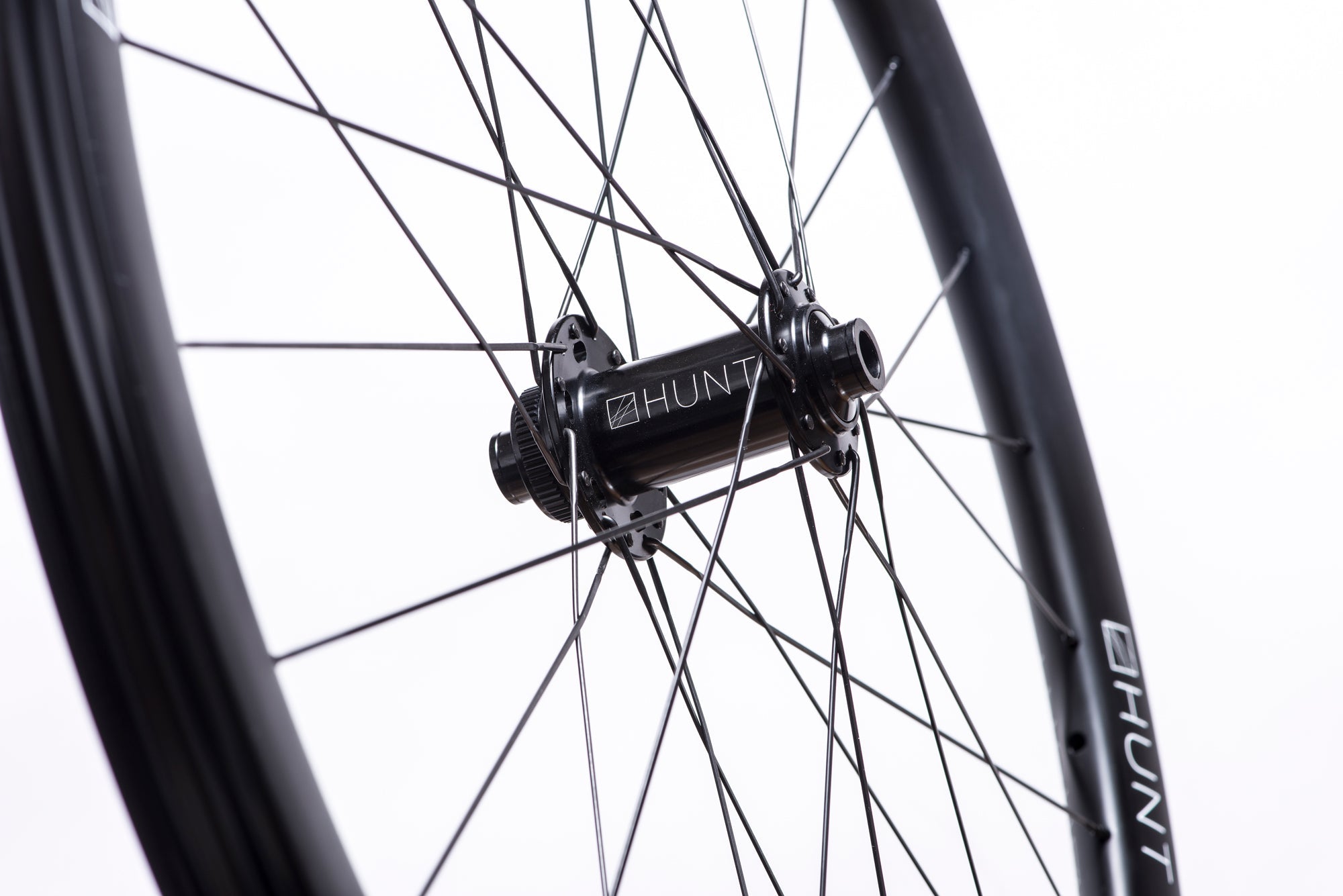

  • Front Hub

    • We fit the axles you need, just complete the simple form shown after checkout:
    • All existing road/CX disc front axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12mm Bolt Thru
      • 15mm Bolt Thru
    • All axle adapters are also available separately.
    • HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing.
    • Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
    • 7075-T6 aluminum alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
    • Polished anodized black finish with laser graphics.

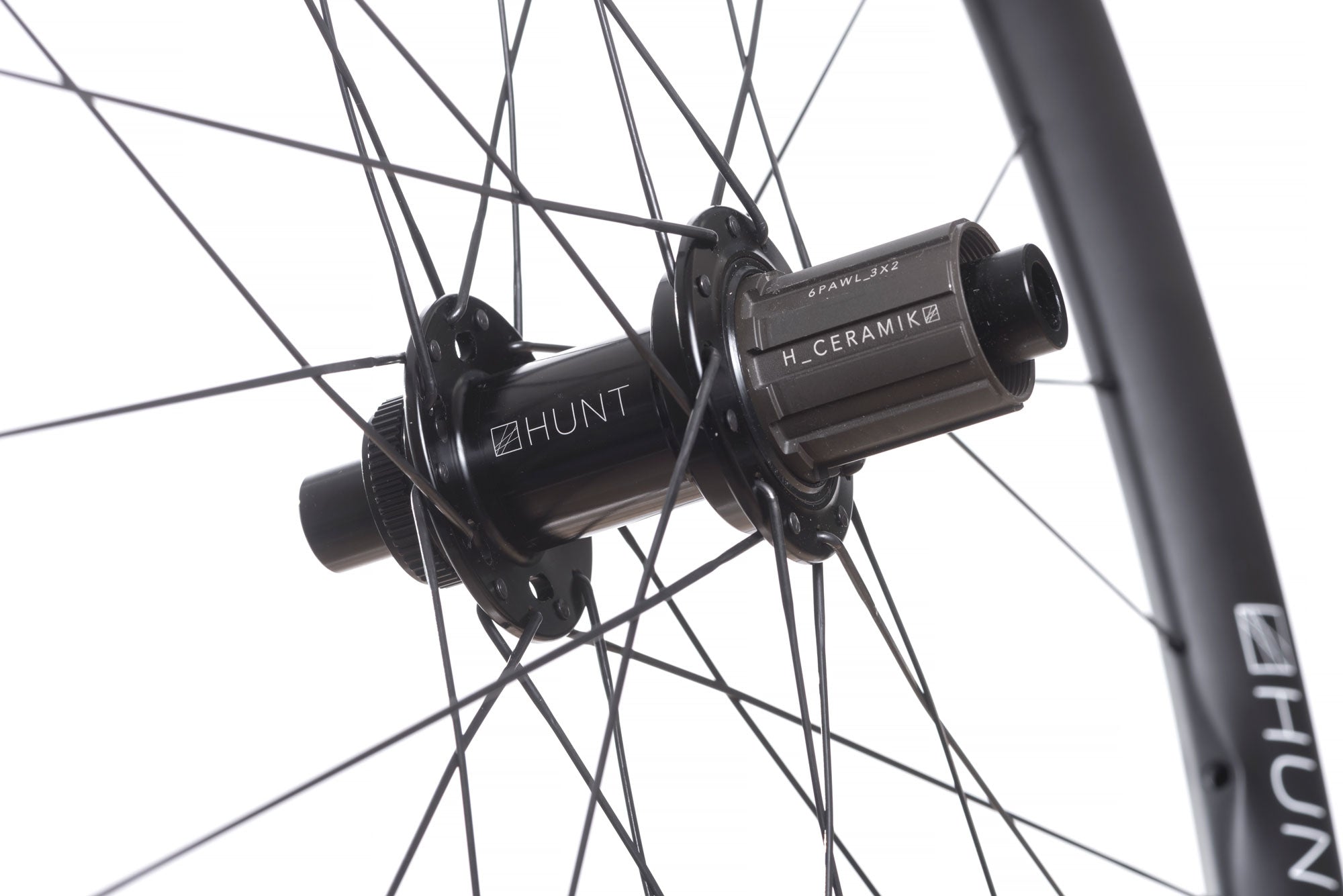

  • Rear Hub

    • We fit the axles you need, just complete the simple form shown after checkout.
    • All existing road/CX disc rear axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12x142 Bolt Thru
      • 12x135 Bolt Thru (uncommon)
      • 10x135 Bolt Thru (uncommon)
    • All axle adapters are also available separately.
    • 7075-T6 heat-treated aluminum alloy freehub body.
    • H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
    • 6 pawl, 28 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
    • All freehub standards accounted for, including:
      • Shimano/SRAM
      • Campagnolo
      • SRAM XD Driver
      • SRAM XDR Driver
    • Hunt Race Season Disc straight-pull super-light alloy.
    • Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
    • 7075-T6 aluminum alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
    • Polished anodized black finish with laser graphics.

  • Bearings

    • Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
    • Sealed cartridge replaceable units.
    • Dual full-contact seals.

    • Warranty, HUNT Rolling Road Tests & Weight Limits

    A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

    All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 135kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 125kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 45psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

    60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
