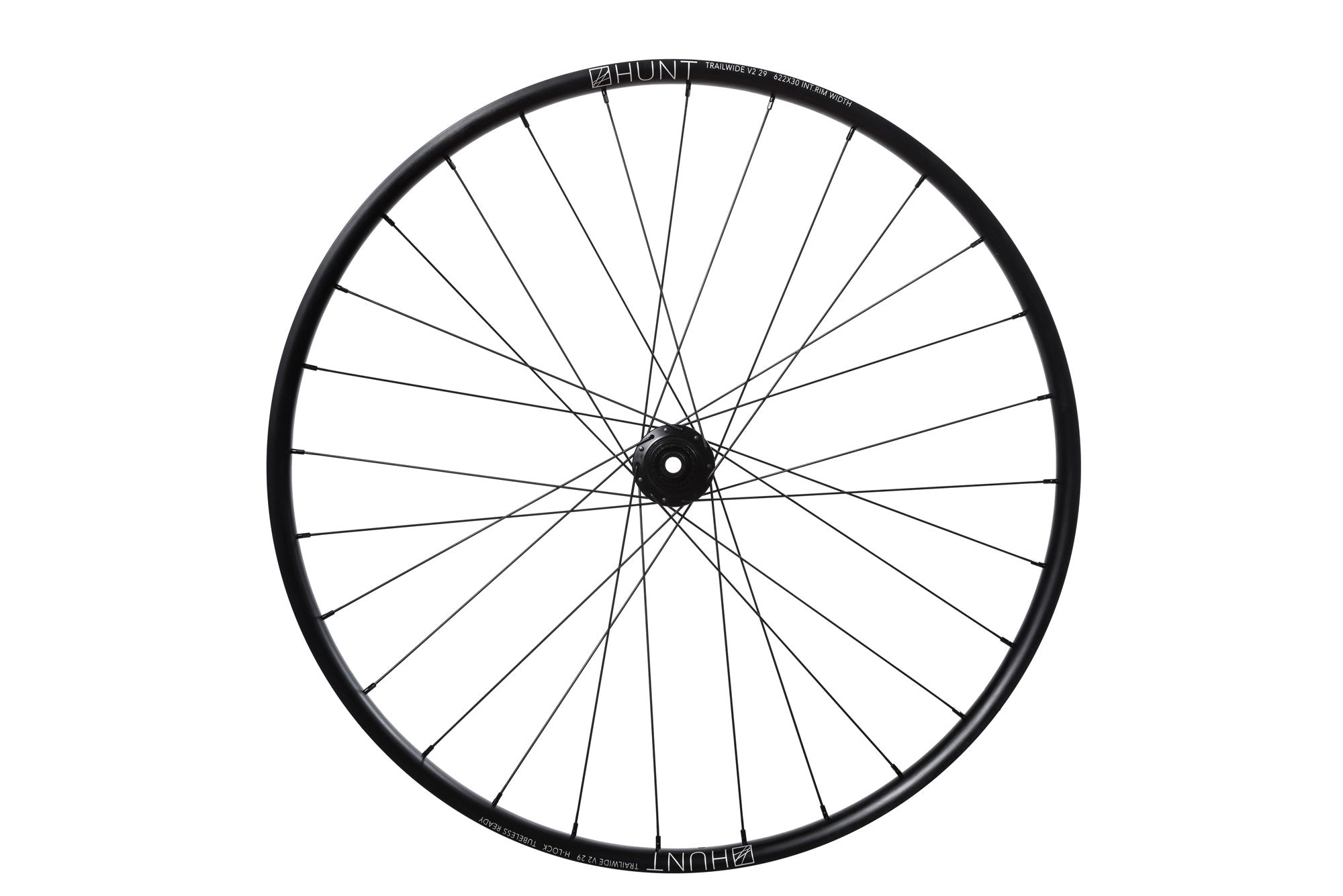

HUNT TrailWide MTB Wheelset
RE:NEW HUNT Trail Wide MTB 29 Wheelset
RE:NEW HUNT Trail Wide MTB 29 Wheelset

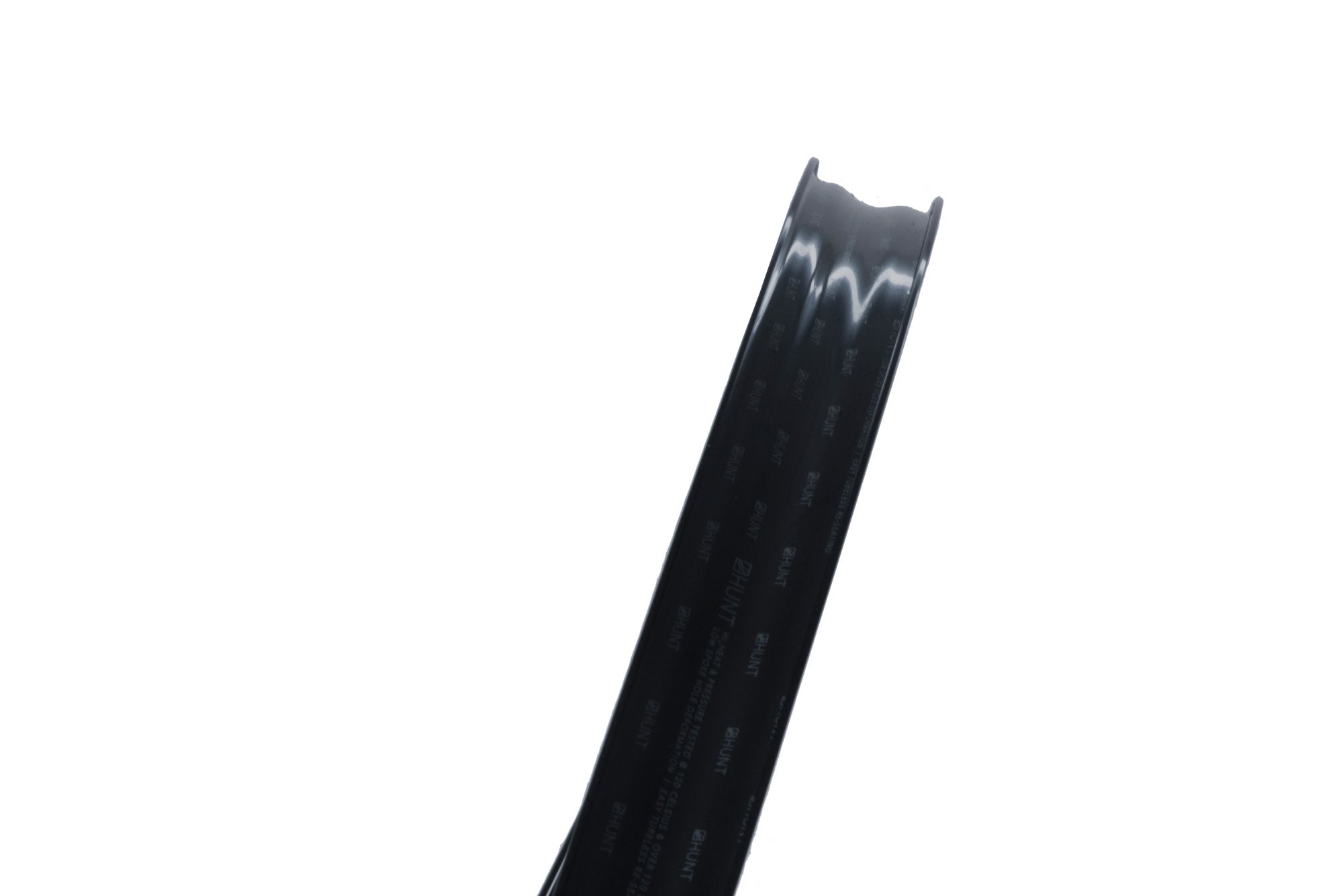

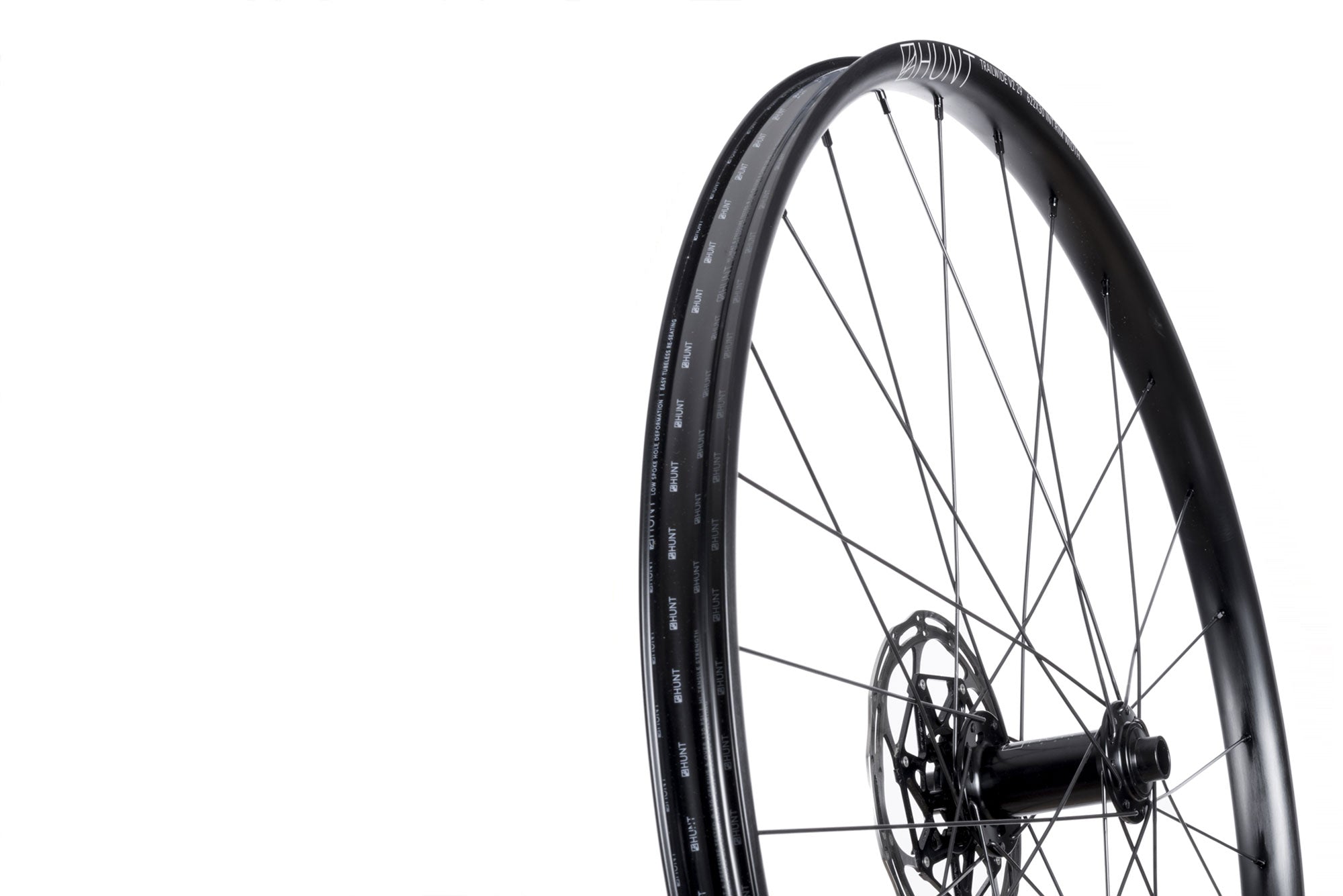

<h1>Rims</h1><i>The TrailWide rim includes details that are high on the durability factor to make sure you finish every ride with a big grin. Designed for 2.3"-2.5" tyres, the 30mm internal rim provides support to the tyre when you drop into in a root strewn shoot or you're throttling down a high-speed section and folding a tyre is the last thing you need to happen!</i>
<h1>Weight</h1><i>Mountain bikers aren't concerned about weight, right? Nope! Whether you're doing a back-country epic or pedalling between stages, we have paid attention to weight to suit the type of riding they will be subjected too. For example, using the highest quality Pillar triple butted spokes with PSR (Pillar Spoke Re-enforcement) has allowed us to not only create a stronger wheel with a higher spoke count, but one which does not add a weight penalty.</i>

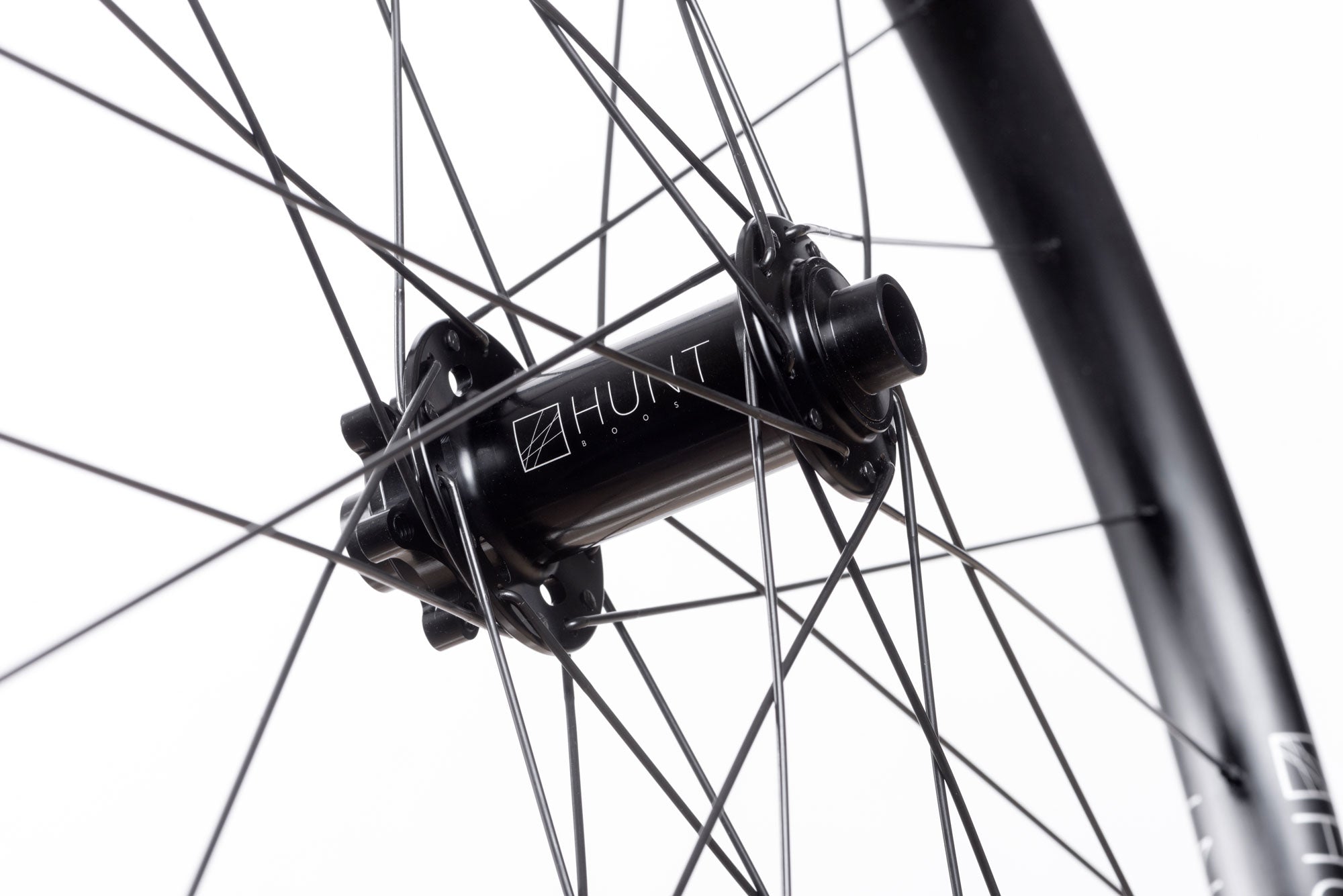

<h1>Front Hub</h1><i>Suited to match the needs of the modern trail bike rider. Featuring durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails. </i>

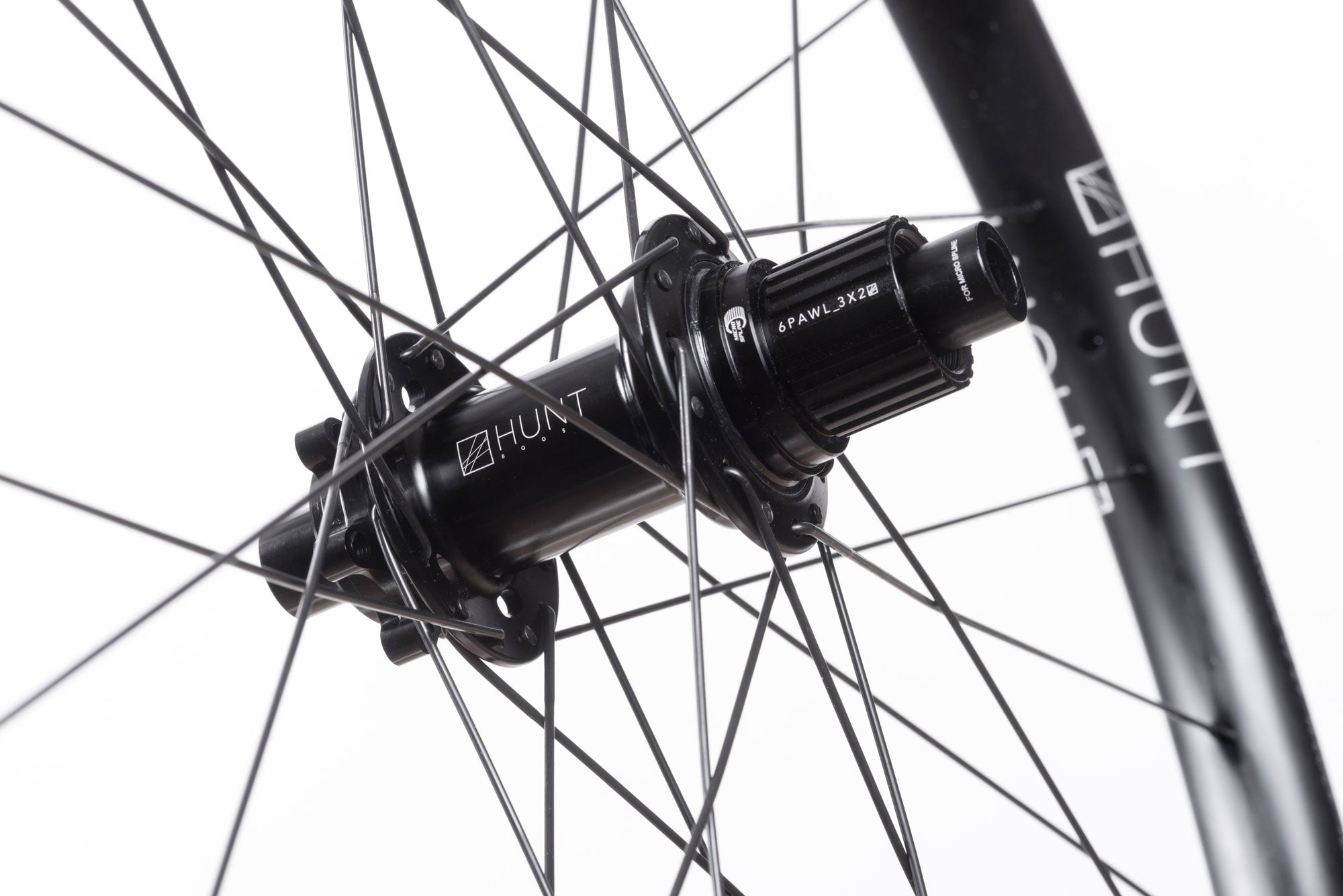

<h1>Rear Hub</h1><i>We create wheels to match the needs of riders who want the most from their wheels. The Trail Wide hubs have been chosen to increase stiffness, bearing durability and overall strength of your wheelset. On the rear, the RapidEngage MTB hubs with a fast 5 degree engagement, means you will be able to clear those janky tech climbs with ease.</i>

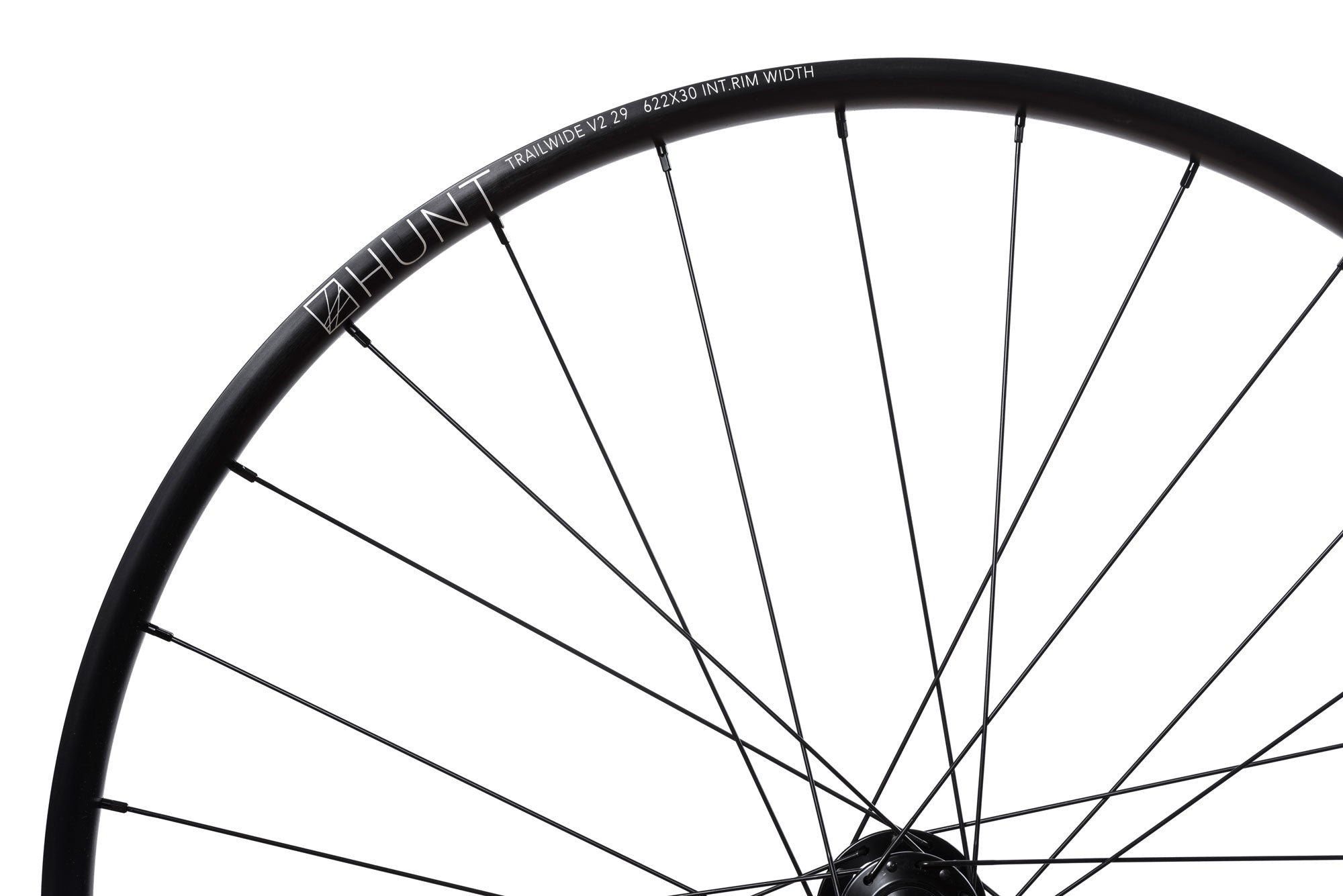

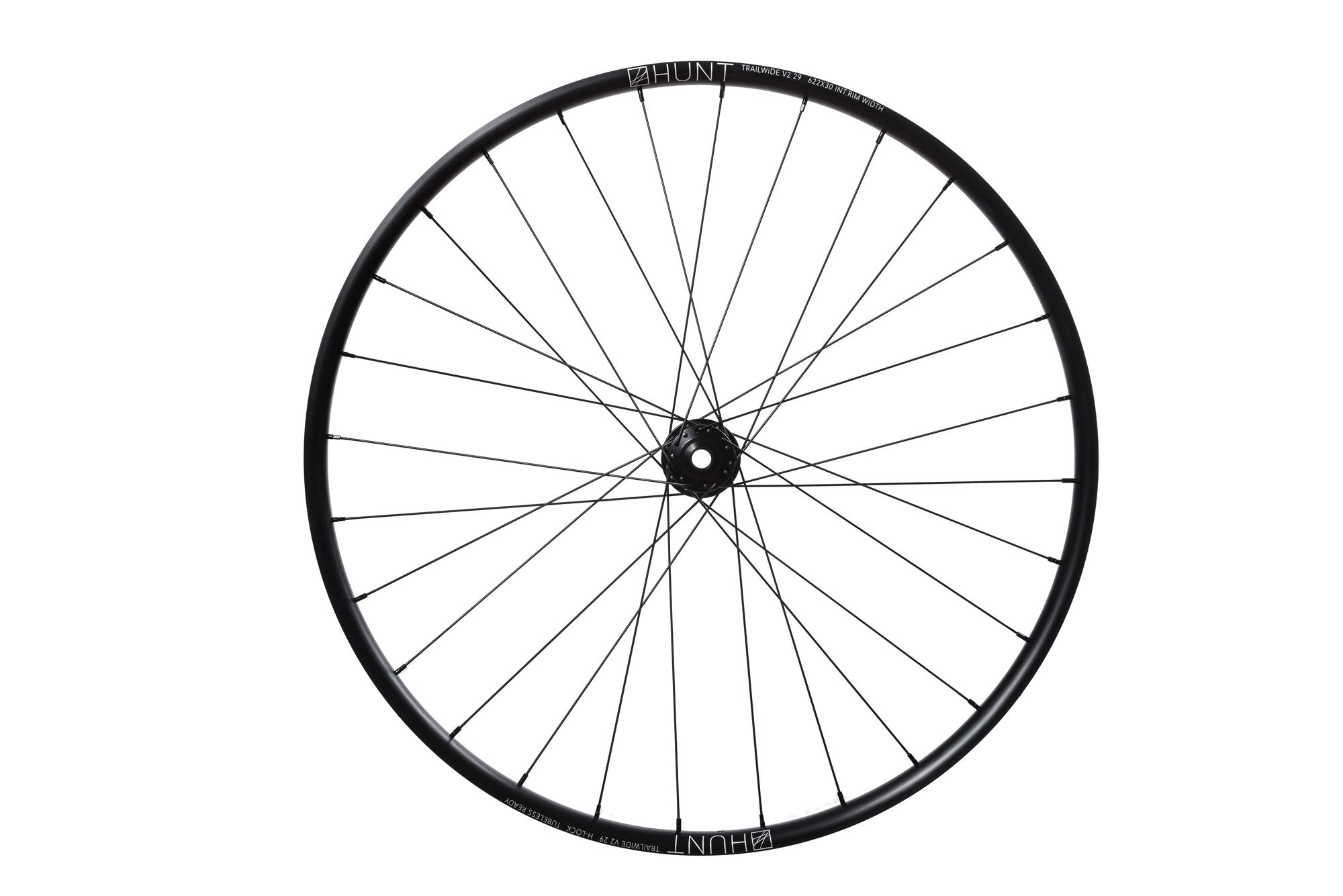

<h1>Rim Profile</h1><i>Like all of our wheels, the Hunt MTB line-up is designed to be used as a tubeless system. Featuring a H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for first installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.</i>
<h1>Spokes</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.</i>

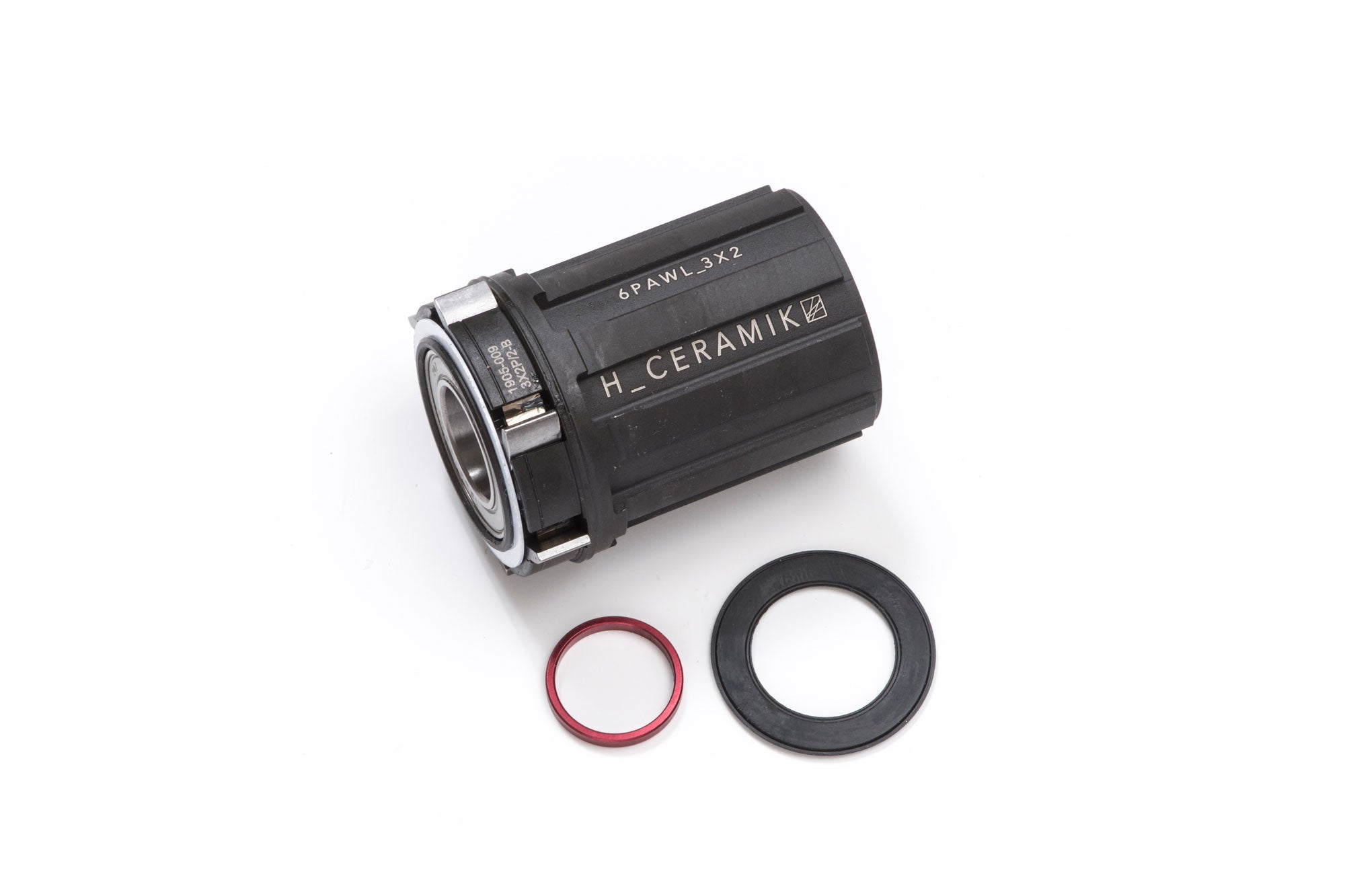

<h1>Freehub Body</h1><i>Choose between SRAM/Shimano HG, Shimano Microspline or XD to be fitted to your Trailwide wheels.</i>
<h1>Made for where you ride</h1><i>From the local trails, to a remote piece of trail highup in a remote mountain range; we wanted to create a series of wheelsets tailored for your Trail riding.</i>
<h1>Made for how you ride</h1><i>Enhanced to perfectly compliment your riding, the TrailWide is for those 'first out, last in' type of riders.</i>

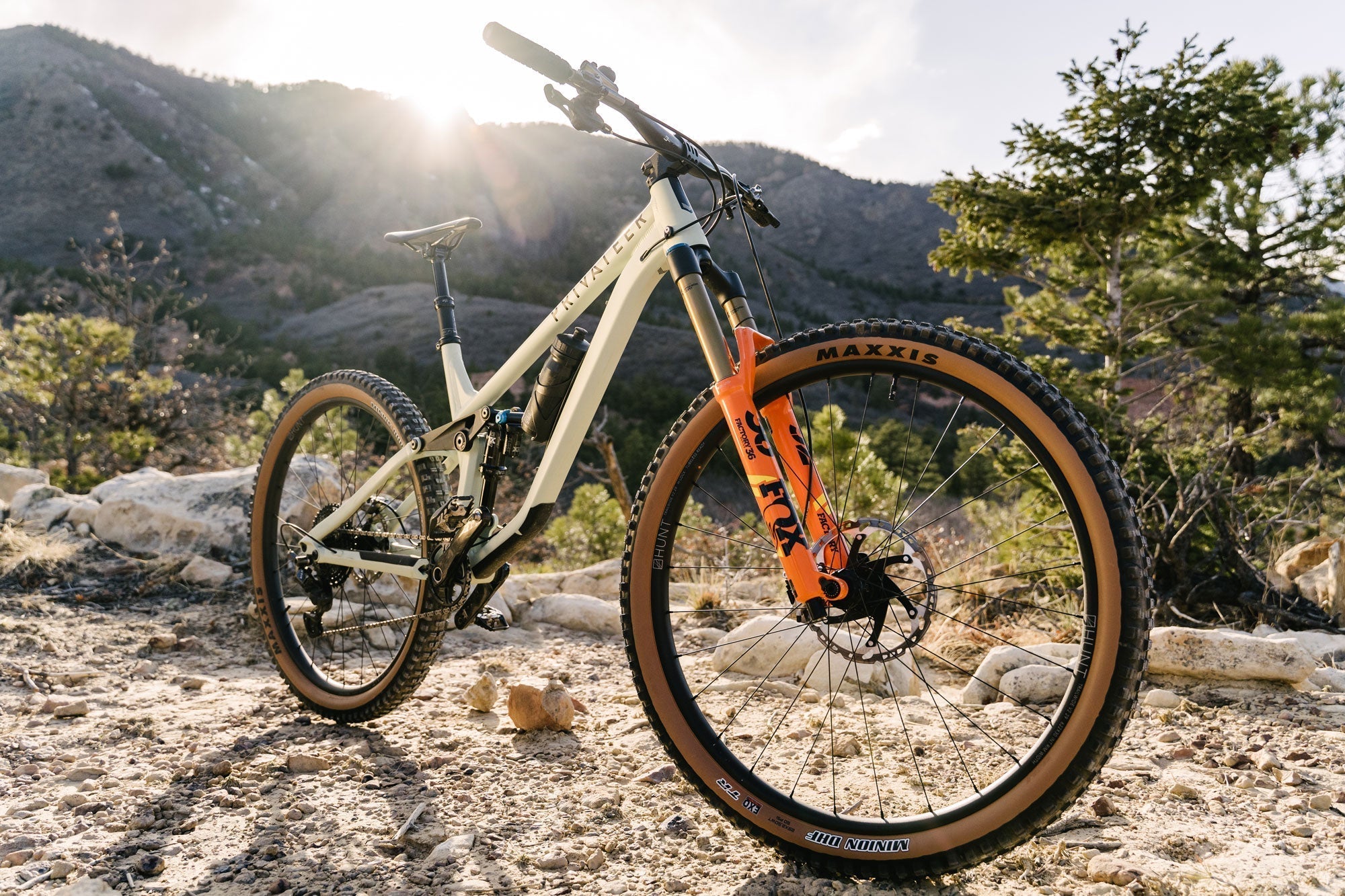

<h1>Dream Build</h1><i>Samuel Johnson's custom build Privateer 141 with Hunt Trail Wides</i>
36% off
HUNT TrailWide MTB Wheelset
<h1>Rims</h1><i>The TrailWide rim includes details that are high on the durability factor to make sure you finish every ride with a big grin. Designed for 2.3"-2.5" tyres, the 30mm internal rim provides support to the tyre when you drop into in a root strewn shoot or you're throttling down a high-speed section and folding a tyre is the last thing you need to happen!</i>
<h1>Weight</h1><i>Mountain bikers aren't concerned about weight, right? Nope! Whether you're doing a back-country epic or pedalling between stages, we have paid attention to weight to suit the type of riding they will be subjected too. For example, using the highest quality Pillar triple butted spokes with PSR (Pillar Spoke Re-enforcement) has allowed us to not only create a stronger wheel with a higher spoke count, but one which does not add a weight penalty.</i>
<h1>Front Hub</h1><i>Suited to match the needs of the modern trail bike rider. Featuring durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails. </i>
<h1>Rear Hub</h1><i>We create wheels to match the needs of riders who want the most from their wheels. The Trail Wide hubs have been chosen to increase stiffness, bearing durability and overall strength of your wheelset. On the rear, the RapidEngage MTB hubs with a fast 5 degree engagement, means you will be able to clear those janky tech climbs with ease.</i>
<h1>Rim Profile</h1><i>Like all of our wheels, the Hunt MTB line-up is designed to be used as a tubeless system. Featuring a H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for first installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.</i>
<h1>Spokes</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.</i>
<h1>Freehub Body</h1><i>Choose between SRAM/Shimano HG, Shimano Microspline or XD to be fitted to your Trailwide wheels.</i>
<h1>Made for where you ride</h1><i>From the local trails, to a remote piece of trail highup in a remote mountain range; we wanted to create a series of wheelsets tailored for your Trail riding.</i>
<h1>Made for how you ride</h1><i>Enhanced to perfectly compliment your riding, the TrailWide is for those 'first out, last in' type of riders.</i>
<h1>Dream Build</h1><i>Samuel Johnson's custom build Privateer 141 with Hunt Trail Wides</i>

RE:NEW HUNT Trail Wide MTB 29 Wheelset

After payment & checkout, we will ask for your freehub and axle information via an automatically generated form.

Which freehub do I need?
£319 £499.00
36% off
Wheels are scheduled to ship from us in the week stated. Delivery time is 1 day*
Finance options available at checkout

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

More details Right

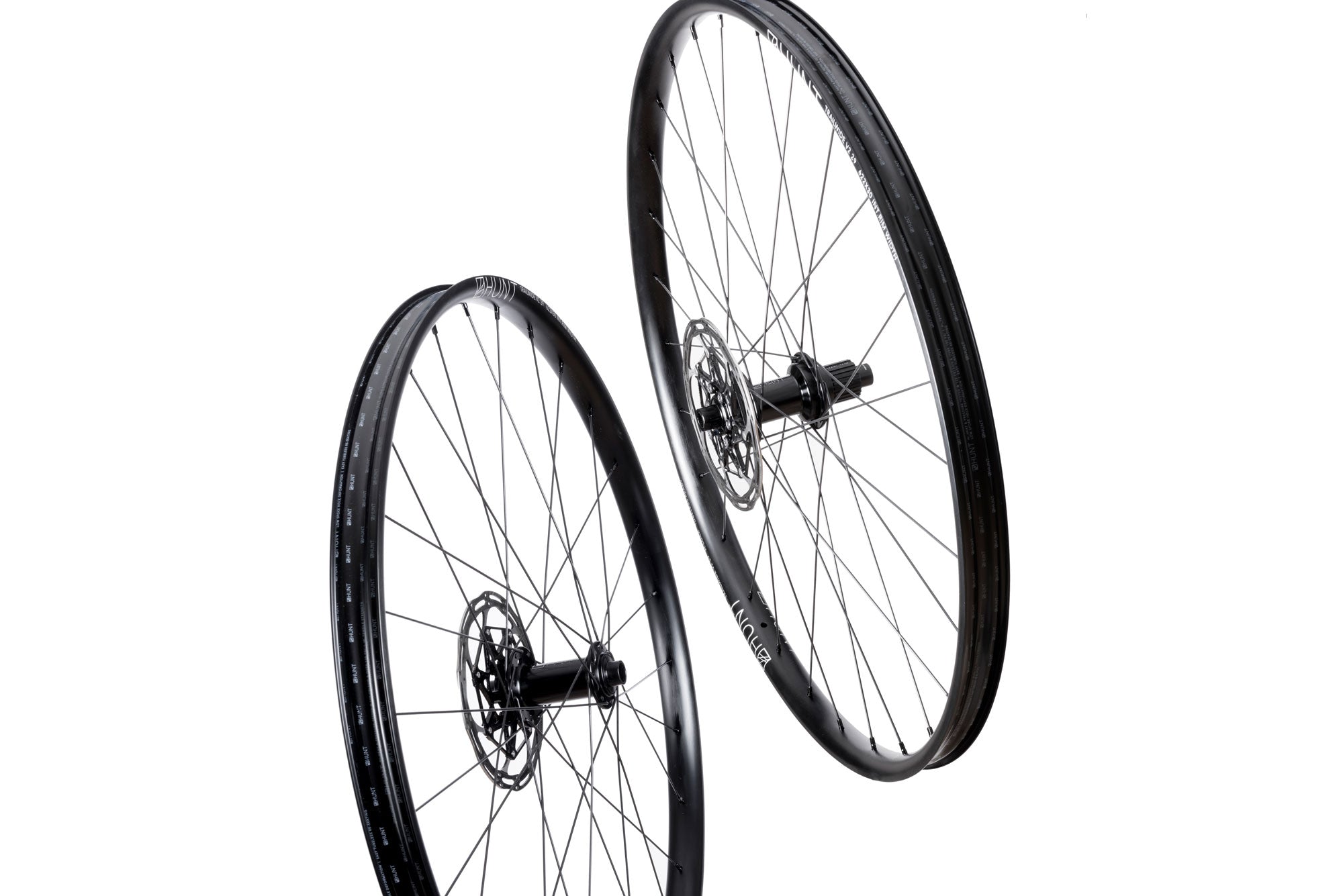

The Trail Wide is your go-to wheelset no matter the conditions. Optimised to still take the A-lines on the descents and not hold you back on the climbs.

29" | 30mm Wide Int. | 1831g

The Purpose

After almost three years of unwavering service on the toughest trails, with numerous awards and recognitions along the way, the restless design team at HUNT saw an opportunity to update the Trail Wide wheelset to meet the evolving demands of today’s riders.

Starting with what we learnt around profile optimisation from the burlier Enduro Wide V2 project, we set out to improve upon its lighter sibling, not an easy task with an Editor’s Choice-winning wheelset.

Combining the all-new 30mm internal rim profile, with new hubs and spoke configurations, results in a wheel that keeps the outward appearance of it's predecessor yet provide 20% more impact resistance.

Designed as the answer to your trail centre weekends, back country epics or days spent smashing through your local woods - a wheelset that can do it all and leave you with a big grin.

The Purpose

After almost three years of unwavering service on the toughest trails, with numerous awards and recognitions along the way, the restless design team at HUNT saw an opportunity to update the Trail Wide wheelset to meet the evolving demands of today’s riders.
Read More
Starting with what we learnt around profile optimisation from the burlier Enduro Wide V2 project, we set out to improve upon its lighter sibling, not an easy task with an Editor’s Choice-winning wheelset.

Combining the all-new 30mm internal rim profile, with new hubs and spoke configurations, results in a wheel that keeps the outward appearance of it's predecessor yet provide 20% more impact resistance.

Designed as the answer to your trail centre weekends, back country epics or days spent smashing through your local woods - a wheelset that can do it all and leave you with a big grin.Read Less

Key Features

We see wheels as a system, not a single component

  • Rims | 6069 T6 (490 MPa, + 69% Ultimate Tensile Strength over 6061-T6) welded construction, 30mm wide (internal), work-hardened shot-peened finish.
  • Hubs | 5° RapidEngage, Boost (110/148 ), Boost QR (141mm) or Super-Boost (157/12) spacing hubs available, large double sealed cartridge bearings. Rock Shox Torque Caps for Boost hubs and QR adapters for hubs are available. 
  • Spokes | 28h Spoke Count, Triple Butted (2.2-1.8-2.0) PSR reinforced Pillar Spokes.
  • Tyres | Optimised for 2.3"-2.5" tyres set up Tubeless, but also work very well with 2.25"-2.8". Also great with standard tyres and tubes.
  • Axles | 7075-T6 axles for strength and stiffness, reduced flex in the hub also helps to increase bearing life.
  • See the full specs here
  • Weight | 1831g

The Experts' View

Wide Open LogoPinkbike Logo Singletracks ReviewBike Perfect Logo Offroadcc Logo MBR Logo MBUK Logo

Full Specs

  • Rims

    • 30mm internal width ideal for 2.3"-2.4" tyre widths, but also work very well with 2.25"-2.8".
    • 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6).
    • Tubeless-ready – designed to work best with tubeless tyres. Tubeless-rim tape and valves included.
    • H-lock bead-seat up-kicks for easy and secure tubeless installation.
    • Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.

  • Spokes

    • J-bend cold drawn.
    • 28F/28R spoke count.
    • Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
    • Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
    • Black stainless treatment.

    • Nipples

      • Hard-anodized alloy for weight reduction and strength.
      • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
      • Long 14mm thread for durability.
      • 14 gauge.
      • Black finish

    • Tyres Info

      • Maximum tyre pressure for this rim: up to 2.5" do not exceed 40psi. 2.6 - 2.8" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tyre.
      • Designed to work perfectly with tubeless and non-tubeless tyres.
      • Suitable tubeless MTB tyre combinations from Schwalbe and Maxxis are available to be fitted to your Hunt TrailWide Wheels.

    • Axle Size

      • Boost - 148x12mm or Super-Boost 157x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
      • QR adapters available - just complete the simple form after checkout.
      • SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.

    • Front Hub

      • Forged and CNC’d 6061-T6 heat treated aluminium alloy Hub body
      • 7075-T6 aluminium alloy axles.
      • Oversized 7075-T6 aluminium alloy axles.
      • 110x15mm. Rock Shox Torque Caps for Boost and QR options available - just add a comment in the notes section on the cart page.
      • Polished anodized black finish with laser graphics.
      • 6 bolt disc mount/center lock option available.

    • Rear Hub

      • Extruded and CNC machined 7075-T6 heat-treated aluminium alloy hub body.
      • 148x12mm, 142x12mm spacing or 157x12mm (29" only).
      • H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
      • Boost QR skewers NOT supplied.
      • 3x2 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
      • 9/10/11 speed Shimano/SRAM compatible freehub and SRAM XD Driver version available.
      • Oversized 7075-T6 heat treated aluminium axles.
      • Polished anodized black finish with laser graphics.
      • 6 bolt disc mount/centre-lock option available

    • Bearings

      • Precision sealed cartridge replaceable units.
      • Large diameter ball bearings for extra durability.
      • Dual full-contact rubber seals.

      • Warranty, Support and Weight Limits

      A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

      All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 110Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 40psi as this will reduce the fatigue on the wheelset.

      Crash replacement 35% off plus All HUNT wheels models have been designed to meet the needs of the type of riding they are intended for. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

      60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

      Tubeless Tyre Options

      We can supply or fit tubeless tyres (including sealant) to your wheels. The wheels are also designed to work excellently with clincher tyres and tubes. See recommended tyre options below.

      Maximum tyre pressure for this rim: up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tyre.

      These are only some of the options you can have fitted on your wheels. To see the full range, click here

      Schwalbe Hans Dampf Snake Skin Tubeless Tyres

      Schwalbe Hans Dampf 2.35" Snake Skin Soft Front / Rear

      The Hans Dampf is one of the most balanced tyres out there. Providing superior control on rough terrain as well as amazing grip in flowy singletrack, the Hans Dampf is the best kind of all-rounder. The high-volume casing offers maximum braking traction and cornering grip for when the trail becomes aggressive. But when gravity stops working its magic, the Hans Dampf will not leave you behind. The continuous tread pattern is closely spaced meaning that this tyre tracks well and has a lower rolling resistance over more aggressive options.

      Choose this tyre combo for your Trail Wide wheels if you want an all-round option for your aggressive XC or trail bike. We love this tyre when the trails are a little dryer and demand a faster rolling option.

      Reviews

      Bike Magazine and Website Experts' Views

      Open Wide Logo

      Wide Open Tested

      "You’re going to struggle to find the same balance of performance, weight, reliability and cost elsewhere without having to compromise on one of these. Usually cost."
      Pinkbike Logo

      Pinkbike Review

      "The latest version of Hunt's Trail Wide wheels do exactly what they're supposed to - they're decent wheels at a good price that are gimmick-free."
      Singletracks Logo

      Singletracks Review

      "All of this is to say that the Hunt Trail Wides have been a great wheel set and an easy upgrade for a lot of folks."
      Bike Perfect Logo

      Bike Perfect 4.5/5 Review

      "Same excellent ride quality, big tire support and an increase in rim toughness make Hunt’s Trail Wide V2 an even better-value wheel proposition"
      Offroadcc Logo

      4.5/5 Review

      "The Hunt Trail Wide 29 wheelset is a well-designed, well-made, and well-priced wheelset."

      We've got your back

      Rider Experience Support

      Unmatched rider support, 7 days a week. For quick and immediate access to all the help you need, try our Live Chat. Our team consists of real bike riders who are fully equipped to answer any questions and help out. See Contact Us page for more details.

      Spares Available

      Any spares for our wheelsets can be found on our website. If you need assistance, contact us and we can help you.

      Trustpilot

      Next Day Shipping*

      If you order your wheels before 3pm, we'll make sure they're sent out the same day.

      *If wheels are shown in stock

      60 Day Ride and Return

      We are so confident that you'll be happy with your Hunt Bike Wheels, that we offer a full 60 days to ride them.

      ABOUT HUNT _

      HUNT Bike Wheels are a team of talented, passionate riders with a wealth of industry experience, and set out to bring you the latest, most practical, forward-thinking technology in all things round.

      Our mission is to serve devoted riders with the highest performing products, backed by best-in-class rider support.

      All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
