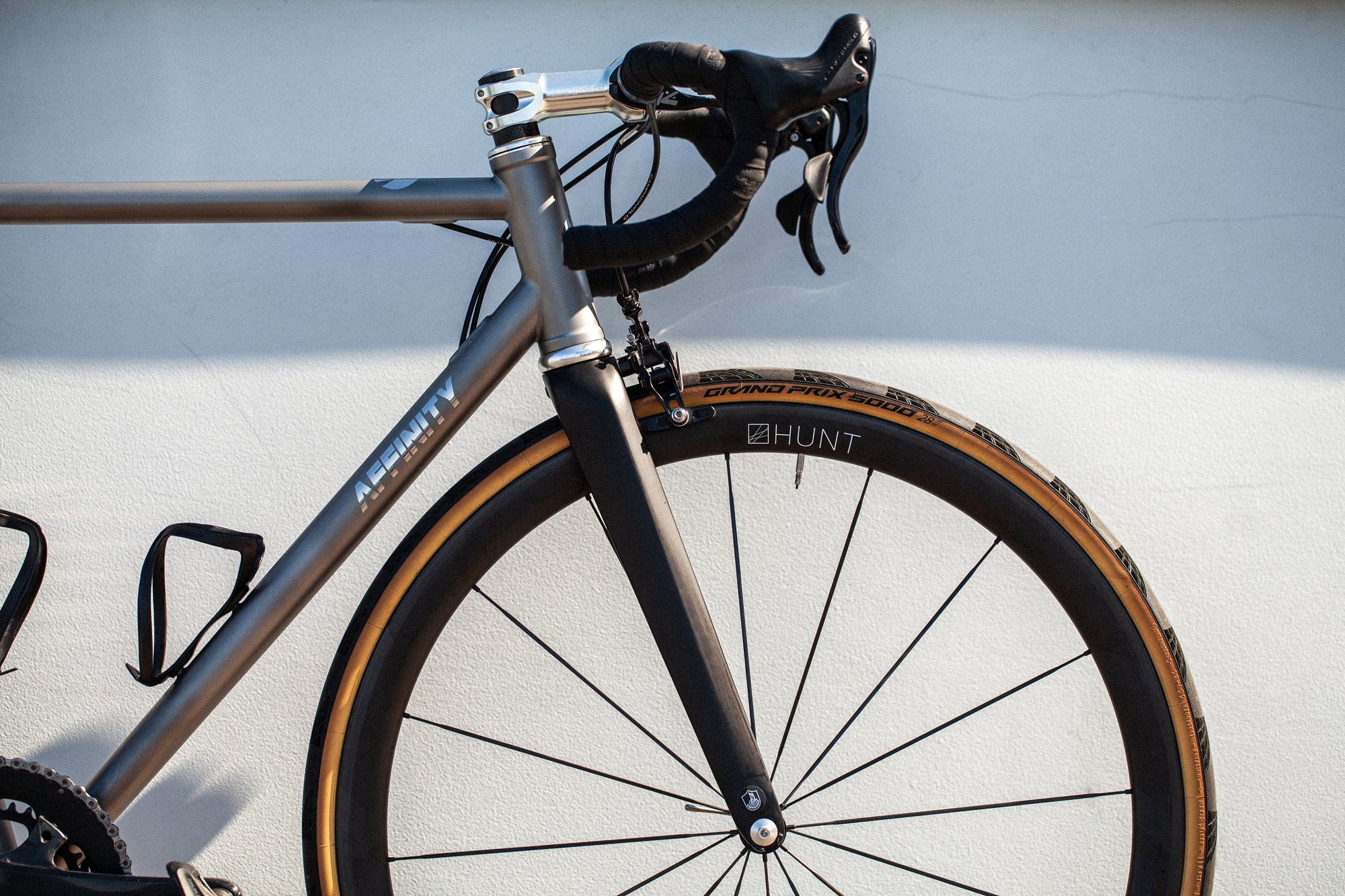

<h1>Dream Build</h1><i>Hunter Kelly's Affinity</i>
40% off
HUNT 36 UD Carbon Spoke Wheelset
HUNT 36 UD Carbon Spoke Wheelset
<h1>Rims</h1><i>Using an adaptive filament winding process, which varies thickness and orientation across the rim, these rims achieve a very light weight and excellent transmission of force from the spoke to the rest of the rim. The process also provides additional material to create high strength at the spoke areas while minimising unnecessary weight between the spokes. They are wide at 26mm (19mm int.) which creates a great tyre profile, resulting in excellent grip and lower rolling resistance.</i>
<h1>Rim Surface</h1><i>High TG resin provides extremely reliable braking and durability for longer descents. We lab test all our rims to very high braking temp (200 C) to push their limits. The high temp resins used for our Griptec Braking surfaces and rims are designed and perform to extremely high levels of braking heat build-up. We also ride test our rim brake wheels in the Alps to ensure the wheels are put through their paces on long, steep and fast descents.</i>
<h1>Hubs</h1><i>Carbon spoke optimised TaperLock SPRINT hubs add strength and enhance power transfer meaning all your force pushes you forwards. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps add extra stiffness.</i>
<h1>Spokes</h1><i>Incredibly strong (achieving over 450kgf per spoke) TaperLock UD carbon spokes offering 30% increase in stiffness against steel ones. Only 2.7g per spoke. Due to the TaperLock technology, these spokes can be trued easily using a spoke key from within the rim bed.</i>
<h1>CeramicSpeed Bearings</h1><i>The 36 UD Carbon Spoke will come fully equipped with CeramicSpeed's industry-leading hybrid ceramic bearings, even in the freehub body. All CeramicSpeed Balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. The quality of the balls is what determines the performance and lifetime of a bearing. The CeramicSpeed Balls feature unparalleled impact strength, smoothness, roundness and brittleness.</i>
<h1>Freehub Body</h1><i>Featuring a 3 multi-point pawls with 3 teeth each and a 48 tooth ratchet ring results in an impressively low 7.5 degree engagement angle and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which engage quicker. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Tyres</h1><i>At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option. Of course, all of our tubeless-ready wheels are designed to work perfectly with clincher tyres and inner tubes too.</i>
<h1>Weight</h1><i>The consequence of the fanatical attention to detail is an outstandingly light 1295g wheelset weight in a lightning fast stiff aero package. We've enjoyed free wheeling in the pack whilst all others are pedalling, is it cheating?</i>
<h1>Rim Bed</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures or riding off-road.</i>
<h1>Skewers</h1><i>The little details matter, the HUNT Race Season quick-release skewers use brass for the cam, which has self lubricating properties. We have also upgraded to stainless steel springs in order to prevent rusting.</i>”
<h1>Dream Build</h1><i>Hunter Kelly's Affinity</i>

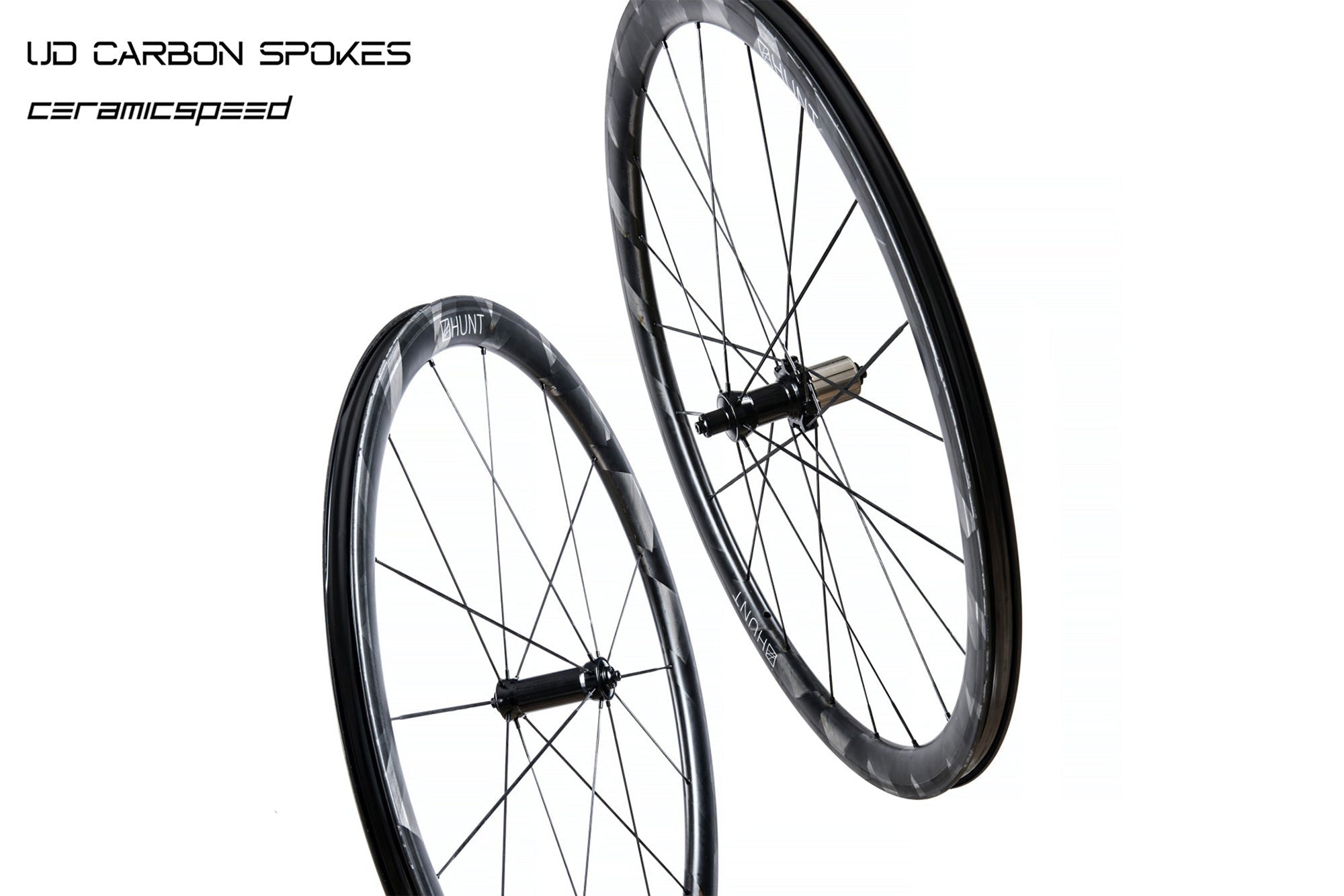

RE:NEW HUNT 36 UD Carbon Spoke Wheelset

The ultimate wheelset for mountainous riding. Aero, wide, ultra-lightweight, seriously fast for climbs and descents alike. UD carbon spokes reduce weight and road vibration while increasing lateral responsiveness by 6% and CeramicSpeed (optional) bearings for low rolling resistance.

Tyre size: Optimised for 25 to 28mm tyres; work well with 23mm up to 40mm.

After payment & checkout, we will ask for your freehub and axle information via an automatically generated form.

Which freehub do I need?
Re:New Grading

RE:NEW wheels have been graded into three categories:

NO Grade (25% OFF) - As New - you won't be able to tell they have been ridden.

Grade A (35% OFF) - Light use - Slight cosmetic marks on the wheels.

Grade B (50% OFF) - Used - It may have cosmetic marks to the hub or rim and will show signs of use - they have been serviced and checked by our master wheel builders and will provide many more miles of use.

£827.40 £1,379.00
40% off
Wheels are scheduled to ship from us in the week stated. Delivery time is 1 day*
3-Year Warranty

All of our wheelsets are backed by a 3-year warranty when purchased directly from HUNT. Read more details here.

Cycle to Work Partners
 Cyclescheme

CycleScheme

Save up to 39% on any HUNT Wheels and accessories with Cyclescheme. Reach out to us via a support ticket  to set up your order. Learn more here.


Cycle Solutions

Save at least 32% HUNT Wheels and accessories with Cycle Solutions cycle to work scheme. Reach out via a support ticket to create your quote. Learn more here.



60-Day Returns

60-Day Ride & Return: Try your Hunt wheels for 60 days – ride them, test them, love them. Not happy? Return them for a full refund.

0% Finance Available

Finance your new wheelset with 0% interest over 6, 10 or 12 months through Novuna Personal Finance when you spend over £400. Calculate your monthly payments below to find a plan that works for you.

Interest Bearing up to 36 Months representative example: Cash Price £1889, Deposit £188.90, Loan amount £1700.10, 9.9% APR representative, Interest rate 9.9% fixed, 24 monthly repayments of 78, Total term of loan agreement 24 months, Total charge for credit £173.10, Total Amount payable £2062.10.

We also accept Klarna Pay in 3 and PayPal finance options at checkout.

Learn more about finance options here.

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

More details Right

The Purpose _

The Purpose _

With up to a 30.16% reduction in lateral flex over equivalent steel spoked wheelsets, the 36 UD Carbon Spoke wheels have been engineered to provide you a significant increase in stiffness as well an impressively low sub 1300g weight.

Using an innovative construction method, the 36 UD Carbon Spoke wheelset offers carbon spokes that are held purely mechanically, with no bonding required. We call this TaperLock, and it allows for carbon spokes that can be trued and maintained just like a normal steel spoke. Plus the TaperLock UD Carbon spokes are incredibly strong achieving over 450kgf (kilograms force per spoke) maximum tensile strength, this compares to leading steel spokes wich only reach 300 kgf. The innovative filament wound rims feature spoke area reinforcement, which creates strength where you need it and saves you vital grams everywhere else.

Note

Please note these are refurbished wheels and some specifications may vary. These wheels have been inspected by our expert wheel builders and they come with our 3 year warranty as found on our new wheel products.

KEY FEATURES_

CeramicSpeed Bearings

The leaders in low friction bearings CeramicSpeed have again partnered with us on the hubs for the 36 UD Carbon Spoke Wheels so you know your rolling resistance is at its lowest. A standard EZO bearing option is also available.

<h1>Spokes</h1><i>Incredibly strong (achieving over 450kgf per spoke) TaperLock UD carbon spokes offering 30% increase in stiffness against steel ones. Only 2.7g per spoke. Due to the TaperLock technology, these spokes can be trued easily using a spoke key from within the rim bed.</i>

UD Carbon Spokes

Ultra-high strength TaperLock UD carbon spokes, offering 30% increase in stiffness against the 36 Carbon Wide Aero.

<h1>Hubs</h1><i>Carbon spoke optimised TaperLock SPRINT hubs add strength and enhance power transfer meaning all your force pushes you forwards. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps add extra stiffness.</i>

Hubs

Carbon Spoke optimised TaperLock SPRINT hubs, 15mm diameter 7075-T6 axle. Circular dropout interface steps for added stiffness. 3x treble-tooth pawl engagement for instant acceleration. Engagement angle of just 7.5°. Steel spline insert to protect the cassette body.

<h1>Rims</h1><i>Using an adaptive filament winding process, which varies thickness and orientation across the rim, these rims achieve a very light weight and excellent transmission of force from the spoke to the rest of the rim. The process also provides additional material to create high strength at the spoke areas while minimising unnecessary weight between the spokes. They are wide at 26mm (19mm int.) which creates a great tyre profile, resulting in excellent grip and lower rolling resistance.</i>

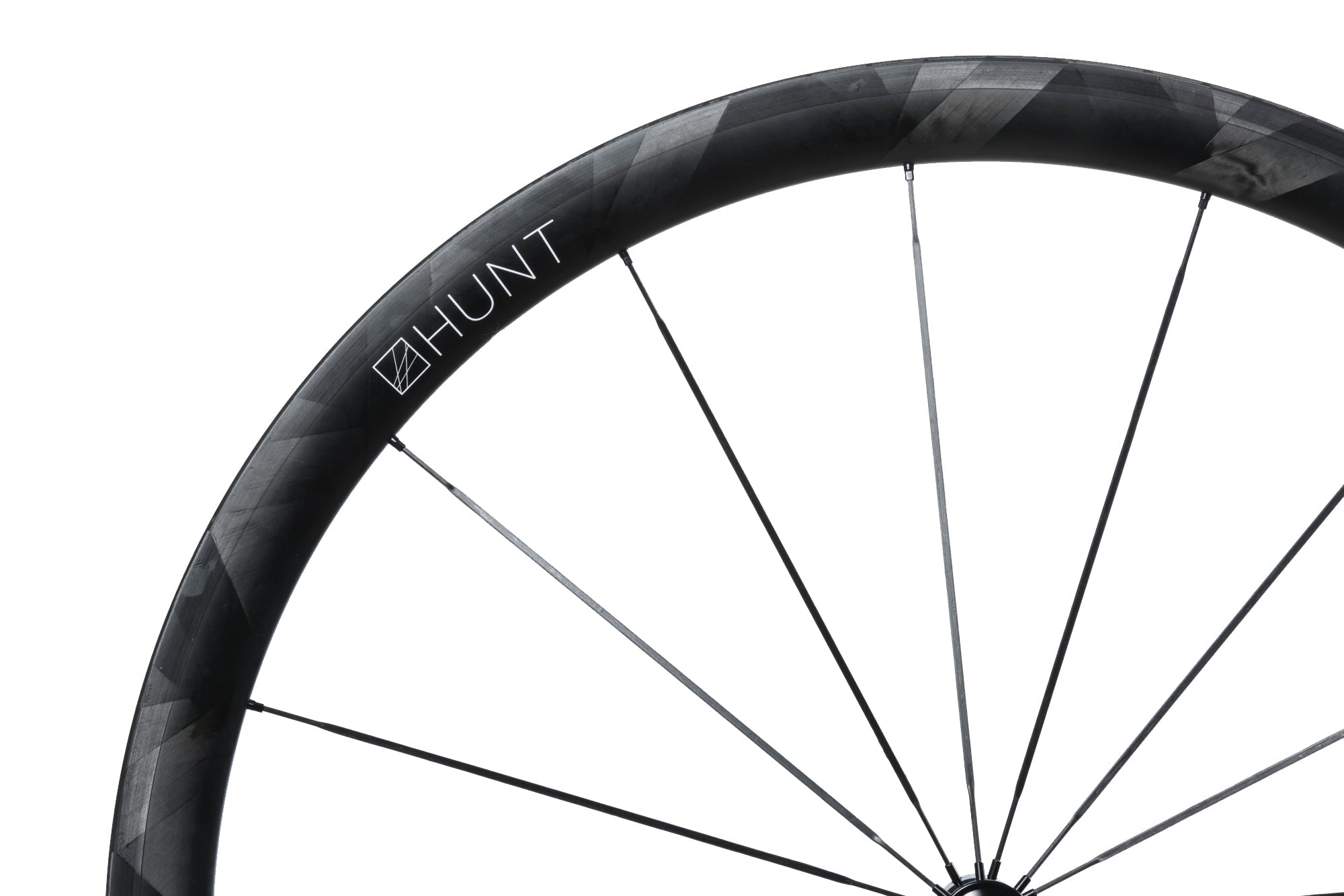

Rims

Adaptive filament wound rim structure. Smart spoke hole reinforcement. Toray T700/T800 carbon-fibre. Griptec friction brake-track with 3K reinforcement for excellent braking and durability.

TECHNOLOGY _

Filament Wound Rims with Spoke Area Reinforcement

The rims are laid up by an adaptive filament winding process, which varies the layup thickness and orientation across the rim. The layup pattern places fibres aligned in a series of increasing angles radiating from the spoke hole up to the tire bed. This technology optimises the transmission of force from the spoke to the rest of the rim, and provides additional material to create high strength at the spoke area while minimising unnecessary weight between the spokes. Wide rims with a U-profile provide great handling and reduce drag across multiple wind yaw-angles. Of course, they are also tubeless-ready.

HIGH SPECIFICATION COMPONENTS _
Rims

Using an adaptive filament winding process, which varies thickness and orientation across the rim, these rims achieve a very light weight and excellent transmission of force from the spoke to the rest of the rim. The process also provides additional material to create high strength at the spoke areas while minimising unnecessary weight between the spokes. They are wide at 26mm (19mm int.) which creates a great tyre profile, resulting in excellent grip and lower rolling resistance. High TG resin provides extremely reliable braking and durability for longer descents. We lab test all our rims to very high braking temp (200 C) to push their limits. The high temp resins used for our Griptec Braking surfaces and rims are designed and perform to extremely high levels of braking heat build-up. We also ride test our rim brake wheels in the Alps to ensure the wheels are put through their paces on long, steep and fast descents.

<h1>Skewers</h1><i>The little details matter, the Hunt 4Season quick-release polymer-cam skewers even have upgraded stainless steel springs so they don't rust.</i>

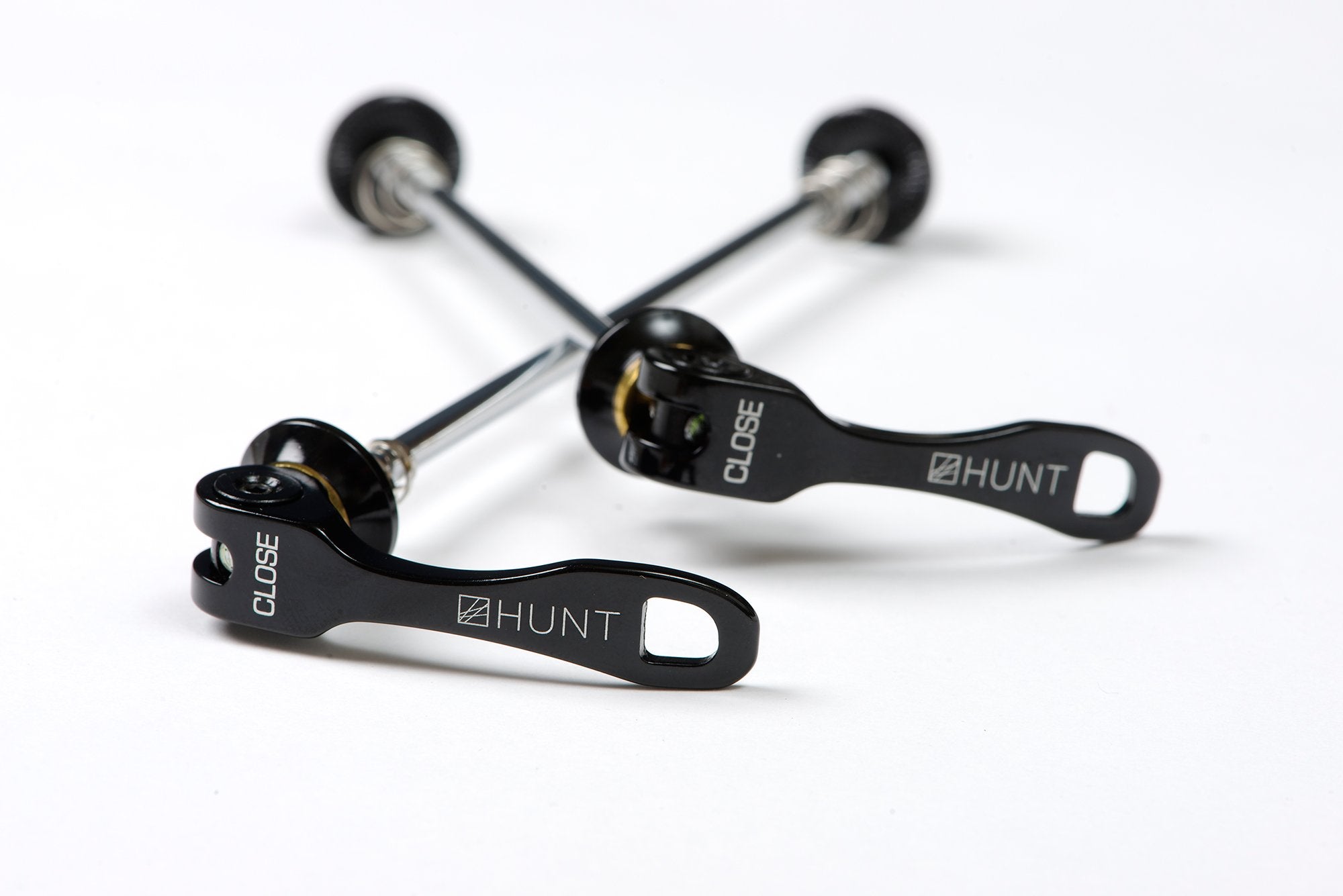

Skewers

The little details matter, the Hunt 4Season quick-release polymer-cam skewers even have upgraded stainless steel springs so they don't rust.
Tyres

At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option. Of course, all of our tubeless-ready wheels are designed to work perfectly with clincher tyres and inner tubes too.
Freehub Body

Featuring a 3 multi-point pawls with 3 teeth each and a 48 tooth ratchet ring results in an impressively low 7.5 degree engagement angle and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which engage quicker. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.
CeramicSpeed Bearings

The 36 UD Carbon Spoke will come fully equipped with CeramicSpeed's industry-leading hybrid ceramic bearings, even in the freehub body. All CeramicSpeed Balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. The quality of the balls is what determines the performance and lifetime of a bearing. The CeramicSpeed Balls feature unparalleled impact strength, smoothness, roundness and brittleness.

<h1>Hubs</h1><i>Carbon spoke optimised TaperLock SPRINT hubs add strength and enhance power transfer meaning all your force pushes you forwards. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps add extra stiffness.</i>

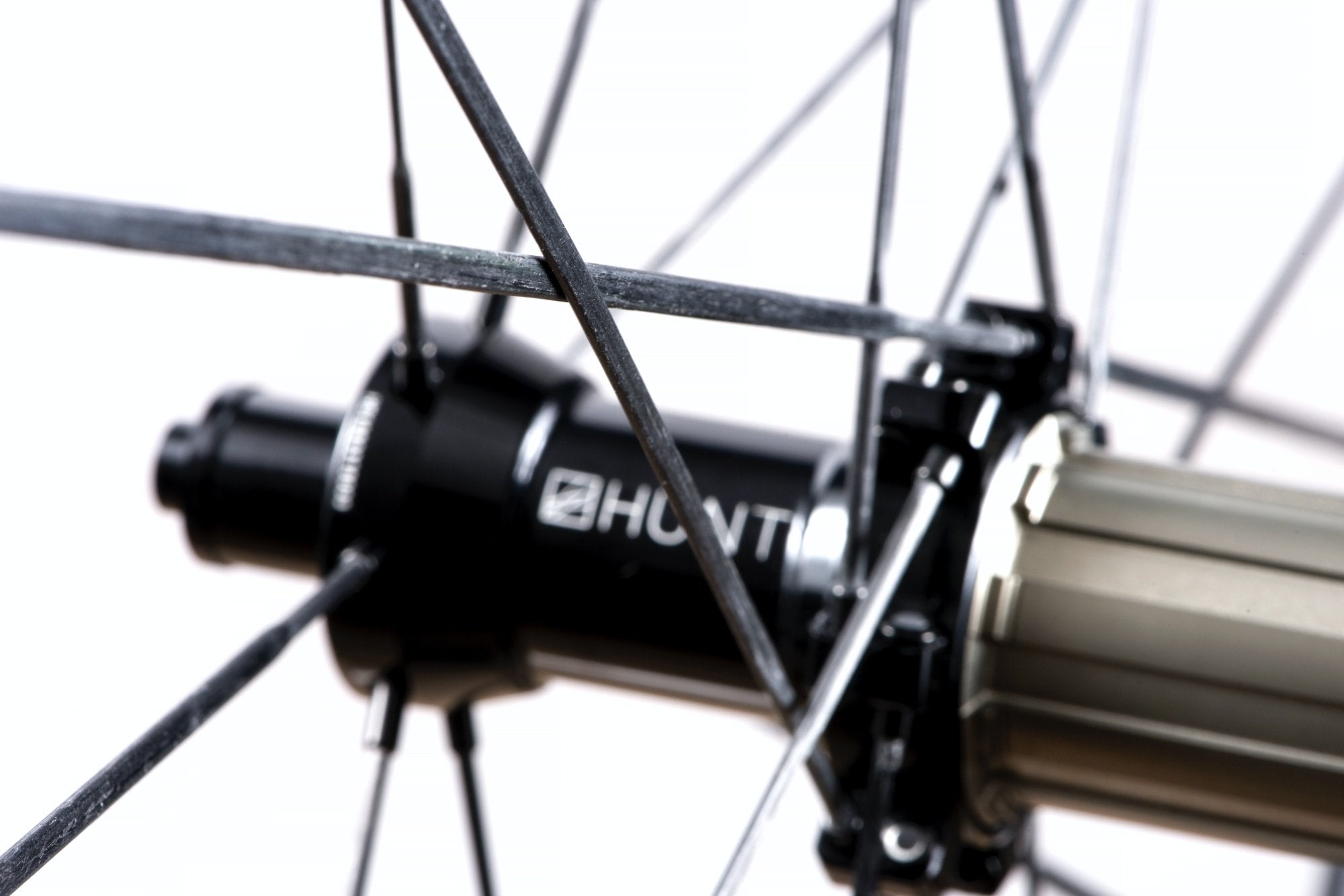

Hubs

Carbon spoke optimised TaperLock SPRINT hubs add strength and enhance power transfer meaning all your force pushes you forwards. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps add extra stiffness.

<h1>Spokes</h1><i>Incredibly strong (achieving over 450kgf per spoke) TaperLock UD carbon spokes offering 30% increase in stiffness against steel ones. Only 2.7g per spoke. Due to the TaperLock technology, these spokes can be trued easily using a spoke key from within the rim bed.</i>

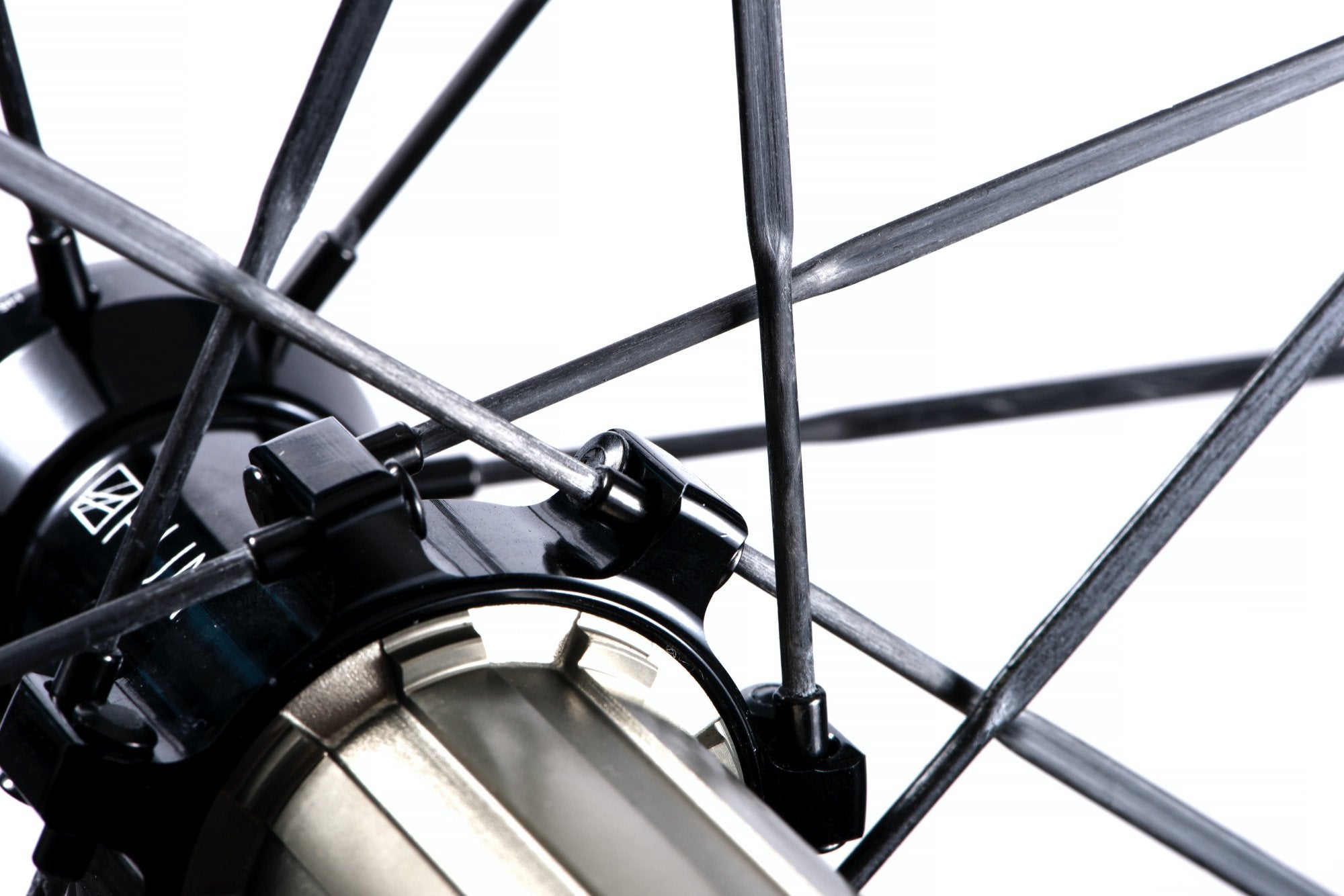

Spokes

Incredibly strong (achieving over 450kgf per spoke) TaperLock UD carbon spokes offering 30% increase in stiffness against steel ones. Only 2.7g per spoke. Due to the TaperLock technology, these spokes can be trued easily using a spoke key from within the rim bed.
