RE:NEW HUNT 4454 UD Carbon Spoke Disc Wheelset

<h1>TaperLock Hubs</h1><i>Carbon spoke optimised TaperLock SPRINT hubs add strength and enhance power transfer meaning all your force pushes you forwards. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps add extra stiffness.</i>

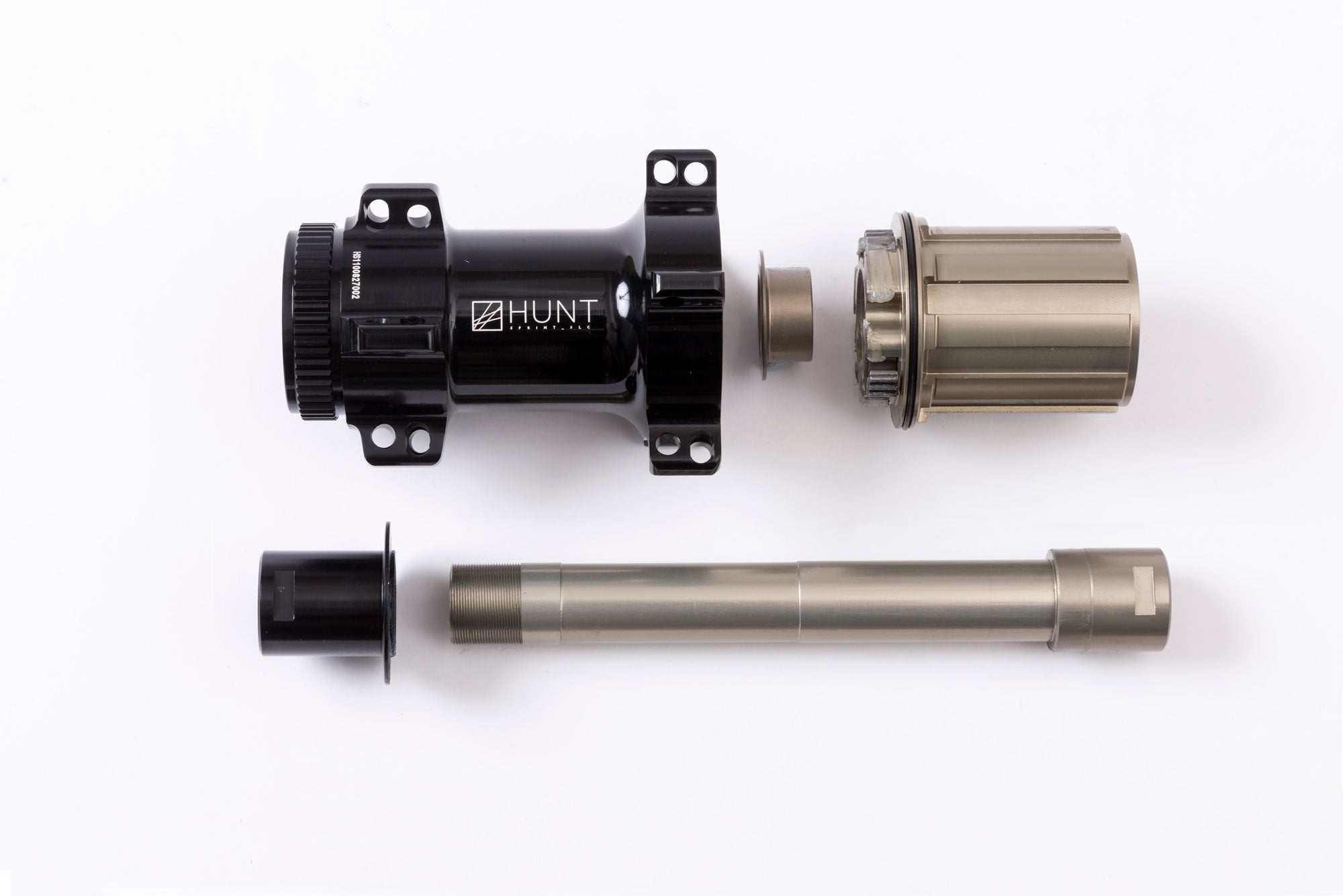

<h1>Freehub Body</h1><i>Featuring a 3 multi-point pawls with 3 teeth each and a 48 tooth ratchet ring results in an impressively low 7.5 degree engagement angle and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which engage quicker. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>

<h1>Tyre Width Optimisation</h1><i> Designed around a 20mm internal rim width optimised for a 25c tyre (but will of course work without compromise with both 23c and 28c tyres). They feature a hooked tyre retention design and are both fully ETRTO-compatible and tubeless-ready.</i>

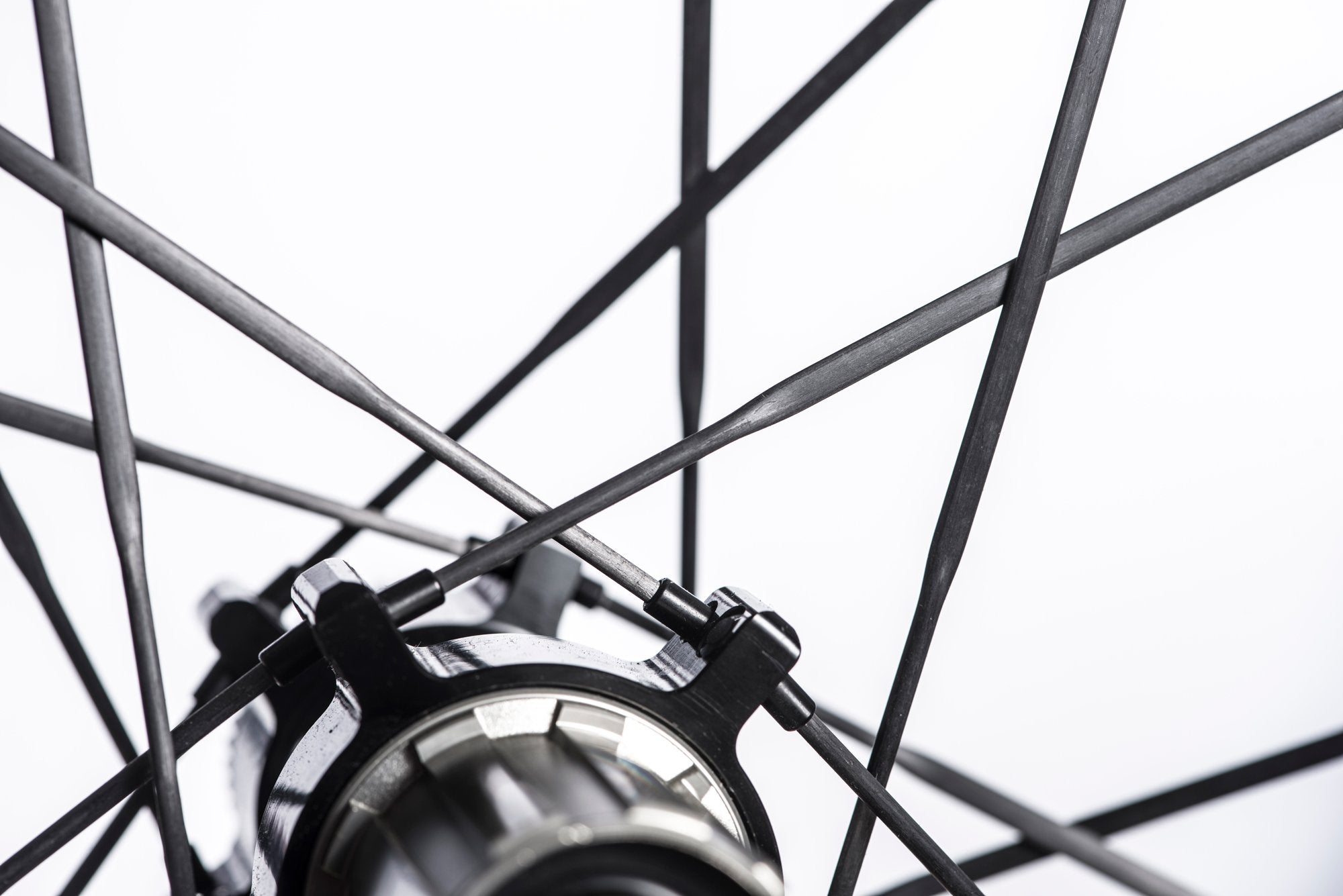

<h1>UD Carbon Spokes</h1><i>Incredibly strong (achieving over 450kgf per spoke) TaperLock UD carbon spokes offering 30% increase in stiffness against steel ones. Only 2.7g per spoke. Due to the TaperLock technology, these spokes can be trued easily using a spoke key from within the rim bed.</i>

<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard, you just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard. </i>

<h1>Stiffness-to-Weight</h1><i>With significant increases in lateral stiffness, they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels. Coming in at just 1381g but with significant increases in lateral responsiveness, disc wheels have never been so fast.</i>

<h1>Tyres</h1><i>At HUNT we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly inner tubes, just use tubes in tubeless ready tyres.</i>

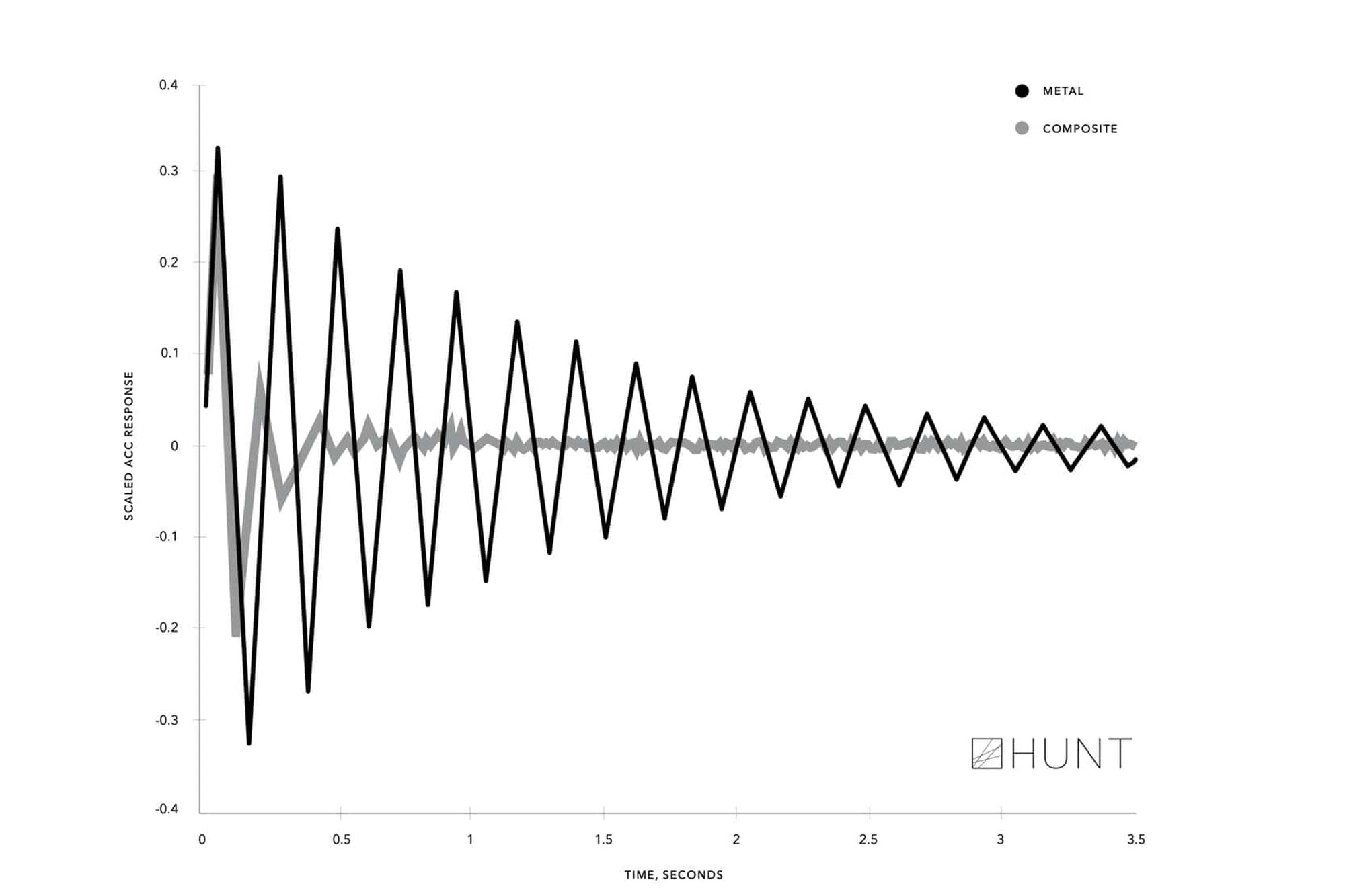

<h1>Hunt Carbon Spoke Graph</h1><i>For high frequency vibration, carbon spokes offer much greater damping characteristics to that of an equivalent steel spoke</i>

40% off

RE:NEW HUNT 4454 UD Carbon Spoke Disc Wheelset

Name: RE:NEW HUNT 4454 UD Carbon Spoke Disc Wheelset
Brand: Hunt Bike Wheels
SKU: HNT-RWS-NN-4454-AUD-GA
Price: 827.4 GBP
Availability: OutOfStock

Introducing the 4454 UD Carbon Spoke Disc, utilising our proven TaperLock carbon spoke technology, resulting in fully serviceable carbon-spoked wheels that can be trued like any other. With significant increases in lateral stiffness (see testing info below), they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels.

Tyre size: Aero optimised for 25 to 28mm tyres; work well with 23mm up to 40mm.

Grade

After payment & checkout, we will ask for your freehub and axle information via an automatically generated form.

Re:New Grading

RE:NEW wheels have been graded into three categories:

NO Grade (25% OFF) - As New - you won't be able to tell they have been ridden.

Grade A (35% OFF) - Light use - Slight cosmetic marks on the wheels.

Grade B (50% OFF) - Used - It may have cosmetic marks to the hub or rim and will show signs of use - they have been serviced and checked by our master wheel builders and will provide many more miles of use.

£827.40 £1,379.00

40% off

3-Year Warranty

All of our wheelsets are backed by a 3-year warranty when purchased directly from HUNT. Read more details here.

Cycle to Work Partners

CycleScheme

Save up to 39% on any HUNT Wheels and accessories with Cyclescheme. Reach out to us via a support ticket to set up your order. Learn more here.

Cycle Solutions

Save at least 32% HUNT Wheels and accessories with Cycle Solutions cycle to work scheme. Reach out via a support ticket to create your quote. Learn more here.

60-Day Returns

60-Day Ride & Return: Try your Hunt wheels for 60 days – ride them, test them, love them. Not happy? Return them for a full refund.

0% Finance Available

Finance your new wheelset with 0% interest over 6, 10 or 12 months through Novuna Personal Finance when you spend over £400. Calculate your monthly payments below to find a plan that works for you.

Interest Bearing up to 36 Months representative example: Cash Price £1889, Deposit £188.90, Loan amount £1700.10, 9.9% APR representative, Interest rate 9.9% fixed, 24 monthly repayments of 78, Total term of loan agreement 24 months, Total charge for credit £173.10, Total Amount payable £2062.10.

We also accept Klarna Pay in 3 and PayPal finance options at checkout.

Learn more about finance options here.

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

More details

THE SUPREME STIFFNESS-TO-WEIGHT RATIO OF CARBON SPOKES, IN A SERVICEABLE PACKAGE. THE FINAL WORD IN ROAD/ALL-ROAD DISC-BRAKE PERFORMANCE.

44/54 DEEP | 29 WIDE EXT | 20 WIDE INT | 1381G

The Purpose

Introducing the 4454 UD Carbon Spoke Disc, utilising our proven TaperLock carbon spoke technology, resulting in fully serviceable carbon-spoked wheels that can be trued like any other. With significant increases in lateral stiffness (see testing info below), they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels.

6% more laterally responsive than identical steel spoked wheel, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see graph in the "read more" section below.

aerodynamicist_profile

Aerodynamicist 29mm-wide rim, exclusively engineered and wind tunnel tested by HUNT's in-house engineering team, featuring a hooked & ETRTO-compliant tubeless-ready rim, designed for full clincher & tubeless tyre compatibility.

WIND TUNNEL RESULTS

Read More

Using an innovative spoke-seating method, the 4454 UD Carbon Spoke Disc wheelset offers carbon spokes that are held purely mechanically, with no bonding required. We call this TaperLock, and it allows for carbon spokes that can be trued and maintained just like a normal steel spoke.

The TaperLock UD Carbon Spokes are incredibly strong, achieving over 450 kgf (kilograms force per spoke) maximum tensile strength, compared to leading steel spokes which conventionally reach around 300 kgf.

For HUNT, aerodynamics and stiffness have to be considered as component parts of a more holistic understanding of performance componentry. That's why we always design with serviceability and usability in mind, because there's no point having a fast wheel you can't use with your favourite tyre, or that you can't easily maintain.

FULL WIND TUNNEL RESULTS

Read Less

The Purpose

Introducing the 4454 UD Carbon Spoke Disc, utilising our proven TaperLock carbon spoke technology, resulting in fully serviceable carbon-spoked wheels that can be trued like any other. With significant increases in lateral stiffness (see testing info below), they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels.

6% more laterally responsive than identical steel spoked wheel, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see graph in the "read more" section below.

aerodynamicist_profile

Aerodynamicist 29mm-wide rim, exclusively engineered and wind tunnel tested by HUNT's in-house engineering team, featuring a hooked & ETRTO-compliant tubeless-ready rim, designed for full clincher & tubeless tyre compatibility.

WIND TUNNEL RESULTS

Read More

Using an innovative spoke-seating method, the 4454 UD Carbon Spoke Disc wheelset offers carbon spokes that are held purely mechanically, with no bonding required. We call this TaperLock, and it allows for carbon spokes that can be trued and maintained just like a normal steel spoke.

The TaperLock UD Carbon Spokes are incredibly strong, achieving over 450 kgf (kilograms force per spoke) maximum tensile strength, compared to leading steel spokes which conventionally reach around 300 kgf.

For HUNT, aerodynamics and stiffness have to be considered as component parts of a more holistic understanding of performance componentry. That's why we always design with serviceability and usability in mind, because there's no point having a fast wheel you can't use with your favourite tyre, or that you can't easily maintain.

FULL WIND TUNNEL RESULTS

Read Less

Key Features

The ultimate performance of carbon spokes, in a usable package

Rims | Aerodynamicist disc-specific rim profiles, designed from the ground up. Toray T700/T800 carbon-fibre with a stronger ratio of T800 (T40) fibres to achieve greater strength-to-weight ratio. Unidirectional sidewalls with 3K weave bed and spoke areas. Tubeless-ready for lower weight, rolling resistance and better puncture protection.
Hubs | Sprint SLC hubs add strength and enhance power transfer, meaning more of your power pushing you forwards. The hub shell is a cold-forged 7000 series alloy, offering a greater strength-to-weight ratio than extruded 6000 series alloys. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps ensure a secure fitment.
Tyres | 20mm rim bed optimised for superior aerodynamic performance with a 25-28c tubeless tyre, but also very capable with a 23c. Tubeless-Ready.
Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
Weight | 1381g
See the full specs here

Please note: If you require a 6 bolt adaptor you can purchase separately here

The Experts' View

hunt_gallery

Full Specs

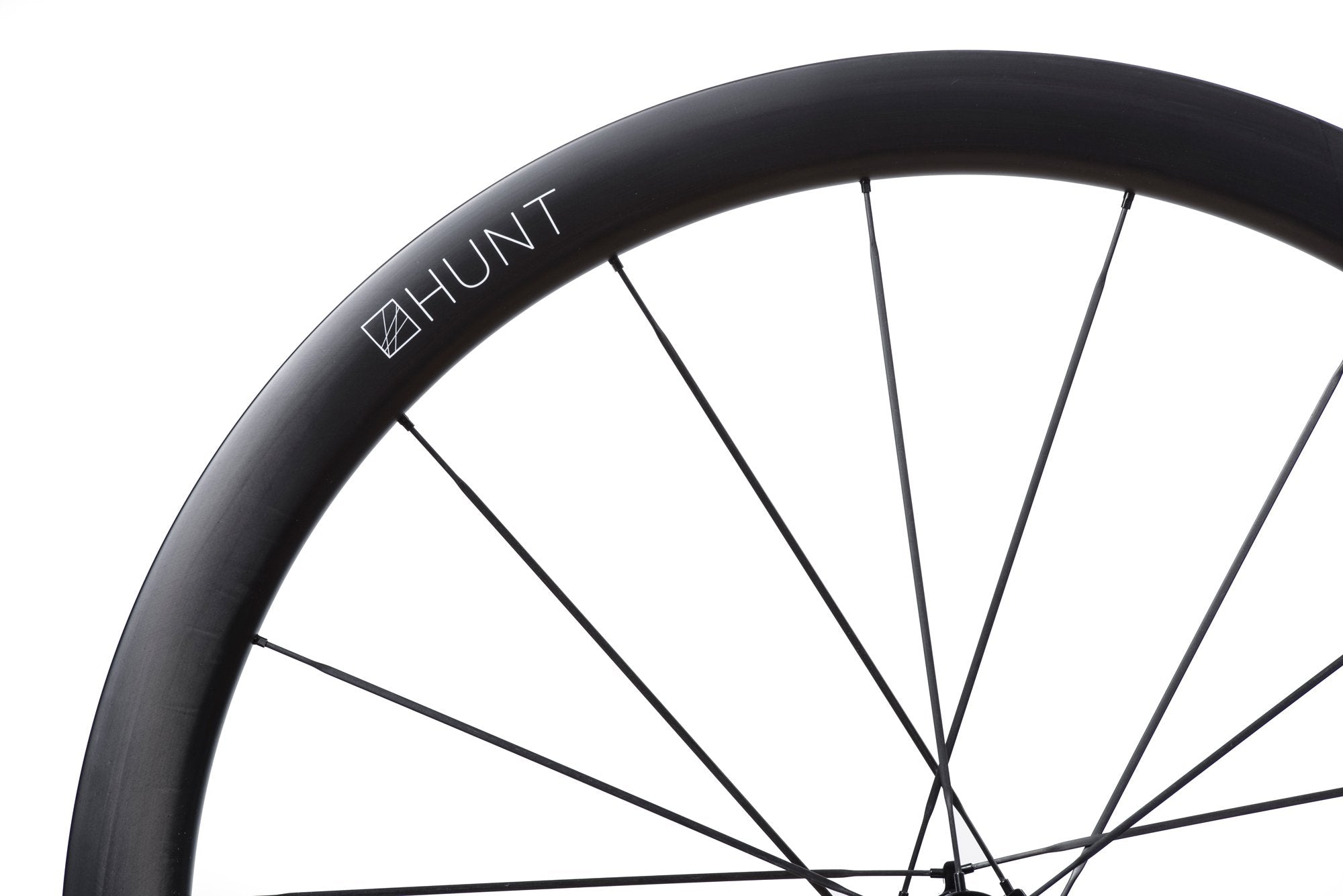

Rims

Aerodynamicist profile, disc-specific & aerodynamically optimised for 25-28c tyres
Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
29mm outer and 20mm internal, ideal for 23-50mm tyre widths
44mm deep front and 54mm deep rear
H_LOCK bead-seat up-kicks, for easy and secure tubeless installation
Matt black base finished with matt white contrasting graphics.

Spokes

UD carbon fibre spokes with incredibly high strength, stiffness and weighing only 2.7g per spoke
18 front (2 cross on rotor side, radial on drive side) and 20 rear (2 cross both sides).

Nipples

TaperLock nipples secure spoke head to the hub
Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing
Internal nipple for truing
Black anodized finish.

Tyres Info

Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres. 100 psi is more than enough for any rider on road. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi
Please do not exceed the maximum pressure stated on your tyre.
Suitable for tyres from 23mm up to 50mm wide.
Suitable tubeless road, gravel and CX tyres are available from a huge range of companies.

Axle Size

These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

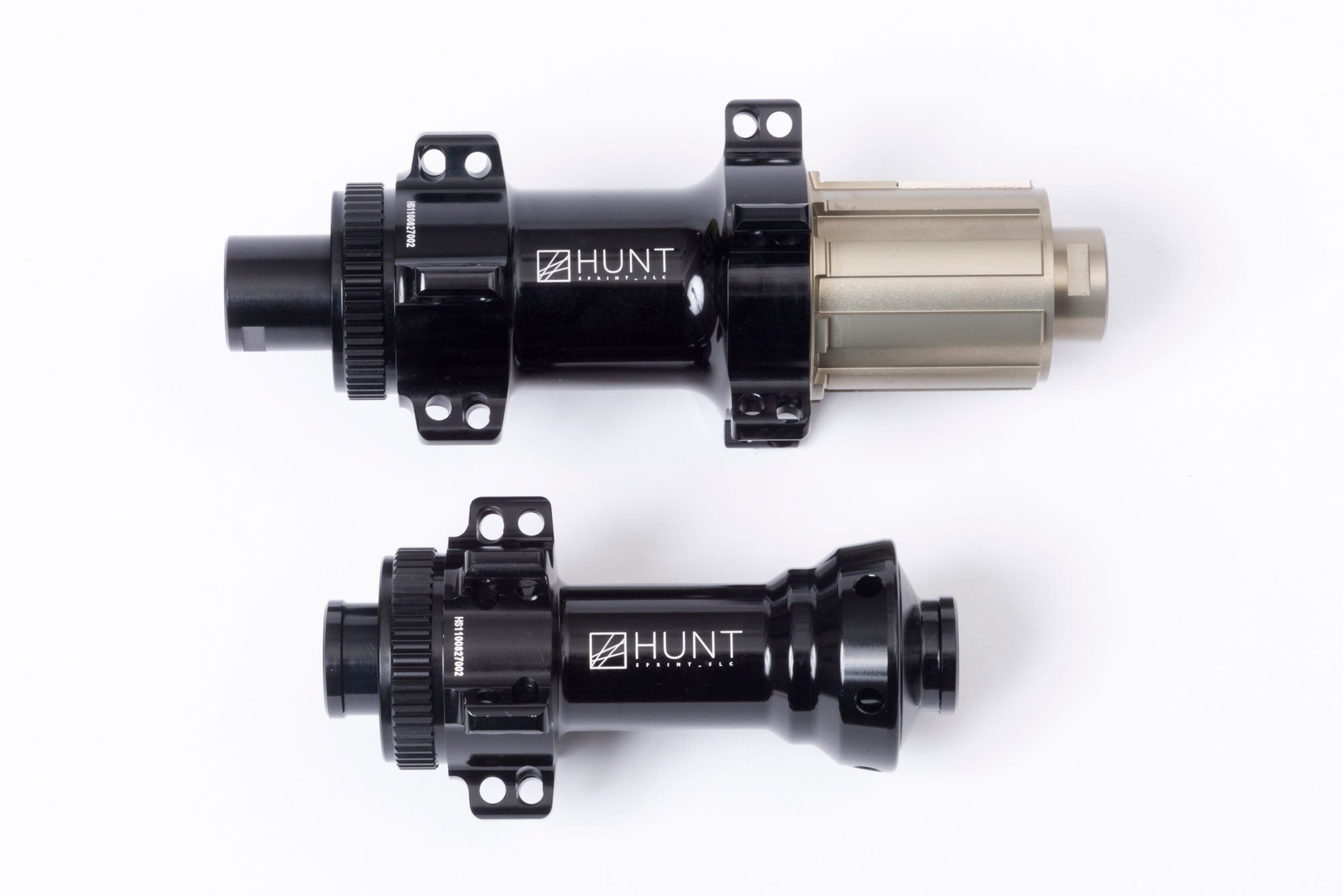

Front Hub

TaperLock spoke interface
All existing road/CX disc front axle standards are available including:

Quick Release (skewers included)
12mm Bolt Thru

All axle adapters are also available separately.
Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
7075-T6 aluminium alloy axles.
Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Polished anodized black finish with laser graphics.
HUNT SPRINT Disc straight-pull super-light alloy.

Rear Hub

TaperLock spoke interface
All existing road/CX disc rear axle standards are available including:

Quick Release (Quick release skewers included)
12x142 Bolt Thru
12x135 Bolt Thru (uncommon)
10x135 Bolt Thru (uncommon)

All axle adapters are also available separately.
7075-T6 heat-treated aluminium alloy freehub body.
Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
All freehub standards accounted for, including:

Shimano/SRAM
Campagnolo
SRAM XD Driver
SRAM XDR Driver

HUNT SPRINT Disc straight-pull super-light alloy.
Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
7075-T6 aluminium alloy axles.
Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Polished anodized black finish with laser graphics.

Bearings

High-grade Japanese EZO bearings.
Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
Incredibly fast rolling.

Warranty, HUNT Rolling Road Tests & Weight Limits

A full 3 years (6 years on CeramicSpeed bearings) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 125kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not.

Our Riders also Bought

Reviews

Bike Magazine and Website Experts' Views

REVIEW (54 UD Carbon Spoke Disc)

"All in all, I love these wheels"

The Purpose _

Introducing the 4454 UD Carbon Spoke Disc, utilising our proven TaperLock carbon spoke technology, resulting in fully serviceable carbon-spoked wheels that can be trued like any other. With significant increases in lateral stiffness (see testing info below), they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels.

Note

Please note these are refurbished wheels and some specifications may vary. These wheels have been inspected by our expert wheel builders and they come with our 3 year warranty as found on our new wheel products.

KEY FEATURES_

HUNT Sprint SLC

Adding strength and enhance power transfer, meaning more of your power pushing you forwards. Light, reliable, race-winning, and easy-to-service. The system delivers a fast 7.5°engagement angle and proven durability.

UD Carbon Spokes

6% more laterally responsive than identical steel spoked wheel, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim.

HUNT Sprint SLC

Adding strength and enhance power transfer, meaning more of your power pushing you forwards. Light, reliable, race-winning, and easy-to-service. The system delivers a fast 7.5°engagement angle and proven durability.

TECHNOLOGY _

Using an innovative spoke-seating method, the 4454 UD Carbon Spoke Disc wheelset offers carbon spokes that are held purely mechanically, with no bonding required. We call this TaperLock, and it allows for carbon spokes that can be trued and maintained just like a normal steel spoke.The TaperLock UD Carbon Spokes are incredibly strong, achieving over 450 kgf (kilograms force per spoke) maximum tensile strength, compared to leading steel spokes which conventionally reach around 300 kgf.For HUNT, aerodynamics and stiffness have to be considered as component parts of a more holistic understanding of performance componentry. That's why we always design with serviceability and usability in mind, because there's no point having a fast wheel you can't use with your favourite tyre, or that you can't easily maintain.

HIGH SPECIFICATION COMPONENTS _

Aerodynamicist Rim Profile

As learned from our Limitless Research project & consistent wind tunnel time across the past 2 years, we know that an optimum aerodynamic benefit for a drop-bar bike is yielded from widening rim profiles. The reasons for this is that it allows for a far more 'blunted' spoke bed area, which (depending on which part of the wheel you're looking at) is both the leading and trailing edge. The benefits of blunted spoke bed areas revolve primarily around the predictable airflow, with the wind ‘hugging’ the rim as it passes across it (as opposed to older style V-shaped rims, which would create turbulence in the form of stalls). The wider profile ensures the flow stays attached to the surface as long as possible before the point of separation, which is key as yaw angles increase..

Taperlock Sprint SLC Hubs

Carbon spoke optimised TaperLock SPRINT hubs add strength and enhance power transfer meaning all your force pushes you forwards. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps add extra stiffness.

UD Carbon Spokes

Incredibly strong (achieving over 450kgf per spoke) TaperLock UD carbon spokes offering 30% increase in stiffness against steel ones. Only 2.7g per spoke. Due to the TaperLock technology, these spokes can be trued easily using a spoke key from within the rim bed.

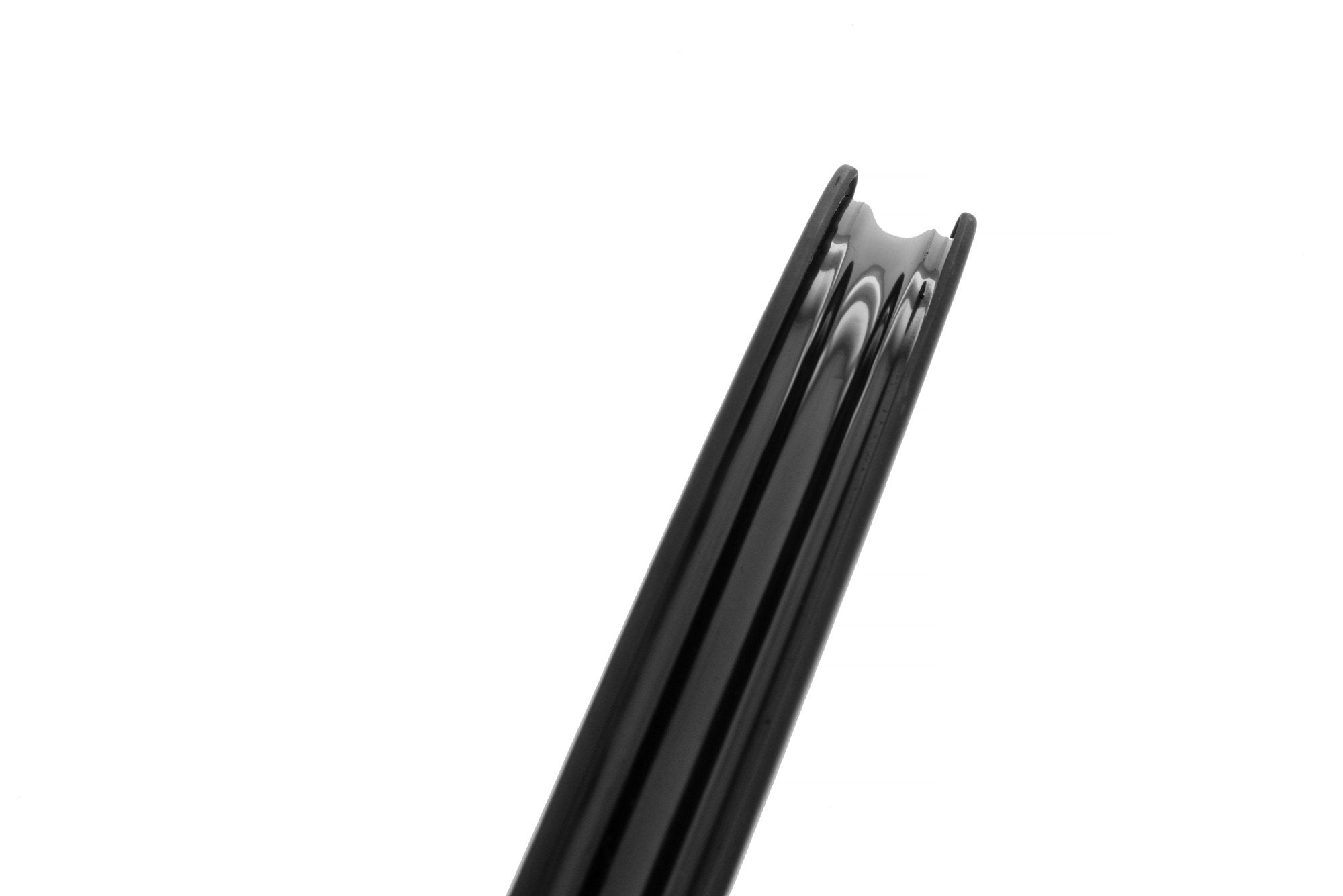

Rim Bed

Designed around a 20mm internal rim width optimised for a 25c tyre (but will of course work without compromise with both 23c and 28c tyres). They feature a hooked tyre retention design and are both fully ETRTO-compatible and tubeless-ready.

Tyre Width Optimisation

Designed around a 20mm internal rim width optimised for a 25c tyre (but will of course work without compromise with both 23c and 28c tyres). They feature a hooked tyre retention design and are both fully ETRTO-compatible and tubeless-ready.

Freehub Body

Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring results in an impressively low 7.5-degree engagement angle, and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.

STIFFNESS-TO-WEIGHT

With significant increases in lateral stiffness, they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels. Coming in at just 1352g but with significant increases in lateral responsiveness, disc wheels have never been so fast.
