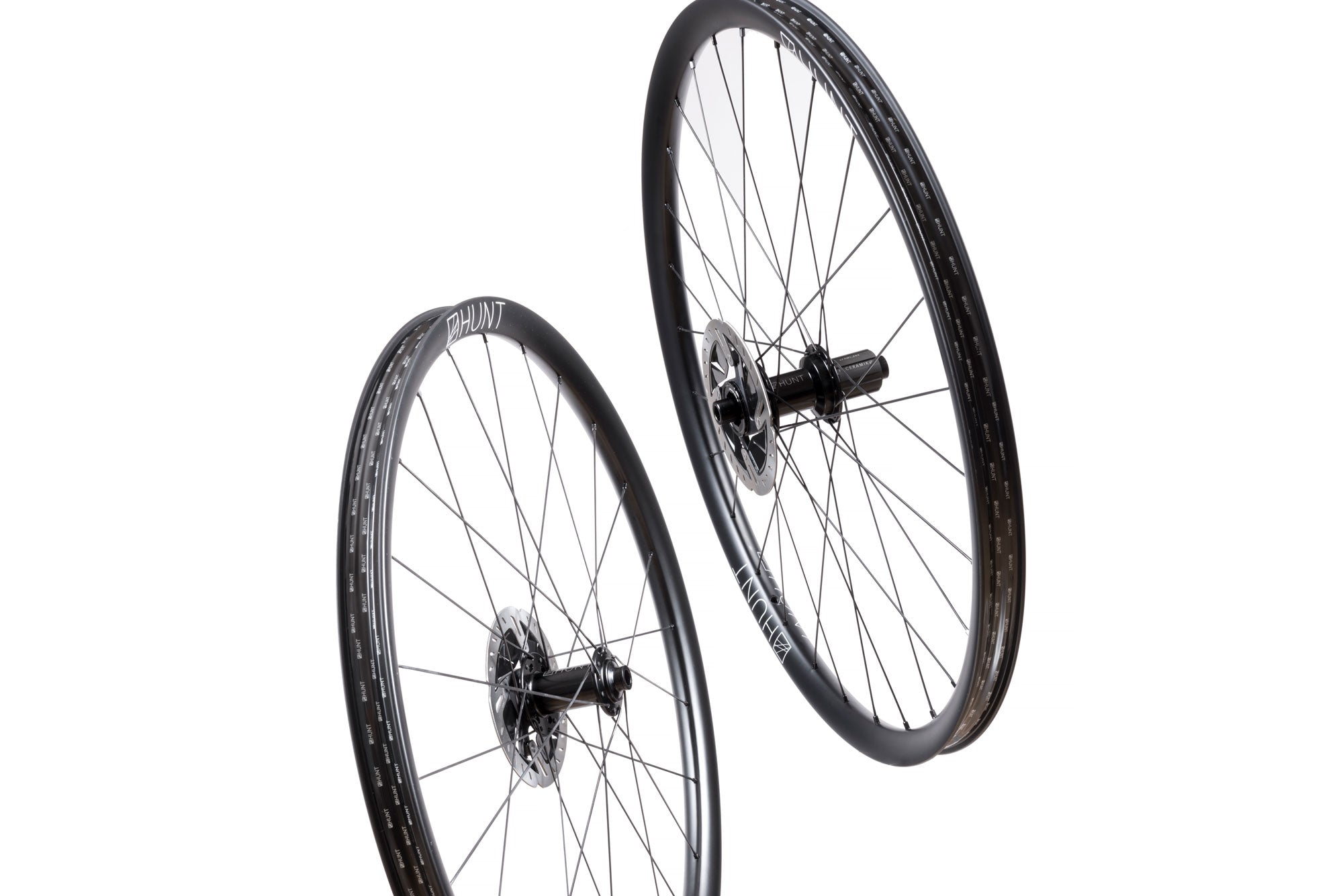

THE ULTIMATE 650B WEAPONS. LOOK NO FURTHER FOR RIDICULOUSLY WIDE, LIGHT, TOUGH 27.5"/650B GRAVEL ROAD/TRAIL WHEELS
26 Deep | 33 Wide Ext | 26 Wide Int | 1461g
The Purpose
You asked, and we delivered! The HUNT 650B Adventure Carbon Wheelset is designed to serve as the ultimate weapon for 650b gravel shredding. They ideally compliment the fast, fun and highly versatile adventure-focused bikes which have a 'go anywhere' attitude. Perfect for those fun trail thrashes and bike-packing adventures, whilst not compromising anything for fast-far road days.
Read More
The opportunity to open up your riding comes from bikes which have geometry designed to ride excellently with both 700c or 27.5" (650b) wheels. This combination works thanks to the extra volume in a 2" x 27.5” tyre, providing an almost identical external tyre diameter to a normal road sized 700c wheel with a 33mm tyre, leaving the bike geo unchanged. What was needed was a bike that could accommodate the extra tyre width, while still running road groupsets, geo and components. These bikes are increasing in popularity and availability continuously!
We’ve designed a specific new rim profile for our new Gravel/Adventure wheels. Key features of this rim that make it great for the focused purpose of drop-bar adventure/gravel road riding are:
Wider 33mm external/26mm internal rim provides excellent ride handling and support for wider tyres, and they work perfectly with (up to) 2.2” MTB tyres.
The 26mm rim delivers excellent strength needed for the lower spoke counts and higher gear torques from road groupsets when compared to MTB setups.
Asymmetric rim accommodates the front disc and rear cassette hub offsets, and helps build an even stronger and more durable wheelset owing to balanced spoke tensions.
Other key features that make the AdventureSport wheels ideal for Dual 27.5"/700c bikes:
Fully adaptable axles, set up ready for your bike, out of the box.
Hard wearing laser etched graphics, which also save extra grams.
Hunt 4Season Disc hubs with excellent bearing coverage and protection for long running life.
SRAM XD compatible. 'Dual 27.5/700c' bikes are ideal for 1x single front ring groupsets.
Supplied with thru axle adaptors included as pretty much all 'Dual 27.5/700c' bikes run thru axles only. Read Less
Key Features
Smaller Wheels, Bigger Tyres, More Opportunities
- Rims | Unidirectional T24/30 with 3K weave reinforced spoke holes. Disc Specific. Tubeless-ready for lower weight & rolling resistance, featuring H-lock bead-seat for easy and secure tubeless installation. 26mm deep, Super-wide 33mm aero U-profile.

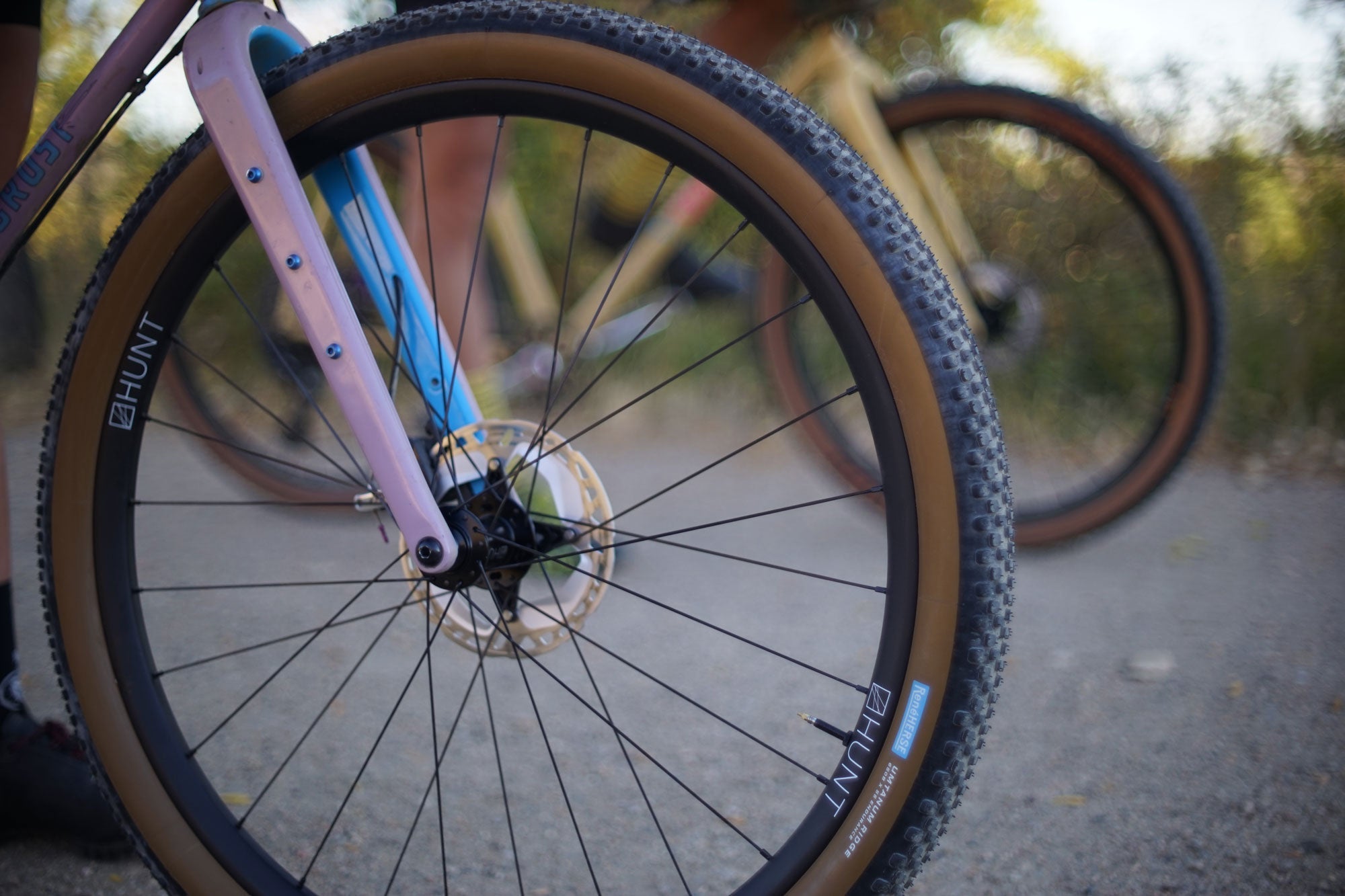

- Tyres | Extra-wide 26mm rim bed works with 30c tyres (where the tyre manufacturer allows their use on a rim of this width), but ideal for gravel and CX cyclo-cross tyres up to 54c and MTB 27.5"(650B) tyres up to 2.2". Only use tubeless compatible tyres stated as compatible with hookless rims and the internal width of this rim.
- Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. 5 degree RapidEngage 6-pawl freehub, with H_CERAMIK coating for enhanced durability. SRAM XDR Driver available.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/15/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
- See the full specs here
- Weight | 1461g
Please note: If you require a 6 bolt adaptor you can purchase separately here
Full Specs

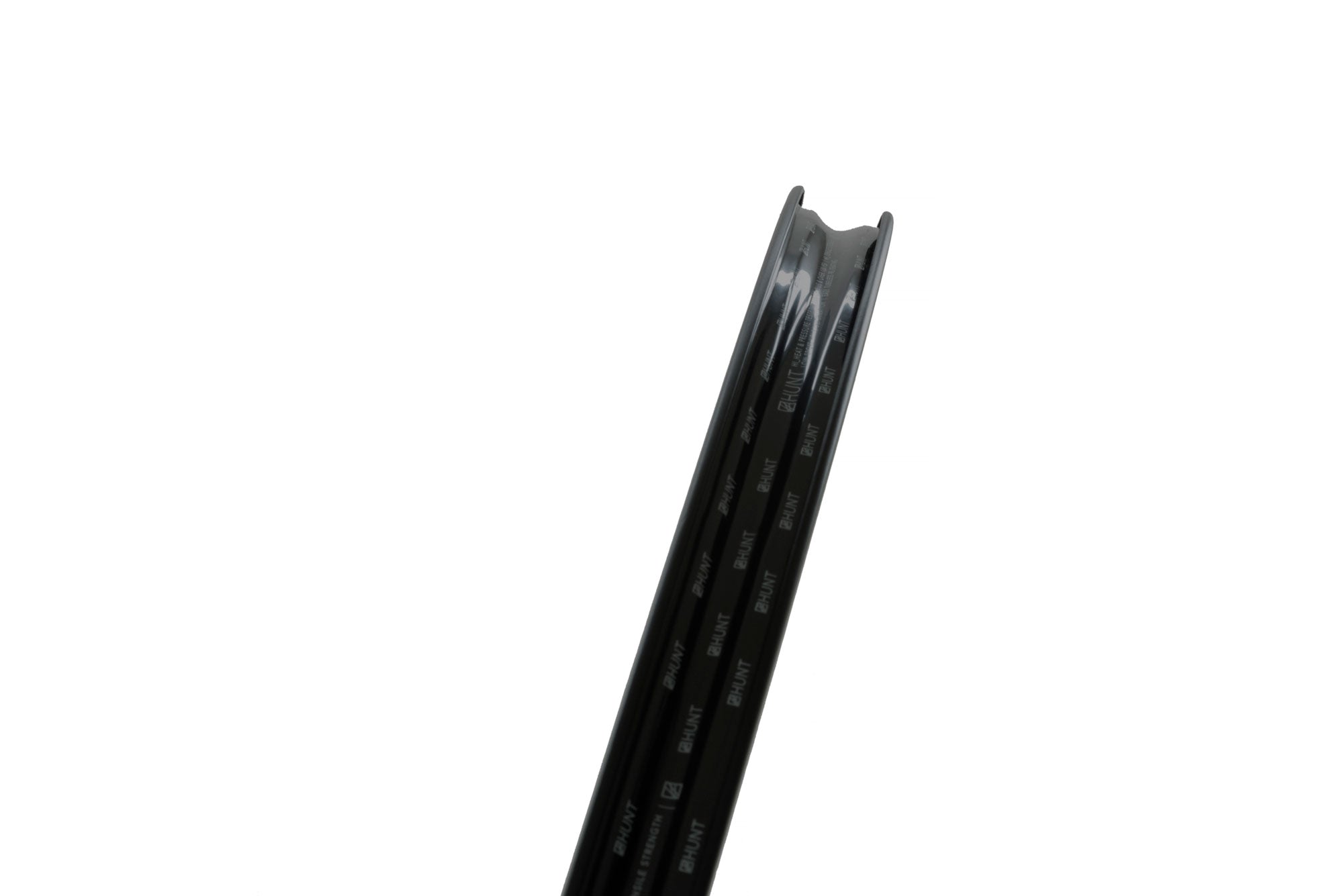

Rims

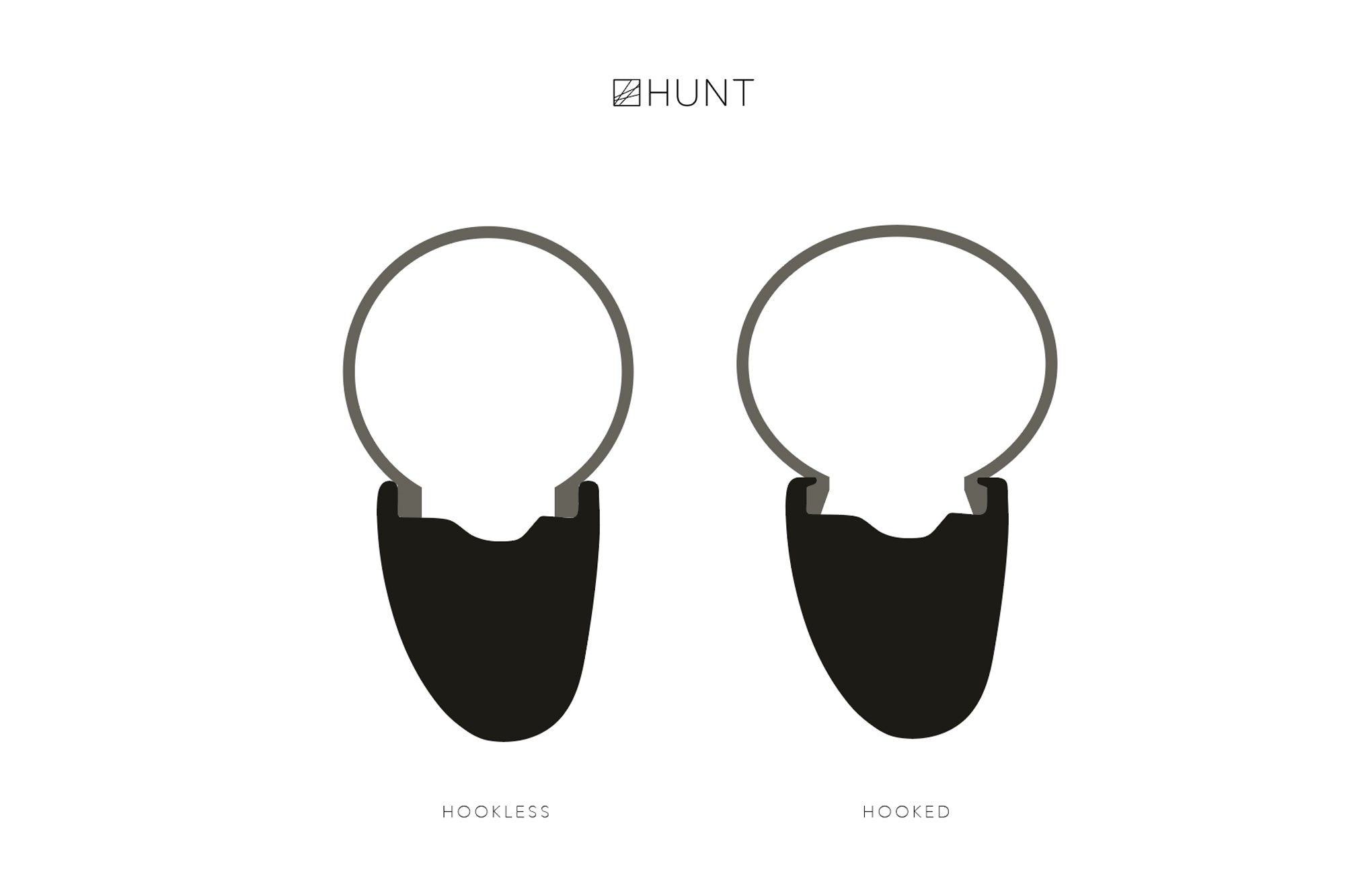

- Hookless, tubeless-ready profile.(Click here to find out more about hookless rim technology.
- H_Lock rim shoulders, for easy and secure tubeless installation
- Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
- 33mm outer and 26mm inner width
- 26mm depth
- Matt black base finished with matt white contrasting graphics.

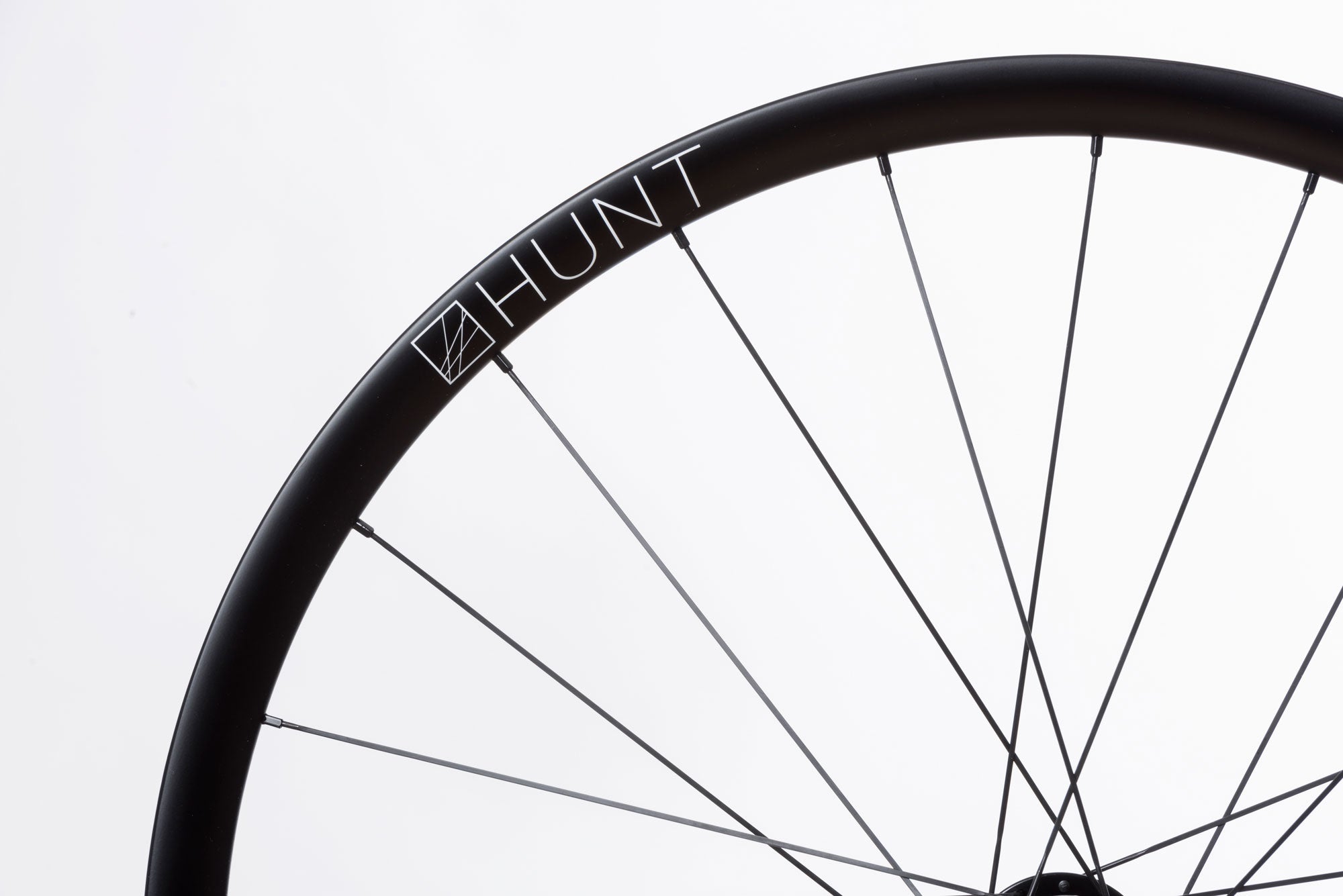

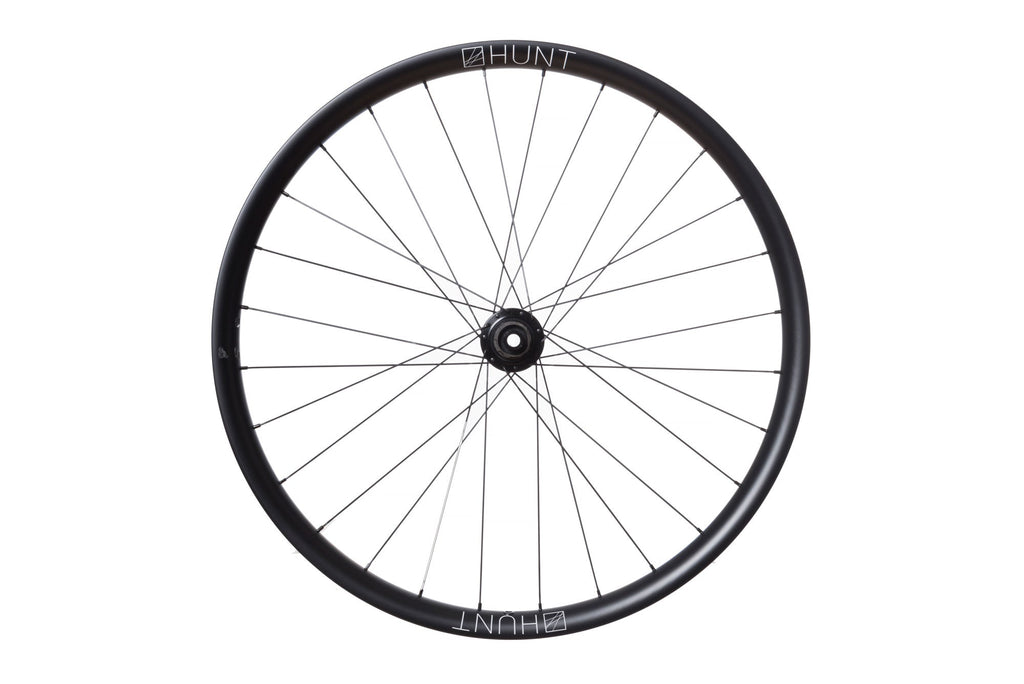

Spokes
- 24 front and 28 rear laced 2 cross.
- Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
- J-Bend for ease of replacement.
- Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
- Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
- Black stainless treatment
Nipples
- Brass for anti-corrosion resistance.
- Square body for external adjustment and hex head for easy internal adjustment/tensioning.
- 12mm length with washer for a strong connection to the spoke added durability.
- 14 gauge.
- Black finish.
Tyres Info
- Maximum tyre pressure for this rim is 5 bar / 72.5psi. Please do not exceed this pressure or the maximum pressure stated on your tyre, whichever is lowest. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
- Please do not exceed the maximum pressure stated on your tyre.
- Suitable for a wide variety of tyre widths.
- Suitable tubeless road, gravel and CX tyres are available from a huge range of companies.
Axle Size
- These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

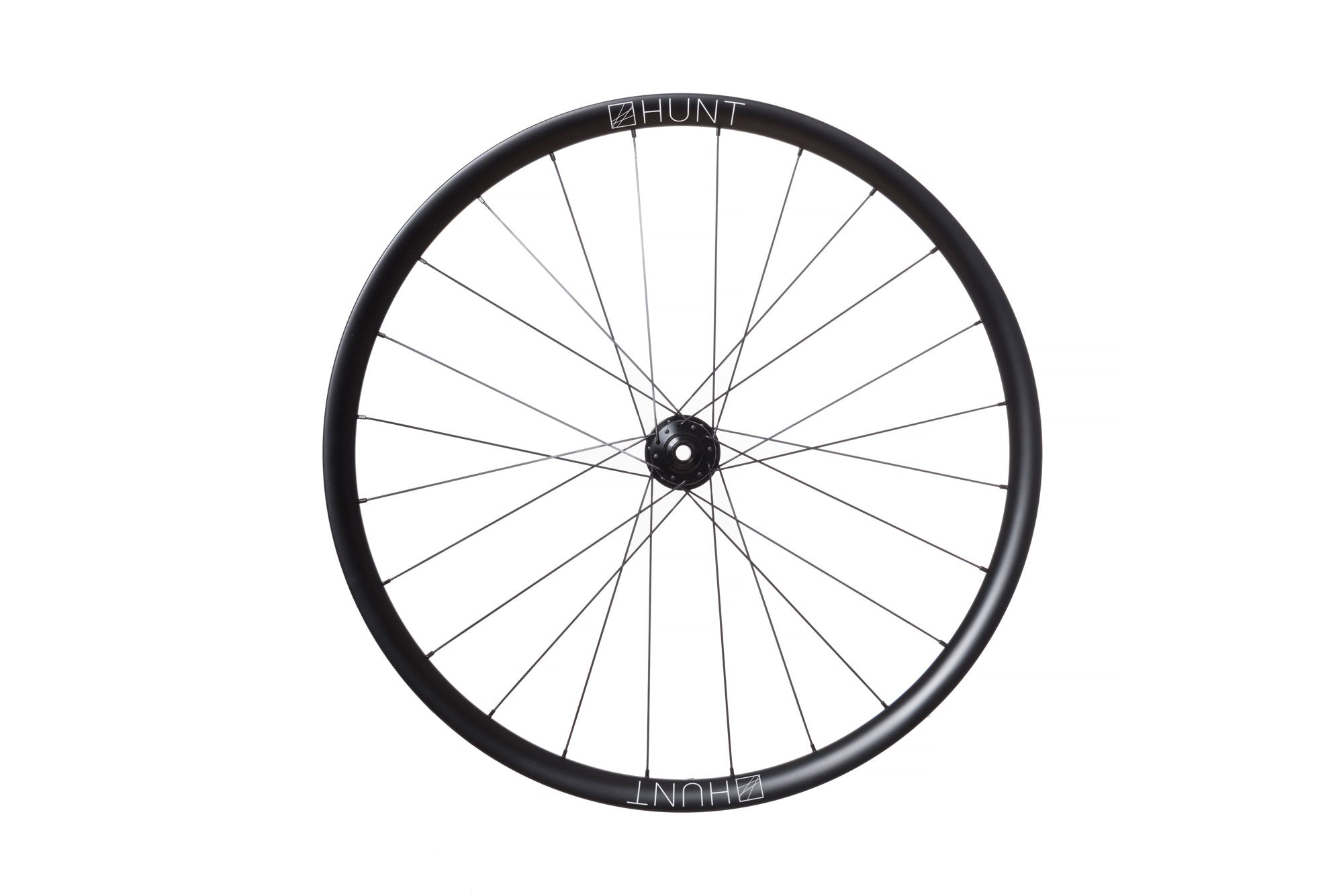

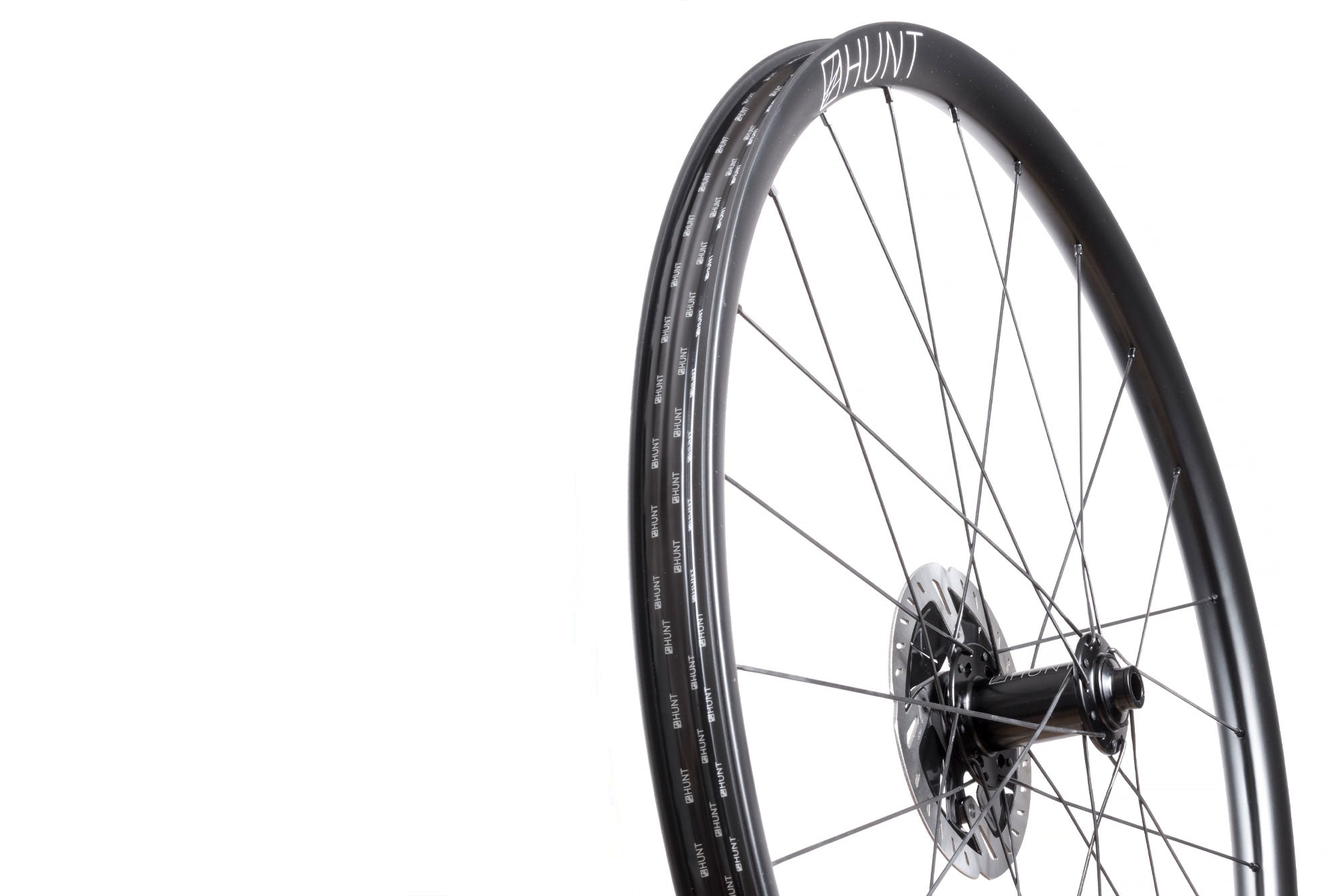

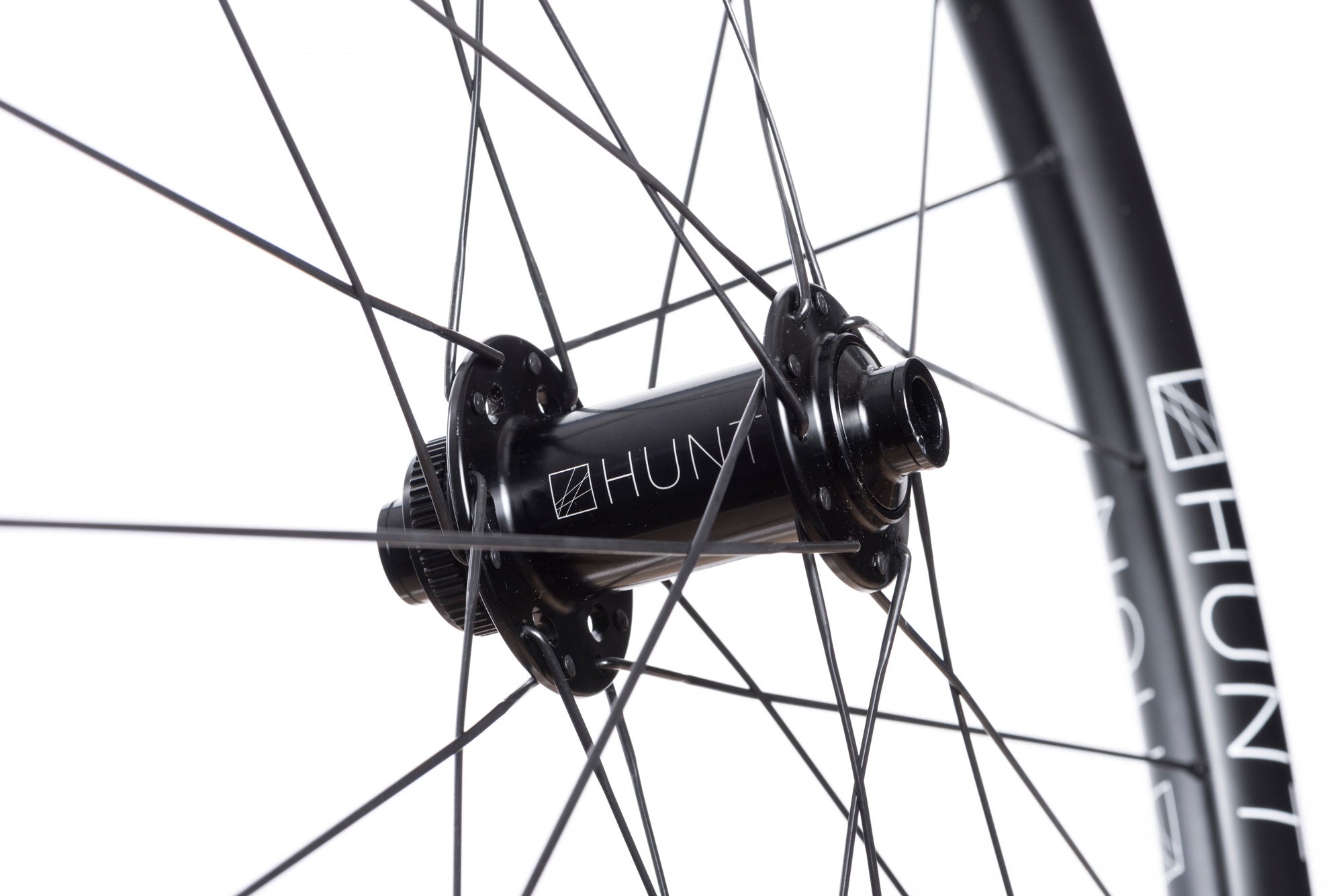

Front Hub
- We fit the axles you need, just complete the simple form shown after checkout:
- All existing road/CX disc front axle standards are available including:
- Quick Release (Quick release skewers included)
- 12mm Bolt Thru
- 9mm Bolt Thru (uncommon)
- All axle adapters are also available separately.
- HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.

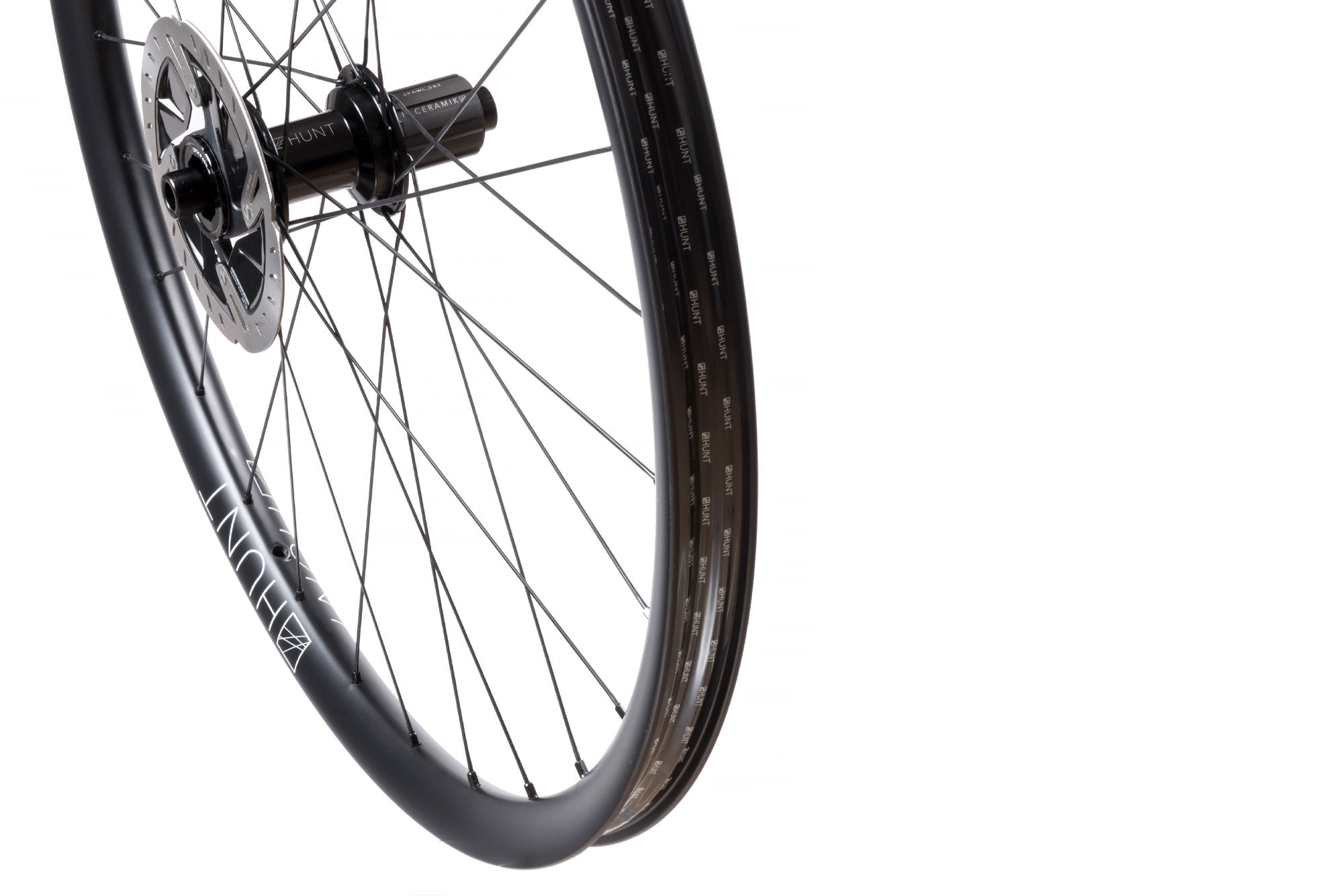

Rear Hub
- We fit the axles you need, just complete the simple form shown after checkout.
- All existing road/CX disc rear axle standards are available including:
- Quick Release (Quick release skewers included)
- 12x142 Bolt Thru
- 12x135 Bolt Thru (uncommon)
- 10x135 Bolt Thru (uncommon)
- All axle adapters are also available separately.

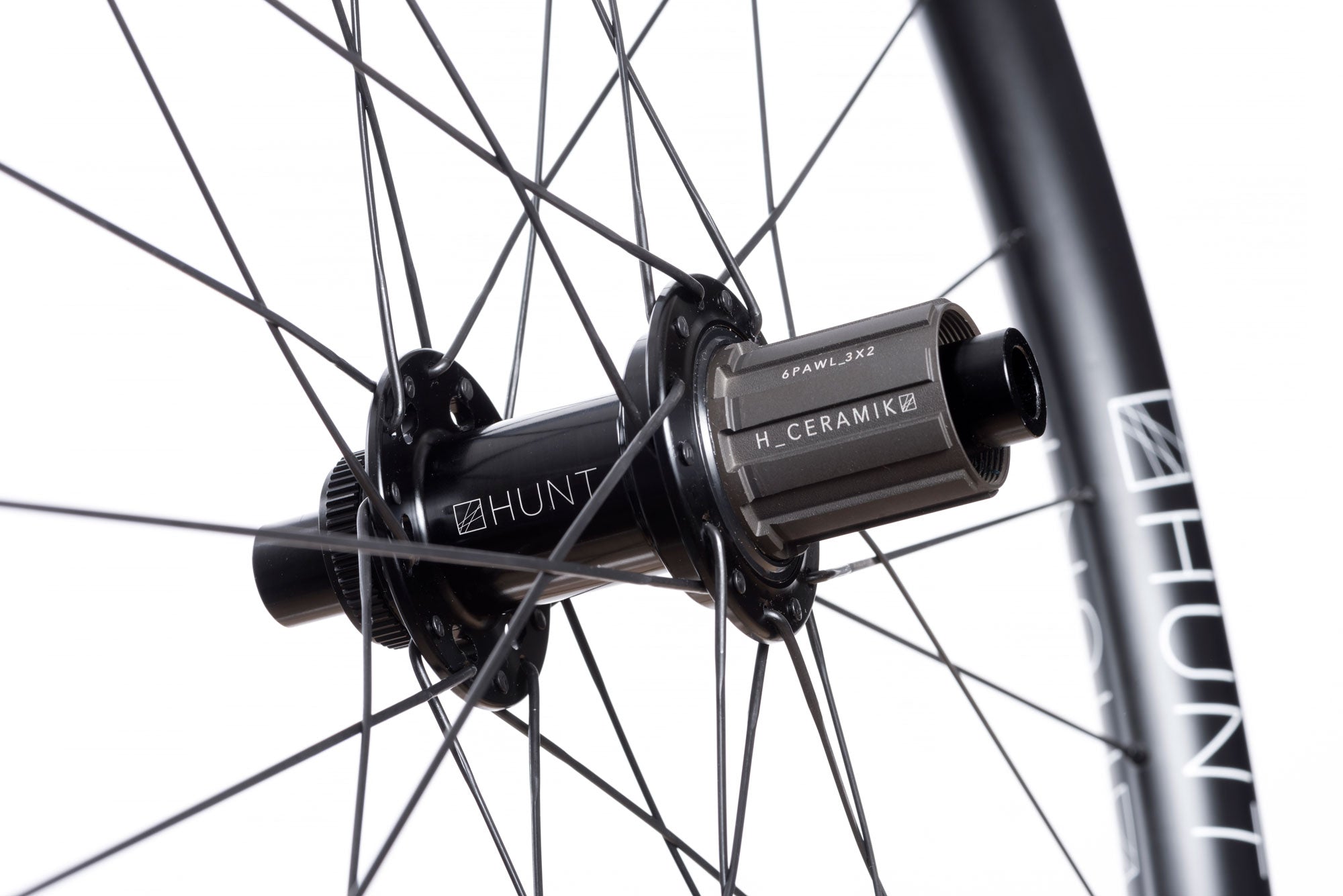

- 7075-T6 heat-treated aluminium alloy freehub body.
- H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 6 pawl, 28 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- HUNT 4 Season Disc J-bend super-light alloy.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.
Bearings
- Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
- Sealed cartridge replaceable units.
- Dual full-contact seals.
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 95Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 65psi (observe tyre manufacturer's max pressure as this may be lower) as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
Want to add tubeless tyres?
We can supply or fit tubeless tyres (including sealant) to your wheels.
Maximum tyre pressure for this rim is 5 bar / 72.5psi. Please do not exceed this pressure or the maximum pressure stated on your tyre, whichever is lowest
These are only some of the options you can have fitted on your wheels. To see the full range, click here
Schwalbe G-One Bite Tubeless Tyres - 650B x 2.1"The G-One Bite feels good on road, but off-road is where it shows its real strength. The Bite version is made for more off-road use than its stablemates. The open tread and strong outer blocks give stability when cornering and great control in the toughest of gravel terrains. |
|
WTB Byway TCS Tubeless Tyres 650B X 47mmThe Byway Road Plus tyre brings supple plus-size traction and smooth riding characteristics even further into the dirt track. A smooth centerline and intermediate, diamon-shaped peaks provide great traction under power, while the more substantial side knobs protect the tyre from rocks or gashes. |
|
WTB Horizon Tubeless Tyres - 650B x 47mmThe Horizon Road Plus tyre brings supple plus-size traction and smooth riding characteristics beyond where the pavement ends. A smooth centerline and all-weather herringbone pattern with cornering channels make anything possible. |
