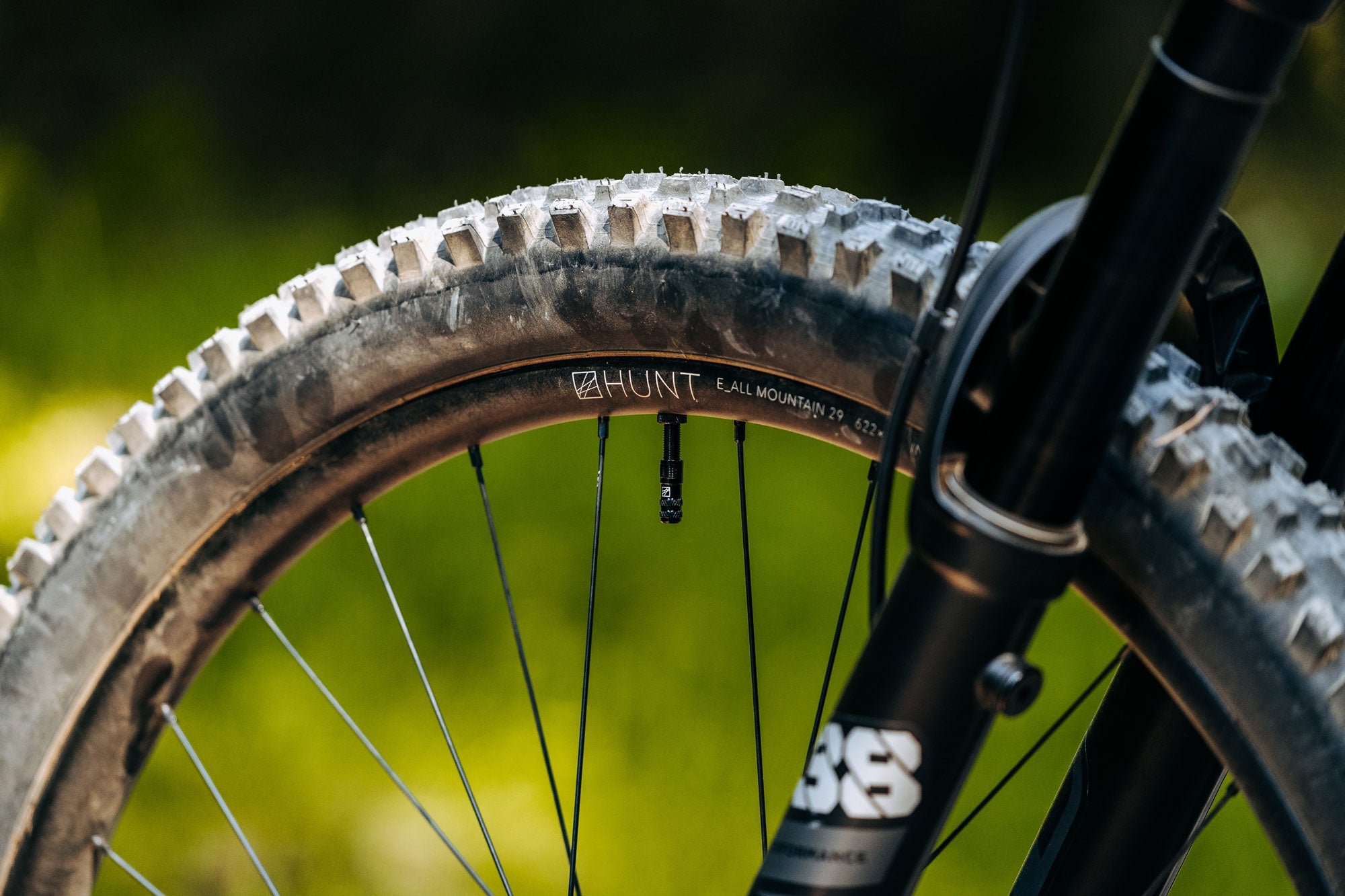

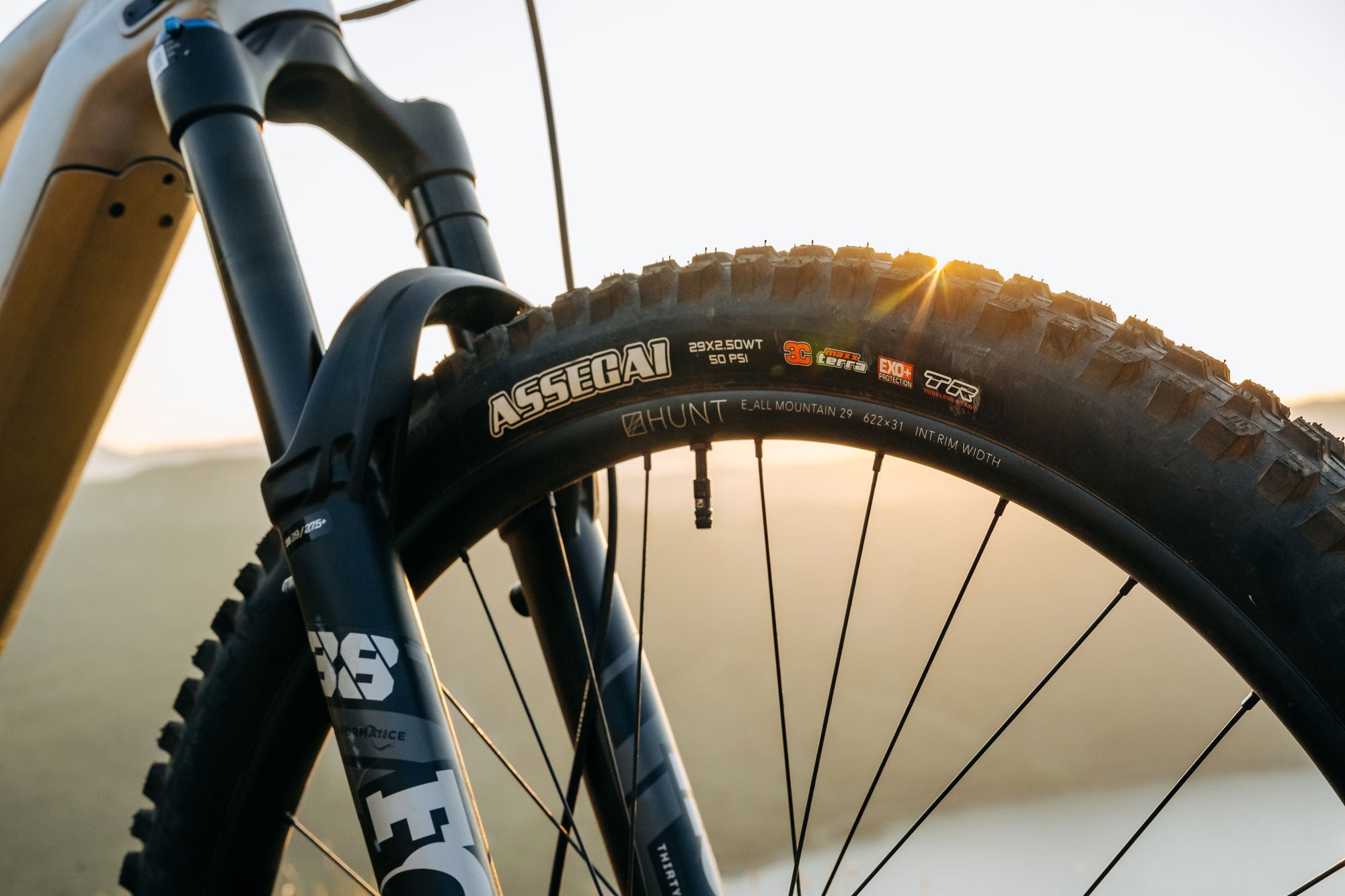

<h1>Internal Rim Width</h1><i>The wider 31mm internal rim width gives the perfect carcass shape to modern enduro and trail tyres, optimizing braking traction and cornering performance.</i>

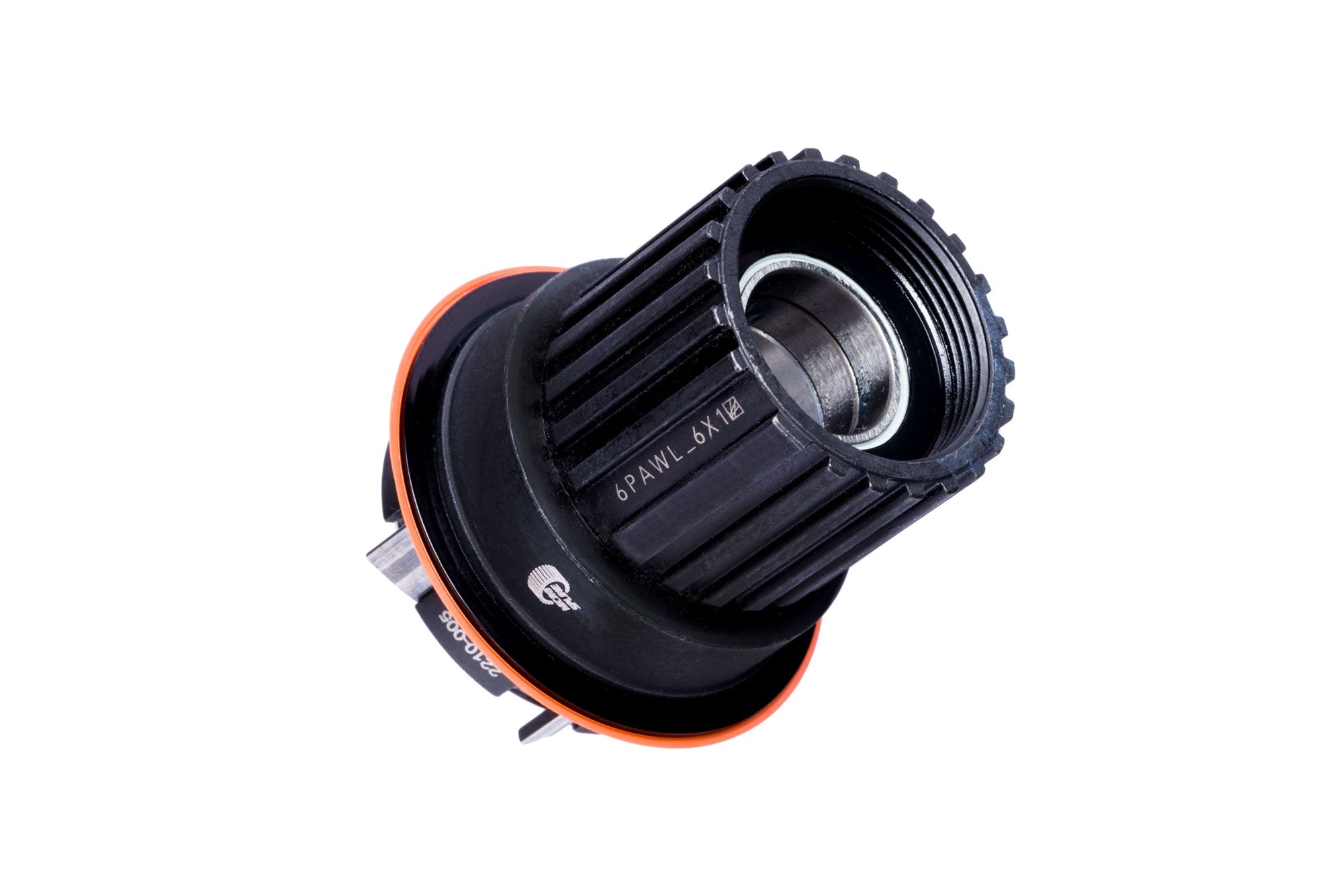

<h1>Phase Engage</h1><i>HUNT E_All Mountain benefits from our E-MTB specific, PhaseEngage 6x1 freehub. Manufactured from steel, this 8-degree engagement freehub is built to handle the higher torque loads that modern electric mountain bikes are capable of producing.</i>
<h1>Engineered in The UK</h1><i>The HUNT E All_Mountain rim and its durable internally reinforced construction were designed, developed and tested at our head office in West Sussex using advanced FEA modelling.</i>
<h1>Spokes</h1><i>Spoke guages have been increased front and rear using high-specification Pillar PSR 2018 triple butted spokes. The benefit being a larger central guage of 1.8mm making these stainless steel spokes incredibly strong.</i>
<h1>Brass Nipples</h1><i>Hand-laced with high-specification brass nipples and conical nipple washers, offering exceptional strength and long-term durability.</i>
<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to most current axle standards on the market, you just need to let us know what your requirements are by filling in the simple form on the confirmation page after checkout.</i>
<h1>Bearings</h1><i>Our precision CNC hubs house double-sealed Revo bearings providing long service intervals. In addition, the free-spinning bearings maintain low levels of friction for an ultra-efficient ride and long life.</i>
35% off
HUNT E_All Mountain 29 Wheelset
HUNT E_All Mountain 29 Wheelset
HUNT E_All Mountain 29 Wheelset#
<h1>Reinforced Rim</h1><i>Through FEA analysis, our engineers have added internal reinforcement to the profile of both front and rear rims, boosting the overall durability and ability to shrug off hard landings and impacts.</i>
<h1>Internal Rim Width</h1><i>The wider 31mm internal rim width gives the perfect carcass shape to modern enduro and trail tyres, optimizing braking traction and cornering performance.</i>
<h1>Phase Engage</h1><i>HUNT E_All Mountain benefits from our E-MTB specific, PhaseEngage 6x1 freehub. Manufactured from steel, this 8-degree engagement freehub is built to handle the higher torque loads that modern electric mountain bikes are capable of producing.</i>
<h1>Engineered in The UK</h1><i>The HUNT E All_Mountain rim and its durable internally reinforced construction were designed, developed and tested at our head office in West Sussex using advanced FEA modelling.</i>
<h1>Spokes</h1><i>Spoke guages have been increased front and rear using high-specification Pillar PSR 2018 triple butted spokes. The benefit being a larger central guage of 1.8mm making these stainless steel spokes incredibly strong.</i>
<h1>Brass Nipples</h1><i>Hand-laced with high-specification brass nipples and conical nipple washers, offering exceptional strength and long-term durability.</i>
<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to most current axle standards on the market, you just need to let us know what your requirements are by filling in the simple form on the confirmation page after checkout.</i>
<h1>Bearings</h1><i>Our precision CNC hubs house double-sealed Revo bearings providing long service intervals. In addition, the free-spinning bearings maintain low levels of friction for an ultra-efficient ride and long life.</i>

RE:NEW HUNT E_All Mountain 29 Wheelset

After payment & checkout, we will ask for your freehub and axle information via an automatically generated form.

Which freehub do I need?
£359 £549.00
35% off
Limited Stock. Available Now.
Wheels are scheduled to ship from us in the week stated. Delivery time is 2-6 days*
Finance options available at checkout.

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

More details Right

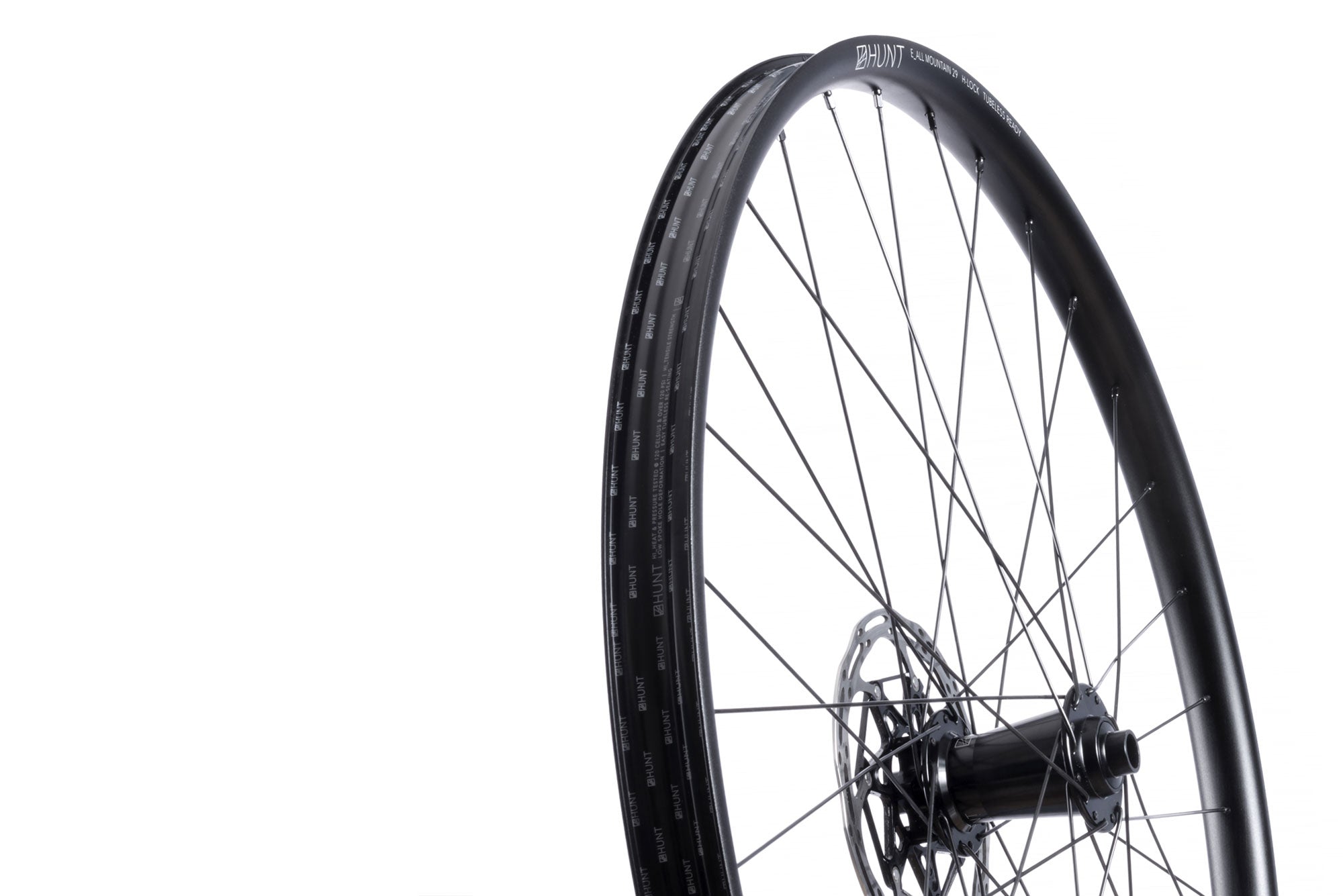

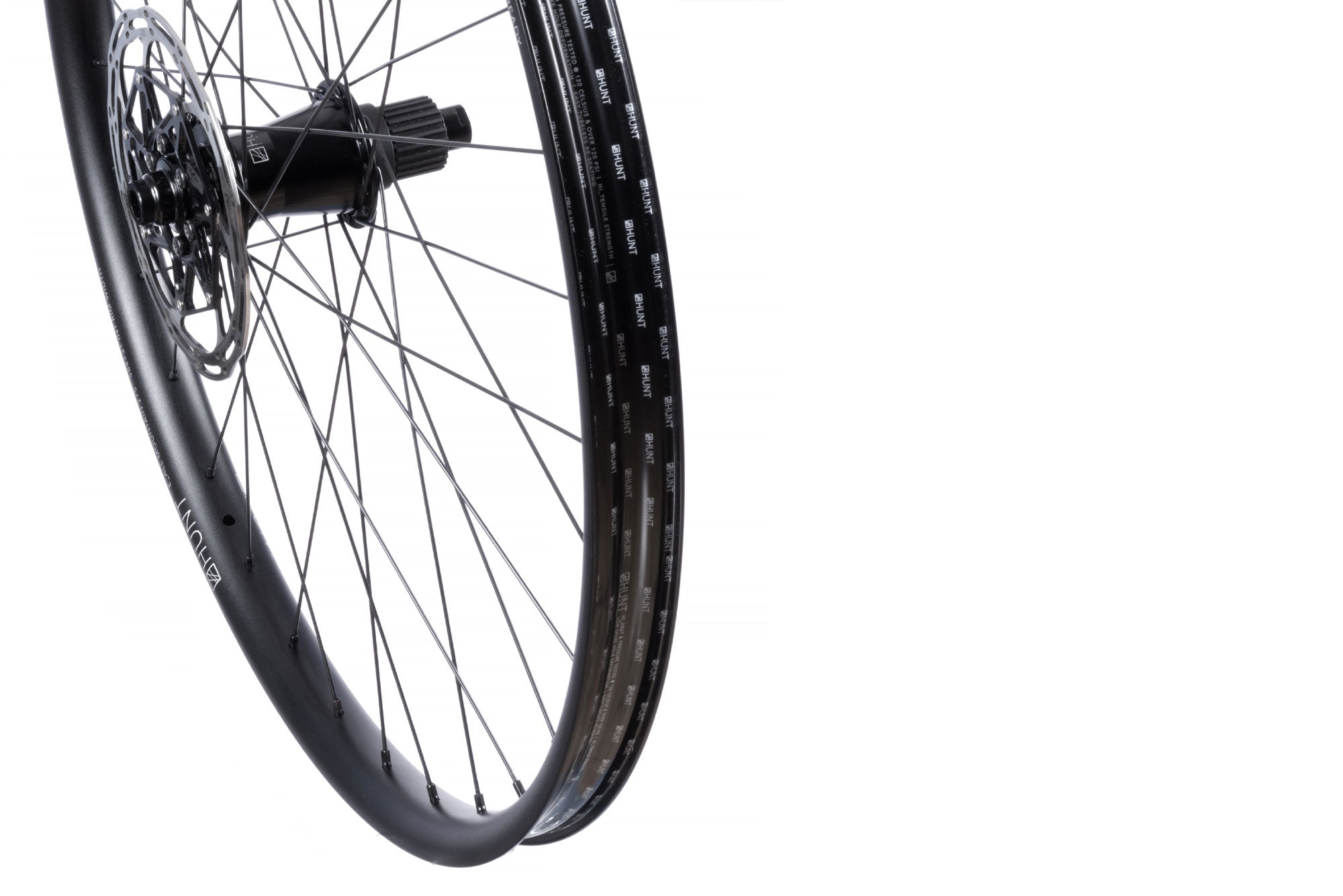

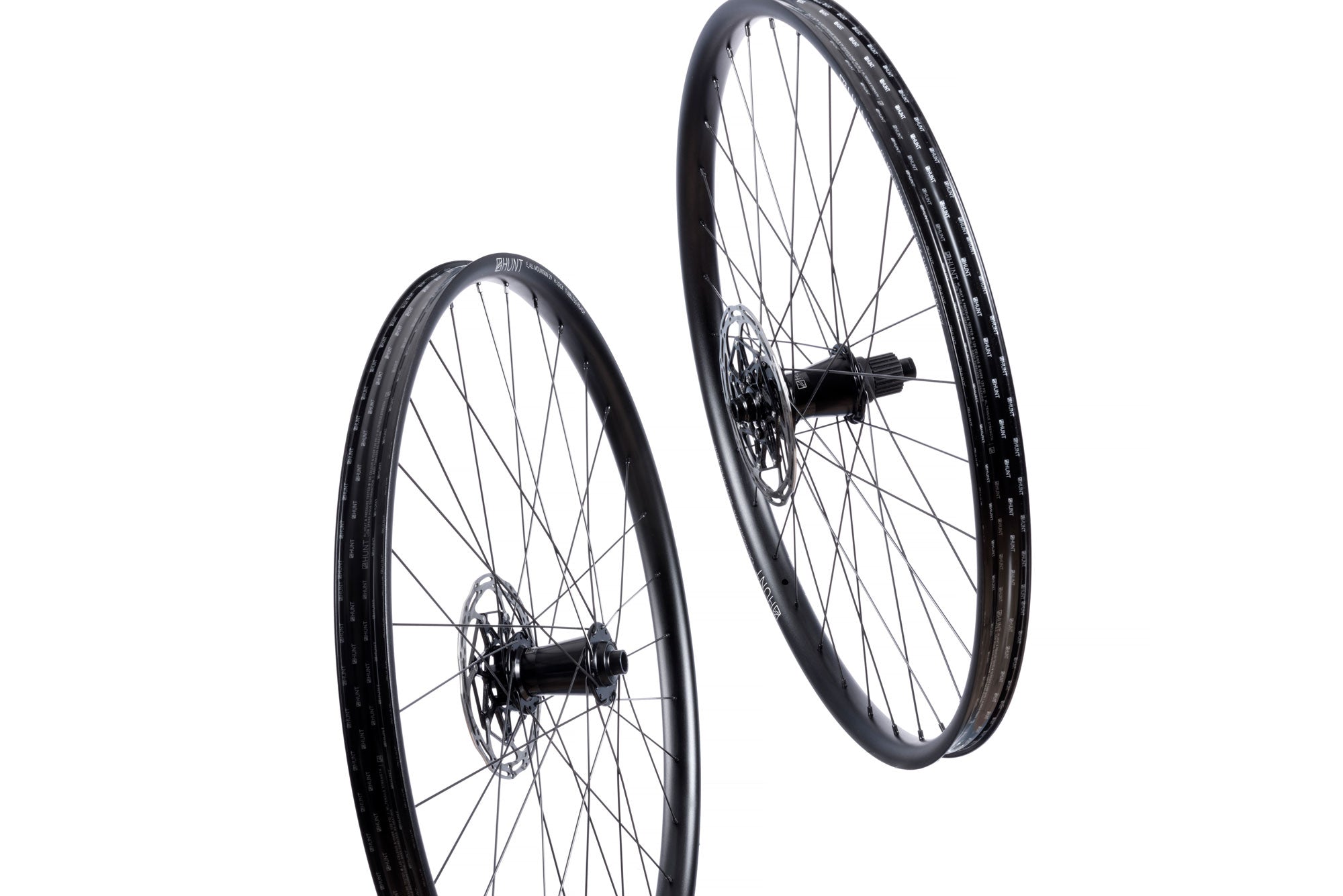

Engineered specifically for E-MTB use, the HUNT E_All Mountain alloy wheel system offers maximum durability and performance on the trails.

29" | 31 WIDE INT | Phase Engage E-MTB Specific Freehub | 2193g

The Purpose

The HUNT E_All Mountain alloy wheelset has been engineered to meet the specific demands of modern E-MTBs ranging from lighter weight, Mid-torque platforms to full-power high-torque models. Manufactured from 6069-T6 extruded alloy with a rugged anodized shot-peened black finish, the HUNT E_All Mountain uses the same tried and tested rim profile as the Enduro Wide V2, boasting internal reinforcement shoulders to support the rim sidewall and protect against hard impacts.

Through FEA analysis, our engineers have added internal reinforcement to the profile of both front and rear rims, boosting the overall durability and ability to shrug off hard landings and impacts.



The Purpose

The HUNT E_All Mountain alloy wheelset has been engineered to meet the specific demands of modern E-MTBs ranging from lighter weight, Mid-torque platforms to full-power high-torque models. Manufactured from 6069-T6 extruded alloy with a rugged anodized shot-peened black finish, the HUNT E_All Mountain uses the same tried and tested rim profile as the Enduro Wide V2, boasting internal reinforcement shoulders to support the rim sidewall and protect against hard impacts.

Through FEA analysis, our engineers have added internal reinforcement to the profile of both front and rear rims, boosting the overall durability and ability to shrug off hard landings and impacts.



Key Features

Engineered in the UK for hard-charging E-MTB riders.

    • Rims | 6069 T6 (490 MPa, + 69% Ultimate Tensile Strength over 6061-T6) welded construction, 31mm wide (internal), work-hardened shot-peened finish.
    • Tyres | Optimised for 2.35"-2.6" tyres set up Tubeless, but also work very well with 2.3"-3.3". Also great with standard tyres and tubes.
    • Hubs | Large body HUNT E_Enduro front hub with 8-degree Phase Engage, EMTB specific rear hub. Oversized, double-sealed cartridge bearings. Boost (110/148) spacing only. RockShox Torque Caps for Boost front hubs are also available.
    • Bearings | Super smooth, replaceable, Revo bearings offer fast rolling performance. Dual full-contact seals and long-lasting, heat-resistant grease protect against water ingress for longer service intervals.
    • Spokes | 32F/32R Spoke Count, Triple Butted, Cold Forged, J-Bend Pillar PSR 2018 spokes for the increased demands of an E-MTB rider.
    • Axles | Oversize 17mm 7075-T6 axles for increased strength and stiffness. Reducing flex in the hub also helps to increase bearing life and resist the additional torque of an EMTB motor system.
    • Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
    • Included | Tubeless tape & axle adapters (please fill in the simple form after checkout to select your required size).
    • Weight | 2193g
    • See the full specs here

Full Specs

  • Rims

    • 31mm internal width ideal for 2.35"-2.6" tyre widths, but also work very well with 2.3"-2.8".
    • Internally reinforced design, optimised through an extensive FEA (Finite Element Analysis) process.
    • 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6).
    • Tubeless-ready – designed to work excellently with tubeless tyres. Tubeless-rim tape and valves included.
    • H_LOCK bead-seat up-kicks, for easy and secure tubeless installation
    • Matt black work-hardened shot-peened finish with laser-etched graphics for superior durability.

  • Spokes

    • J-bend, cold drawn stainless steel.
    • 32F/32R spoke count.
    • High-specification Pillar PSR 2018 spokes.
    • Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement)
    • Black stainless treatment

  • Nipples

    • 16mm length with washer for a strong connection to the spoke added durability
    • 14 gauge
    • Durable Brass nipples

  • Tyres Info

    • HUNT recommends a 2.35"-2.6" tyre for best performance, tyre widths between 2.3" and 3.3" are also safe to use.
    • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
    • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this.
    • Tubeless-ready for lower weight and rolling resistance.

  • Axle Sizes

    • 148x12mm Boost (Rear) and 110x15mm Boost (Front) standard. Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
    • SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible.

  • Front Hub

      • Oversized hub and axles.
      • Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
      • 110x15mm spacing. Rock Shox Torque Caps for Boost option available - just add a comment in the notes section on the cart page.
      • Oversized 17mm 7075-T6 aluminium alloy axles.
      • 6 bolt disc mount.
      • Polished anodized black finish with laser graphics.

  • Rear Hub

      • Forged and CNC’d 7075-T6 heat-treated aluminium alloy Hub body.
      • E-MTB specific PhaseEngage 8 degree, 6x1 freehub for increased resistance to the extra torque generated.
      • Updated 42t ratchet ring.
      • 148x12mm spacing (Boost)
      • 6 bolt disc mount
      • 9/10/11 speed Shimano/SRAM compatible freehub, Shimano Microspline and SRAM XD Driver version available.
      • Polished anodized black finish with laser graphics.

  • Bearings

    • Precision sealed cartridge replaceable units.
    • Large diameter ball bearings for extra durability.
    • Dual full-contact rubber seals.

    • Warranty, HUNT Rolling Road Tests & Weight Limits

    A full 3 years from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

    All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 135kgs (system weight – total weight of fully kitted up rider, bike and luggage). If the system weight is over 125kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 36psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

    60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage.

    In the Box

    Contents

    • HUNT Black Shield tubeless tape fitted to wheels.
    • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
