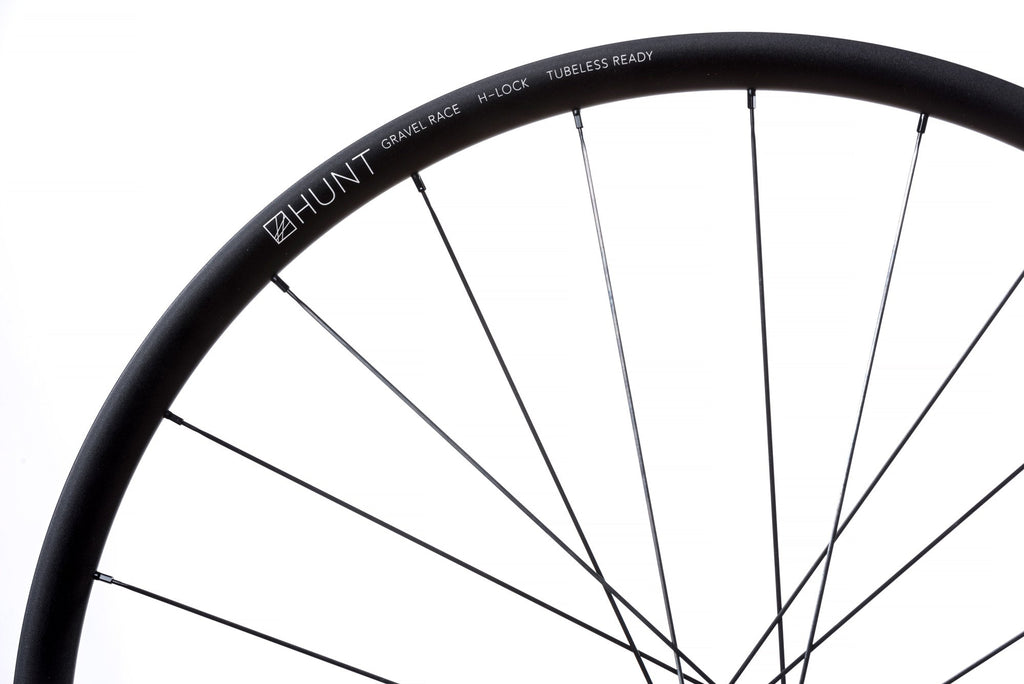

<h1>RIMS</h1><i>A strong and lightweight 6069-T6 heat-treated rim. The rim profile is rounded and true disc specific which allows higher strength to weight. The rim dimensions are wide at 26mm (22mm internal) which creates a great tyre profile with wider 30-45mm tyres, giving excellent grip and lower rolling resistance. </i>
<h1>SPOKES</h1><i>The SAPIM CX-Ray receives one of the best results in fatigue testing of any spoke. Its unique strength and flexibility make the CX-Ray suitable for the Gravel Race wheels. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.</i>

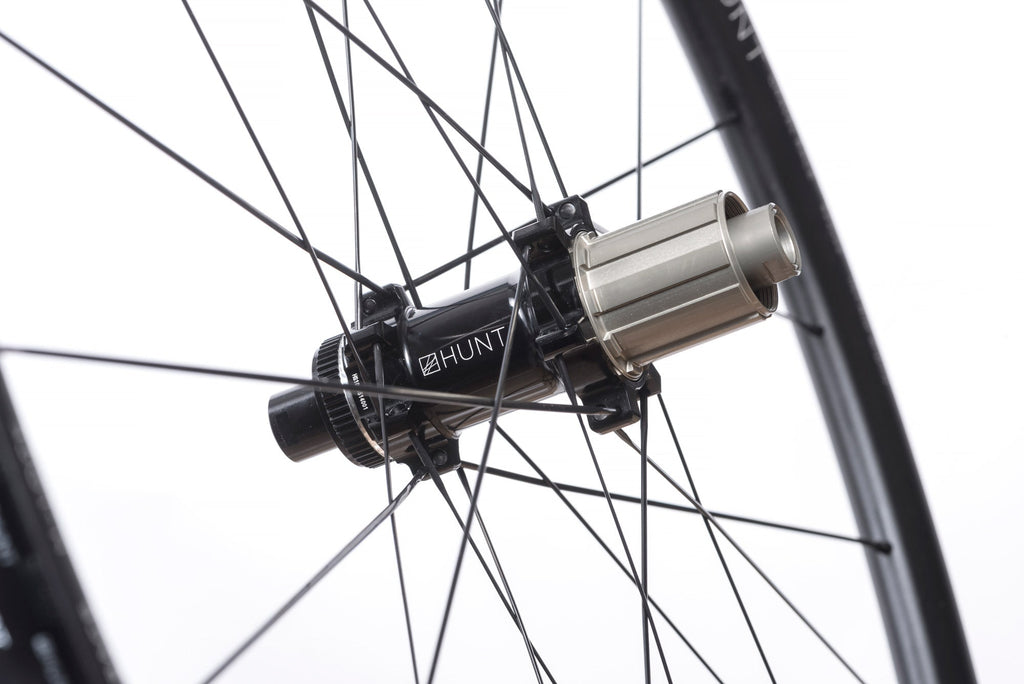

<h1>FREEHUB BODY</h1><i>Featuring 3 multi-point pawls with 3 teeth each and a 48t ratchet ring. The result an impressively low 7.5 deg engagement angle. Durability is a theme for HUNT, and so all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>BEARINGS</h1><i>Bearings are the heart of any wheel and investing in them makes huge sense, so we went to Japanese bearing experts EZO and invested extra to spec their high-grade precision sealed cartridge bearings in our full range.</i>
<h1>NIPPLES</h1><i>To accompany these high-end spokes, we selected alloy nipples for our HUNT Gravel Race wheels. All with the goal to create the ultimate light weight, serviceable and durable wheels for gravel. To finish it off, we are using external spoke nipples to achieve ease of service so when running tubeless you won’t need to take off the rim tape to true. As well as the standard square body we chose nipples with a hex head so you can achieve precise tensioning.</i>

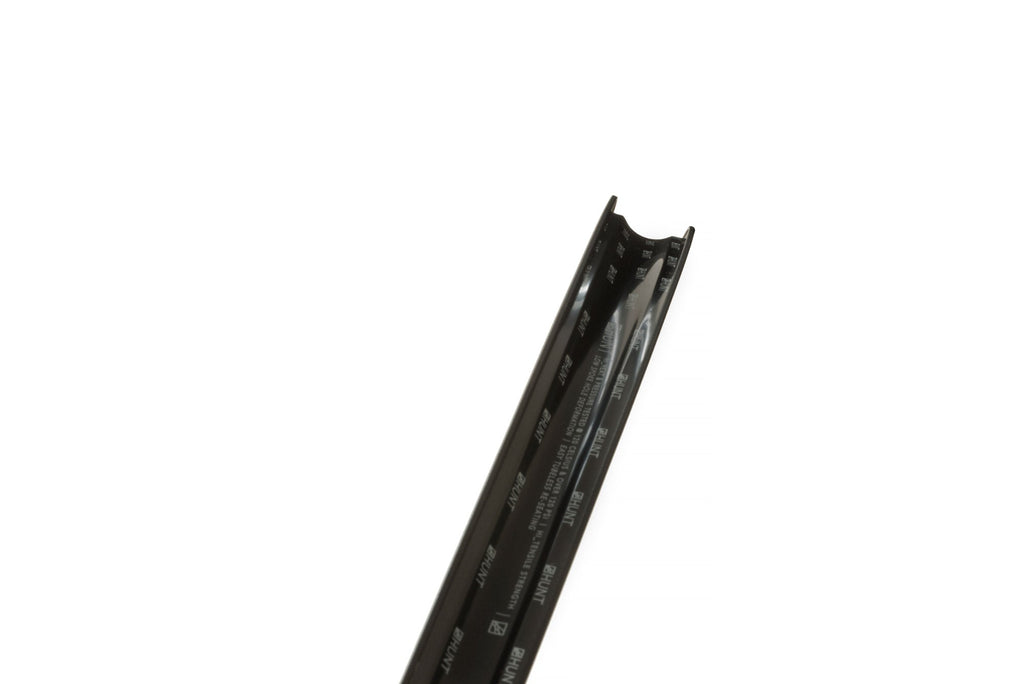

<h1>RIM BED</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
35% off
Hunt Gravel Race Wheelset
Hunt Gravel Race Wheelset
Hunt Gravel Race Wheelset
<h1>RIMS</h1><i>A strong and lightweight 6069-T6 heat-treated rim. The rim profile is rounded and true disc specific which allows higher strength to weight. The rim dimensions are wide at 26mm (22mm internal) which creates a great tyre profile with wider 30-45mm tyres, giving excellent grip and lower rolling resistance. </i>
<h1>SPOKES</h1><i>The SAPIM CX-Ray receives one of the best results in fatigue testing of any spoke. Its unique strength and flexibility make the CX-Ray suitable for the Gravel Race wheels. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.</i>
<h1>FREEHUB BODY</h1><i>Featuring 3 multi-point pawls with 3 teeth each and a 48t ratchet ring. The result an impressively low 7.5 deg engagement angle. Durability is a theme for HUNT, and so all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>BEARINGS</h1><i>Bearings are the heart of any wheel and investing in them makes huge sense, so we went to Japanese bearing experts EZO and invested extra to spec their high-grade precision sealed cartridge bearings in our full range.</i>
<h1>NIPPLES</h1><i>To accompany these high-end spokes, we selected alloy nipples for our HUNT Gravel Race wheels. All with the goal to create the ultimate light weight, serviceable and durable wheels for gravel. To finish it off, we are using external spoke nipples to achieve ease of service so when running tubeless you won’t need to take off the rim tape to true. As well as the standard square body we chose nipples with a hex head so you can achieve precise tensioning.</i>
<h1>RIM BED</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>

RE:NEW HUNT Gravel Race Disc Wheelset

After payment & checkout, we will ask for your freehub and axle information via an automatically generated form.

Which freehub do I need?
£379 £579.00
35% off
Finance options available at checkout

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

More details Right

Your go-to for speed on & off Road

25 DEEP | 26 WIDE EXT | 22 WIDE INT | 1459G

The Purpose

The HUNT Gravel Race 700c wheelset was designed to offer super-sharp performance on the path less pedalled. The line between road and gravel has never been more blurred, so we built a wheelset that could excel on gravel and fast off-road segments, while providing the responsiveness and durability riders demand.

Lightweight 6069-T6 alloy rims offer quick acceleration, combined with our straight-pull Sprint hubs, providing just 7.5 degrees of engagement. Whether going full gas on the flats or cresting over a climb, you’ll be ready for whatever terrain lies ahead.

Key Features

Bringing Speed to the Rough Stuff

We've pored over every last detail developing the Gravel Race.

  • Rims | 6069-T6 Heat treated. Tubeless-ready. Disc specific (no disguised rim braking surfaces). Rounded 25mm profile. Micro-peened finish strengthens the surface even further. H_LOCK bead-seat for easy and secure tubeless installation
  • Tyres | 22mm rim bed creates a wide & stable tyre profile. Ideal for 30-45mm tyres, but also great with 25mm tyres. Also works excellently with clincher tyres and tubes.
  • Hubs | Race Season SPRINT straight-pull hubs, boasting an engagement rate of just 7.5 degrees owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell.
  • Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
  • Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
  • Weight | 1459g
    See the full specs here

Please note: If you require a 6-bolt adapter you can purchase separately here.


Full Specs

  • Rims

    • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included.
    • H_LOCK bead-seat up-kicks for easy and secure tubeless installation.
    • 6069-T6 heat-treated aluminium alloy
    • Asymmetric, to balance spoke tensions.
    • Disc-specific tubeless-ready profile.
    • 26mm outer and 22mm inner width ideal for 25-45mm tyre widths.
    • Rounded 25mm deep profile.
    • Micro-peened black finish strengthens the surface even further.
    • Laser etched graphics for excellent durability.

  • Spokes

    • Sapim CX Ray.
    • 24 front and 24 rear interlaced.
    • Straight-pull for excellent torsional strength and direct power transfer
    • Black stainless treatment.

  • Nipples

    • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
    • 14 gauge.
    • Black anodized finish.

  • Tyre Info

    • 100psi when used with 25-28mm tyres. Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi .
    • The maximum pressure of your tyre may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tyre

  • Axle Size

    • These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

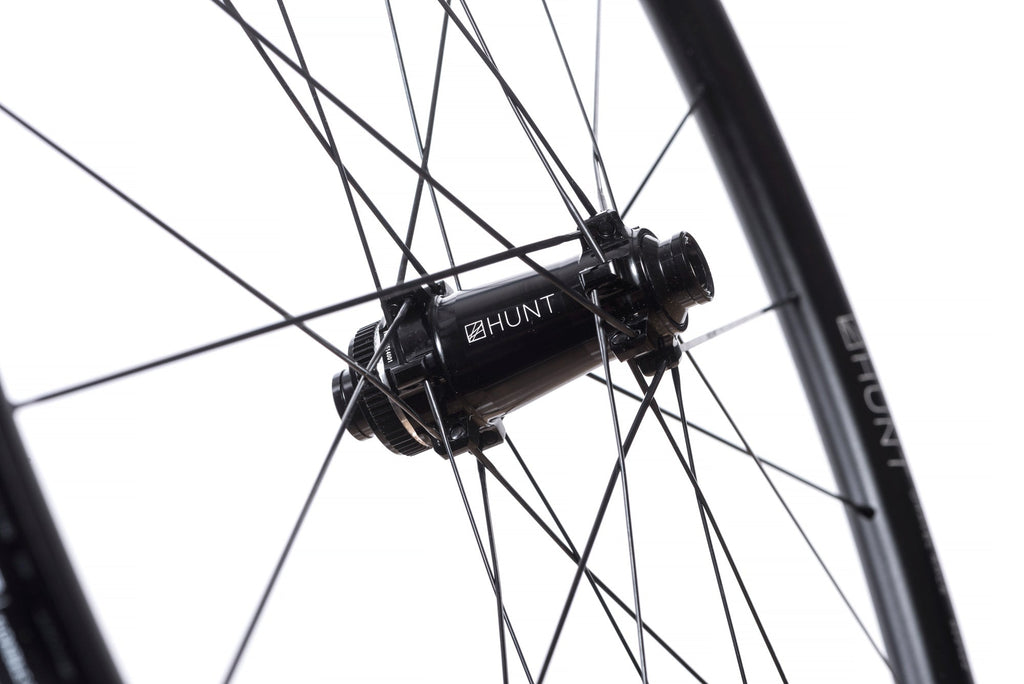

  • Front Hub

    • We fit the axles you need, just complete the simple form shown after checkout:
    • All existing road/CX disc front axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12mm Bolt Thru
      • 9mm Bolt Thru (uncommon).
    • All axle adapters are also available separately.
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
    • Polished anodized black finish with laser graphics.

  • Rear Hub

    • We fit the axles you need, just complete the simple form shown after checkout.
    • All existing road/CX disc rear axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12x142 Bolt Thru
      • 12x135 Bolt Thru (uncommon)
      • 10x135 Bolt Thru (uncommon)
    • All axle adapters are also available separately.
    • 7075-T6 heat-treated aluminium alloy freehub body
    • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies
    • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
      • Shimano/SRAM
      • Campagnolo
      • SRAM XD Driver
      • SRAM XDR Driver
    • Hunt Race Season Disc straight-pull super-light alloy.
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
    • Polished anodized black finish with laser graphics.

  • Bearings

    • High-grade by EZO Japan and S&S.
    • Rear hub upgraded to even faster rolling S&S LU/LB low-friction sealed internal face, dual sealed external face bearings.
    • Incredibly fast rolling.

    • Warranty, HUNT Rolling Road Tests & Weight Limits

    A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

    All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 115kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres minimum 28mm at max 100psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

    60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

    Want to fit tubeless tyres?

    We can fit tubeless tyres (including sealant) to your wheels. The wheels are also designed to work excellently with clincher tyres and tubes. See tyre fitting options here.
