HUNT XC Wide MTB Wheelset
HUNT XC Wide MTB Wheelset
HUNT XC Wide MTB Wheelset

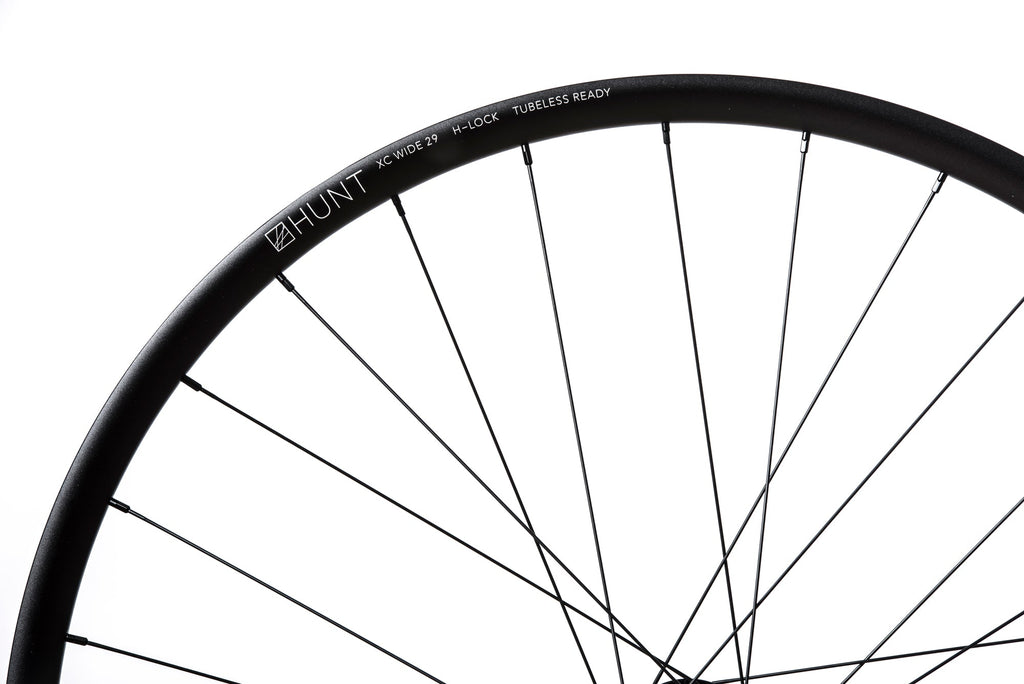

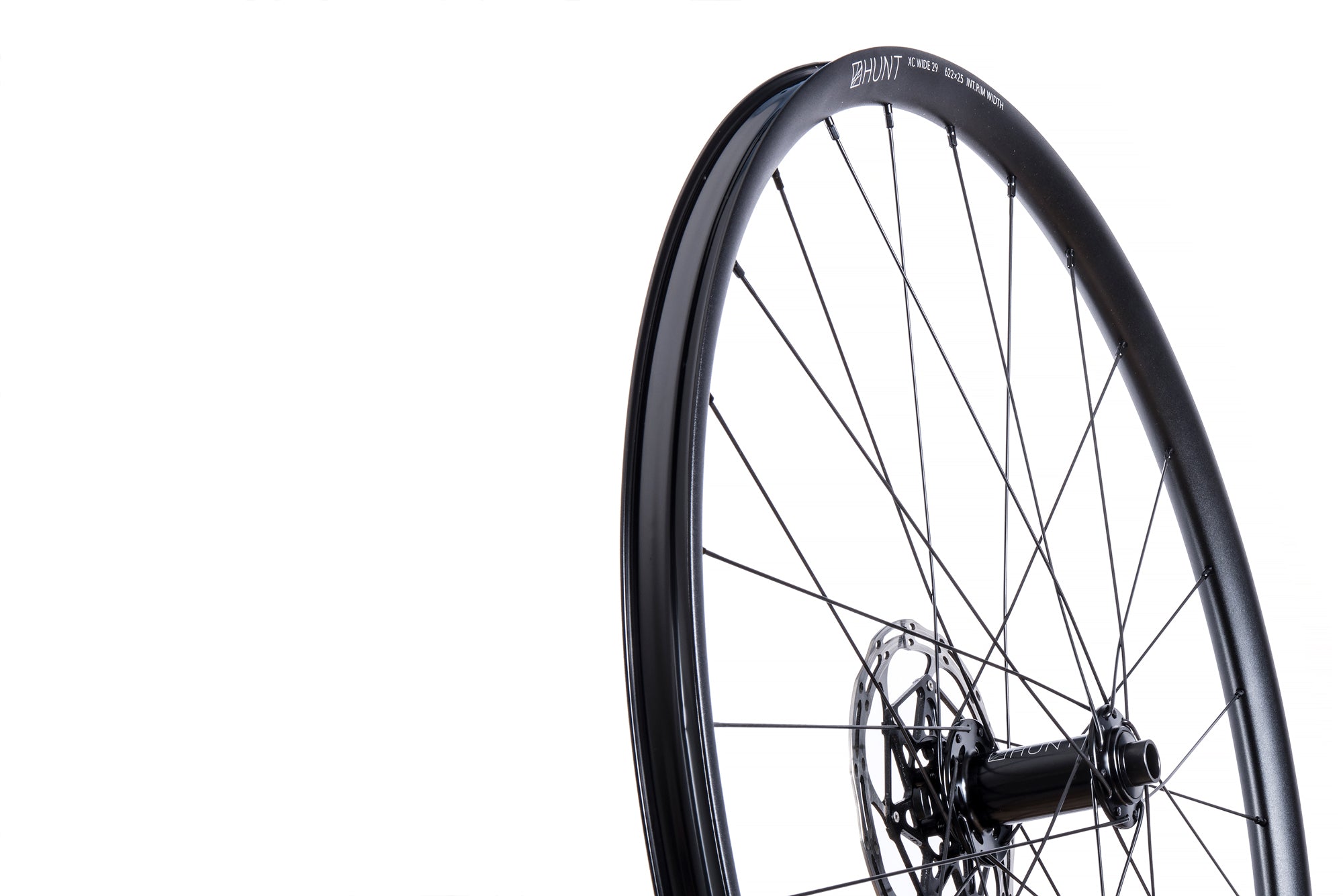

<h1>Rims</h1><i>The XC Wide rim strikes the perfect balance between durability and performance making sure every ride is better than the last. The 6066 T6 alloy (welded) rim features a 25mm internal width to provide support during hard cornering or when throttling through techy sections. Optimized for 2.1"-2.35" tyres, the XCWide won't hold you back.</i>
<h1>Weight</h1><i>Mountain bikers aren't concerned about weight, right? Nope! Whether you're doing a back-country epic or pedalling between stages, we have paid attention to weight to suit the type of riding they will be subjected too. For example, using the highest quality Pillar triple butted spokes with PSR (Pillar Spoke Re-enforcement) has allowed us to not only create a stronger wheel with a higher spoke count, but one which does not add a weight penalty.</i>

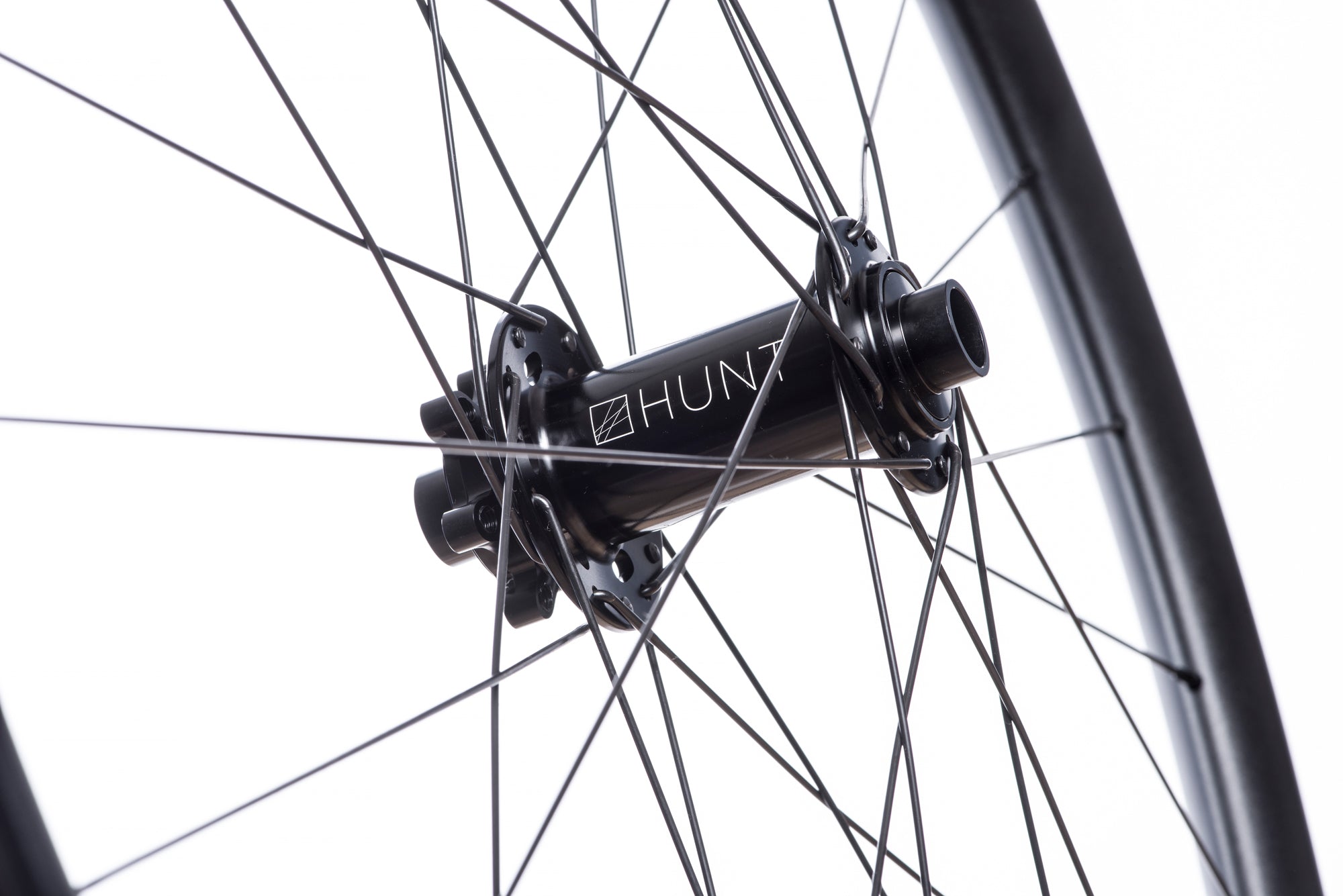

<h1>Front Hub</h1><i>Suited to match the needs of the modern trail bike rider. Featuring durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails.</i>

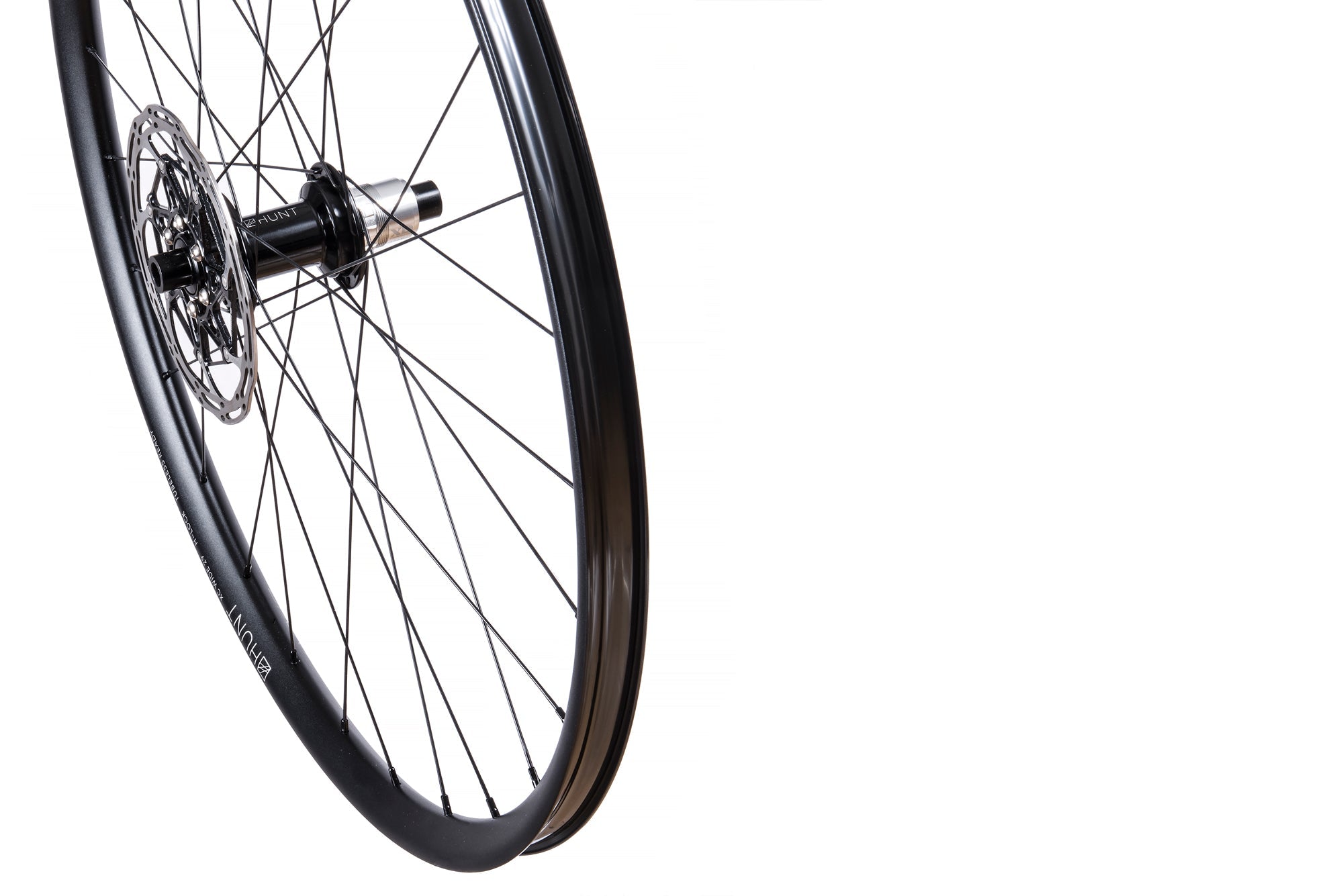

<h1>Freehub Body</h1><i>Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the <em>H_CERAMIK</em> coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Spokes</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.</i>
<h1>Rim Bed</h1><i>Like all of our wheels, the Hunt MTB line-up is designed to be used as a tubeless system. Featuring a H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for first installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.</i>
<h1>Made for where you ride</h1><i>From the local trails, to a remote piece of trail highup in a remote mountain range; we wanted to create a series of wheelsets tailored for your Trail riding.</i>
<h1>Made for how you ride</h1><i>Enhanced to perfectly compliment your riding, the XC Wide is for those rides which you don't want to end.</i>

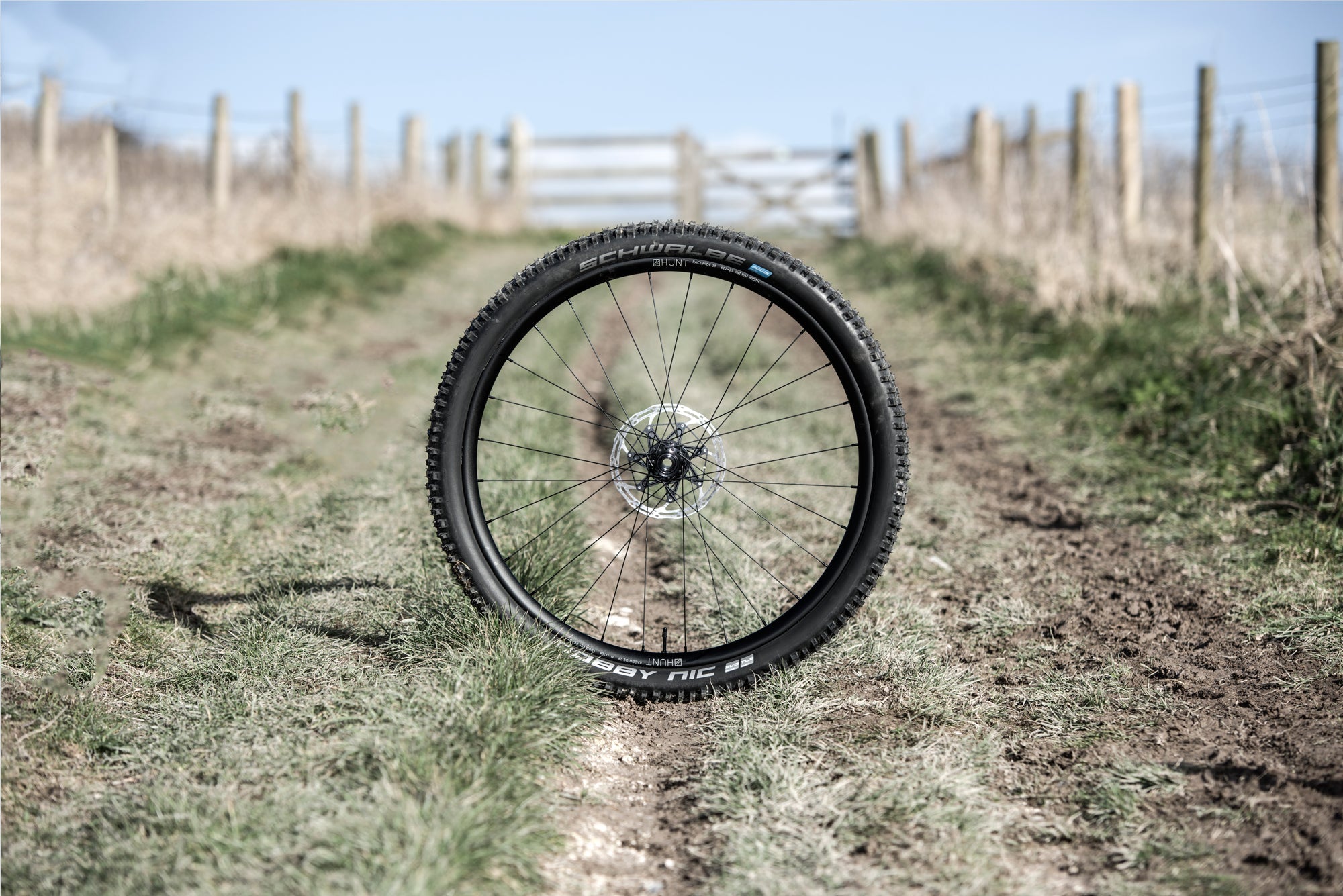

<h1>Tubeless Tyres Fitted</h1><i>Gain the most out of your riding with a set of tubeless Maxxis or Schwalbe Tyres fitted and set up tubeless with sealant ready to roll straight out of the box.</i>

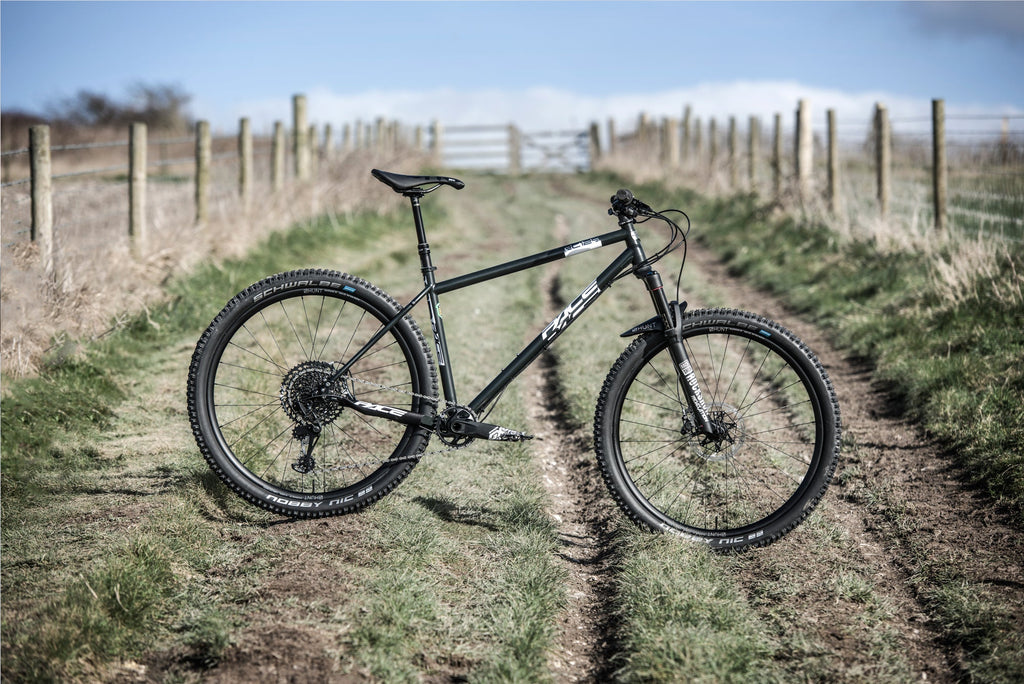

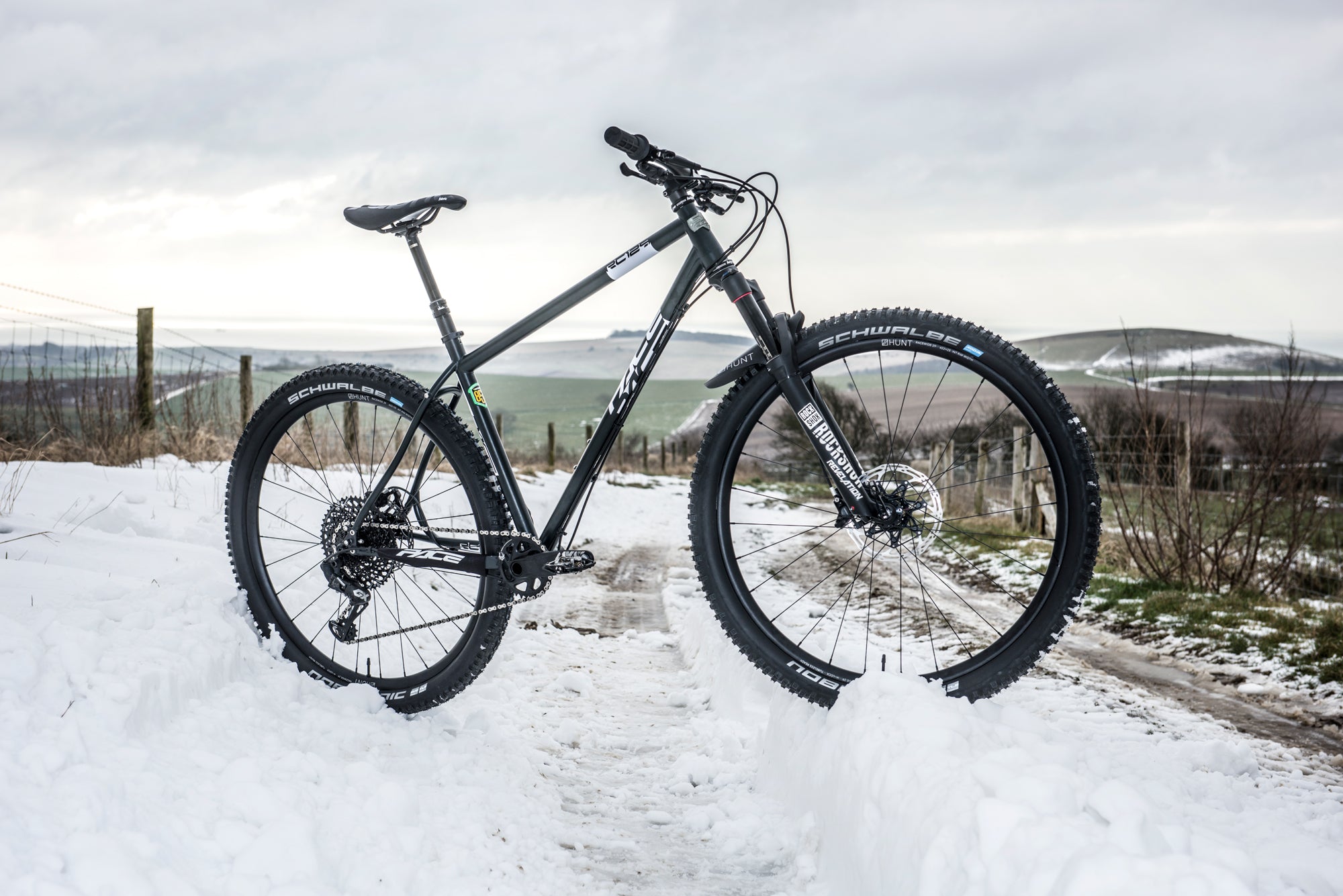

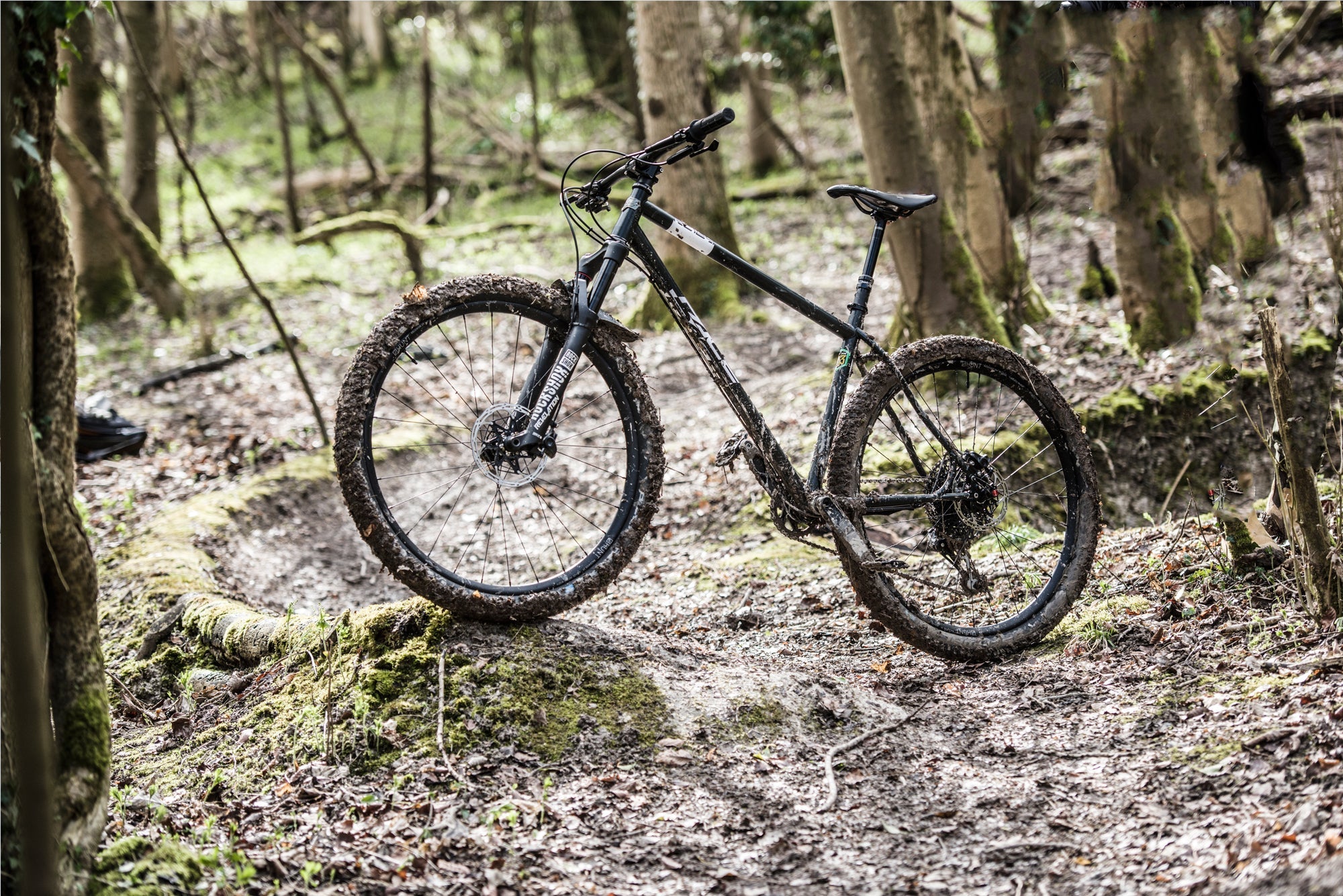

<h1>Dream Build</h1><i>Pace RC129 with XC Wide</i>
35% off
HUNT XC Wide MTB Wheelset
HUNT XC Wide MTB Wheelset
HUNT XC Wide MTB Wheelset
<h1>Rims</h1><i>The XC Wide rim strikes the perfect balance between durability and performance making sure every ride is better than the last. The 6066 T6 alloy (welded) rim features a 25mm internal width to provide support during hard cornering or when throttling through techy sections. Optimized for 2.1"-2.35" tyres, the XCWide won't hold you back.</i>
<h1>Weight</h1><i>Mountain bikers aren't concerned about weight, right? Nope! Whether you're doing a back-country epic or pedalling between stages, we have paid attention to weight to suit the type of riding they will be subjected too. For example, using the highest quality Pillar triple butted spokes with PSR (Pillar Spoke Re-enforcement) has allowed us to not only create a stronger wheel with a higher spoke count, but one which does not add a weight penalty.</i>
<h1>Front Hub</h1><i>Suited to match the needs of the modern trail bike rider. Featuring durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails.</i>
<h1>Freehub Body</h1><i>Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the <em>H_CERAMIK</em> coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Spokes</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.</i>
<h1>Rim Bed</h1><i>Like all of our wheels, the Hunt MTB line-up is designed to be used as a tubeless system. Featuring a H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for first installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.</i>
<h1>Made for where you ride</h1><i>From the local trails, to a remote piece of trail highup in a remote mountain range; we wanted to create a series of wheelsets tailored for your Trail riding.</i>
<h1>Made for how you ride</h1><i>Enhanced to perfectly compliment your riding, the XC Wide is for those rides which you don't want to end.</i>
<h1>Tubeless Tyres Fitted</h1><i>Gain the most out of your riding with a set of tubeless Maxxis or Schwalbe Tyres fitted and set up tubeless with sealant ready to roll straight out of the box.</i>
<h1>Dream Build</h1><i>Pace RC129 with XC Wide</i>

RE:NEW HUNT XC Wide MTB 29 Wheelset

After payment & checkout, we will ask for your freehub and axle information via an automatically generated form.

Which freehub do I need?
£309 £479.00
35% off
1
Finance options available at checkout.

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

More details Right

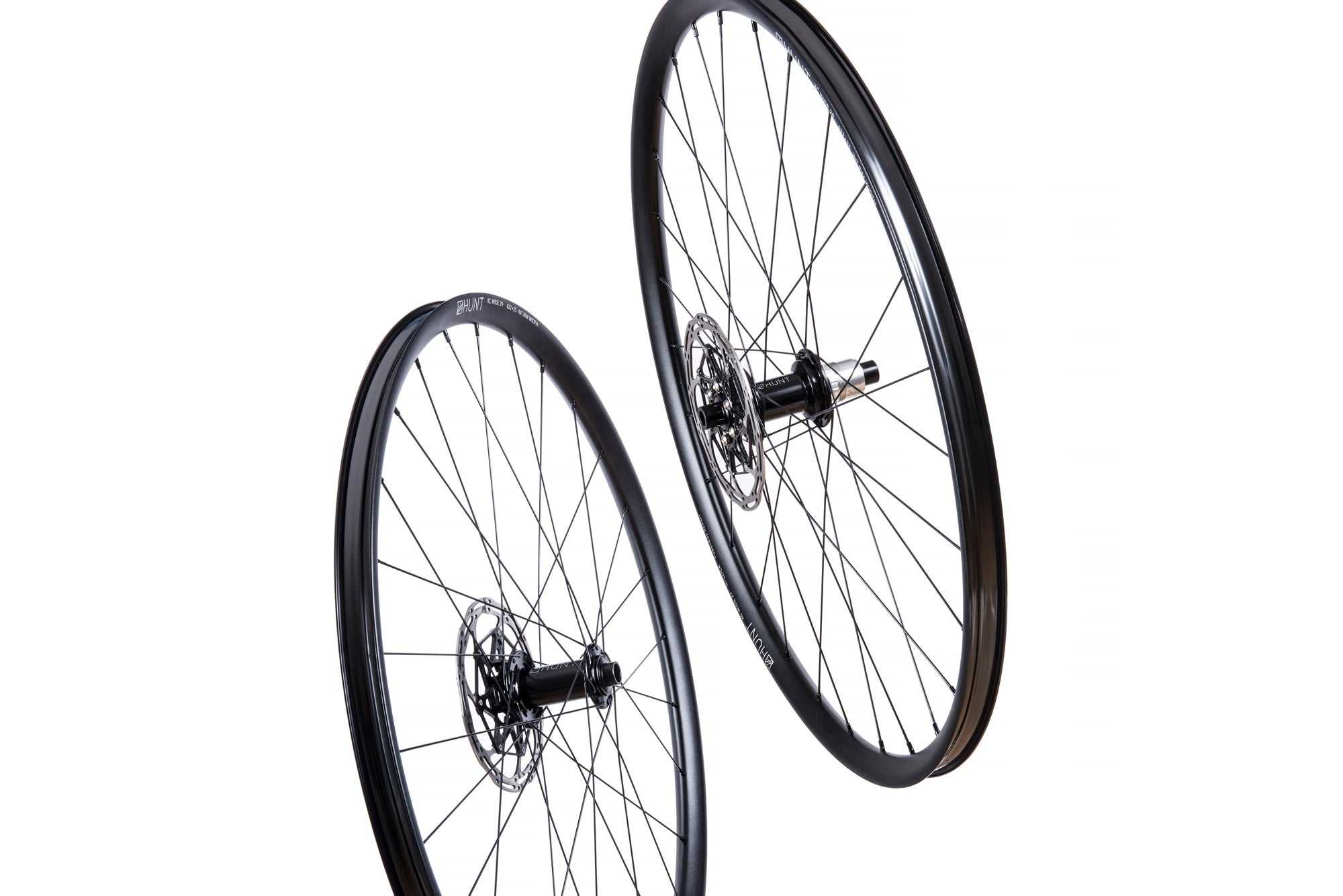

XC Wide: Proper wide fast wheels, go!

29" | 25 Wide Int | 1647g

The Purpose

The XC Wide is our strong but light race xc > flow singletrack wheelset. If you like thrashing the downhills in marathon events as well as whipping the uphills these wheels are for you. No-nonsense 25mm wide, many others have tyres flopping around on 21mm rims! The XC Wide 25mm is designed to work with the latest breed of fun aggressive 100-130mm travel hardtails and full sussers with 29" wheels...

The XC Wide will have you grinning from ear to ear as you fly up and down the trail. It's the fastest day-in-and-day-out wheelset as you clock up laps of your xc loop or head off on an adventure across varied terrain. For your pedal orientated rides, the XC Wide is your weapon of choice.

The Purpose

The XC Wide is our strong but light race xc > flow singletrack wheelset. If you like thrashing the downhills in marathon events as well as whipping the uphills these wheels are for you. No-nonsense 25mm wide, many others have tyres flopping around on 21mm rims! The XC Wide 25mm is designed to work with the latest breed of fun aggressive 100-130mm travel hardtails and full sussers with 29" wheels...Read More

The XC Wide will have you grinning from ear to ear as you fly up and down the trail. It's the fastest day-in-and-day-out wheelset as you clock up laps of your xc loop or head off on an adventure across varied terrain. For your pedal orientated rides, the XC Wide is your weapon of choice.Read Less

Key Features

Every detail maximised

  • Rims | 29". 6066 T6 (+34% tensile strength vs 6061-T6) welded construction, 25mm wide (internal), work-hardened shot-peened finish.
  • Hubs | 5° RapidEngage and H_CERAMIK coating for increased durability and strength, boost (110/148) or standard (100/142) spacing hubs available, large double sealed cartridge bearings. Rock Shox Torque Caps for Boost and Non-Boost hubs and QR adapters for standard and boost (110/141) hubs are available. (We will fit the axles you need, just complete the simple form shown after checkout or add a comment in the notes section of the cart page). Hubs have 6 bolt disc mounts.
  • Spokes | 28 spoke count, triple butted (2.2-1.6-2.0) PSR reinforced head Pillar spokes.
  • Tyres | Optimised for 2.1"-2.35" tyres set up tubeless, but also work very well with 2"-2.5". Also great with standard tyres & tubes.
  • Axles | Oversized 7075-T6 heat-treated aluminium alloy axles.
  • See the full specs here
  • Weight  | 1647g 29"

The Experts' View

Pinkbike Logo Offroadcc Logo Bikerumor Logo MBR Logo Bikeradar Logo

Full Specs

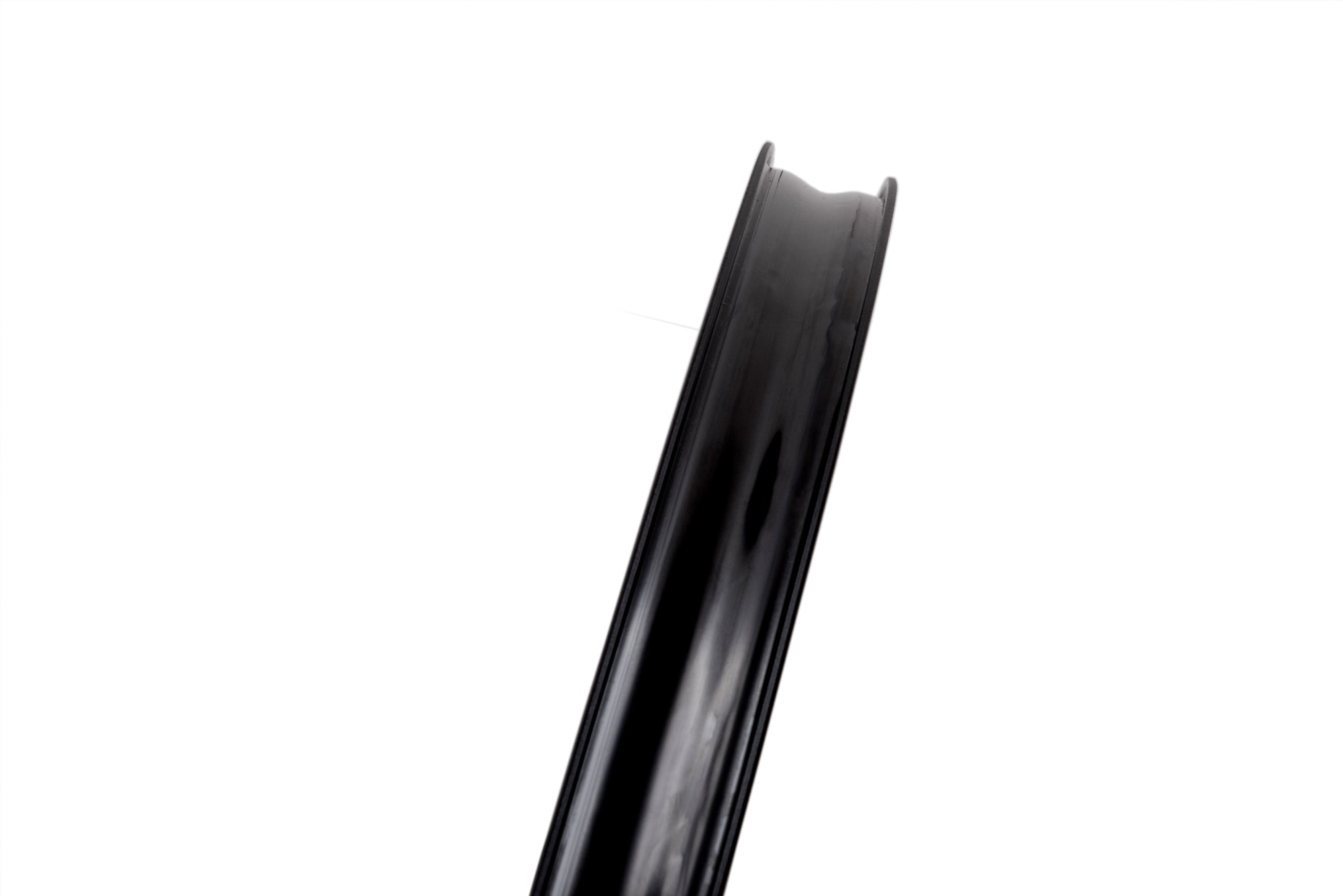

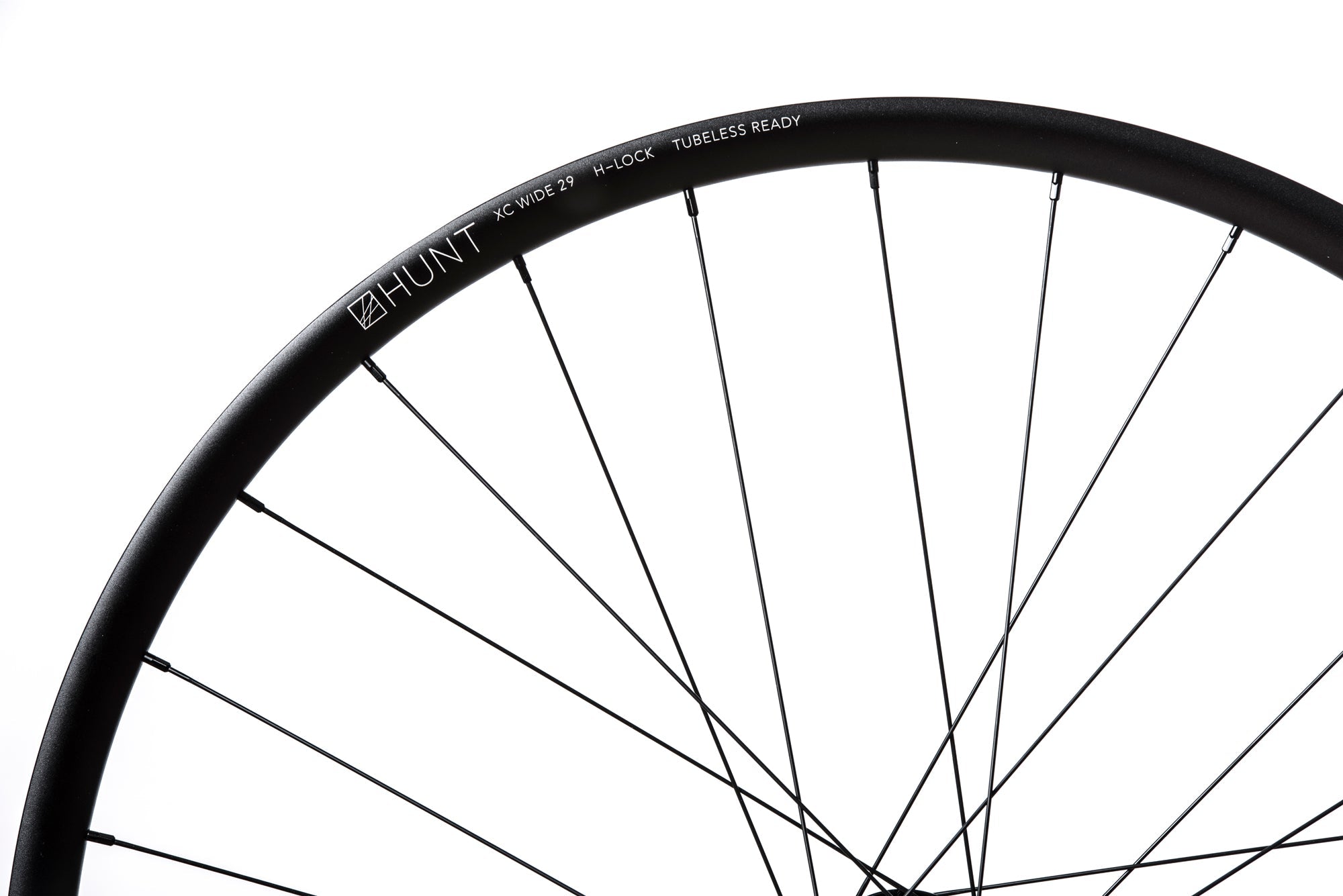

  • Rims

    • 29" rim
    • 25mm internal width ideal for 2.1"-2.35" tyre widths but also work very well with 2.0"-2.5".
    • 6066-T6 heat-treated aluminium alloy (+34% tensile strength vs 6061-T6)
    • Tubeless-ready – designed to work best with tubeless tyres. Tubeless rim tape and valves included.
    • H-lock bead-seat up-kicks for easy and secure tubeless installation.
    • Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.

  • Spokes

    • J-bend cold drawn for ease of replacement.
    • 28 F&R spoke count.
    • Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
    • Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
    • Black stainless treatment.

    • Nipples

      • Hard-anodized alloy for weight reduction and strength.
      • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
      • Long 14mm thread for durability
      • 14 gauge
      • Black hard anodizing

    • Tyres Info

      • Maximum tyre pressure for this rim: up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tyre.
      • Designed to work perfectly with tubeless and non-tubeless tyres.
      • Suitable tubeless MTB tyre combinations from Schwalbe and Maxxis are available to be fitted to your Hunt XCWide Wheels.

    • Axle Size

      • Boost - 148x12mm (Rear) with 110x15mm (Front). 141x9mm (Rear) QR with 110x9mm (Front) QR adapters and Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
      • Standard - 142x12 (Rear) with 100x15mm (Front). QR adapters available - just complete the simple form after checkout. Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
      • SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.

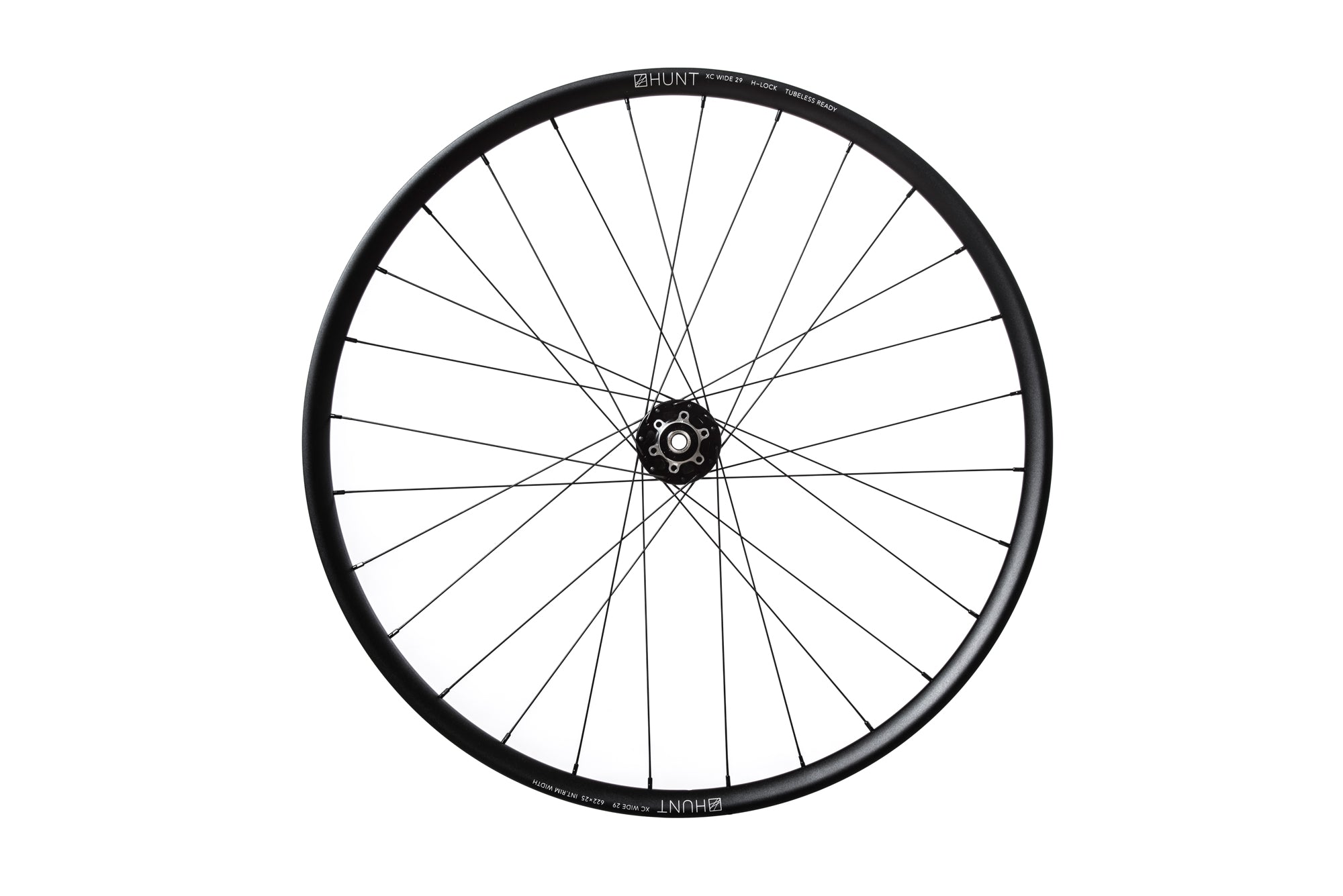

    • Front Hub

      • Asymmetric flanges for more balanced spoke tensions.
      • Oversized axles.
      • Extruded and CNC machined 6066-T6 heat-treated aluminium alloy body.
      • 7075-T6 aluminium alloy axles.
      • 6 bolt disc mount.
      • Polished anodized black finish with laser graphics.

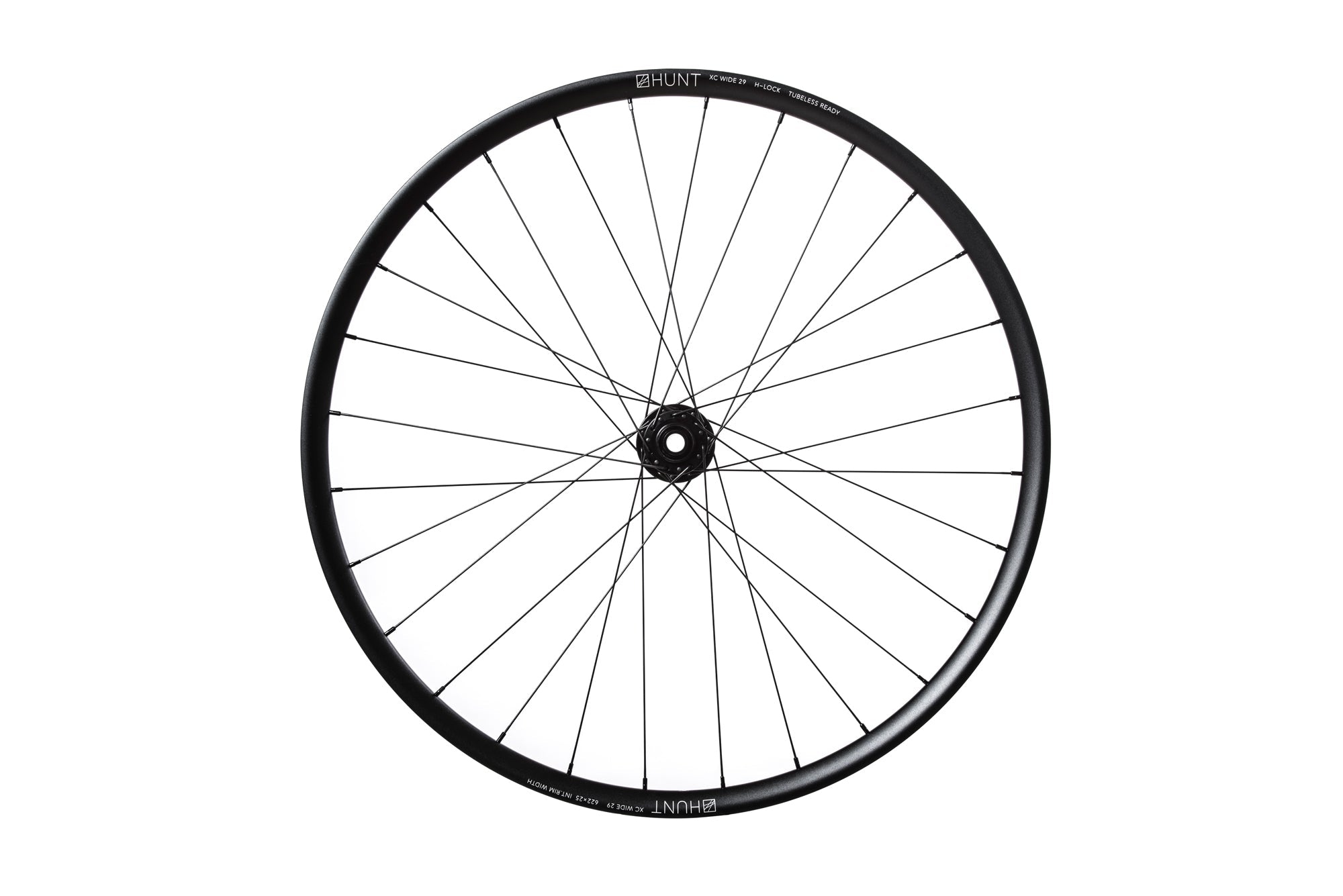

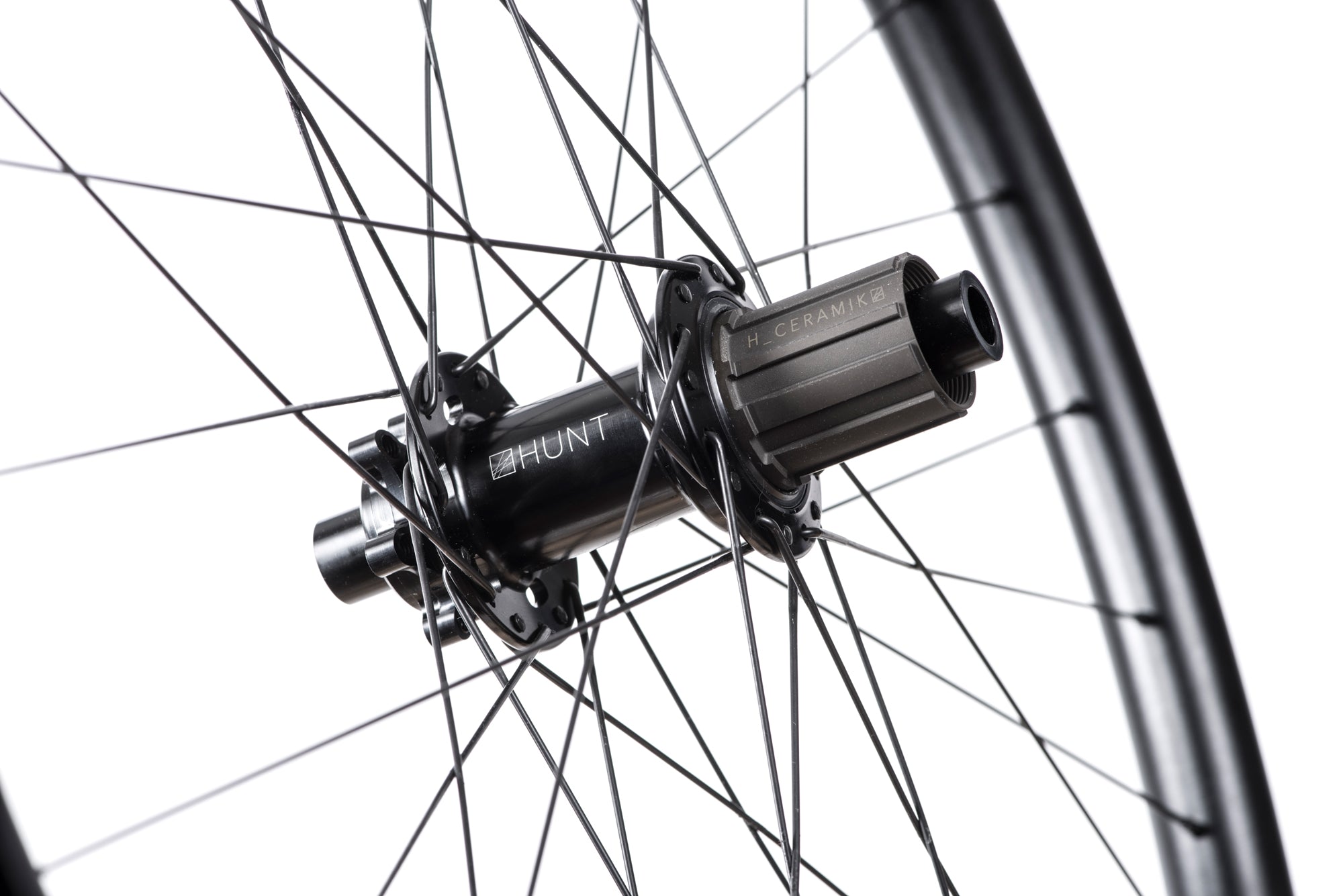

    • Rear Hub

      • Extruded and CNC machined 6066-T6 heat-treated aluminium alloy hub body.
      • 148x12mm or 142x12mm spacing.
      • H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
      • Boost QR skewers NOT supplied.
      • 4 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
      • Oversized 7075-T6 heat treated aluminium axles.
      • 9/10/11 speed Shimano/SRAM compatible freehub and SRAM XD Driver version available.
      • 7075-T6 aluminium alloy axles.
      • 6 bolt disc mount.
      • Polished anodized black finish with laser graphics.

    • Bearings

      • Precision sealed cartridge replaceable units.
      • Large diameter ball bearings for extra durability.
      • Dual full-contact rubber seals.

      • Warranty, Support and Weight Limits

      A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

      All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 110Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 40psi as this will reduce the fatigue on the wheelset.

      Crash replacement 35% off plus All HUNT wheels models have been designed to meet the needs of the type of riding they are intended for. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

      60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

      Tubeless Tyre Options

      These are only some of the options you can have fitted on your wheels. To see the full range, click here

      Schwalbe Hans Dampf Snake Skin Tubeless Tyres

      Schwalbe Nobby Nic 2.35" Snake Skin Front / Schwalbe Nobby Nic 2.25" Snake Skin Rear

      The Nobby Nic might just be one of the most versatile tyres out there. It has been seen everywhere from the pinnacle of the EWS and won’t be out of place at your local xc race. We love this high volume, predictable tyre for most of our pedal orientated rides and have even found it fitted to our trail bikes when we hear the smoother trails calling for a faster option. It rolls well, has great traction/grip, is predictable in the corners and might just be the goldilocks for your tyre needs. If you can tell we are a fan of this tyre, then you’d be right.

      Choose this tyre combo for your XCWide wheels. It’s a great option if you want an all-round option for your xc or trail bike. We love this tyre when the trails are demand a more pedal friendly option but don’t give up on the descents.

      Reviews

      Bike Magazine and Website Experts' Views

      Pinkbike Logo

      First Look

      "Hunt Launches Range of MTB Wheelsets"
      Offroadcc Logo

      First Look

      "Hunt's new mountain bike wheelsets look like a bit of a bargain."
      Bikerumor Logo

      First Look

      "A family of three new premium alloy off-road wheels – the Enduro Wide, Trail Wide & XC Wide – ready to hit every kind of trail that awaits…"
      MBR Logo

      First Look

      "After conquering the road and gravel markets Hunt Wheels are looking to take over the MTB world"
      MBR Logo

      First Look

      "Hunt is well established when it comes to producing high quality, high value road and gravel wheelsets, but before now hasn't produced a wheelset for mountain biking."
