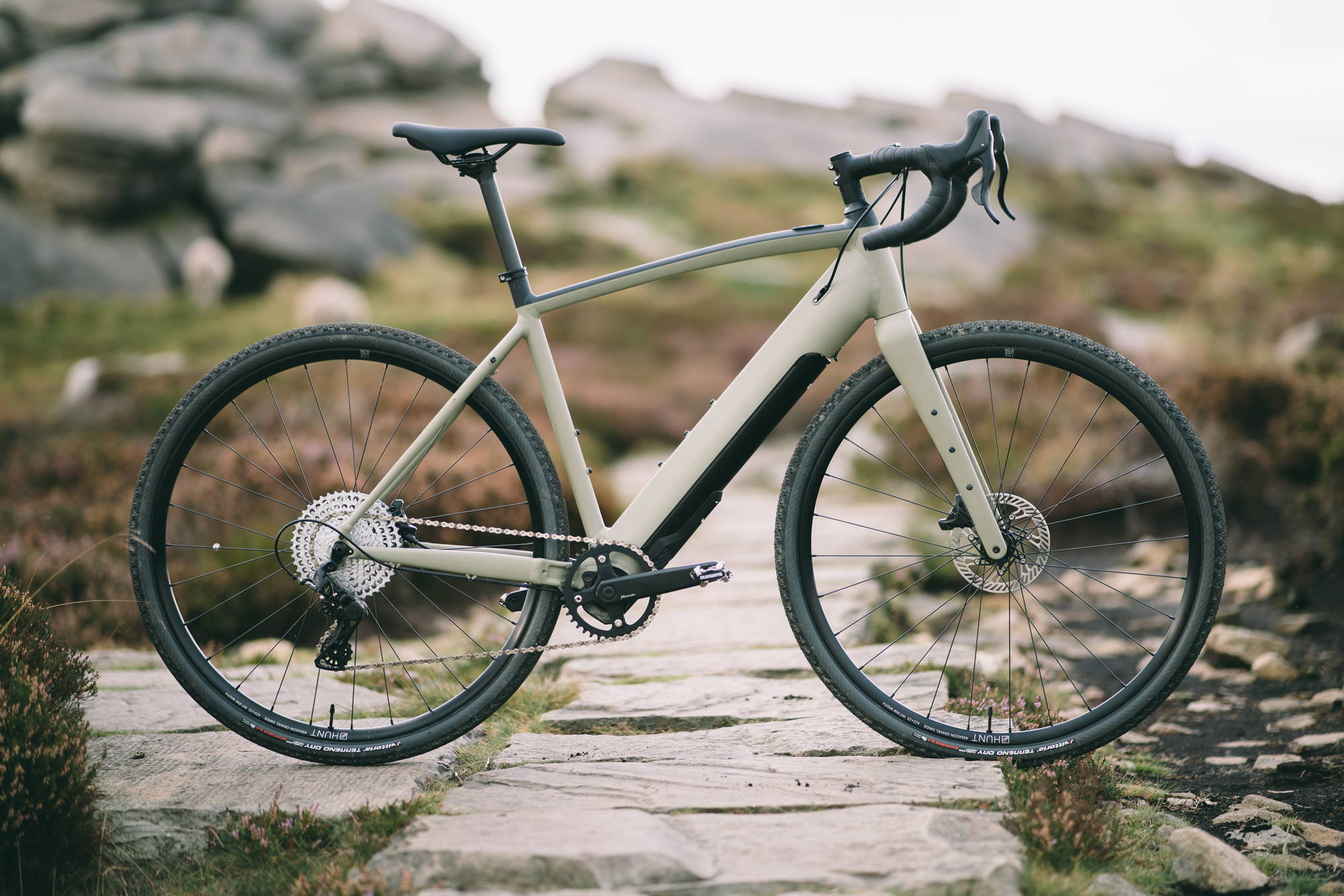

<h1>Dream Build</h1><i>Cairn E-Adventure 1.0 Rambler Edition</i>
<h1>Rim Profile</h1>
36% off
Hunt 4 Season Gravel X-Wide Wheelset
Hunt 4 Season Gravel X-Wide Wheelset
Hunt 4 Season Gravel X-Wide Wheelset
<h1>Rims</h1><i>Strong and light 6066-T6 (+34% tensile strength vs 6061-T6) heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for longer. The profile is disc-specific, allowing higher-strength to weight as no reinforcement is required for a braking surface. The extra wide rim at 29mm (25mm int) creates a great tyre profile with wider 35c+ tyres, giving excellent grip and lower rolling resistance.</i>
<h1>Nipples</h1><i>To accompany these high-end spokes we selected brass nipples for our HUNT 4 Season wheels. Brass is strong and corrosion resistant plus it has self-lubricating properties to prevent issues that can arise from grit salt on the winter roads corroding the fine threads in alloy nipples. As well as the standard square body we chose nipples with a hex head so you can achieve precise tensioning.</i>
<h1>Bearings</h1><i>Bearings are the heart of any wheel and investing in them makes huge sense so we went to Japanese bearing experts EZO and invested extra to spec their high-grade precision sealed cartridge bearings in our full range.</i>
<h1>Freehub Body</h1><i>Durability is a theme for HUNT, as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. This is especially important for a 4 Season bike you use regularly in harsh conditions. As a result, the freehub features our H_CERAMIK coating to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Spokes</h1><i>We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter and provide a greater degree of elasticity to maintain tensions and add fatigue resistance. These PSR J-bend spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key, which is why all HUNT wheels are hand-built.</i>
<h1>Rim Bed</h1><i>H_LOCK tubeless-ready rim bed profile. H_LOCK is our tubeless-ready rim bed profile, with up-kicks to the shoulders of the tubeless steps. This helps to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H_LOCK profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout.</i>
<h1>Weight</h1><i>The consequence of the fanatic attention to detail is incredible durability and a resulting low 1698g gram wheelset weight. Acceleration and climbing are massively improved over many of the stock wheels supplied on road/gravel/CX disc brake bikes.</i>
<h1>Tyres</h1><i>At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option. Of course, all of our tubeless-ready wheels are designed to work perfectly with clincher tyres and inner tubes too.</i>
<h1>Dream Build</h1><i>Cairn E-Adventure 1.0 Rambler Edition</i>
<h1>Rim Profile</h1>

RE:NEW HUNT 4 Season Gravel X-Wide Wheelset

After payment & checkout, we will ask for your freehub and axle information via an automatically generated form.

Which freehub do I need?
£289 £449.00
36% off
Wheels are scheduled to ship from us in the week stated. Delivery time is 1 day*
Finance options available at checkout

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

More details Right

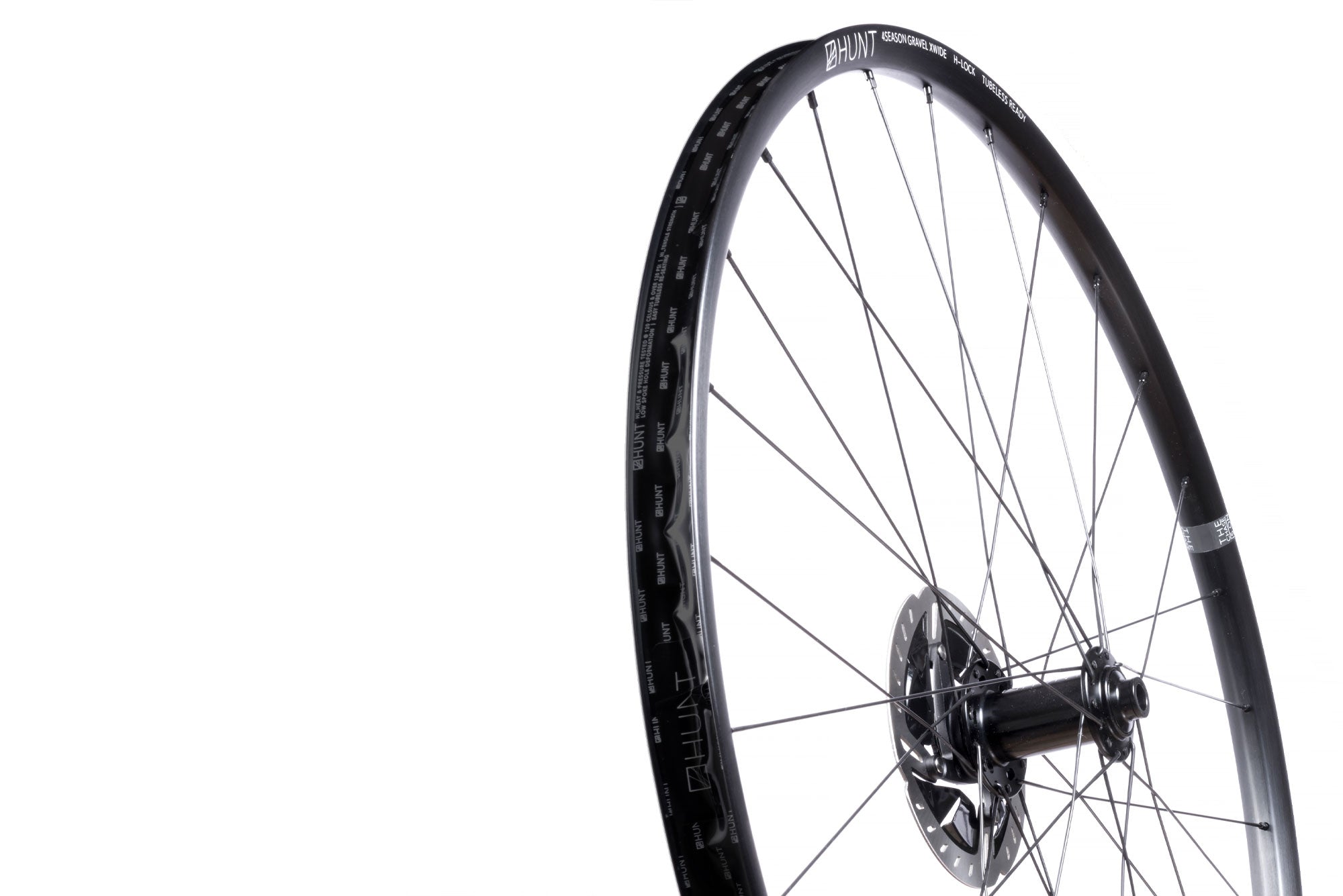

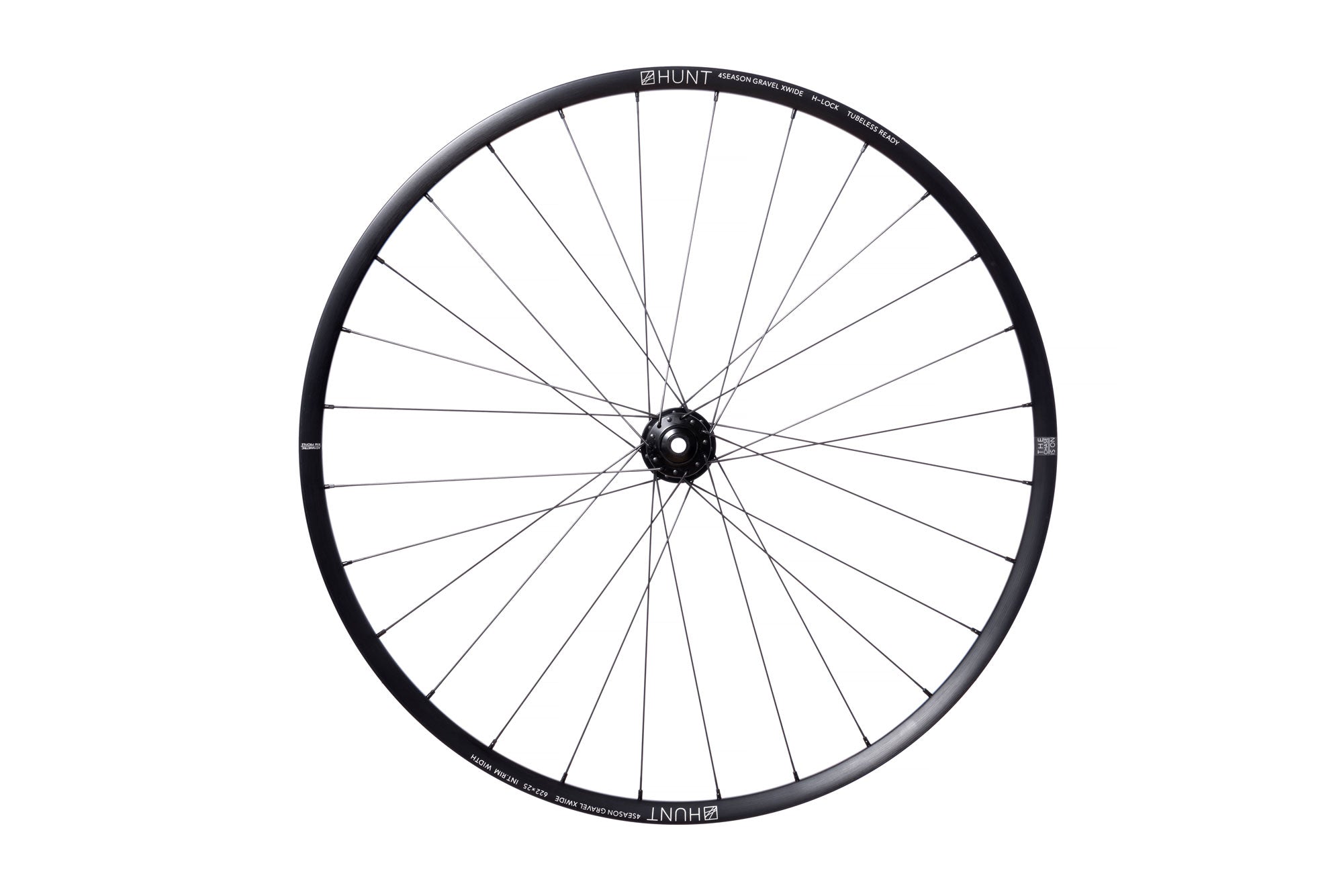

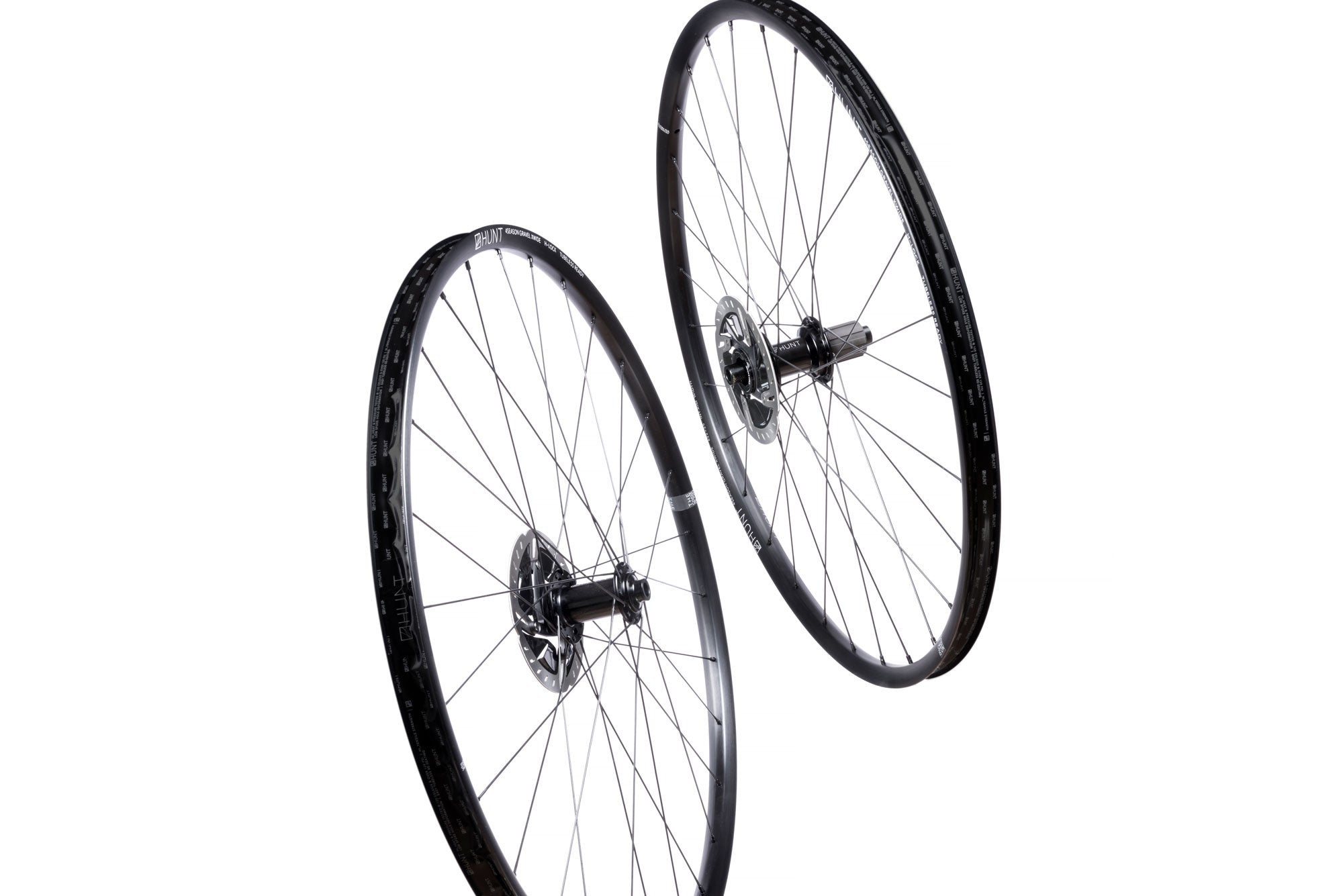

Our ever-popular 4 Season Gravel receives the XW treatment. 700c, 25mm rim bed optimised for 35c+ tyres, for properly burly off-road hammering.

19 DEEP | 29 WIDE EXT | 25 WIDE INT | 1698G

The Purpose

The 4 Season Gravel has long been a staple in our range. As a more burly version of the 4 Season Disc (owing to higher spoke count and wider rim) it was a great option for those wanting to hit the path less travelled. Fast-forward a couple of years, and the demands of gravel riding have taken on a whole new dimension, with riders seeking trails and routes you'd formerly only consider a mountain bike for. Enter the X-Wide, the wheelset designed to shine where the boundaries are blurred...

We’ve invested in high-specification rims, hubs and spokes, so you don’t pay a weight penalty for that extra off-road capability. The 25mm (internal) rim is ideal for 40-50mm+ tyres, but will work well from 35mm+ (check compatibility with tyre manufacturer), so you can explore, go bike-packing, rip any trails or CX courses you fancy, and do it all with confidence.

If you're not sure which of our disc-brake 4 Season wheels are for you, then check our range explainer HERE.

Key Features

THE WHEEL READY TO TAKE ON ANYTHING

  • Rims | Super-wide (29mm external, 25mm internal) 6066-T6 (+34% tensile strength vs 6061-T6) Heat treated. Disc specific. Asymmetric for balanced spoke tensions and a highly-durable wheel build. ETRTO 622x25.
  • Tyres | Tubeless-ready for lower weight & rolling resistance, featuring H_LOCK bead-seat for easy and secure tubeless installation. Also works excellently with clincher tyres and tubes.
  • Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. 10 degree FastEngage 4-pawl freehub, with H_CERAMIK coating for enhanced durability. SRAM XD and XDR Driver available. Centre-lock disc mount.
  • Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/15, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
  • Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
  • Weight | 1698g
    See the full specs here

Please note: If you require a 6-bolt adapter you can purchase separately here.

The Experts' View

AMB Mag Hunt 4 Season Gravel X-Wide Wheelset RevoewBike Perfect 5 Star Review Logoroad.cc logo

Full Specs

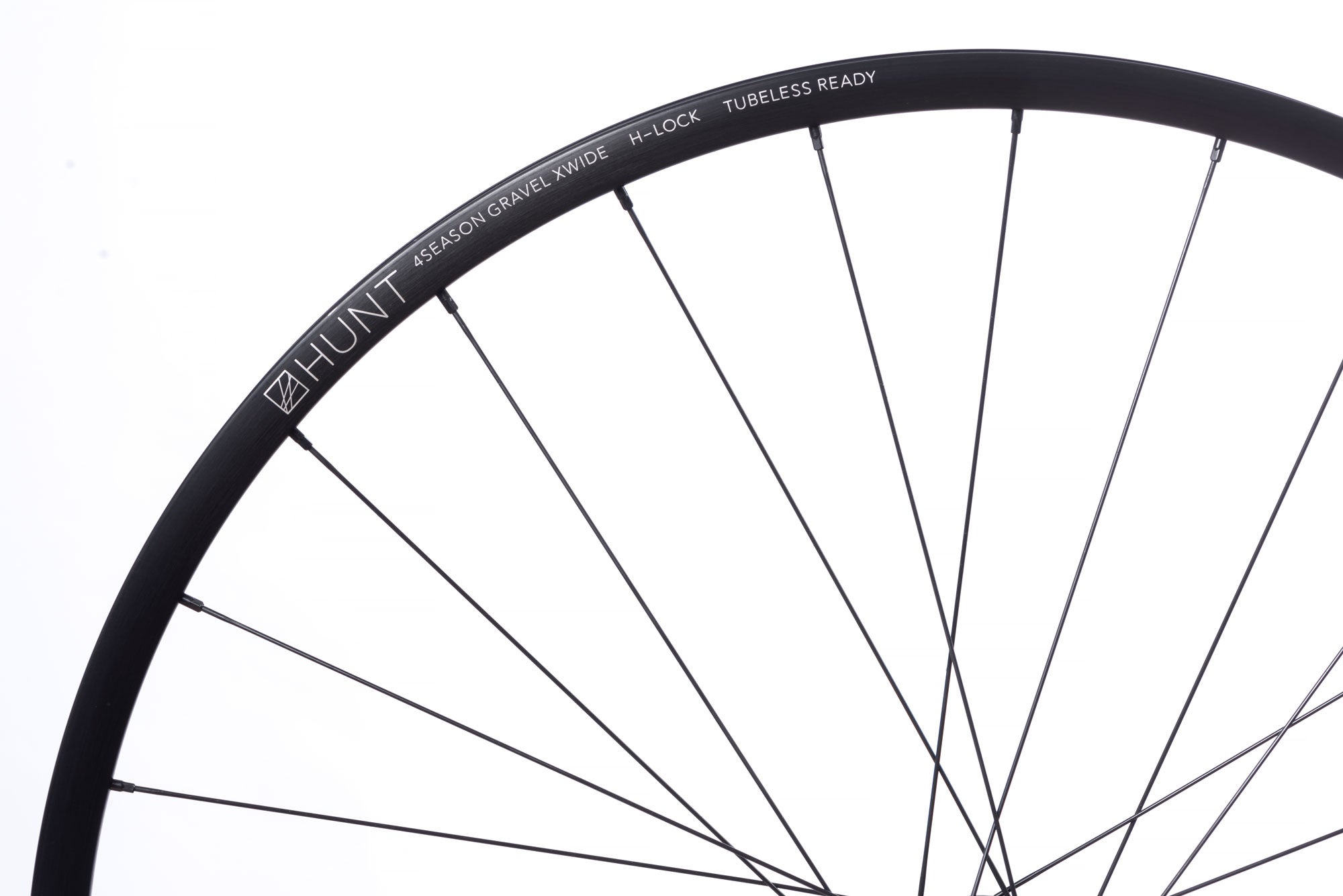

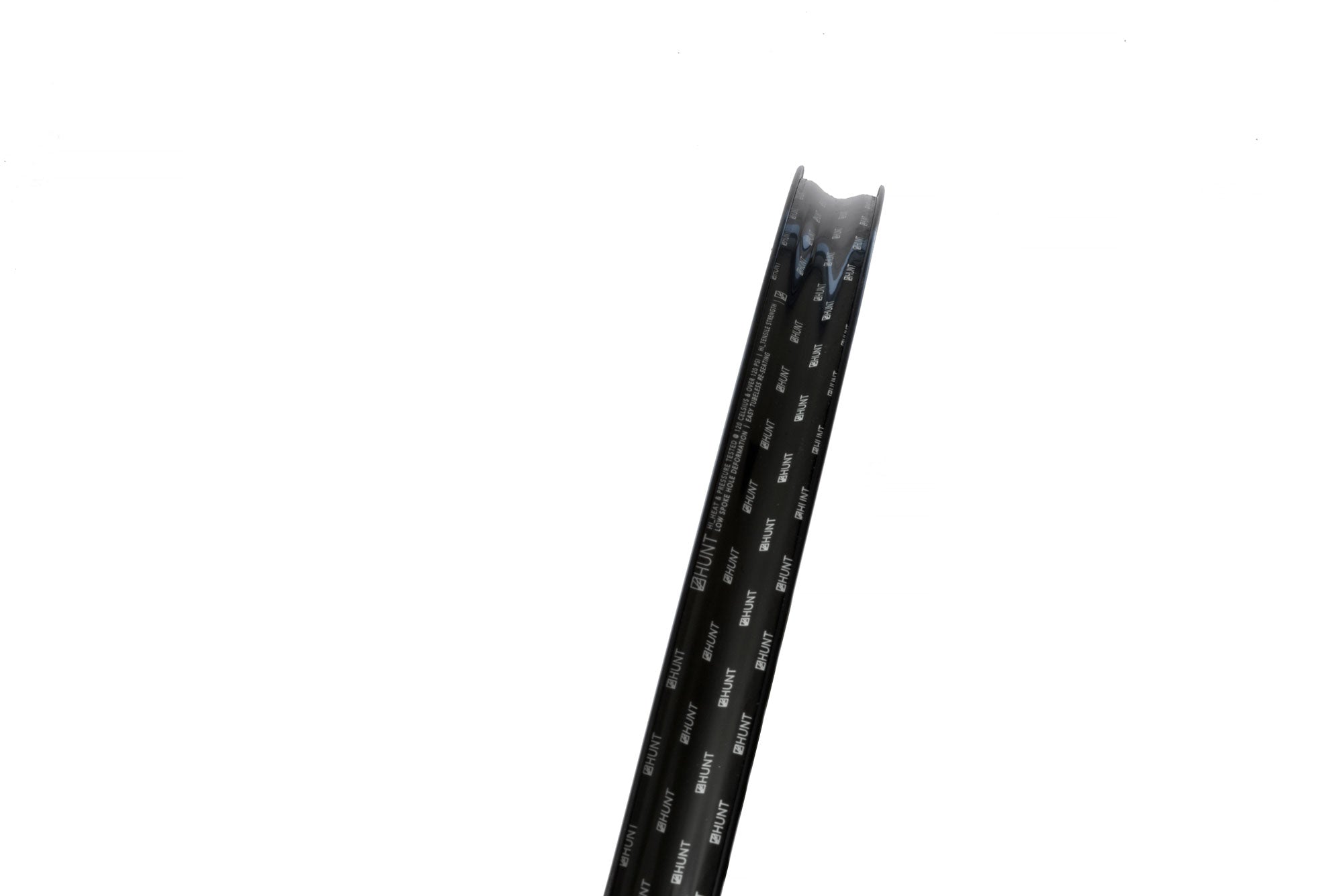

  • Rims

    • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included.
    • H_LOCK bead-seat up-kicks for easy and secure tubeless installation.
    • 6066-T6 (+34% tensile strength vs 6061-T6) heat-treated aluminium alloy
    • Asymmetric, to balance spoke tensions.
    • Disc-specific tubeless-ready profile.
    • 29mm outer and 25mm inner width ideal for 35-50mm+ tyre widths.
    • 19mm depth
    • Matt black anodized finish with laser etched graphics for low weight with excellent durability.

  • Spokes

    • J-bend cold-drawn
    • Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
    • Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement)
    • 28 spokes laced 2-cross front and rear.
    • Black stainless treatment.

  • Nipples

    • Brass for anti-corrosion resistance.
    • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
    • 12mm length.
    • 14 gauge.
    • Black anodized finish.

  • Tyres Info

    • Maximum tyre pressure for this rim is 45psi when used with 35-45mm tyres. Maximum tyre pressures for other tyre sizes: 30mm do not exceed 70psi, 33mm do not exceed 50psi, 45-50mm do not exceed 40psi. 100 psi is more than enough for any rider on road.
    • The maximum pressure of your tyre may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tyre
    • Please do not exceed the maximum pressure stated on your tyre.
    • Best suited for tyres from 35mm wide upwards.

  • Axle Size

    • These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

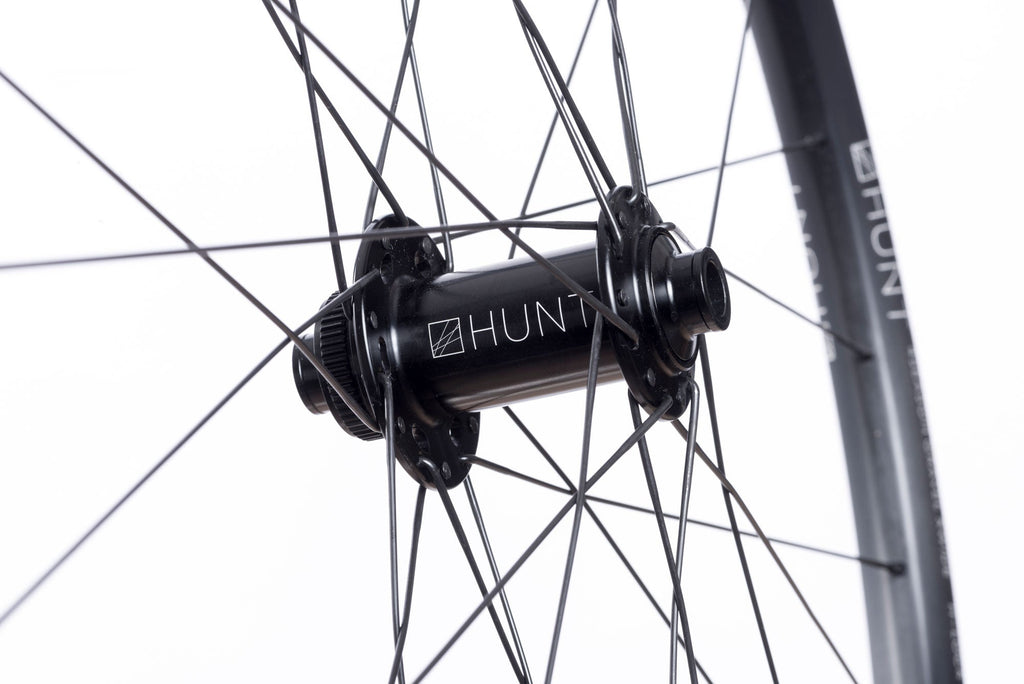

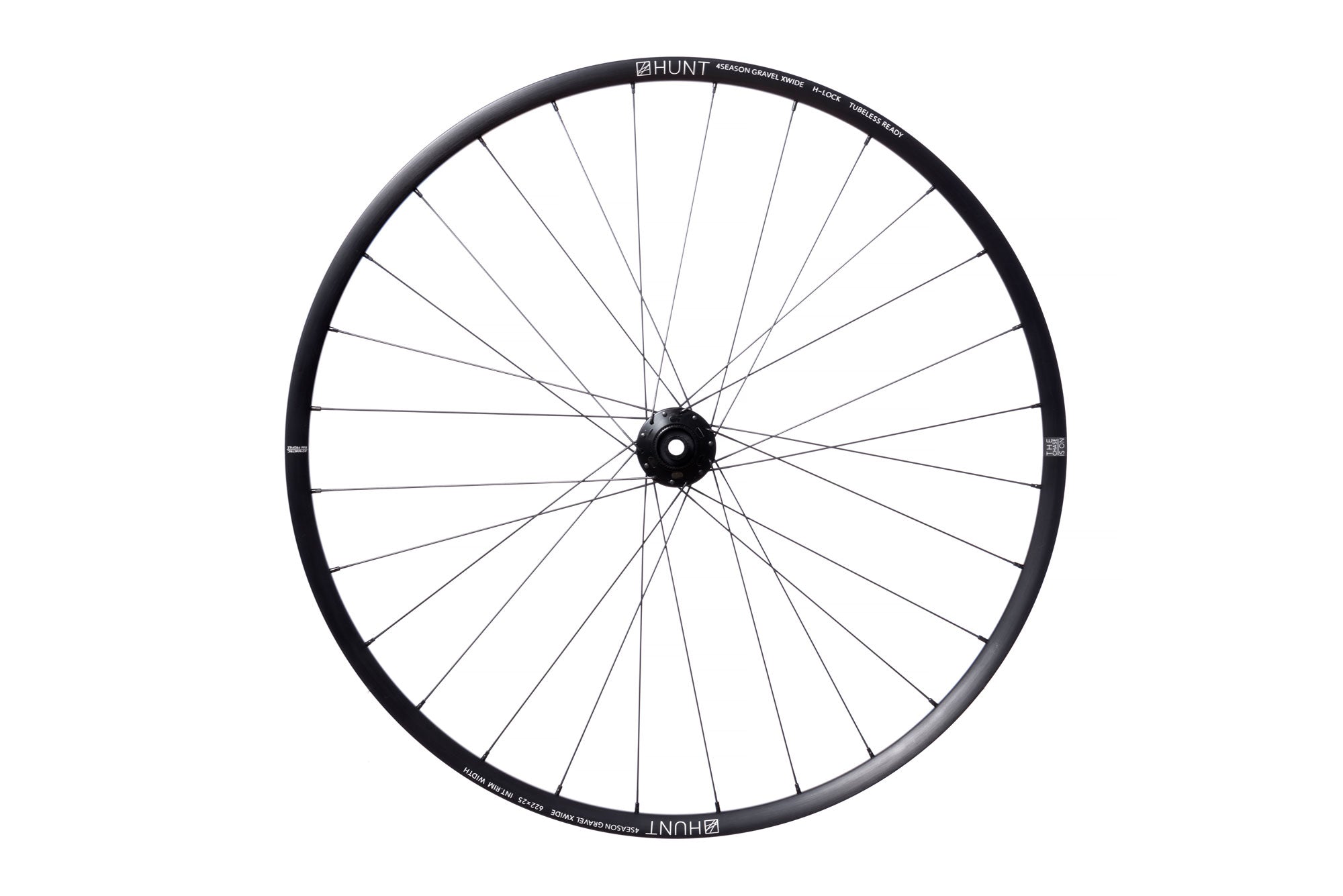

  • Front Hub

    • We fit the axles you need, just complete the simple form shown after checkout:
    • All existing road/CX disc front axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12mm Bolt Thru
    • All axle adapters are also available separately.
    • HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing.
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
    • Polished anodized black finish with laser graphics.

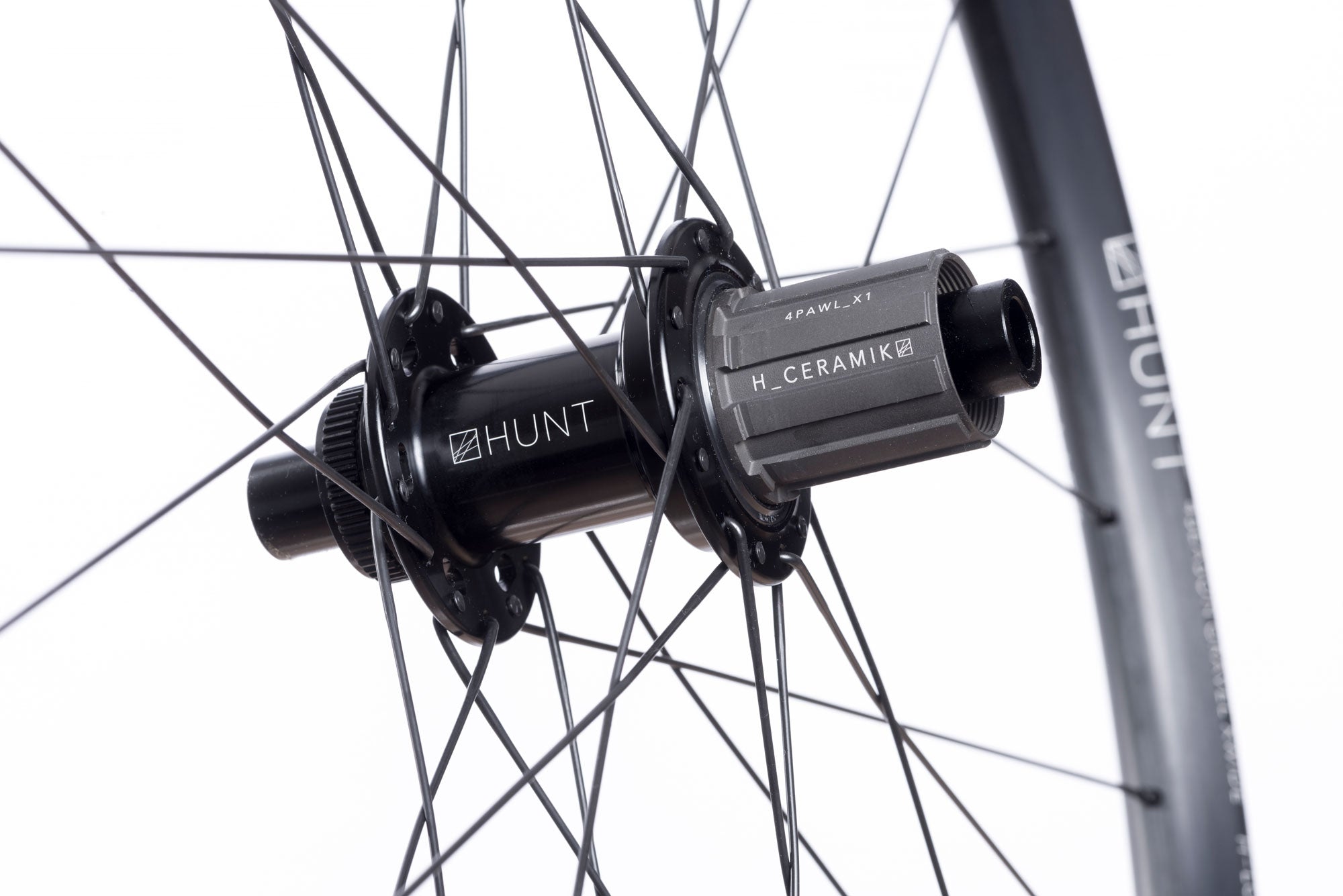

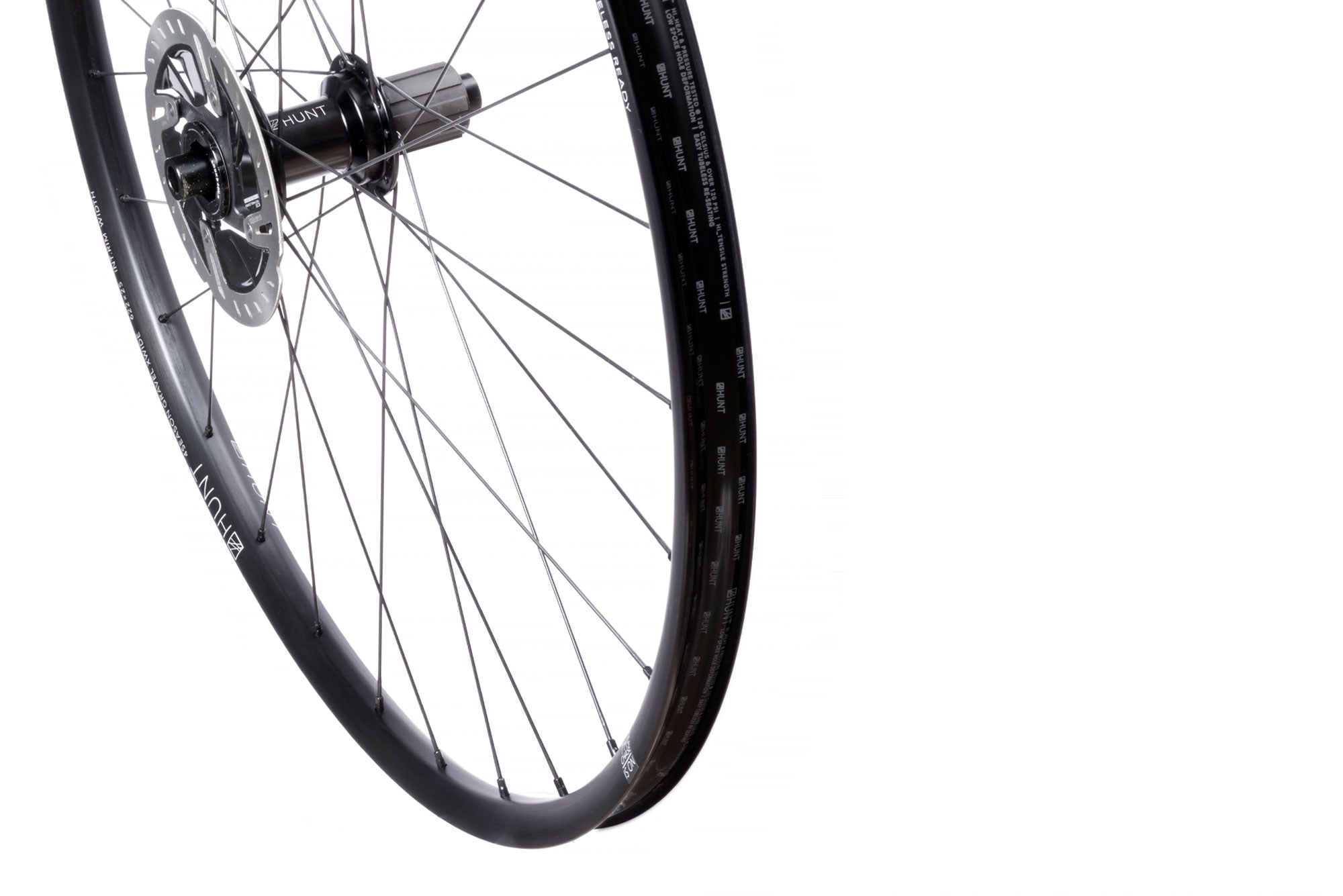

  • Rear Hub

    • 7075-T6 heat-treated aluminium alloy freehub body.
    • All freehub standards accounted for, including:
      • Shimano/SRAM
      • Campagnolo
      • SRAM XD Driver
      • SRAM XDR Driver
    • Hunt Race Season Disc straight-pull super-light alloy.
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
    • Polished anodized black finish with laser graphics.
    • We fit the axles you need, just complete the simple form shown after checkout.]
    • All existing road/CX disc rear axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12x142 Bolt Thru
      • 12x135 Bolt Thru (uncommon)
      • 10x135 Bolt Thru (uncommon)
      • All axle adapters are also available separately.

  • Bearings

    • Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
    • Sealed cartridge replaceable units.
    • Dual full-contact seals.

    • Warranty, HUNT Rolling Road Tests & Weight Limits

    A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

    All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 115kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres minimum 28mm at max 100psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

    60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

    Want to add tubeless tyres?

    We can fit tubeless tyres (including sealant) to your wheels, they are also designed to work excellently with clincher tyres and tubes.

    These are only some of the options you can have fitted on your wheels. To see the full range, click here

    Schwalbe G-One Allround Tubeless Tyres

    Schwalbe G-One Allround Tubeless Tyres - 35 or 38mm

    The Schwalbe Tubeless tyres consistently win plaudits from journalists and customers alike. We have been testing them for a long time and have been very impressed. The G-One's are Schwalbe's brand new gravel tyre, designed to offer a low rolling resistance yet offer plenty of grip on gravel and dirt tracks.

    The highly respected German Magazine TOUR said: "Unbeatable with punctures... – the "self-repair" with sealant means that no tube can compare."
